Step in and sit: a walk-in chamber with no crawling into a tube

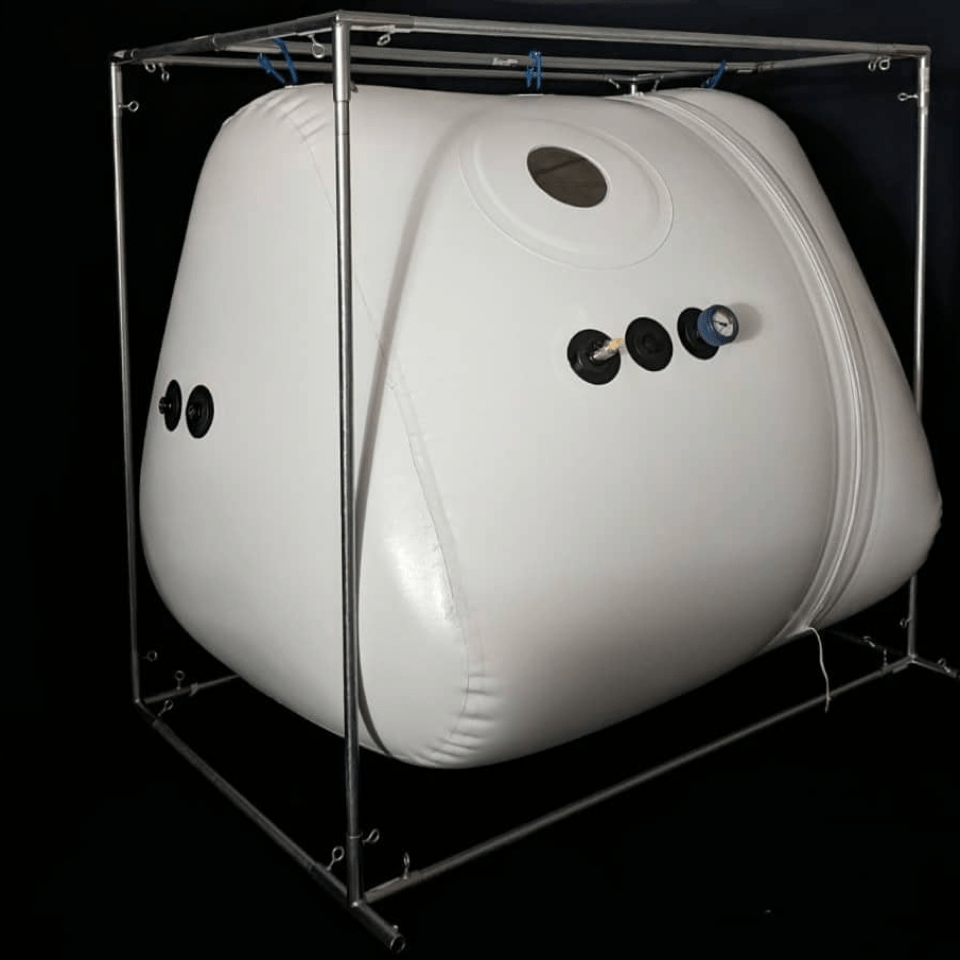

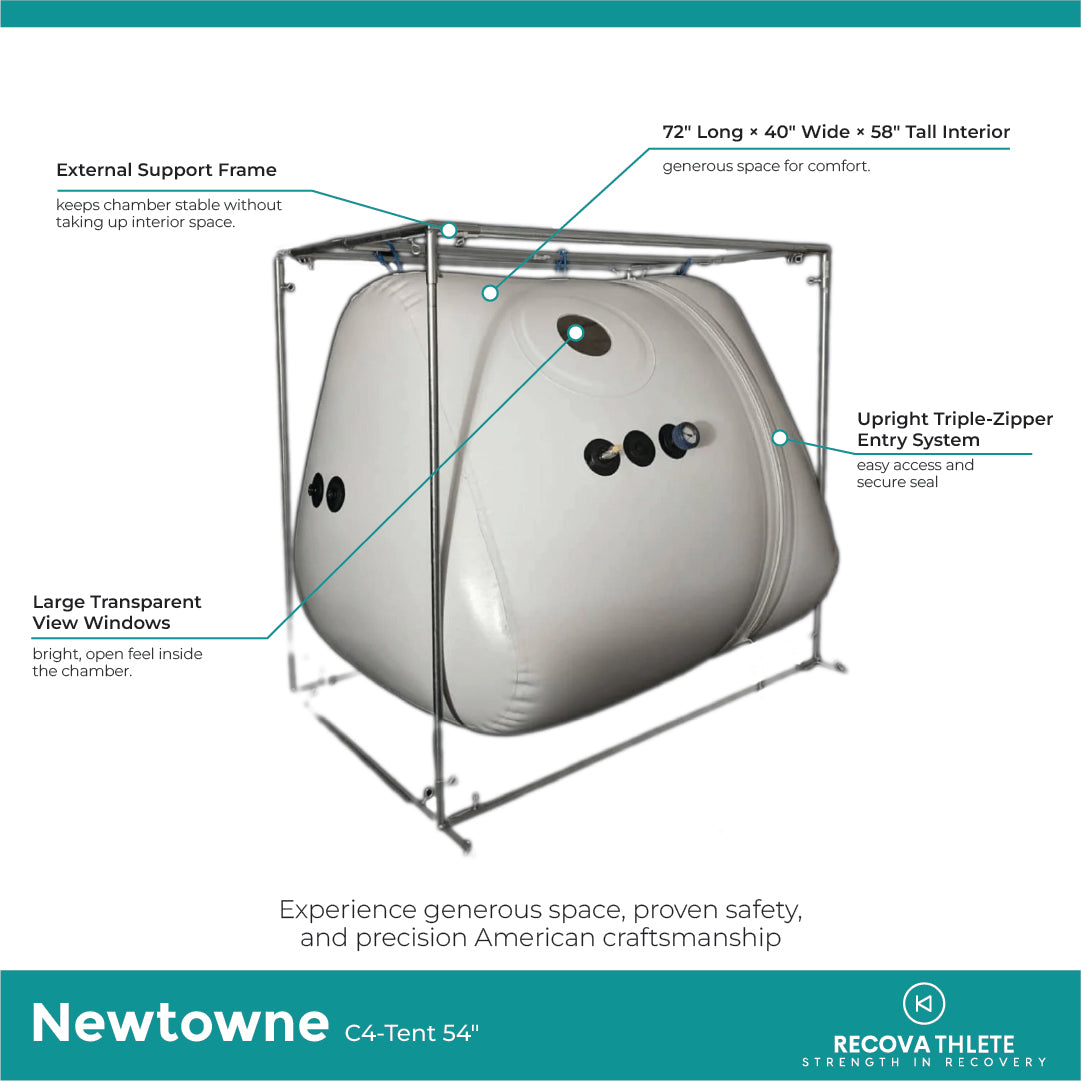

The C4-Tent is Newtowne's walk-in chamber for people who do not want to crawl into a tube. Step in through an upright, floor-level zipper door and sit in the folding chair that ships with it. Fully pressurized it measures 72 × 40 × 58 inches on a steel frame, runs at 4 PSI (about 1.3 ATA), and includes a 120 L compressor with filter, internal and external pressure gauges, two viewports and a power-outage alarm. It is a single-user chamber unless Newtowne approves another setup in writing.
Best for: Users who prefer an upright, floor-level entry and a seated 1.3 ATA session at home.
What a session looks like
Zip yourself into the chamber and start the compressor. Newtowne chambers pressurize with room air only, so oxygen (if you use it) is delivered separately through a mask or cannula from a concentrator. The gauge lets you watch pressure as it rises to about 4 PSI (1.3 ATA), and at the end of the session you open the deflate valve and let pressure drop before unzipping. Many users schedule sessions of roughly 60 to 90 minutes.
Space, power and setup
Because these chambers pressurize with room air, a compressor is essential; oxygen, if you want it, needs a separate concentrator (check the box contents for what is included). Plan a flat area for the frame, a grounded 120 V outlet and enough clearance around the chamber, and follow Newtowne's manual for setup and use. At a glance: power 120 V, 60 Hz, single phase, grounded outlet.
Choosing the right model
If you prefer a compact lying or sit-or-lie design, look at the C4-Shoe or Long Shoe.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
Operating notes
- Pressurize with room air only. Never pressurize the chamber with oxygen; an optional oxygen concentrator delivers oxygen through the mask or cannula.
- Keep the compressor running for the whole session. If power stops or the air hose disconnects, open the deflate valve, depressurize and exit.
- Do not open the zippers until the chamber material is no longer rigid.
- No solvents, alcohol, bleach, adhesives or sealants on the chamber.
A hyperbaric chamber is a pressurized environment. Use only as directed in the manufacturer's manual, pressurize with room air only, keep flames, sparks and heat sources away, and consult a physician before use. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.

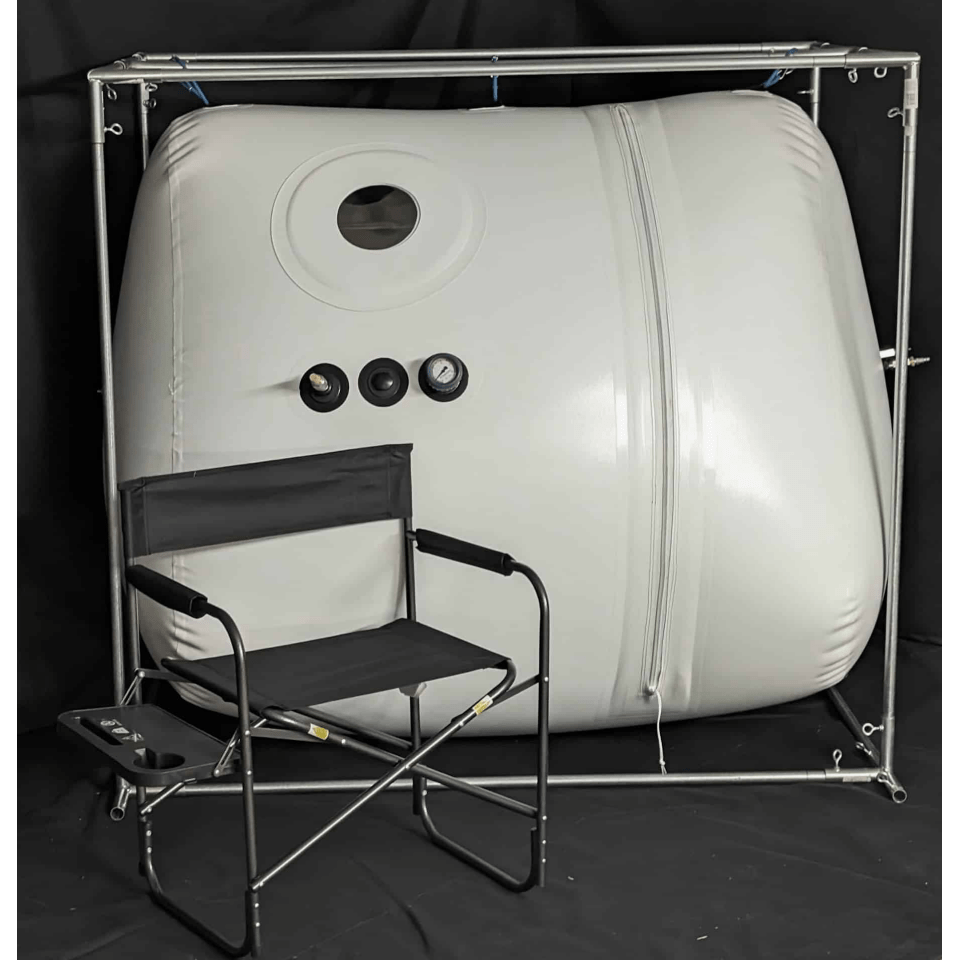

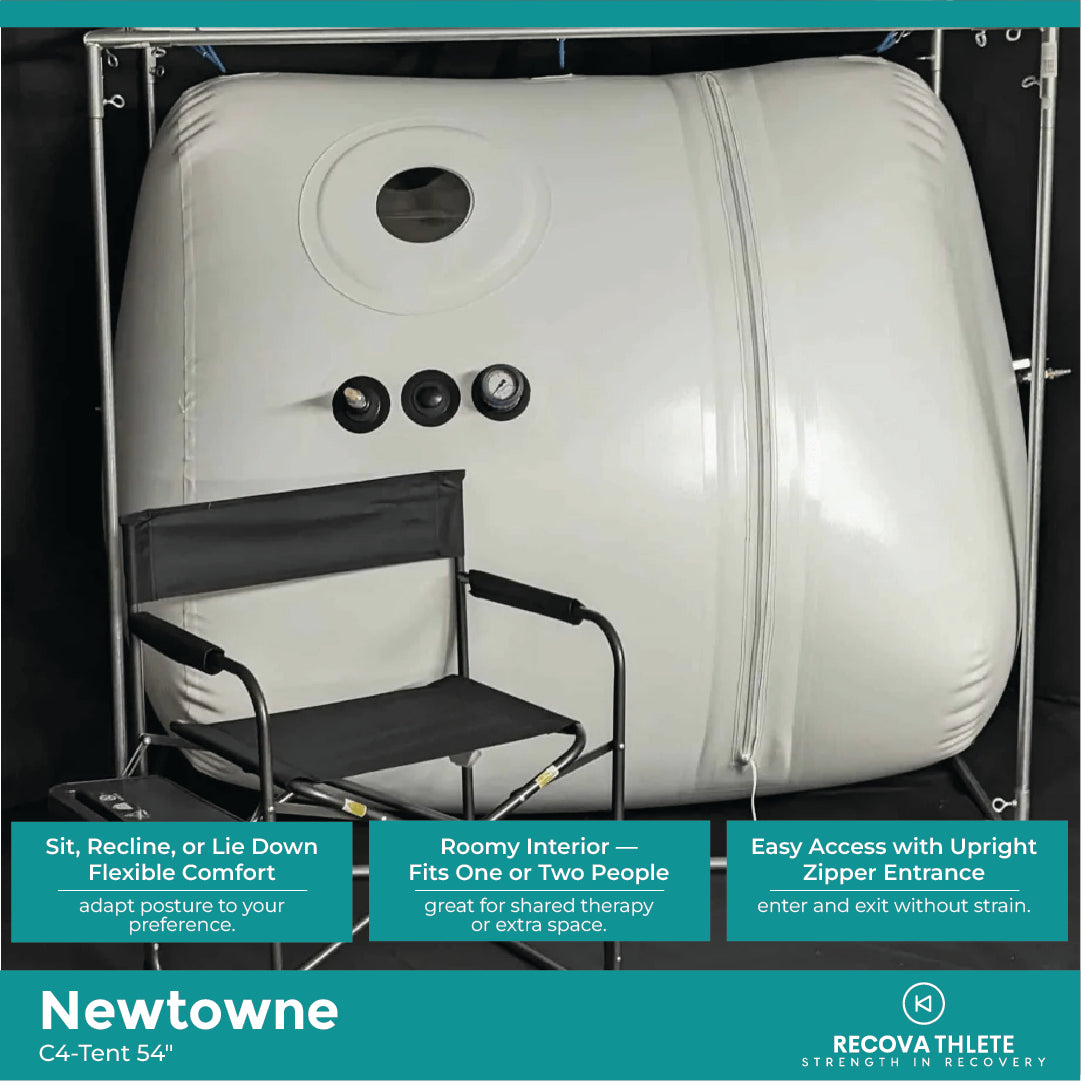

- Upright walk-in door; folding chair and chair mat included

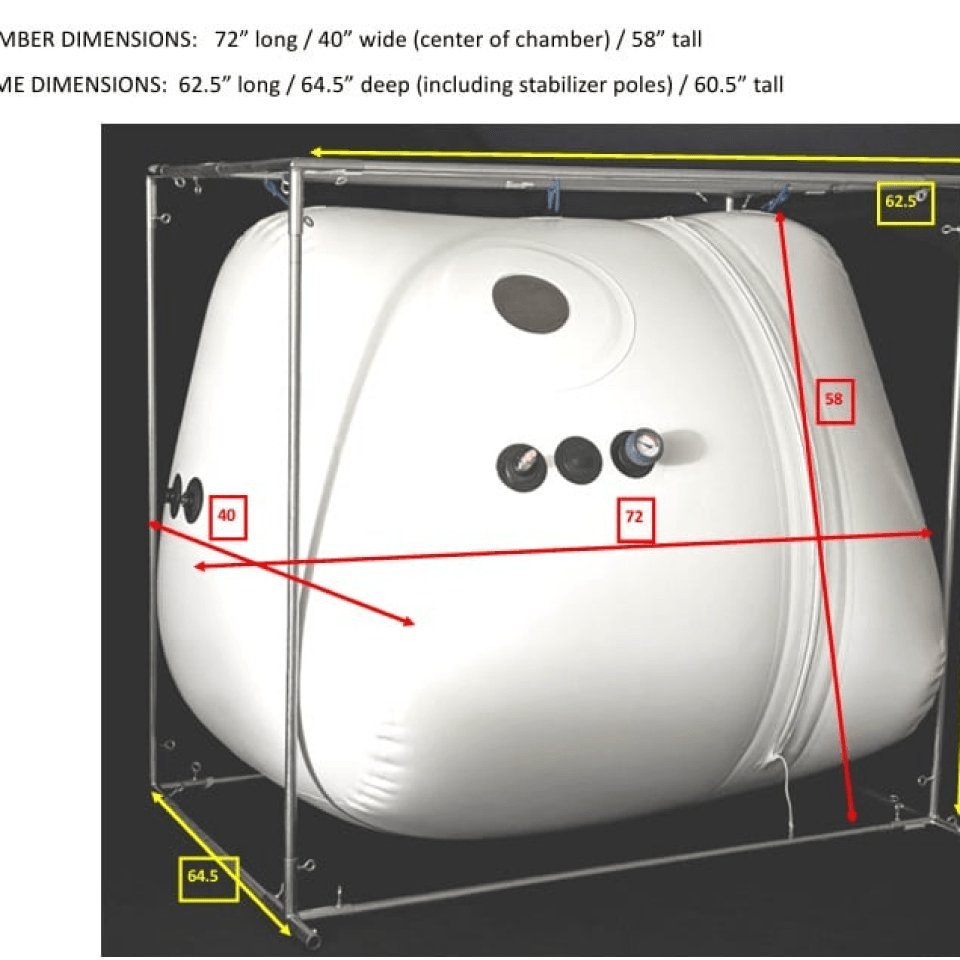

- 72 × 40 × 58 in at full pressure; frame 62.5 × 64.5 × 60.5 in
- 120 L compressor with filter; internal and external pressure gauges included
- Four accessory ports (the oxygen valve uses one)
- Two viewports with hard port covers; triple zipper and deflate valve work from inside and out
- Two chamber relief valves plus a compressor relief valve; power outage alarm

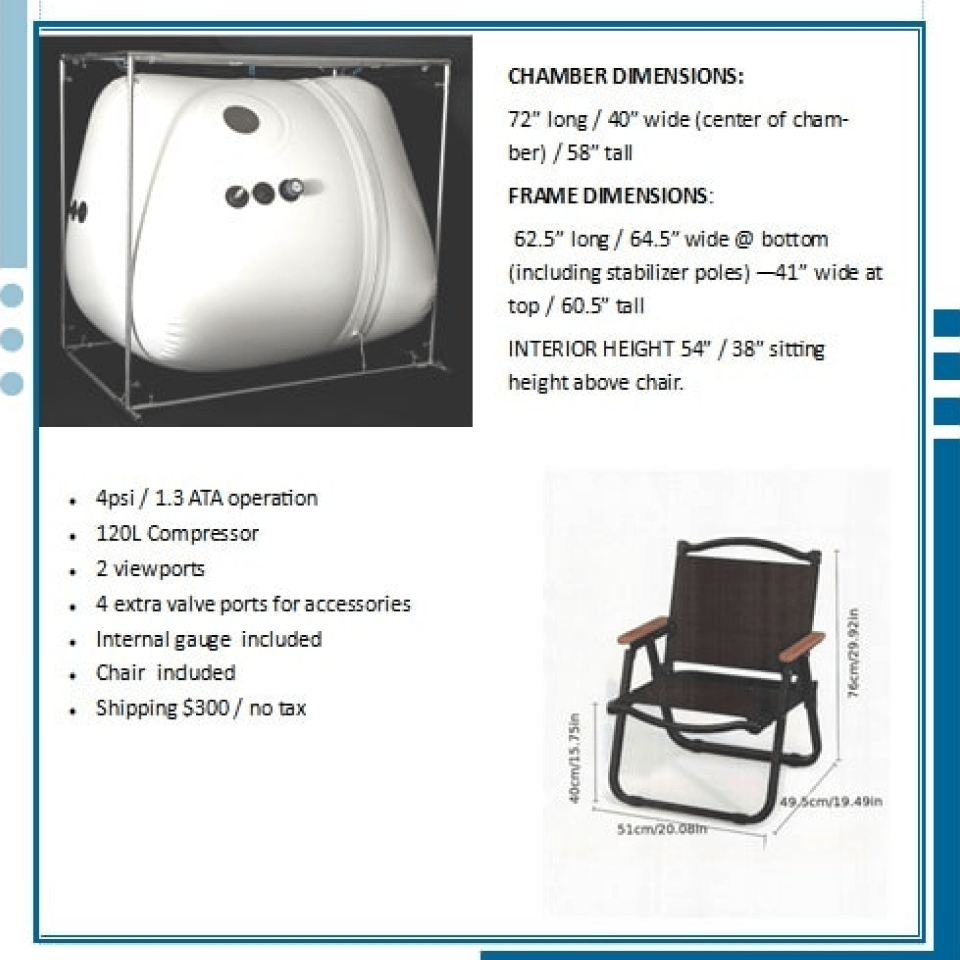

| Chamber, fully inflated | 72 in L × 40 in W (center) × 58 in H |
|---|---|
| Frame | 62.5 in L × 64.5 in W × 60.5 in H |
| Material | Hypoallergenic double-laminated ballistic nylon |
| Entry | Upright triple zipper door |

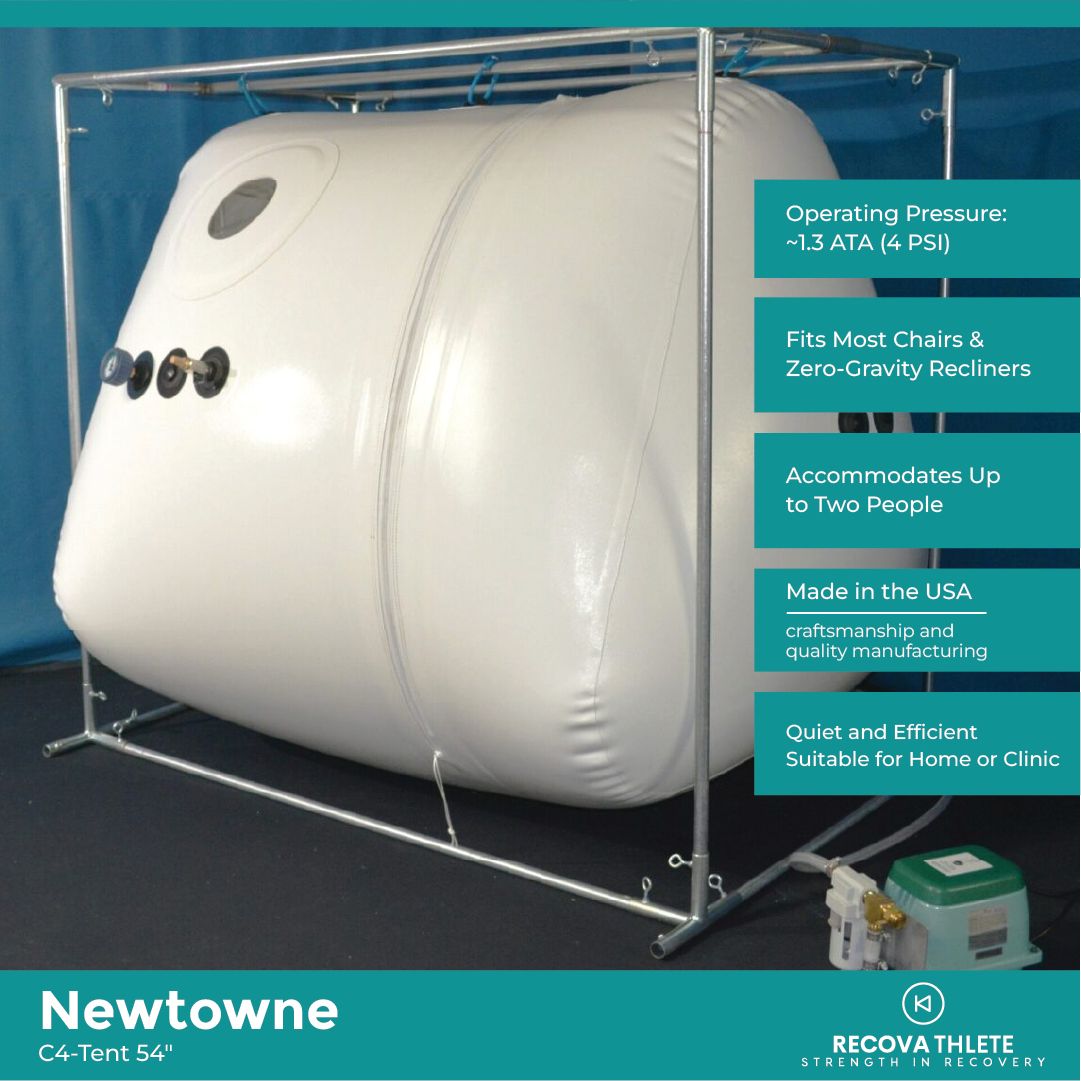

| Operating pressure | 4 PSI (1.3 ATA) |
| Pressure relief | 2 chamber relief valves preset to 4–4.4 PSI, plus 1 compressor relief valve |
| Compressor | 120 L with filter; filter replaced yearly |
| Power | 120 V, 60 Hz, single phase, grounded outlet |
- 120 L air compressor with filter
- External pressure gauge (fitted)
- Internal pressure gauge (customer installed)
- Oxygen kit: valve, hose, adult mask, adult nasal cannula
- Folding chair and chair mat
