Sit up or lie down in one compact chamber

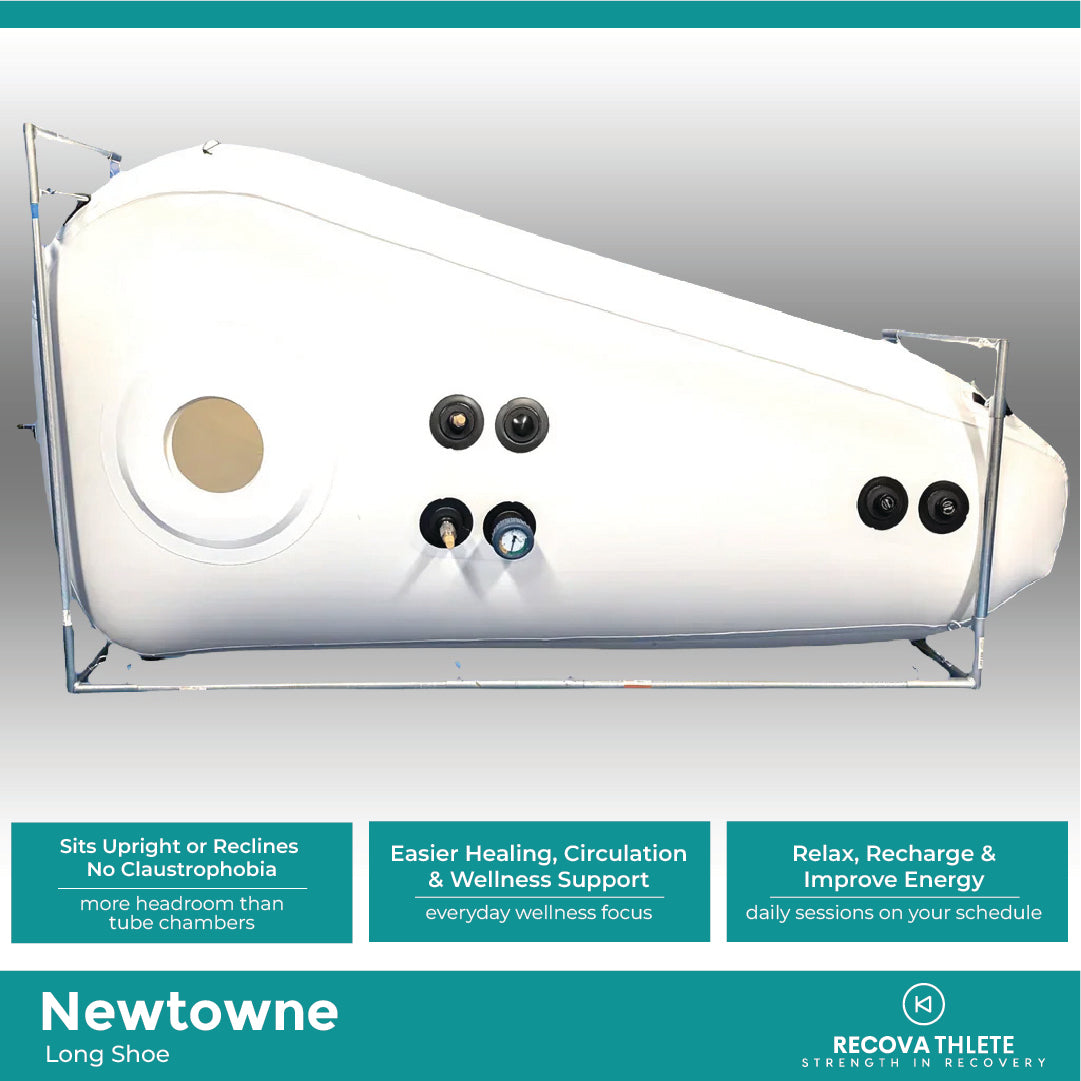

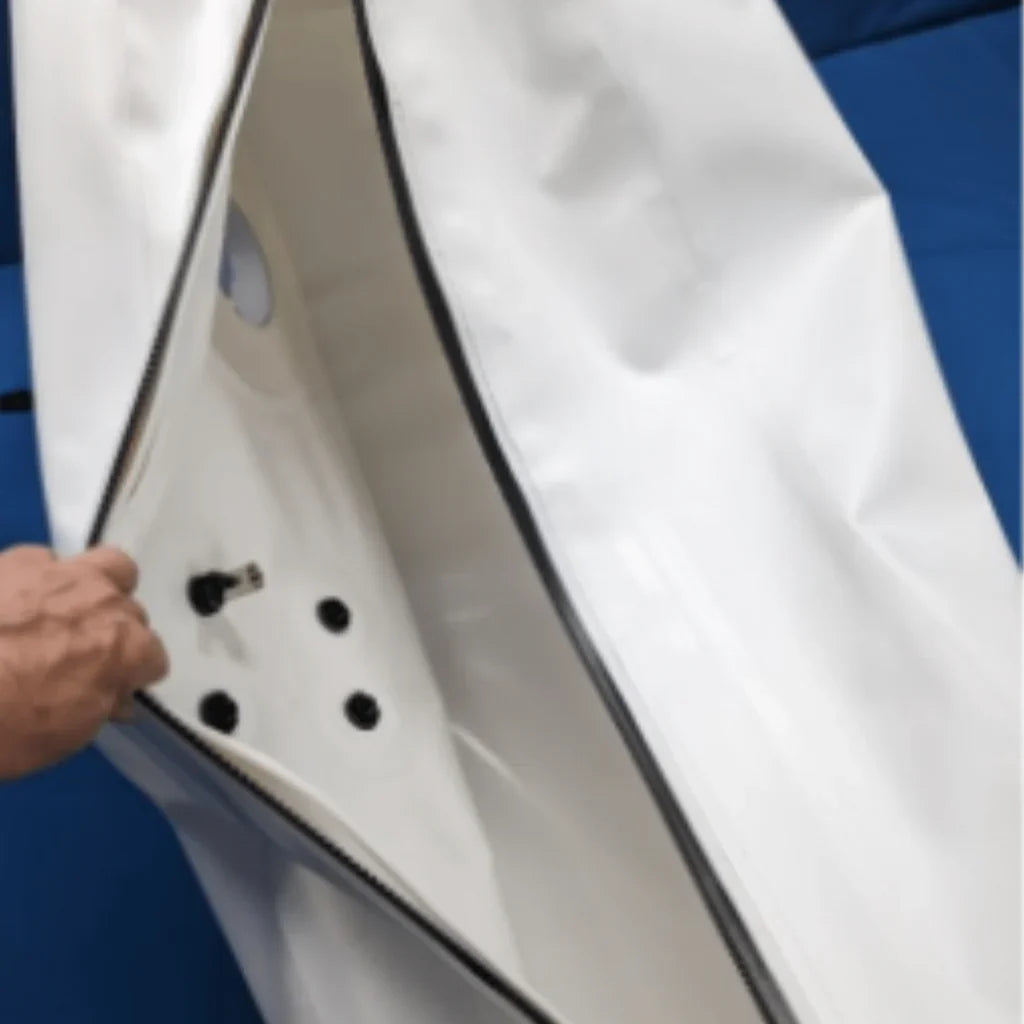

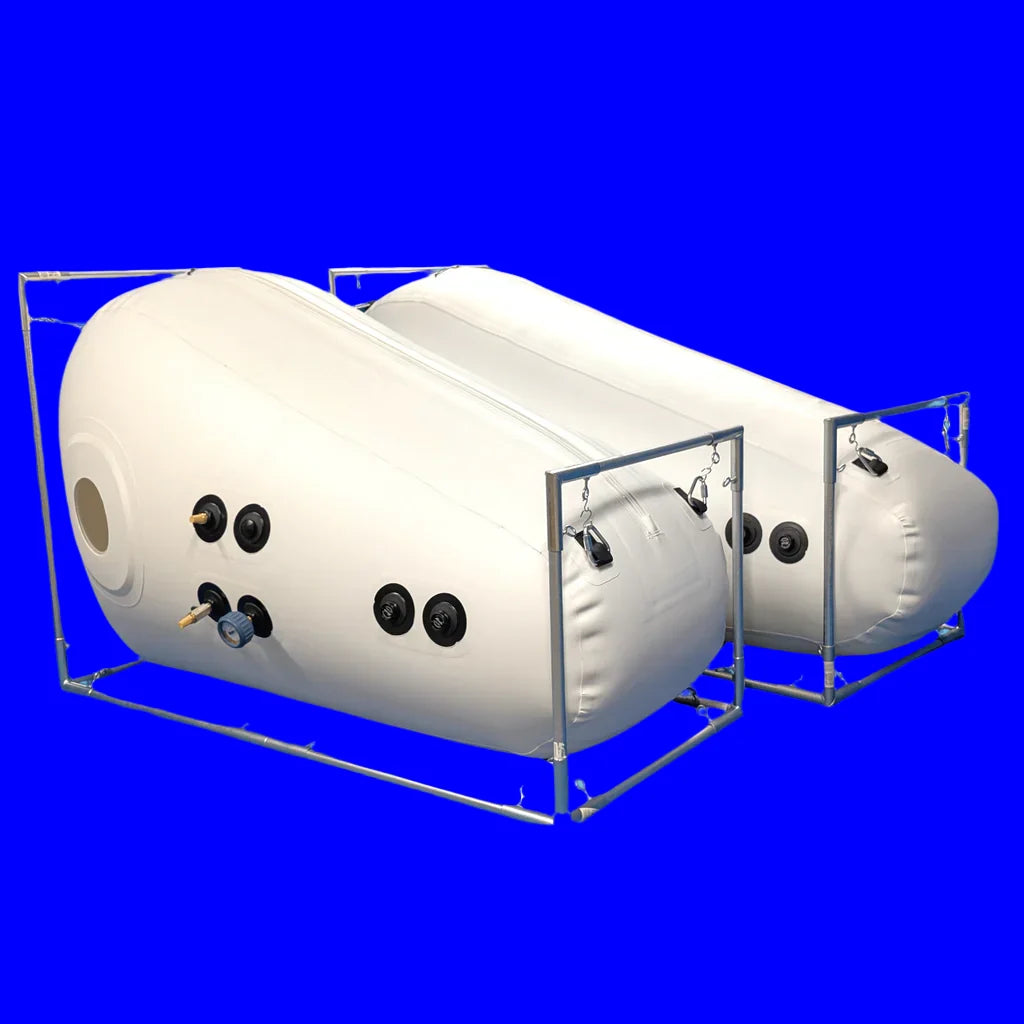

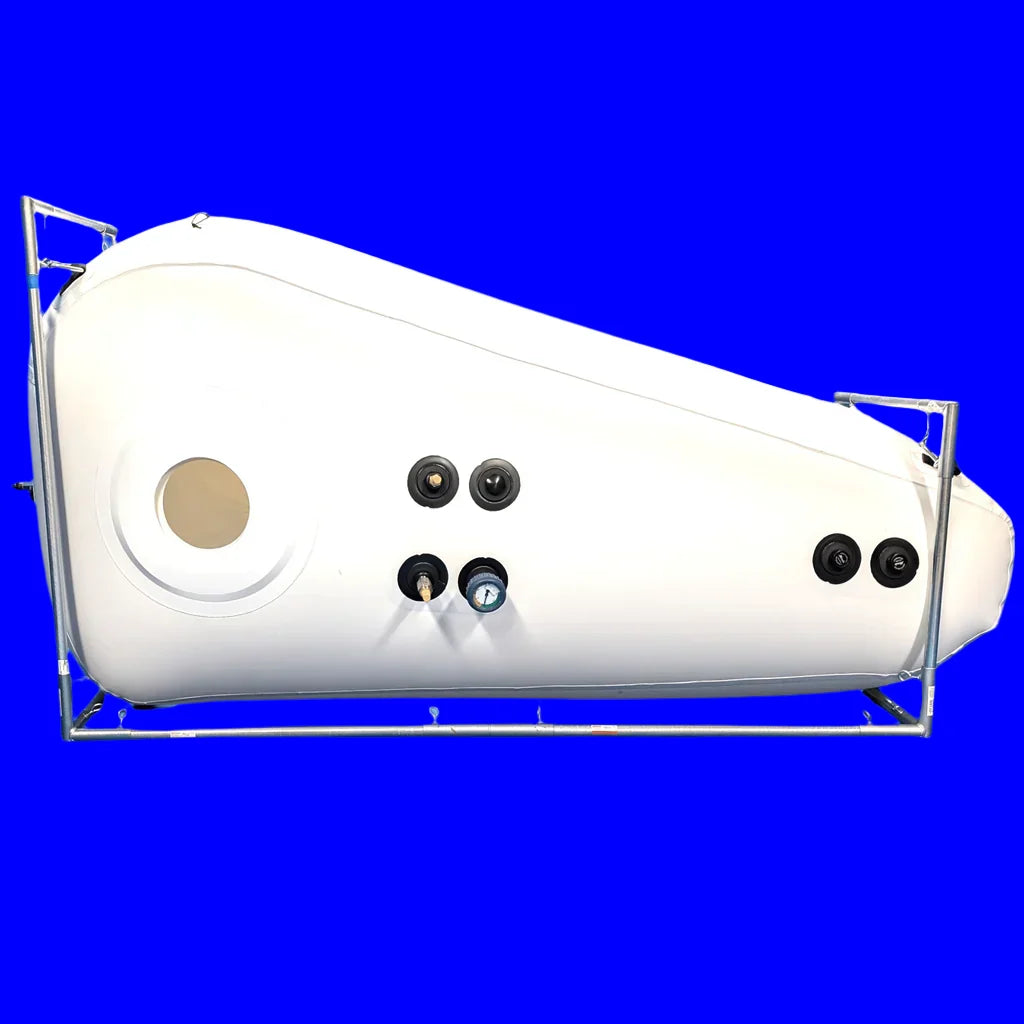

The Long Shoe is a compact chamber you can sit up in or lie down in, rated by Newtowne for users up to 6 ft 1 in. At full pressure it measures 81 × 37 × 42 inches, which is 13 inches longer than the standard C4-Shoe at the same width. Triple zippers and the deflate valve work from inside and out, two viewports and two spare accessory ports are included, and an oxygen kit ships in the box.
Best for: Users up to 6 ft 1 in who want flexible positioning and an oxygen kit in the box.
What a session looks like

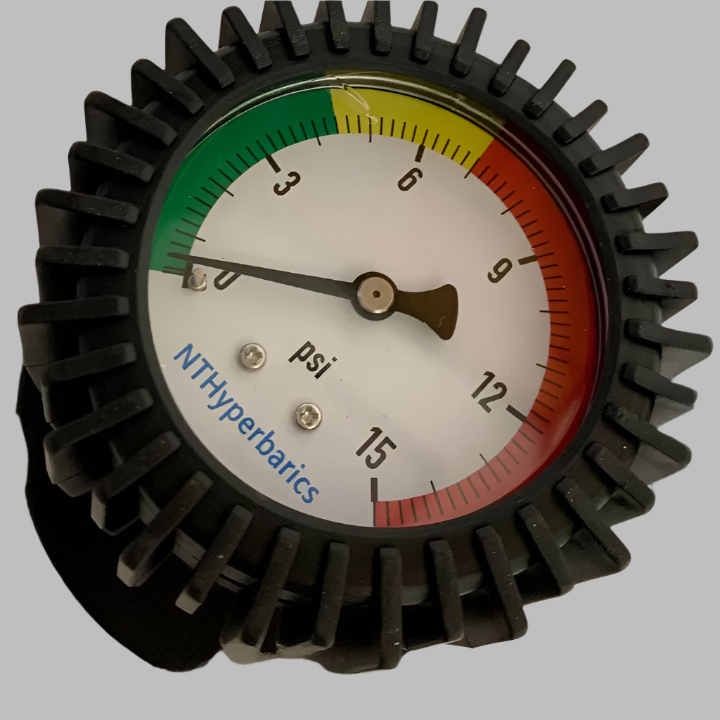

Zip yourself into the chamber and start the compressor. Newtowne chambers pressurize with room air only, so oxygen (if you use it) is delivered separately through a mask or cannula from a concentrator. The gauge lets you watch pressure as it rises to about 4 PSI (1.3 ATA), and at the end of the session you open the deflate valve and let pressure drop before unzipping. Many users schedule sessions of roughly 60 to 90 minutes.
Space, power and setup
Because these chambers pressurize with room air, a compressor is essential; oxygen, if you want it, needs a separate concentrator (check the box contents for what is included). Plan a flat area for the frame, a grounded 120 V outlet and enough clearance around the chamber, and follow Newtowne's manual for setup and use. At a glance: power 120 V, 60 Hz, single phase, grounded outlet.
Choosing the right model
For less floor space, the C4-Shoe needs only 68 inches; for a walk-in seated design, the C4-Tent.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
Operating notes
- Pressurize with room air only. Never pressurize the chamber with oxygen; an optional oxygen concentrator delivers oxygen through the mask or cannula.
- Keep the compressor running for the whole session. If power stops or the air hose disconnects, open the deflate valve, depressurize and exit.

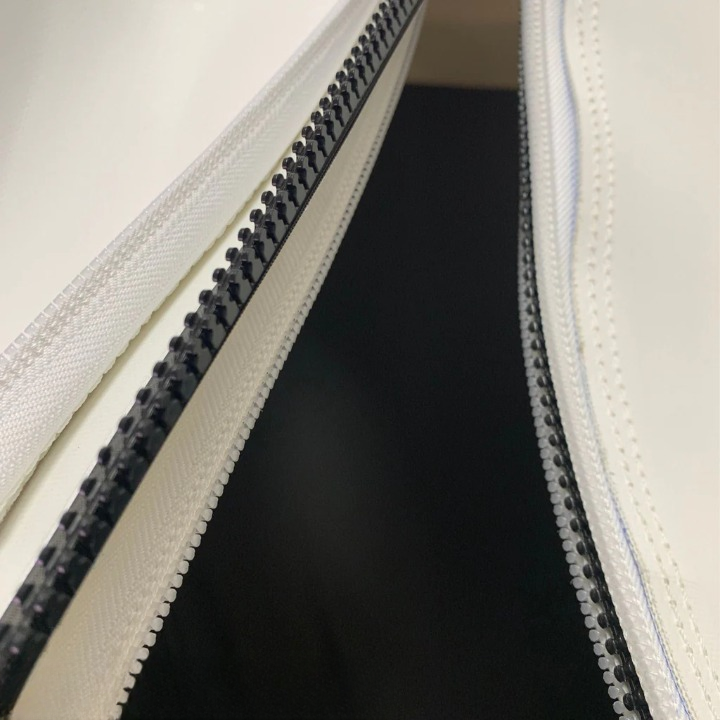

- Do not open the zippers until the chamber material is no longer rigid.
- No solvents, alcohol, bleach, adhesives or sealants on the chamber.
A hyperbaric chamber is a pressurized environment. Use only as directed in the manufacturer's manual, pressurize with room air only, keep flames, sparks and heat sources away, and consult a physician before use. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.

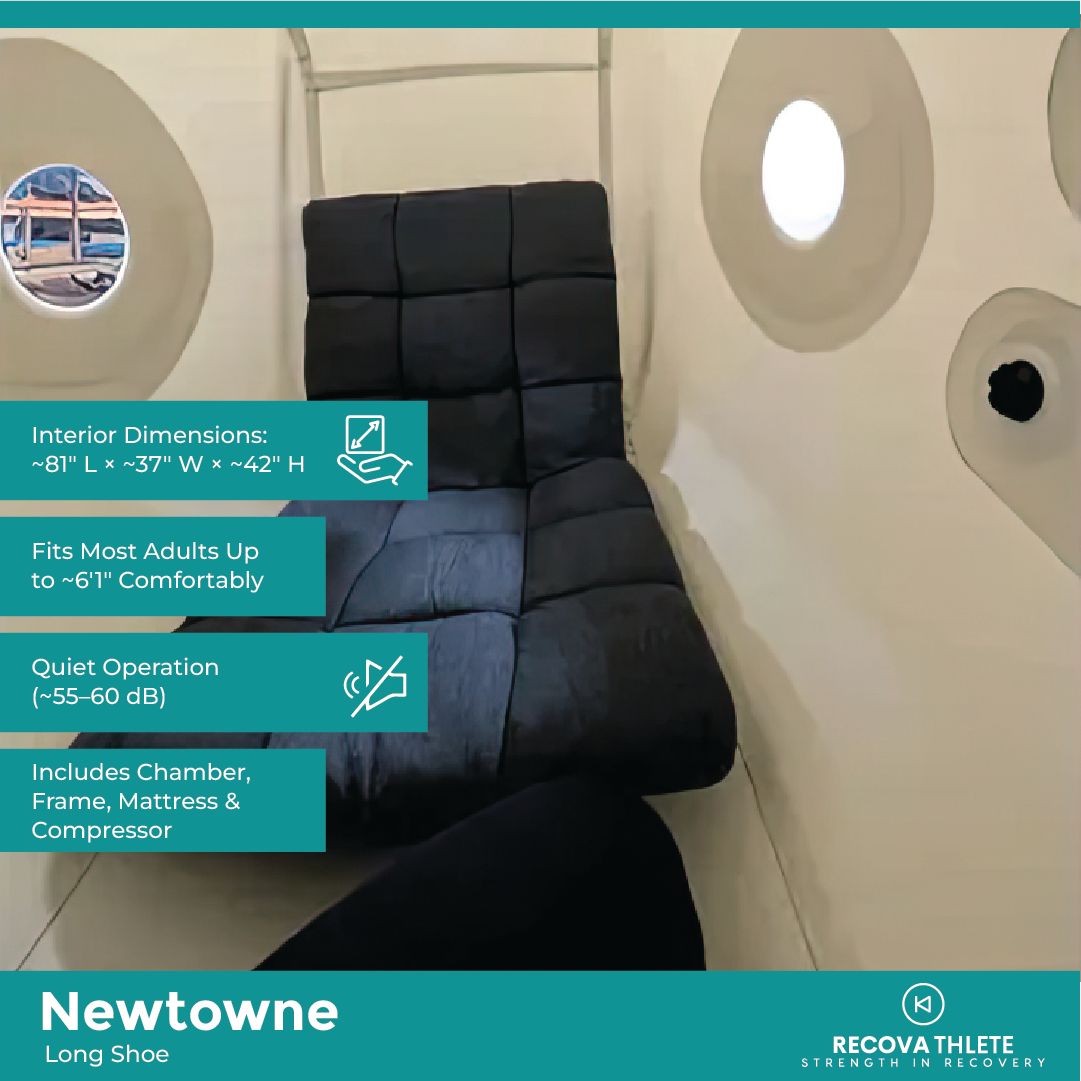

- Rated for users up to 6 ft 1 in, seated or lying down

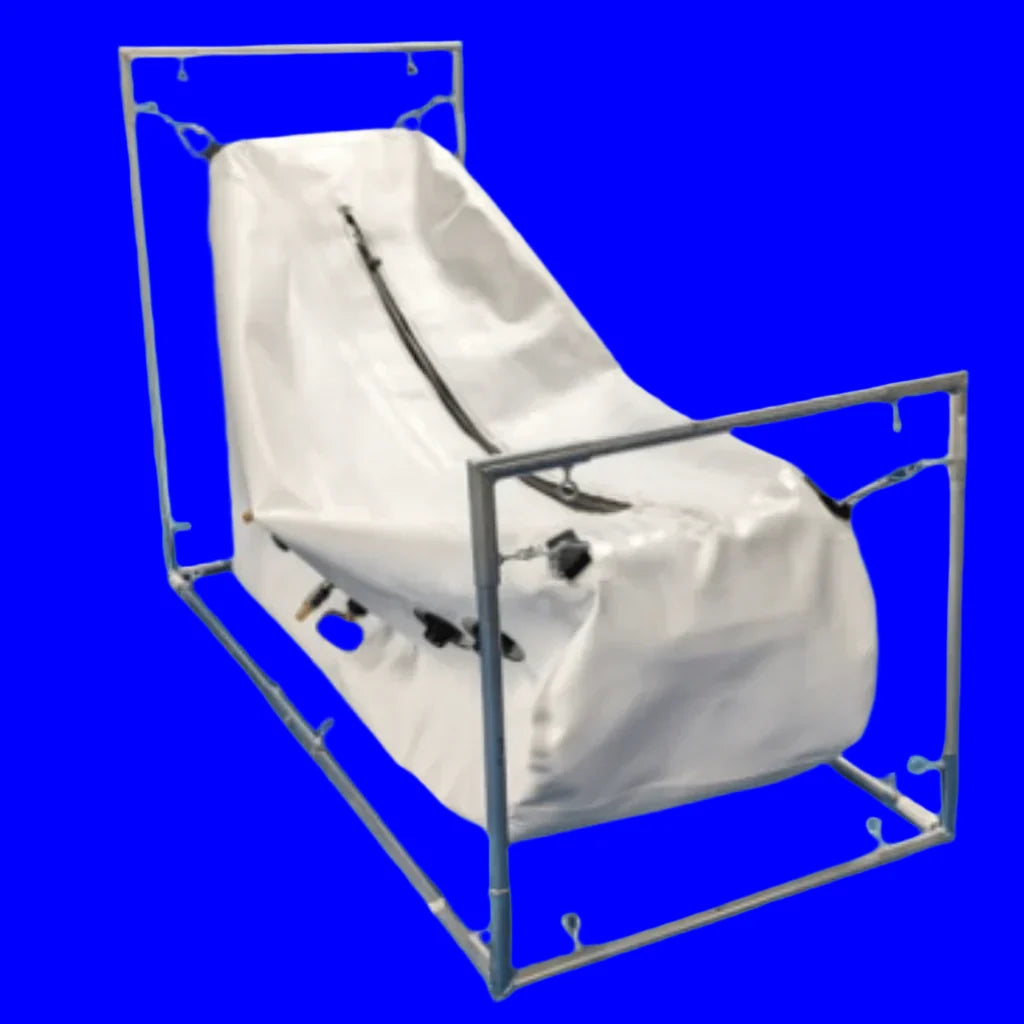

- 81 × 37 × 42 in at full pressure; frame 68 × 27.75 × 42 in

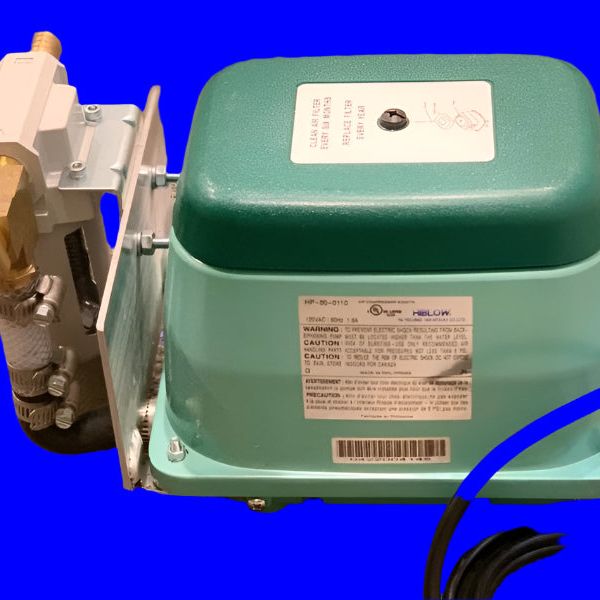

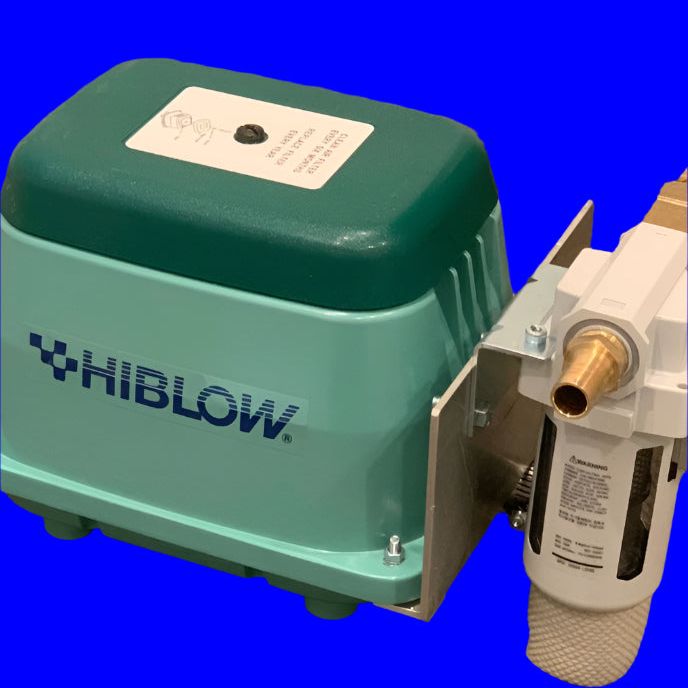

- 80 L compressor with filter; power outage alarm

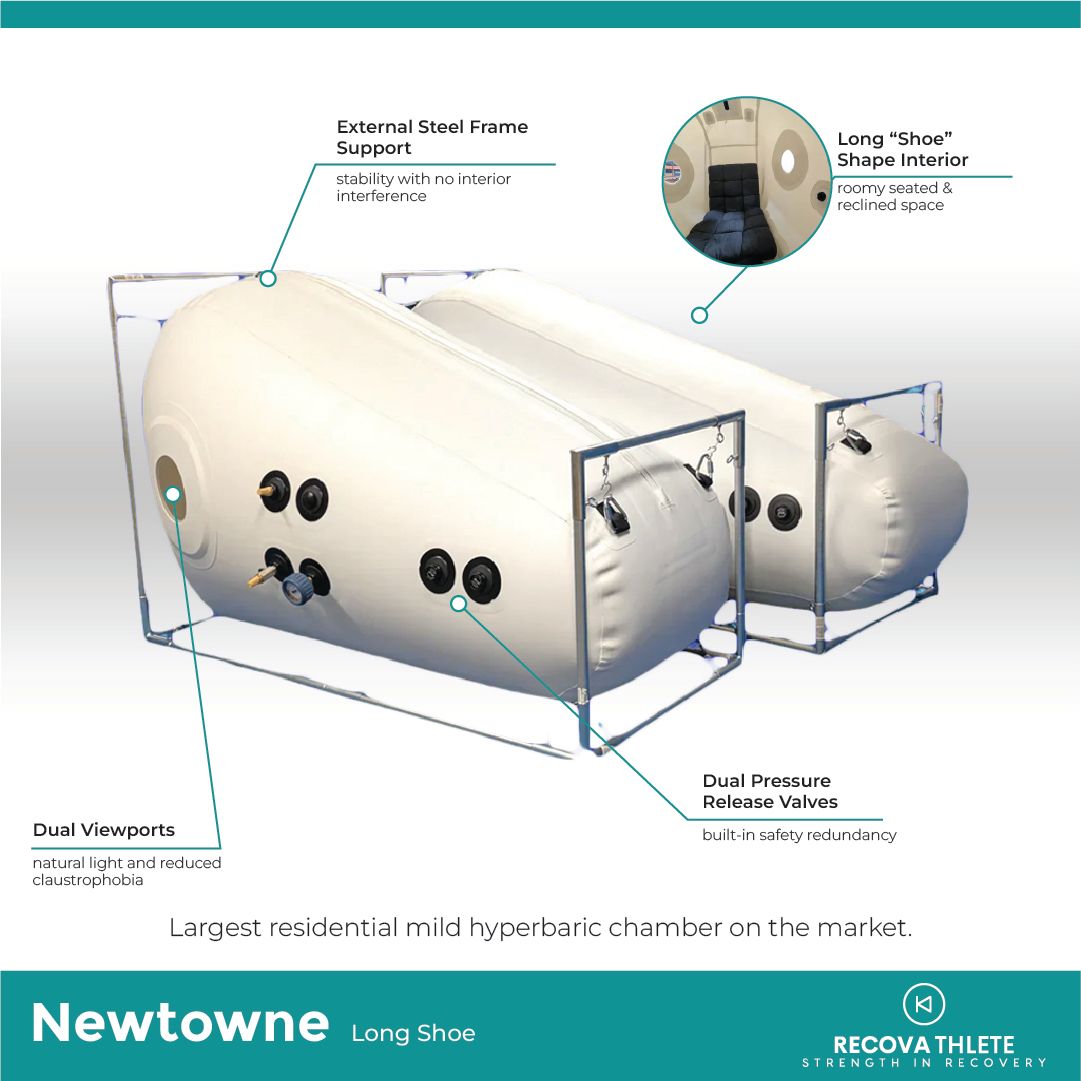

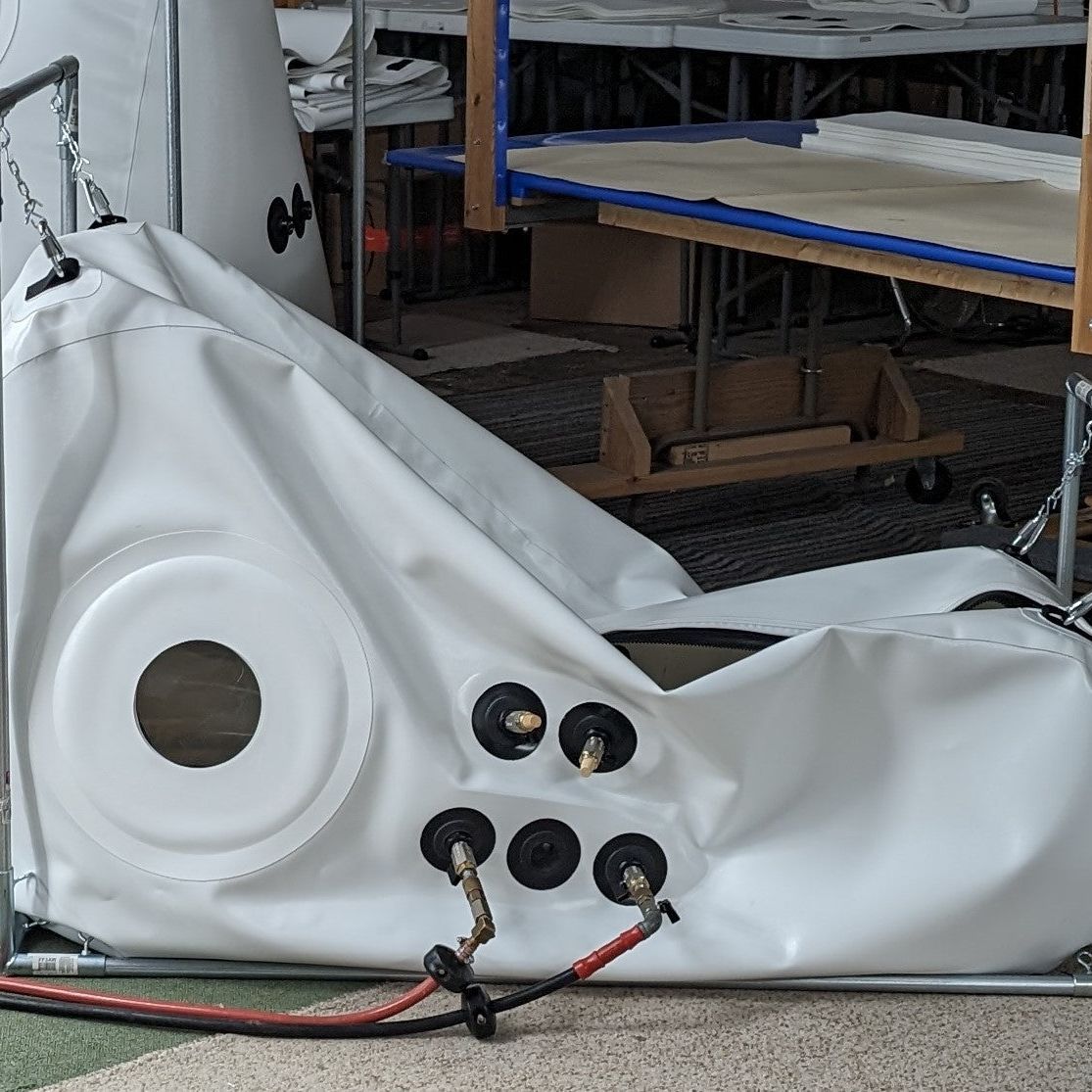

- Two viewports with hard port covers; two spare accessory ports

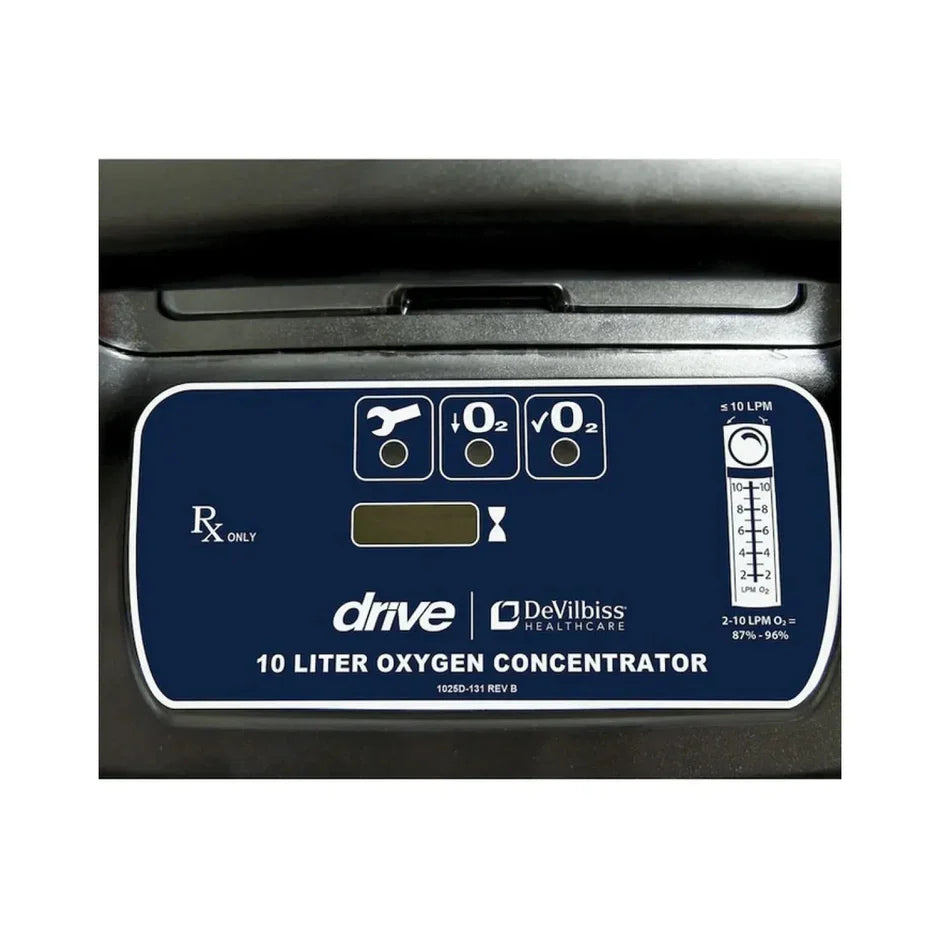

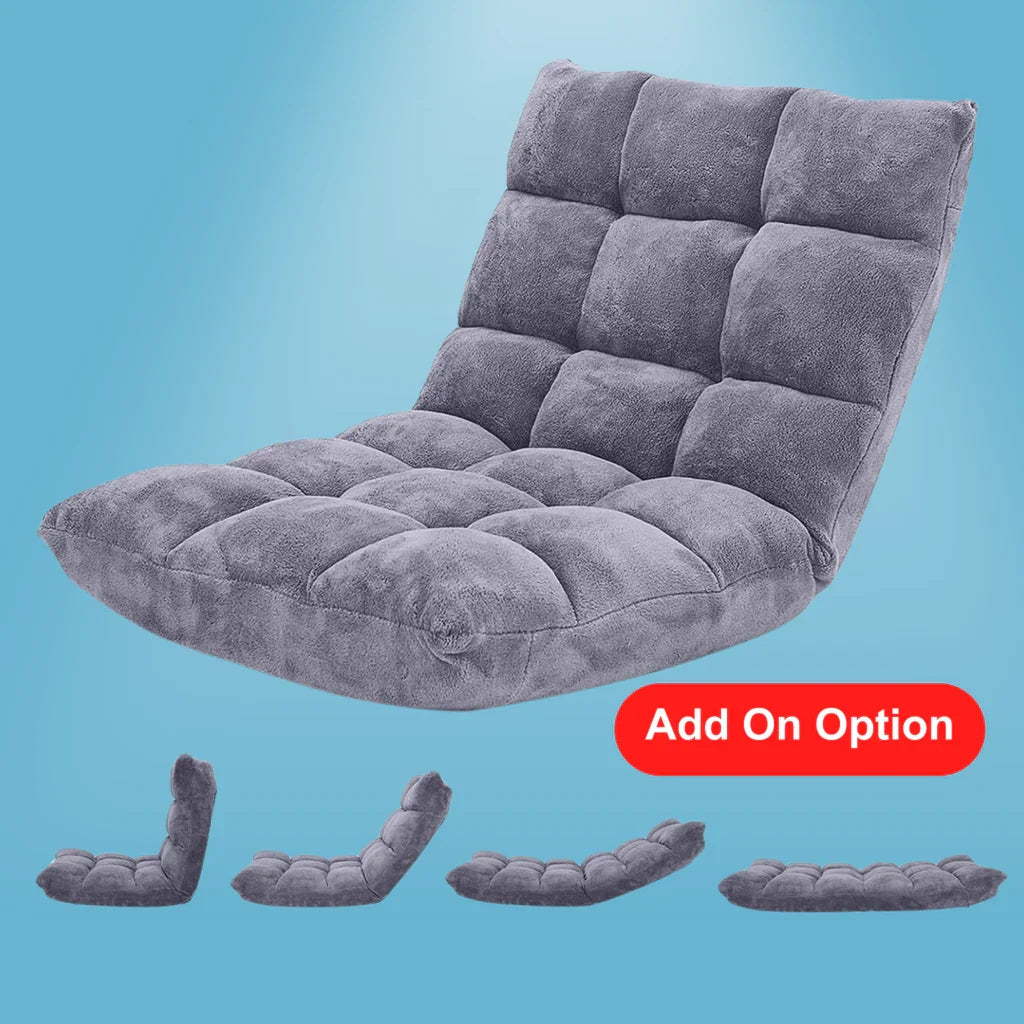

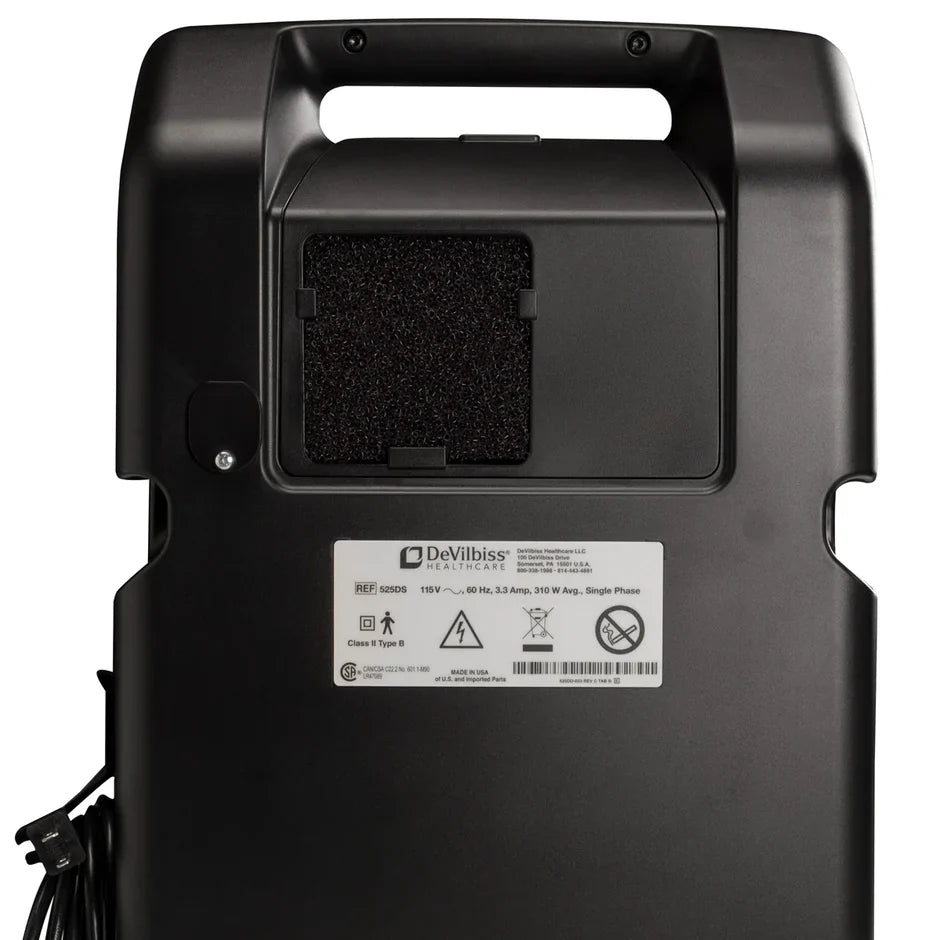

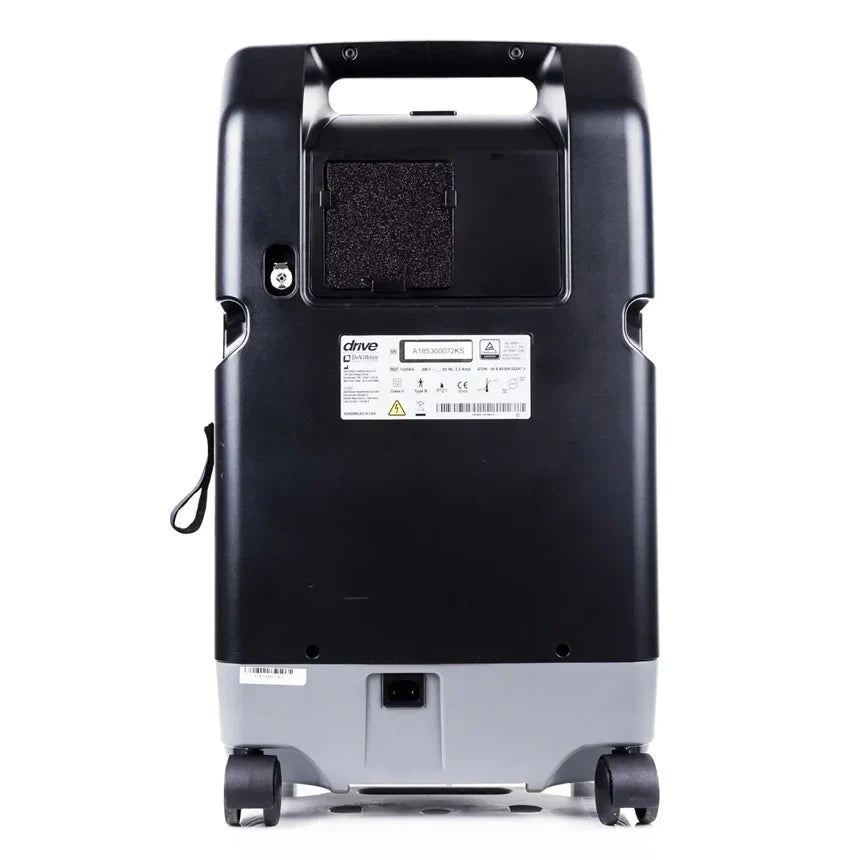

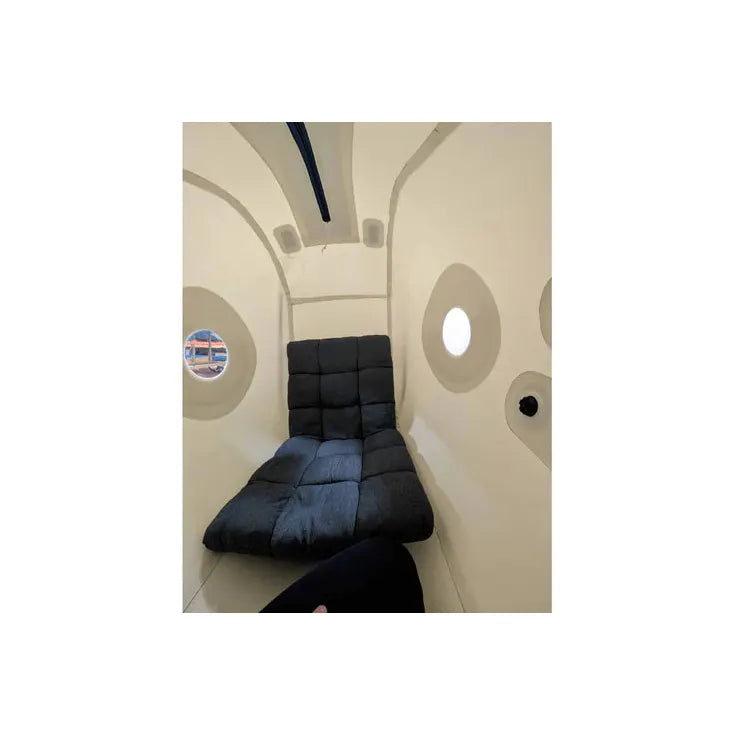

- Optional upgrades: internal pressure gauge, adjustable legless chair, DeVilbiss 10 LPM oxygen concentrator
| Chamber at full pressure | 81 in L × 37 in W × 42 in H (head end); 24 in at the foot end |
|---|---|

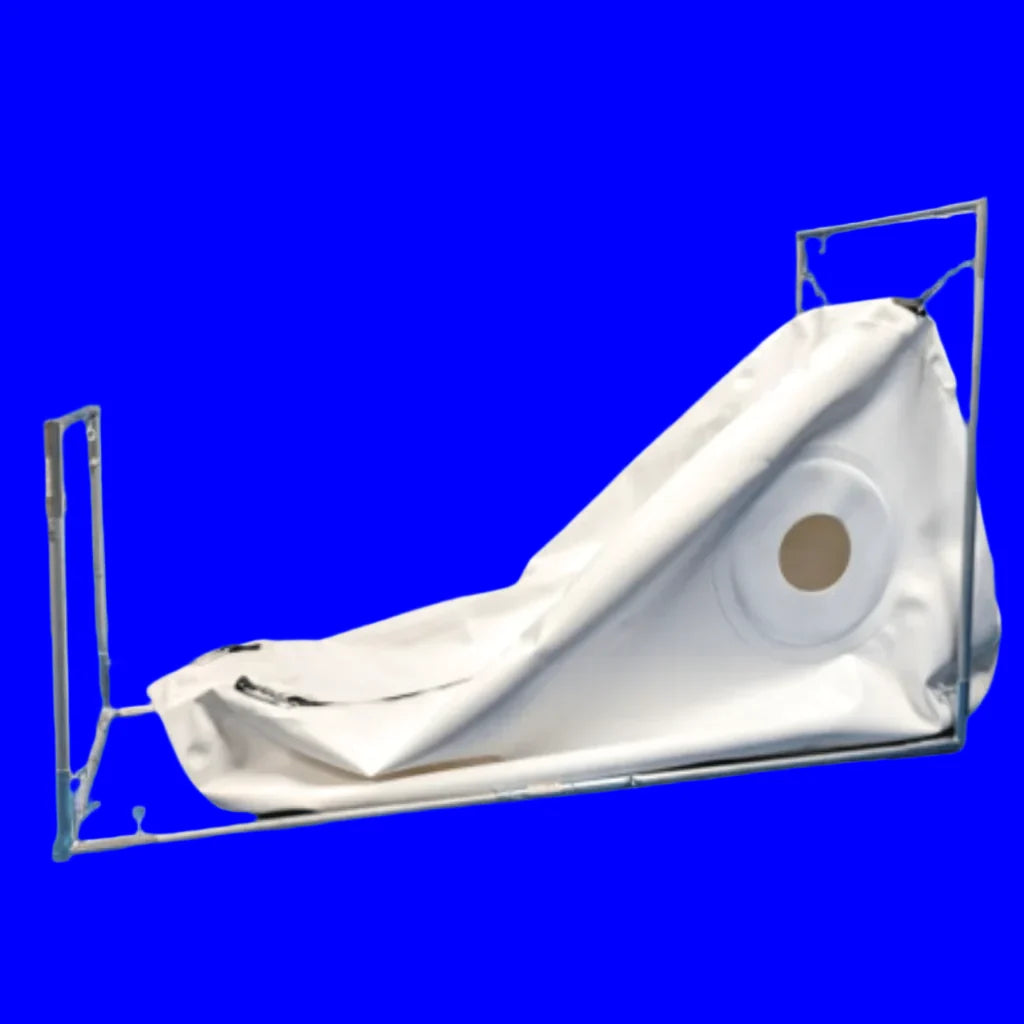

| External frame | 68 in L × 27.75 in W × 42 in H |
| Bladder weight | About 23 lb |
| Material | 46 oz double-laminated ballistic nylon, hypoallergenic |
| Operating pressure | 4 PSI (1.3 ATA) |
| Compressor | 80 L with filter |
| Power | 120 V, 60 Hz, single phase, grounded outlet |
| Oxygen concentrator | Sold separately; Newtowne recommends a 10 L unit at 7–9 LPM |
- Air compressor with filter
- External pressure gauge (fitted)

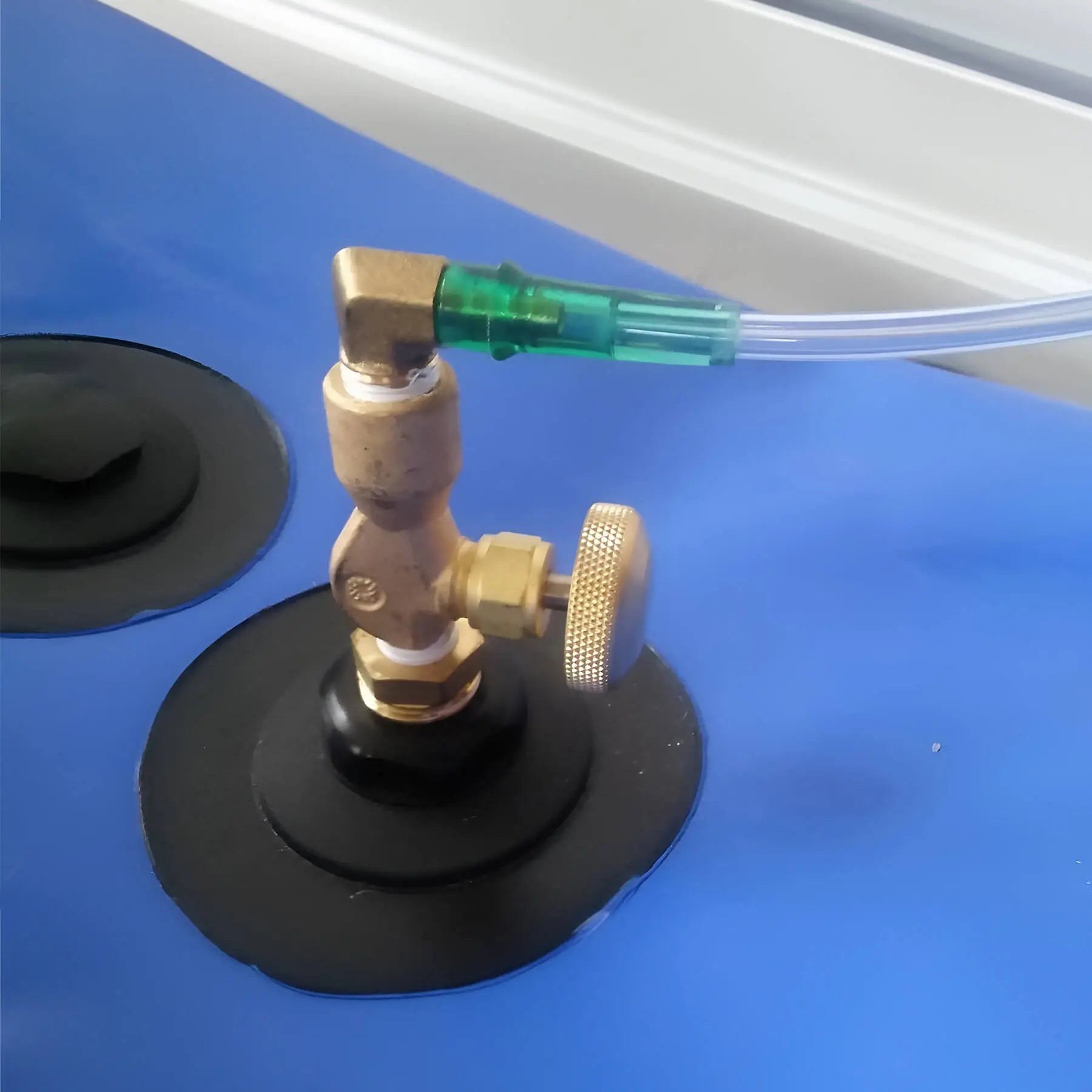

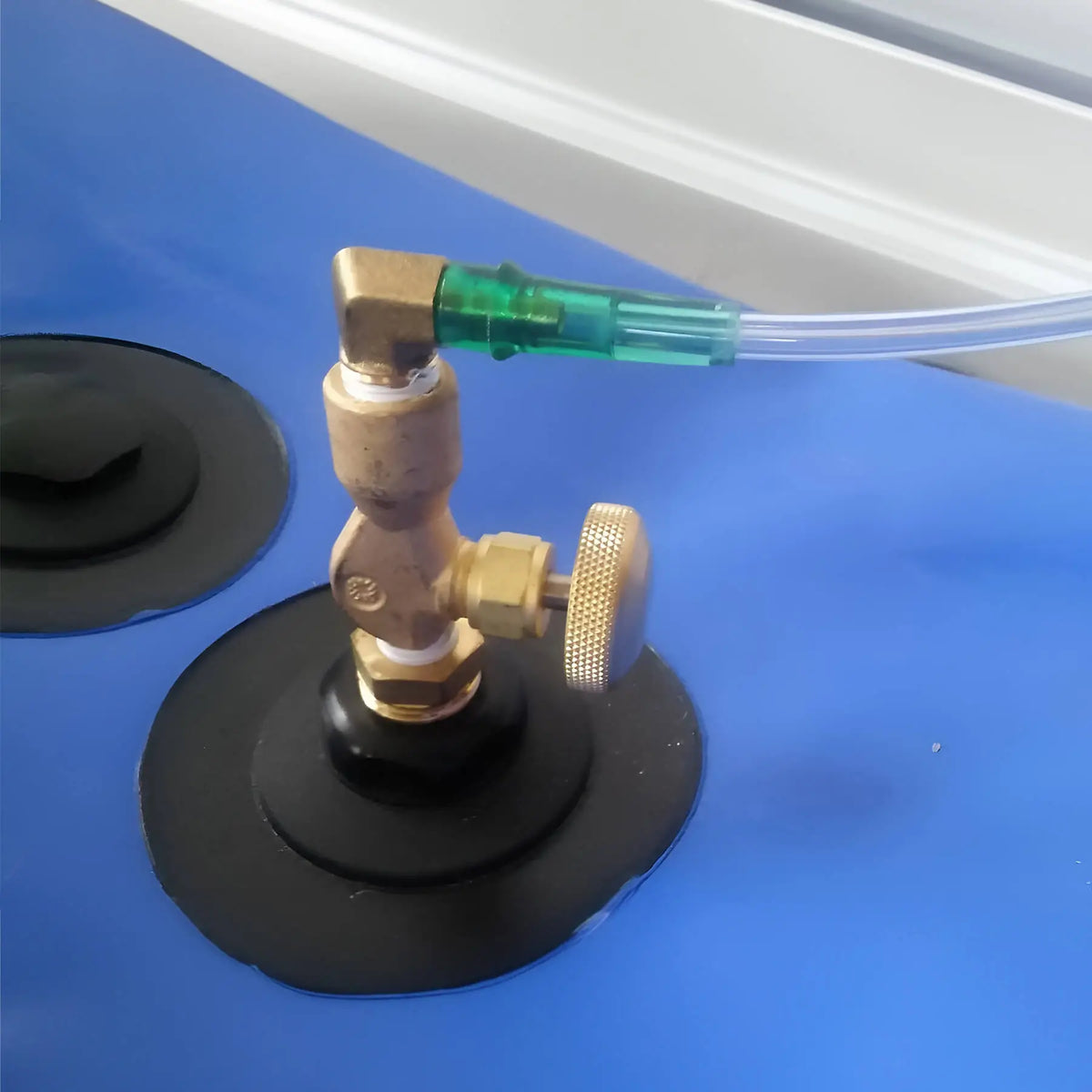

- Oxygen kit: valve, hose, adult mask, adult nasal cannula
