OxyRevo's most popular portable chamber, at 1.5 ATA

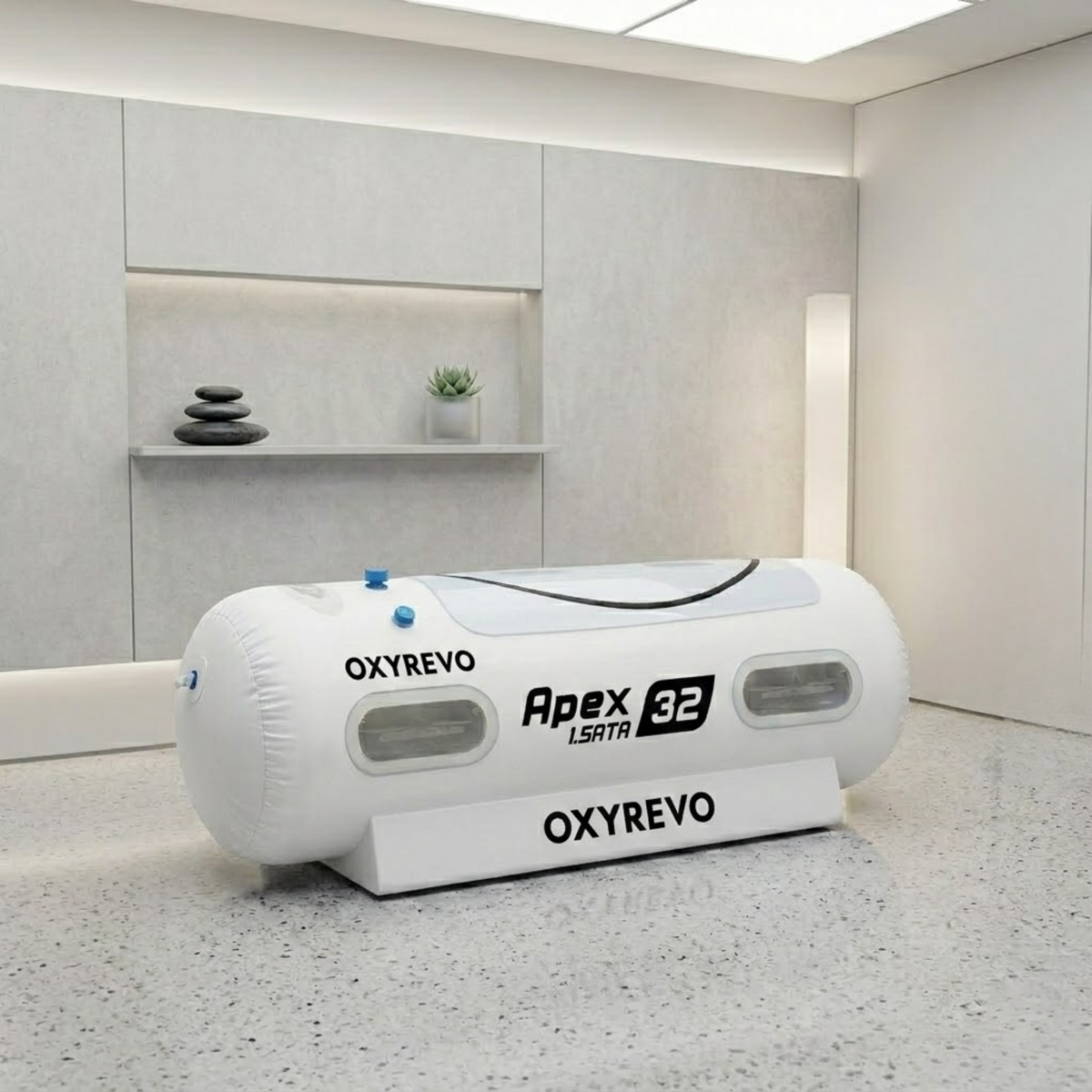

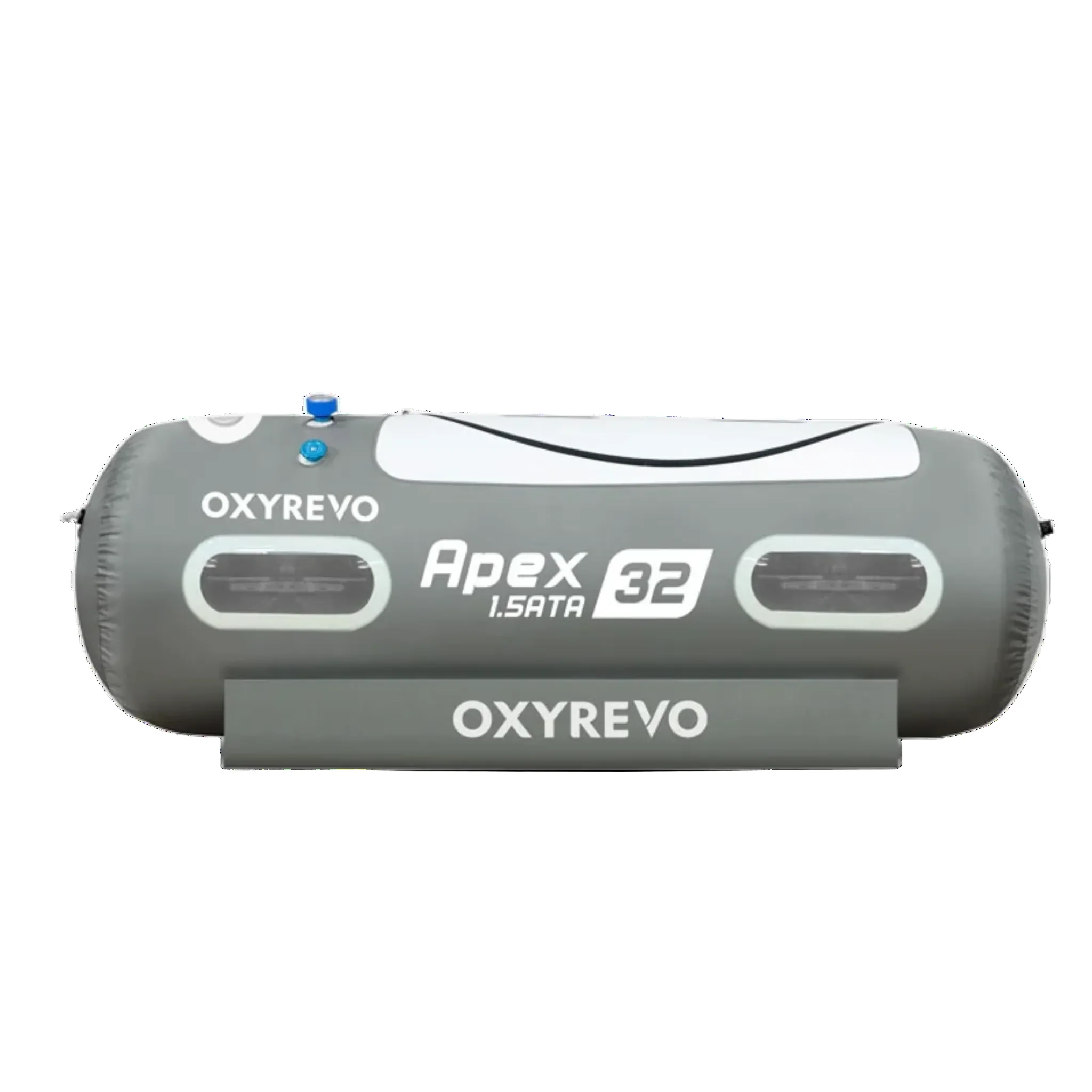

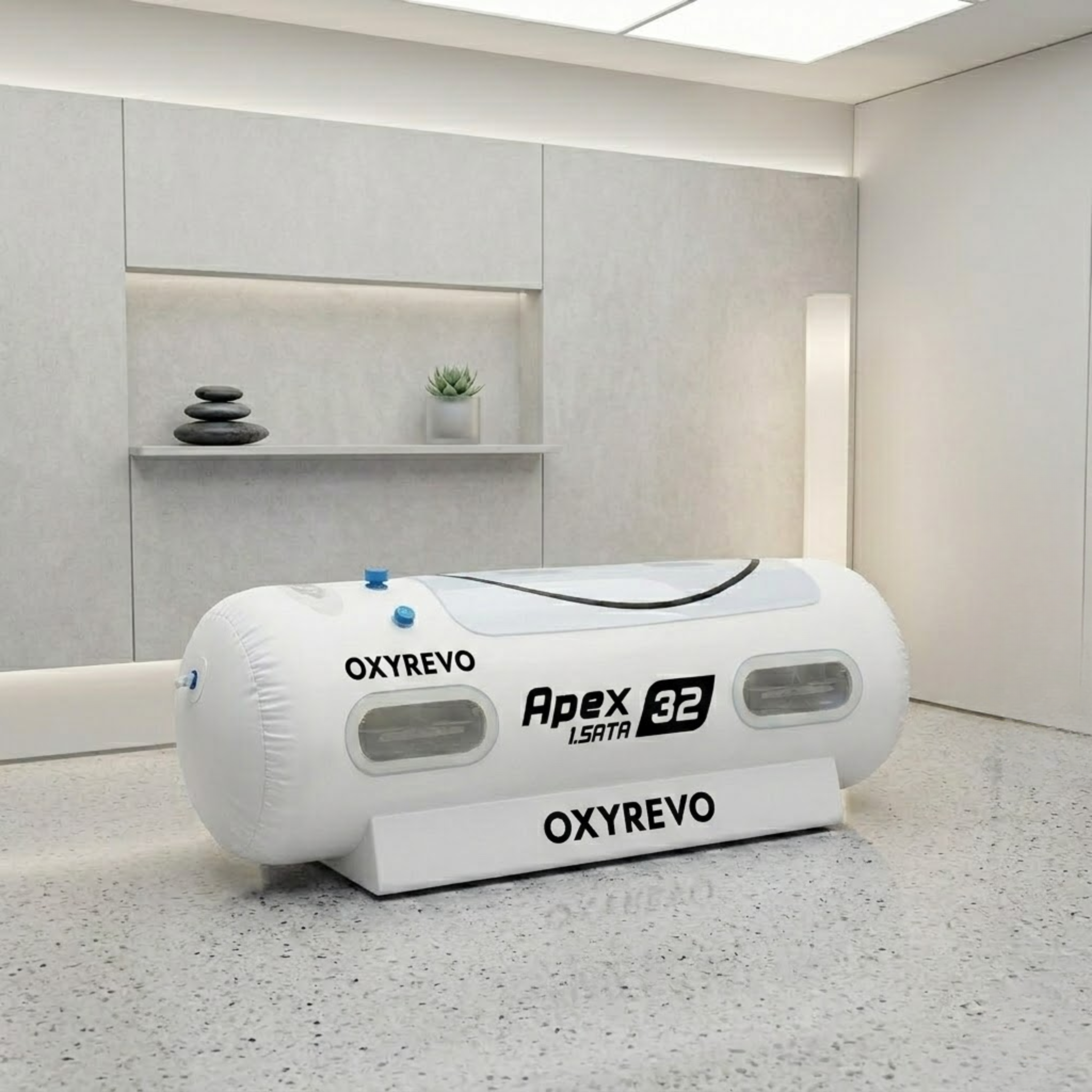

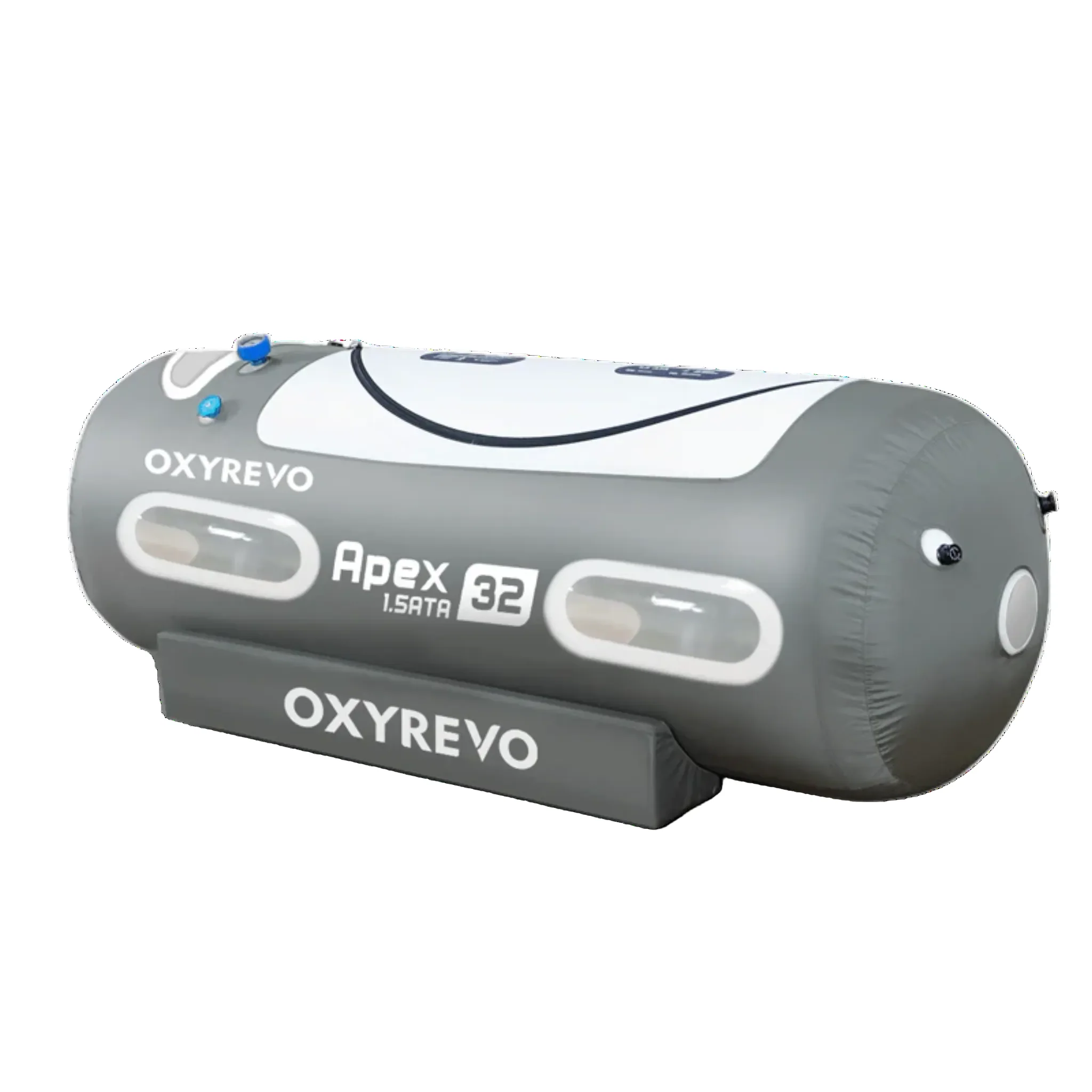

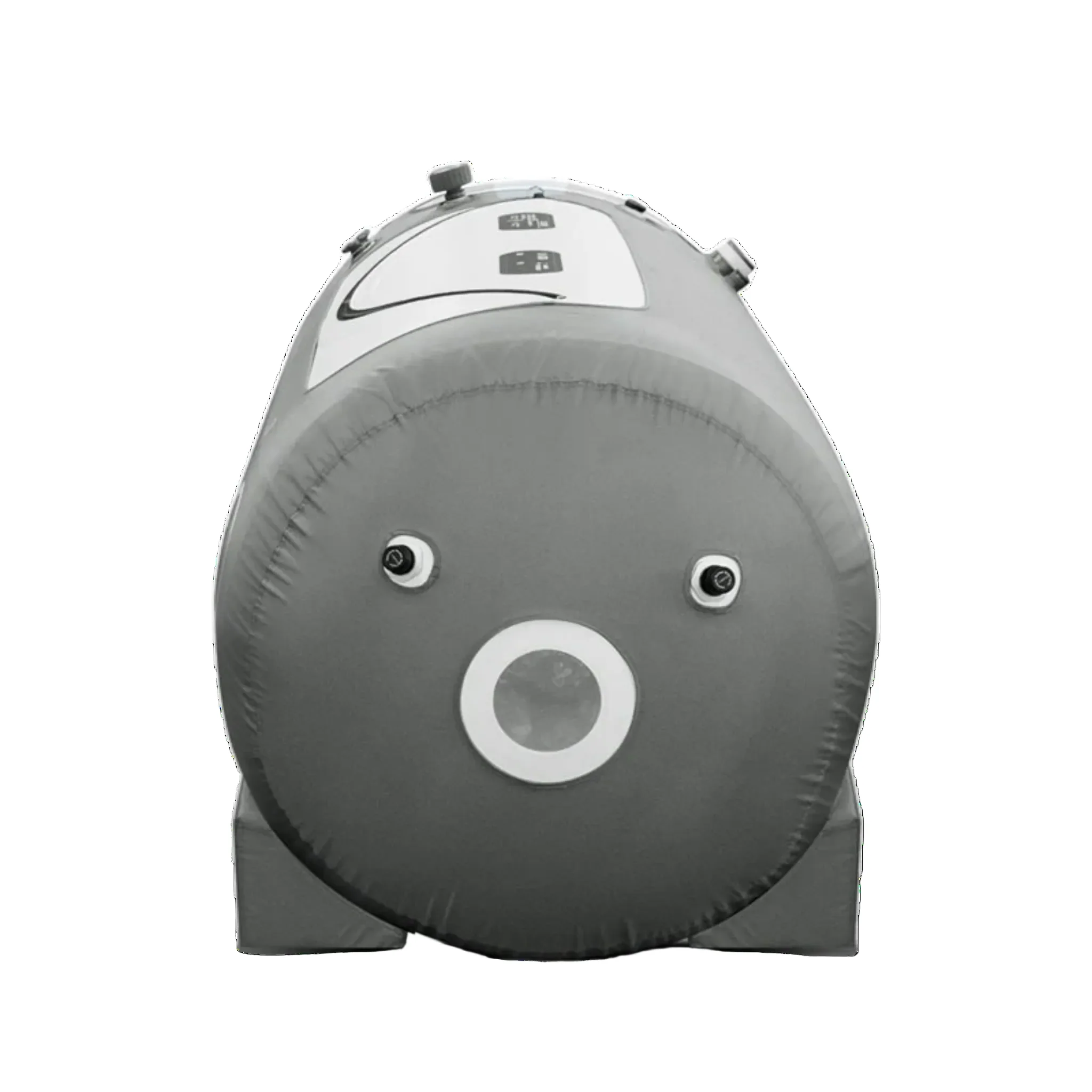

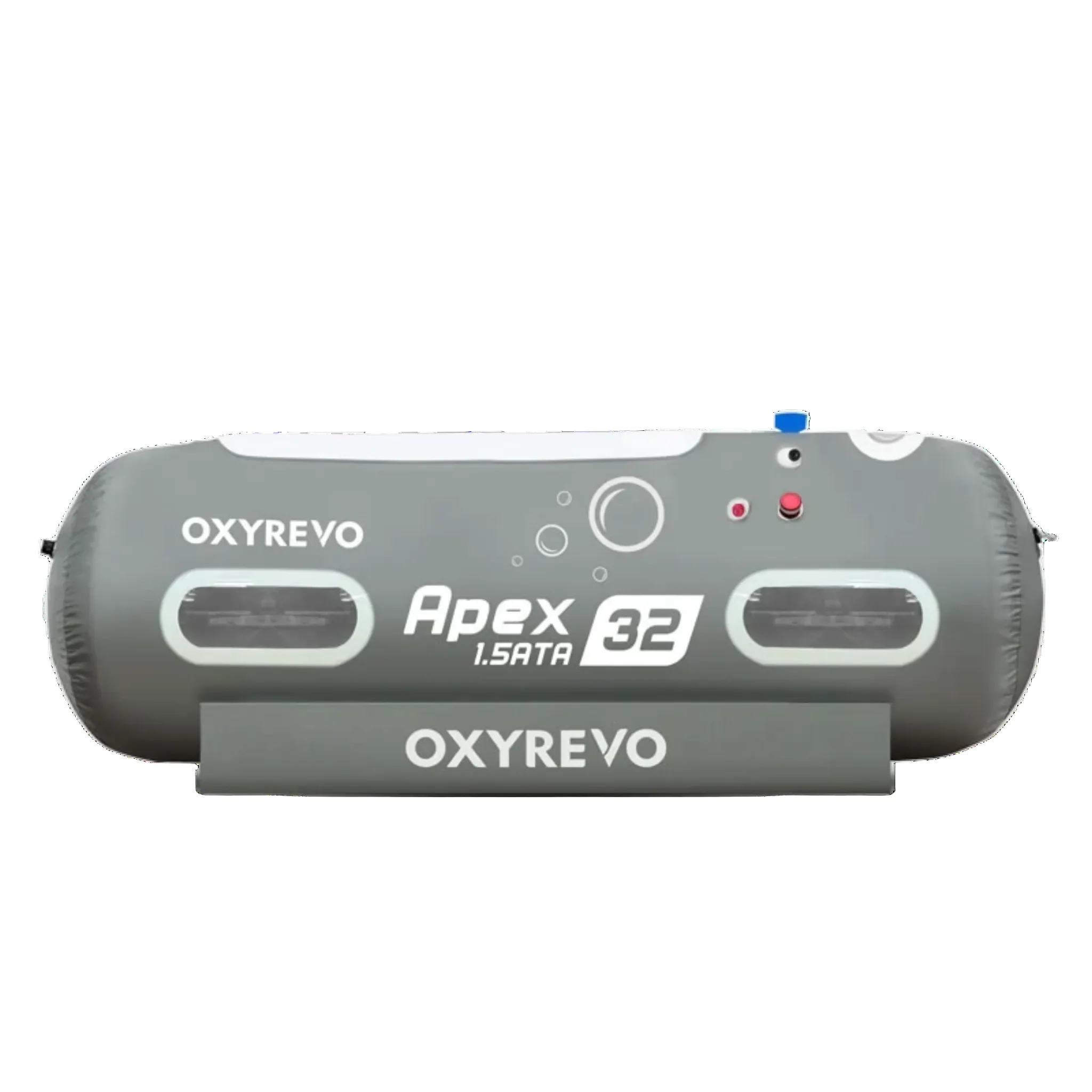

The Apex32 is the most popular portable chamber in OxyRevo's Apex Series, running at 1.5 ATA for home use. It measures 89 by 32 inches with seven oversized viewing windows that keep the interior bright and open. A memory foam mattress and a 10 L/min oxygen concentrator (90–97% oxygen) are included, and dual YKK leak-proof zippers, dual air filters and dual interior and exterior pressure displays keep it airtight and easy to monitor.
Best for: Home users who want higher-pressure sessions and seven oversized windows in a portable lying chamber.
What a session looks like

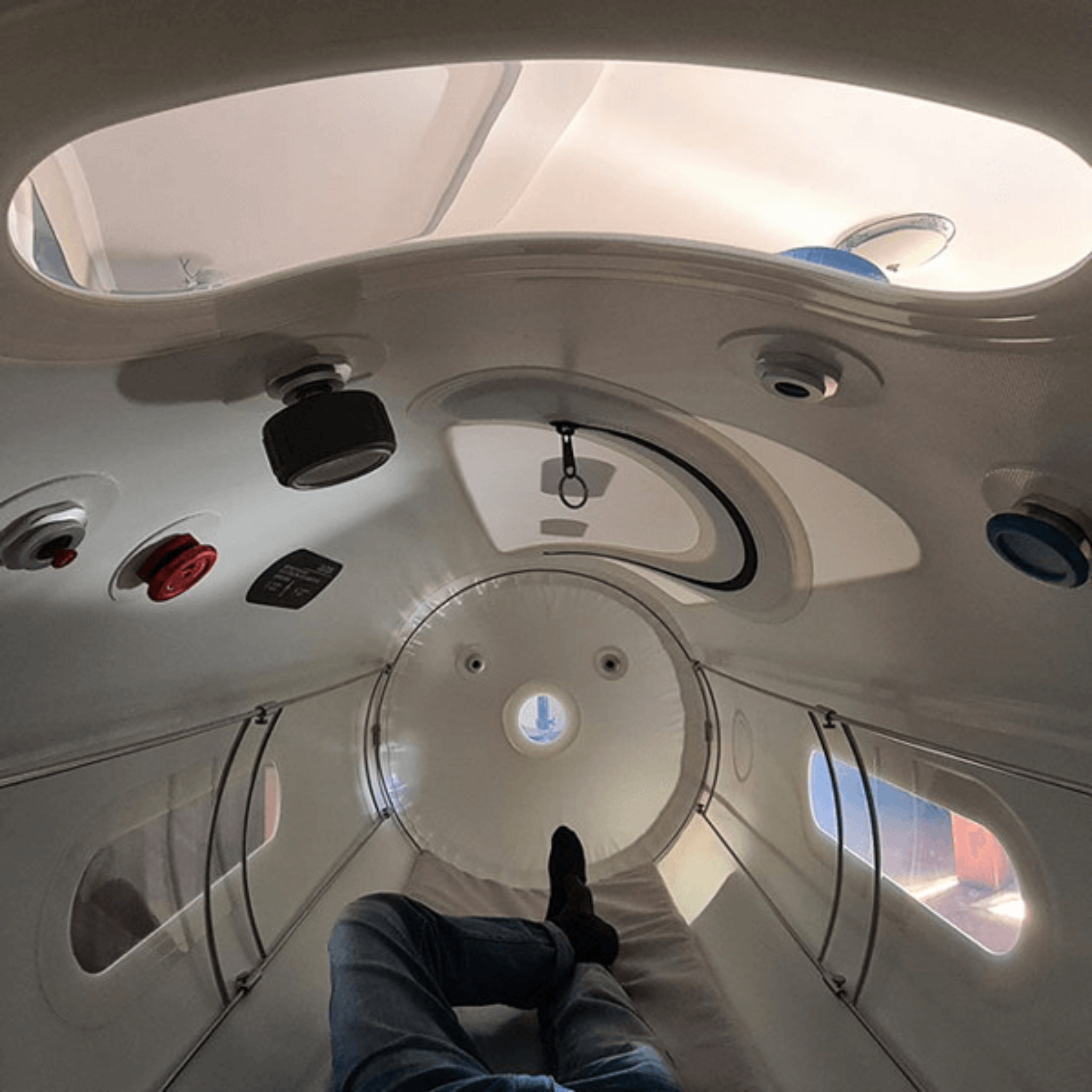

Lie down on the mattress, zip the chamber closed and start the air compressor. The chamber inflates to your working pressure while oxygen is delivered through a mask or cannula, so you can rest, read, listen to music or even nap. When the timer ends, pressure is released gradually and you unzip and step out. Many owners schedule sessions of roughly 60 to 90 minutes; follow the manufacturer's manual for your own protocol.
Space, power and setup
Soft chambers fold or pack down, so plan for a flat area of floor at least as long as the chamber, room beside it for the compressor, concentrator and any cooler, and a nearby grounded outlet. Keep the machines clear of flames, sparks and heat sources and follow the manufacturer's manual for placement. At a glance: working pressure 1.5 ATA; weight 33 lbs; length 90″ (7.5 ft); diameter 32″ (2.67 ft).
Choosing the right model
Want extra shoulder room? The Apex36 is 36 inches wide. Prefer a lower pressure? The Elite32 is 1.4 ATA.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- 1.5 ATA; 90″ L × 32″ diameter; 33 lbs
- Seven large double-layered windows; sound level 50 dB or less
- Memory foam mattress; 10 L/min concentrator, 90–97% oxygen
- Dual YKK leak-proof zippers, custom valves, dual air filters, reinforced frame
- Dual interior and exterior pressure displays
| Working Pressure | 1.5 ATA |
|---|---|
| Weight | 33 lbs |
| Length | 90″ (7.5 ft) |
| Diameter | 32″ (2.67 ft) |
| Windows | 7 large double-layered windows |
| Sound Level | ≤50 dB |

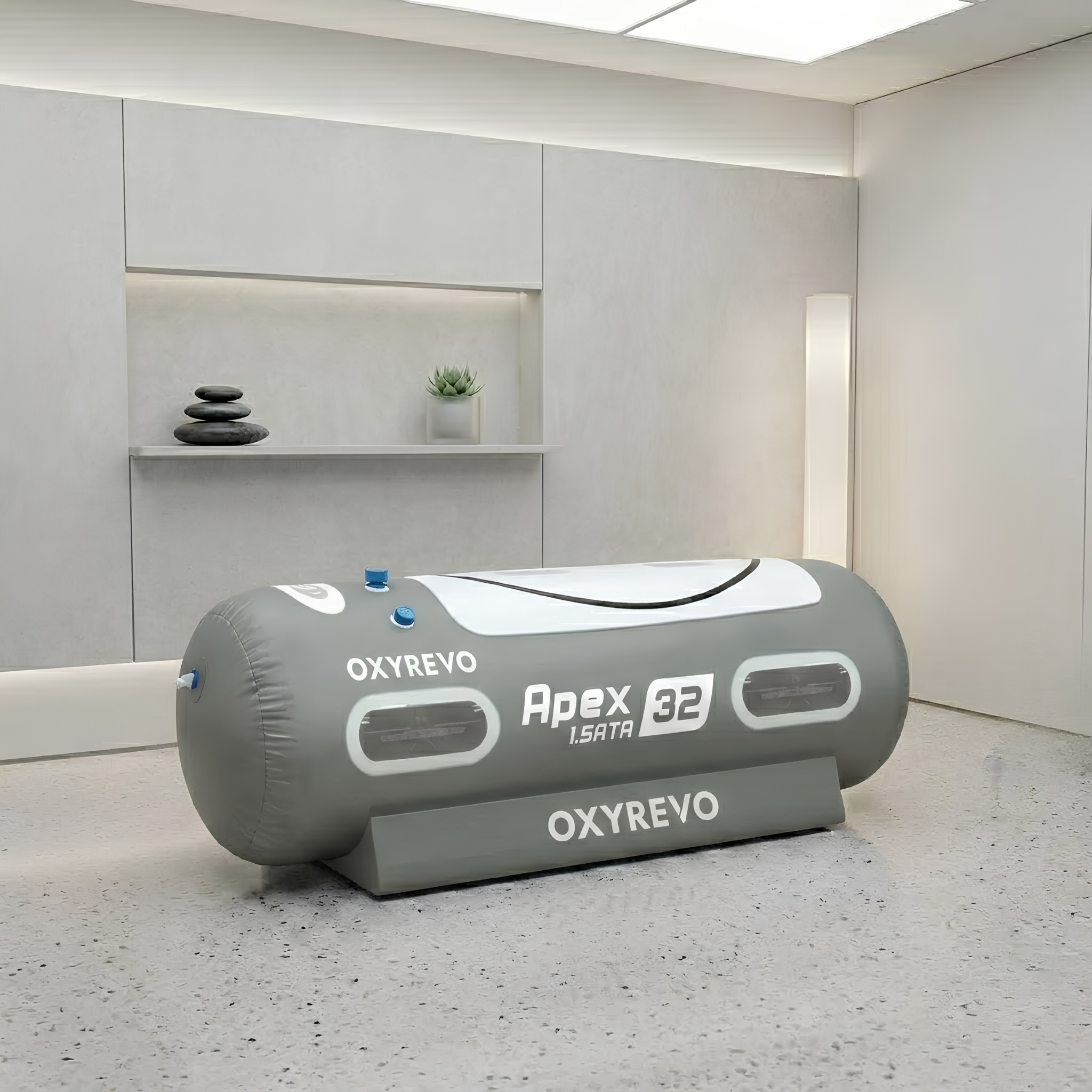

| Cover Color | Grey, OEM available |

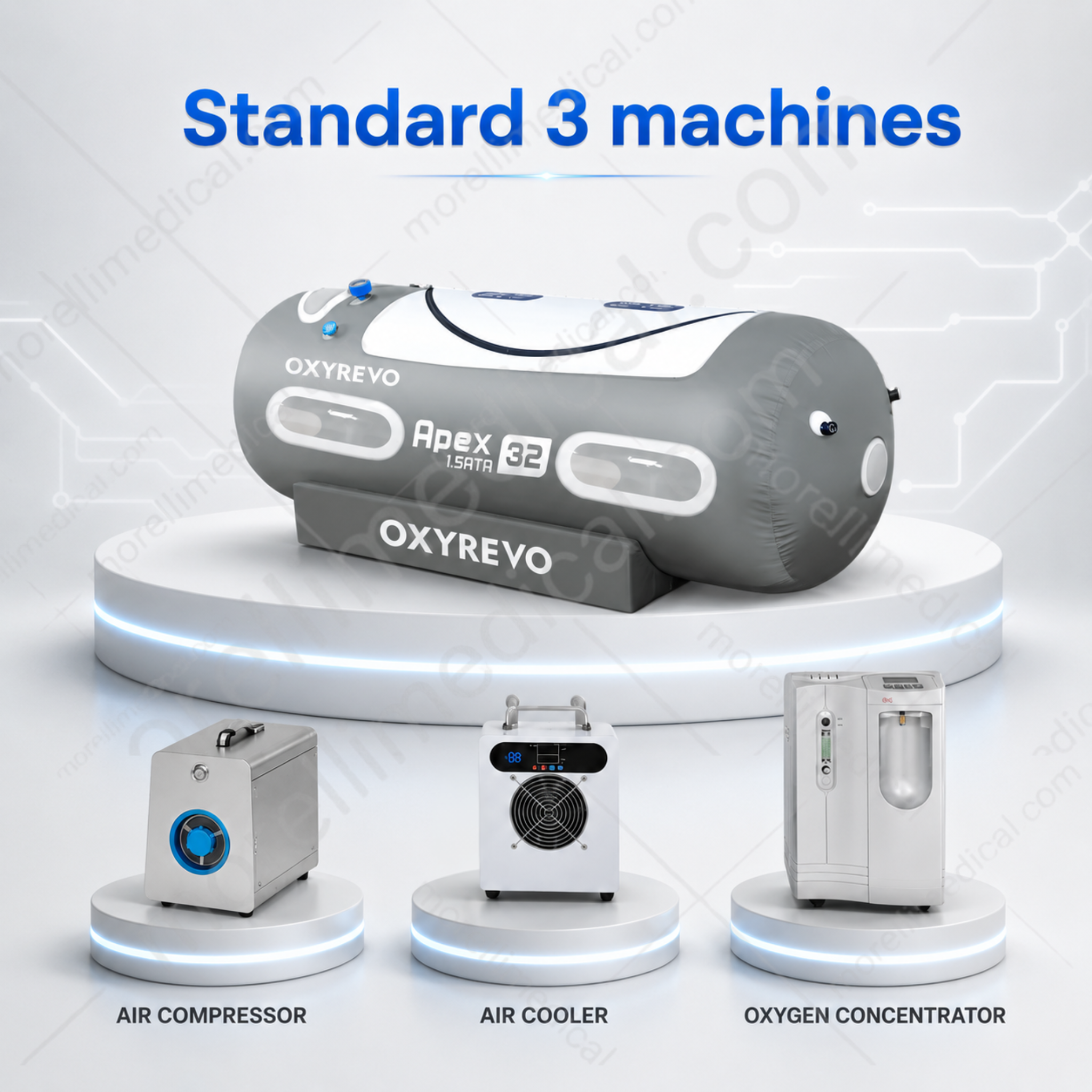

| Standard Version – Air Compressor | Model AE01, 110V/220V, 19.29″ L × 11.42″ W × 15.75″ H, 550W, 72 L/min, 35 lbs |
| Standard Version – Air Cooler | Model ZLA01, 110V/220V, 11.81″ L × 7.48″ W × 13.39″ H, 210W, 120 L/min, 13 lbs |
| Standard Version – Oxygen Concentrator | Model HG10, 110V/220V, 18.11″ L × 17.32″ W × 30.71″ H, 500W, 10 L/min, 66 lbs |
| Standard Version – Operation | Separate units require individual setup, manual control |
| Standard Version – Efficiency | Effective dehumidifying and cooling, continuous oxygen, double input/output filters |
| Standard Version – Additional Features | Lower cost, portable, lightweight, economical to transport |

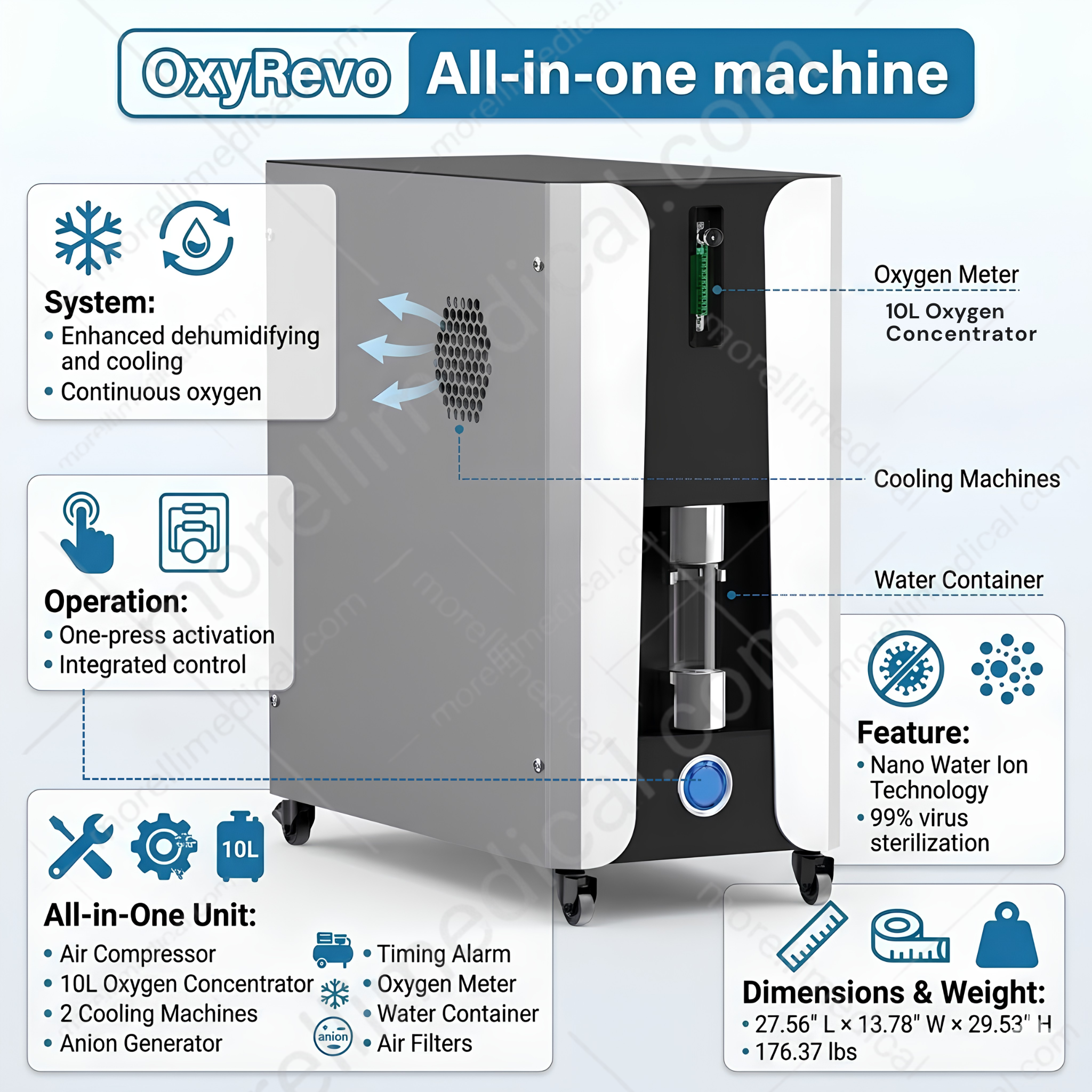

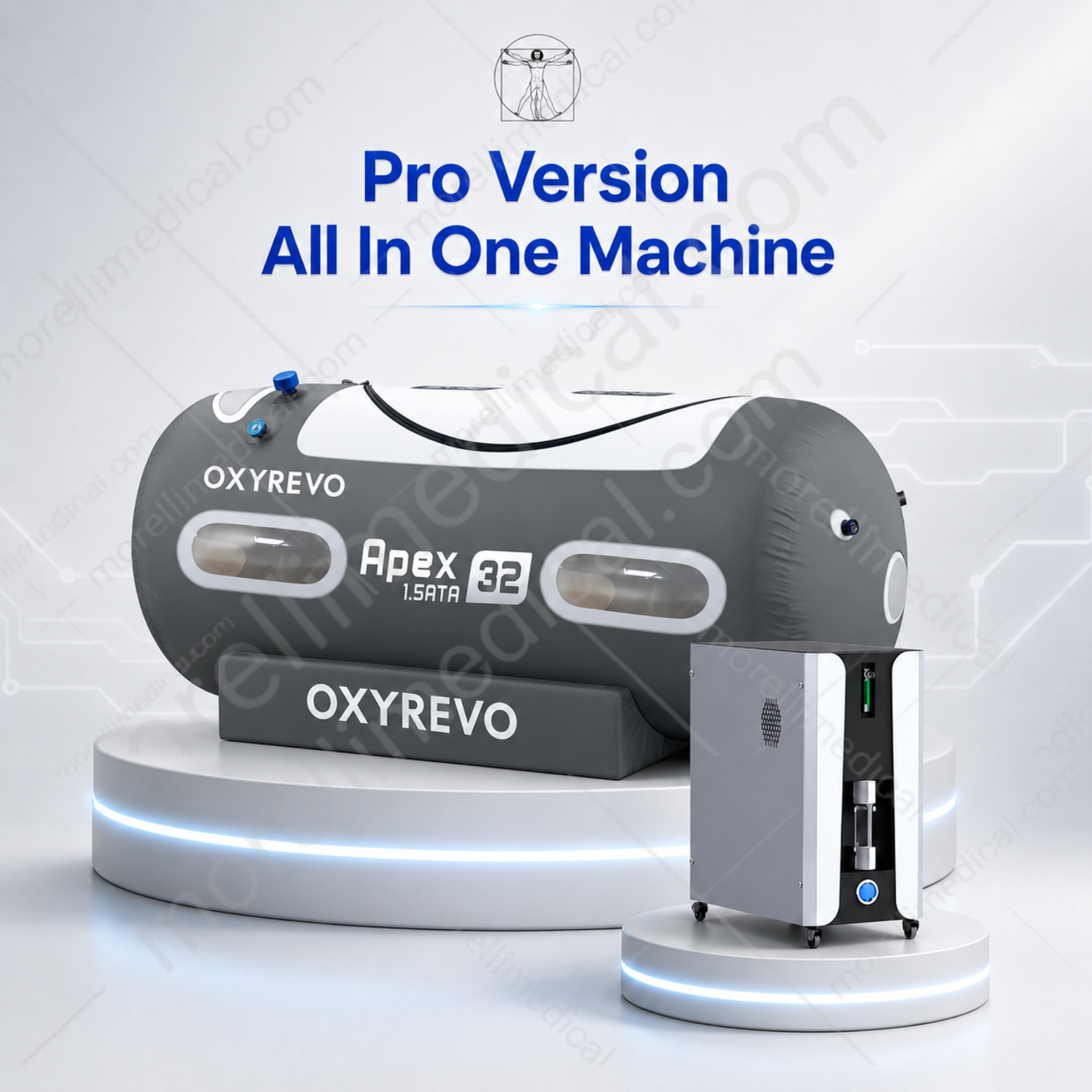

| Pro Version – All-in-One Machine Unit | Air Compressor (1), Oxygen Concentrator (10L), Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| Pro Version – Dimensions & Weight | 27.56″ L × 13.78″ W × 29.53″ H, 176.37 lbs |
| Pro Version – Operation | Integrated functions, one-press activation |
| Pro Version – Efficiency | Enhanced dehumidifying and cooling, continuous oxygen, double activated carbon filters |
| Pro Version – Additional Features | Nano Water Ion Technology, 99% virus sterilization rate |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (varies by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gallons) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temperature Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gallons/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |
- Internal/external pressure gauges
- Pressure deflate valves
- Control panels
- Display screen
- Communication system
- Pressure relief valves
- Mattress
- Oil-free air compressor
- 10L oxygen concentrator
- Cooling machines
- Anion air purifier
- Air sterilizer
- Air filter
- Humidity water container
- All-in-One Machine (For Pro Version)
- Oxygen mask
- Spare Activated Carbon Cotton Filters
- Fuses
- Air/oxygen tubes
- Power cable
