OxyRevo Apex36 Portable Soft Hyperbaric Chamber – 1.5 ATA, 89" × 36"
by OxyRevo
Payment & Security
Payment methods
Shop with confidence - your transactions are SSL-encrypted and your payment details are securely transmitted.
We never store or have access to your credit card information.
1.5 ATA with room for an adult and a child

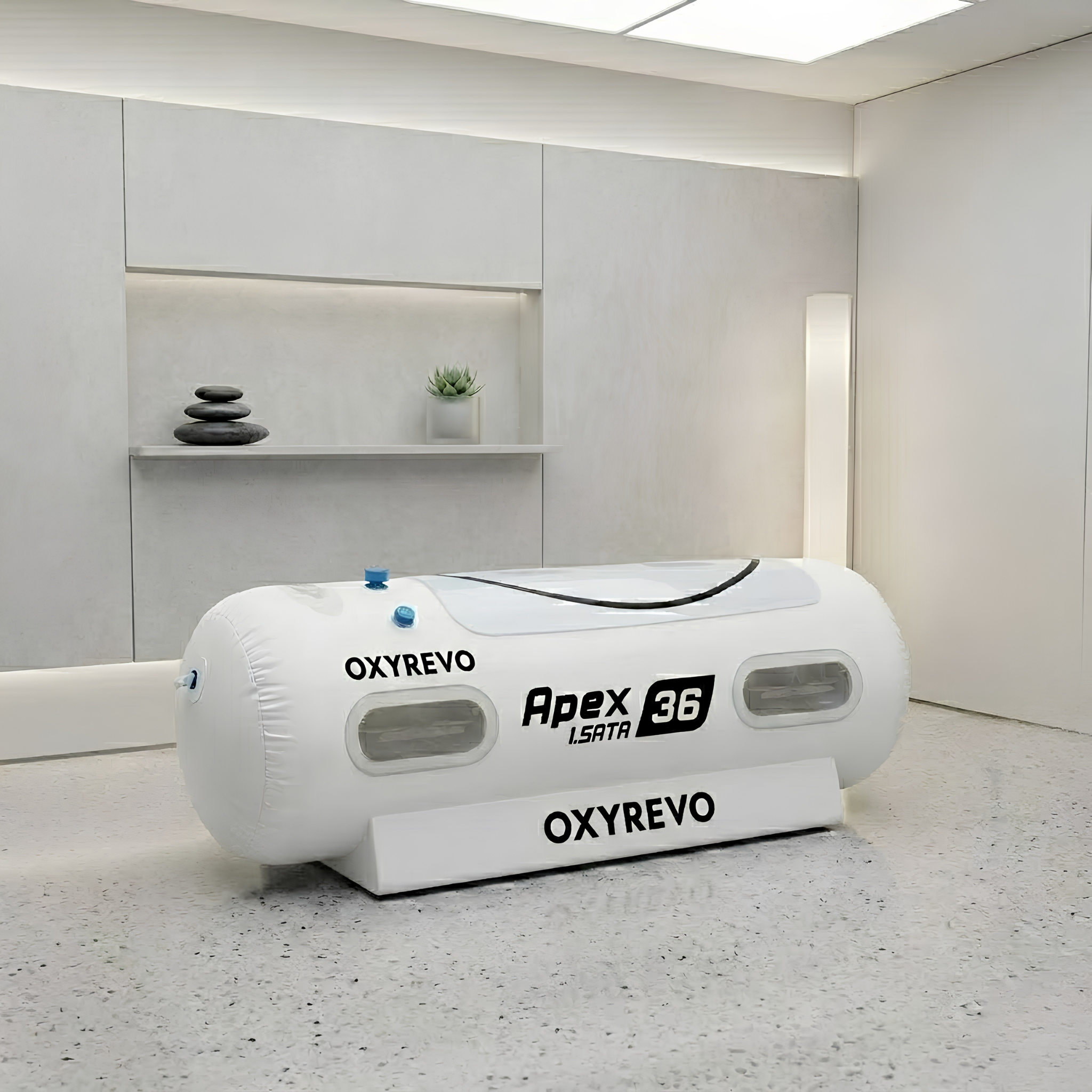

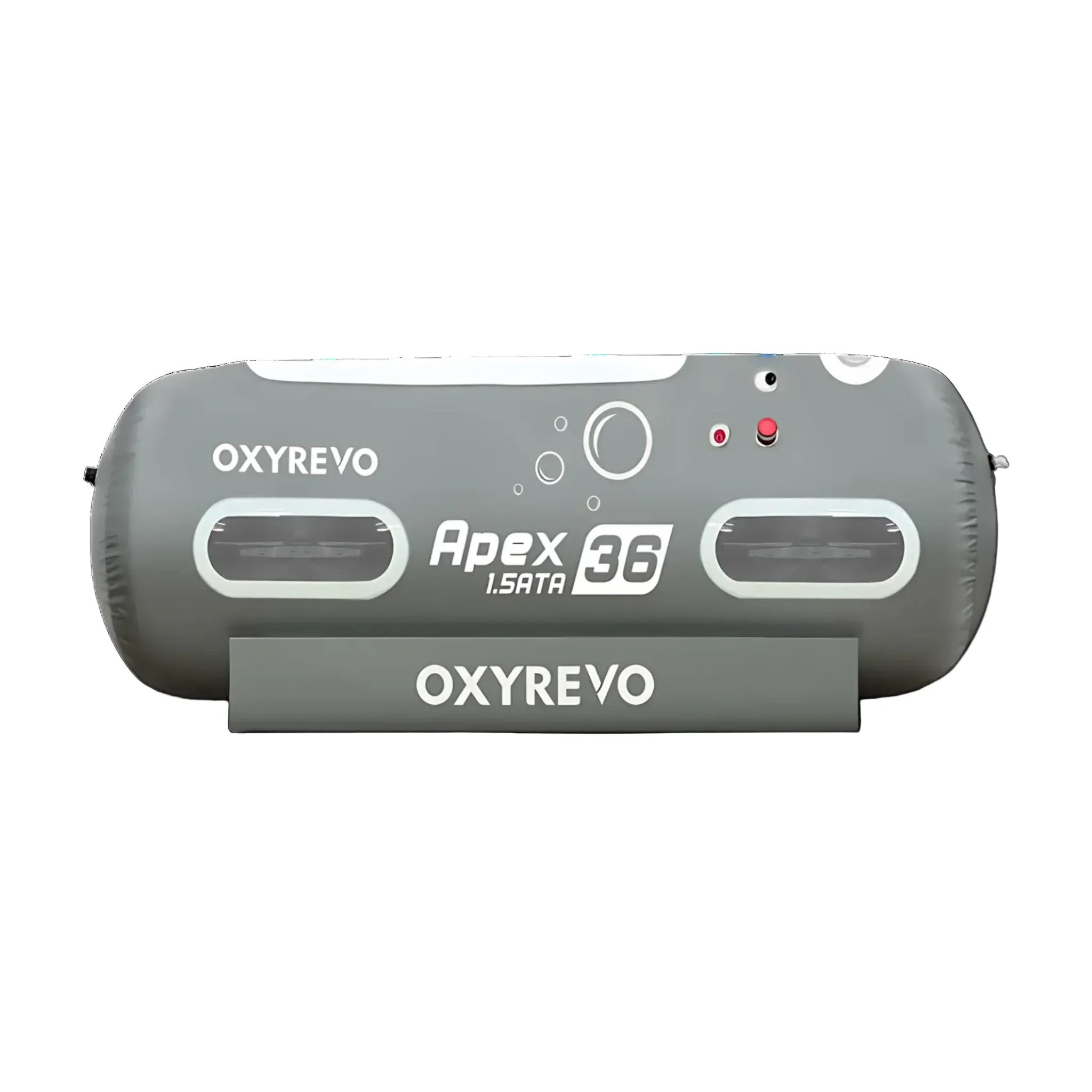

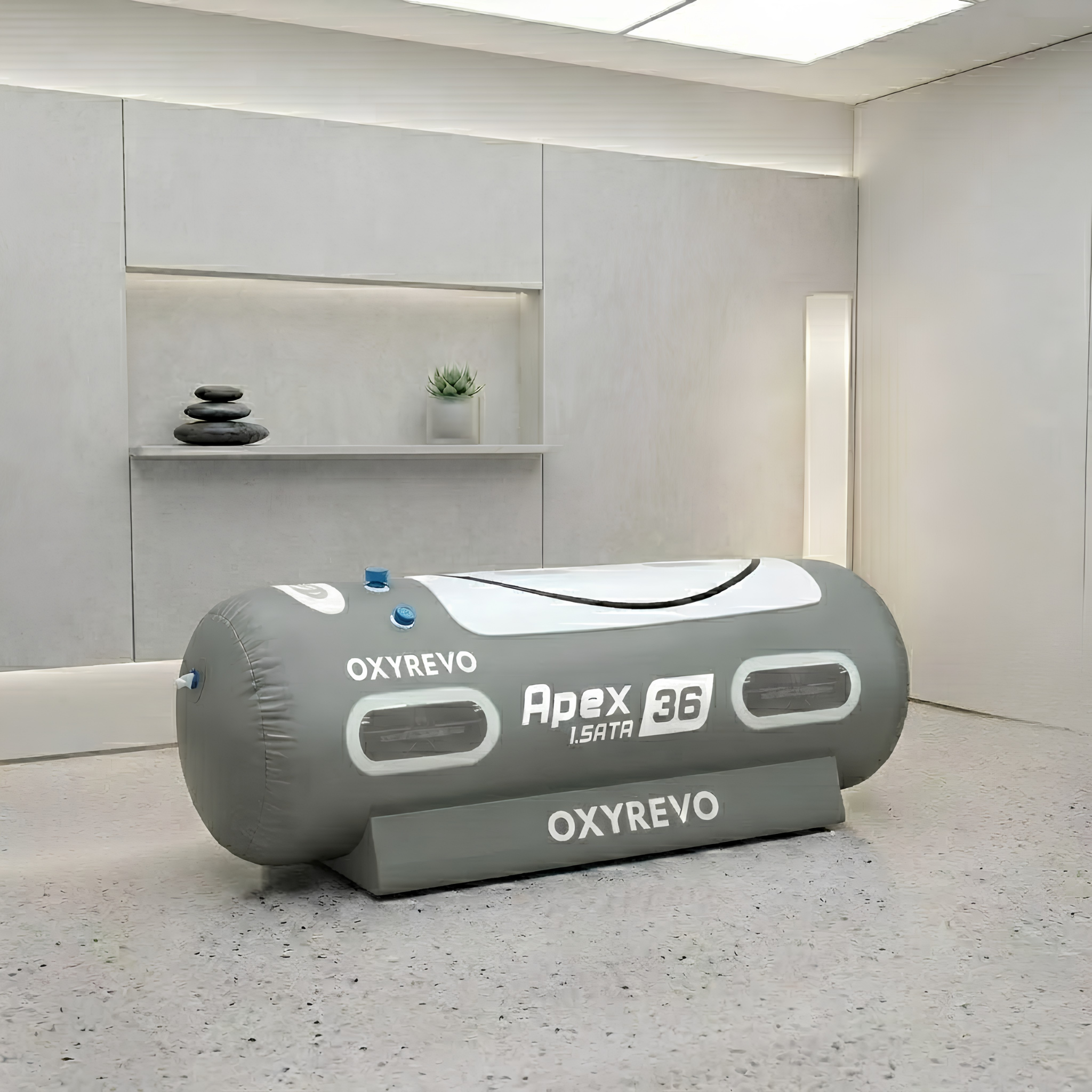

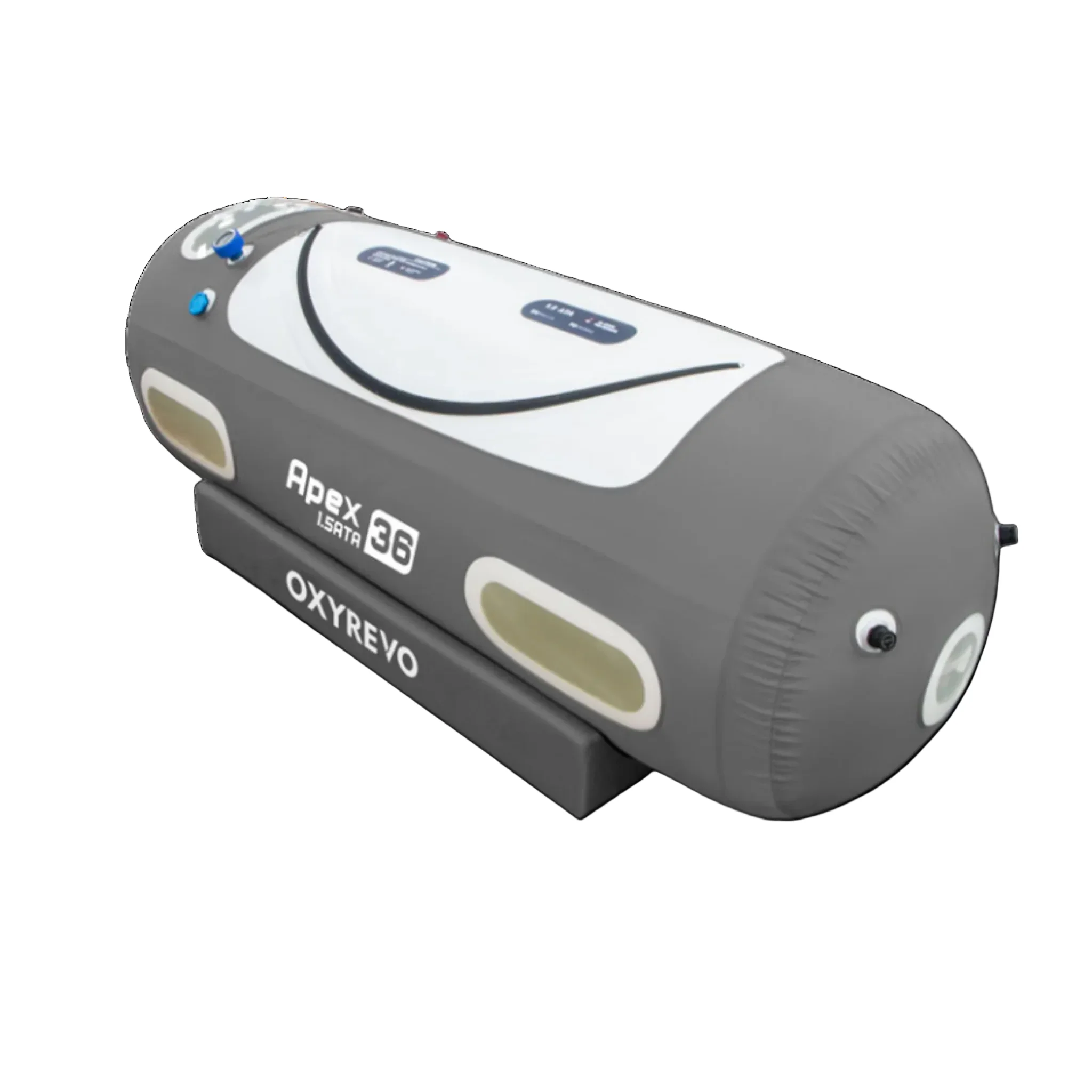

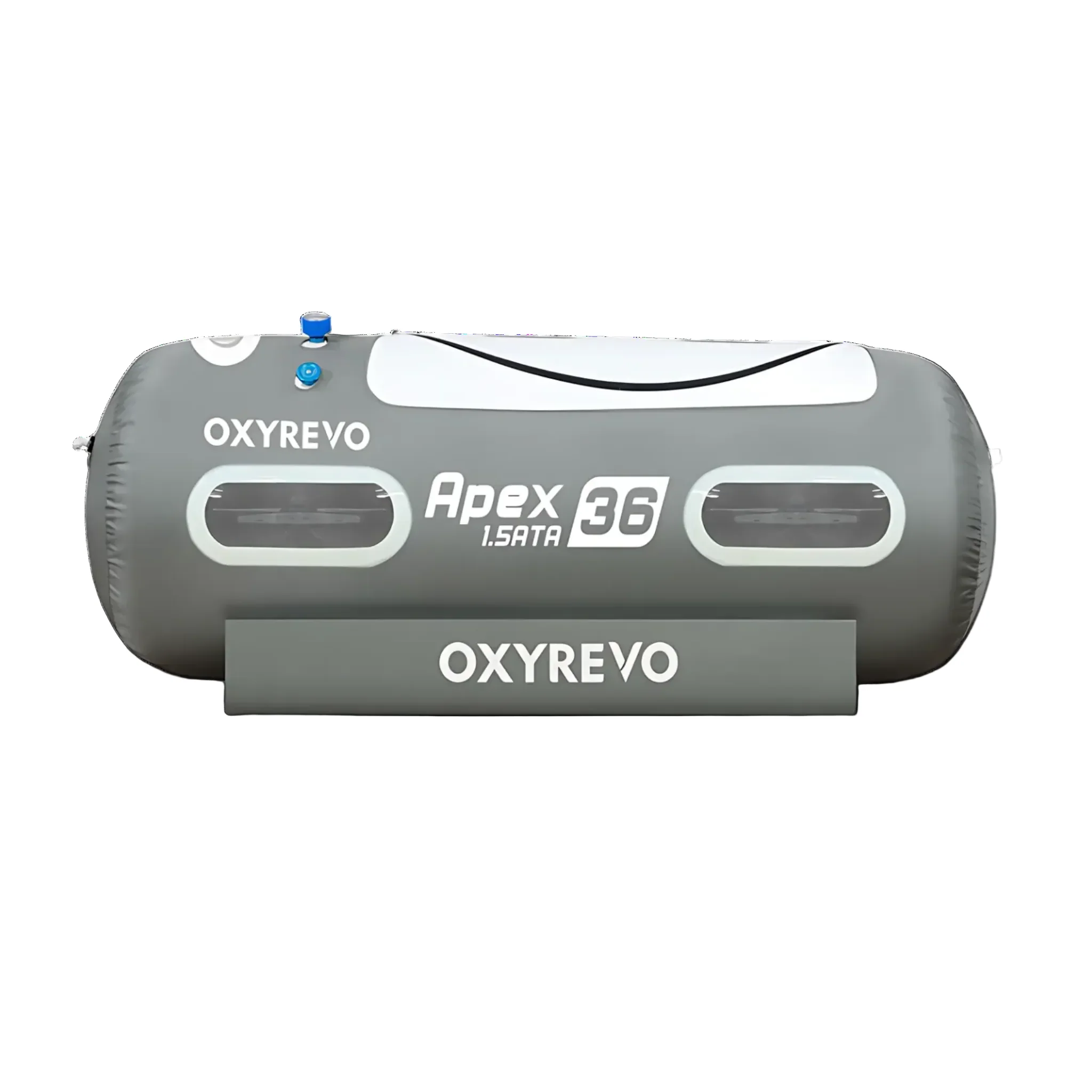

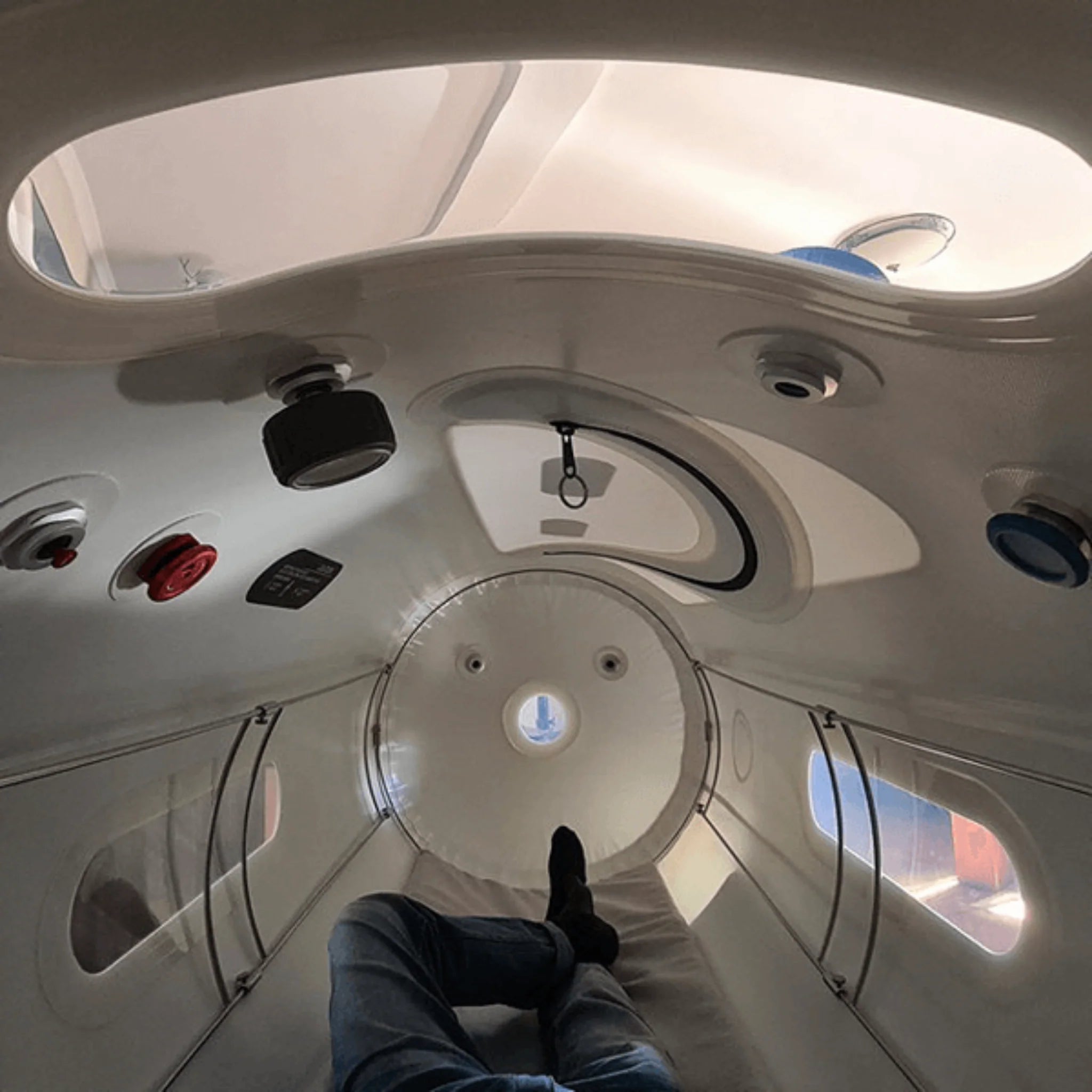

The Apex36 is the largest portable chamber in OxyRevo's Apex Series, at 89 by 36 inches and 1.5 ATA. There is room for one adult or an adult and a child, and seven oversized viewing windows keep the space open. Curved leak-proof YKK zippers create a wide opening, interior and exterior zipper operation lets one person use the chamber alone, and a memory foam mattress and 10 L/min concentrator (90–97% oxygen) are included.
Best for: Families and solo users who want the widest Apex chamber and easy one-person zipper operation.
What a session looks like
Lie down on the mattress, zip the chamber closed and start the air compressor. The chamber inflates to your working pressure while oxygen is delivered through a mask or cannula, so you can rest, read, listen to music or even nap. When the timer ends, pressure is released gradually and you unzip and step out. Many owners schedule sessions of roughly 60 to 90 minutes; follow the manufacturer's manual for your own protocol.
Space, power and setup
Soft chambers fold or pack down, so plan for a flat area of floor at least as long as the chamber, room beside it for the compressor, concentrator and any cooler, and a nearby grounded outlet. Keep the machines clear of flames, sparks and heat sources and follow the manufacturer's manual for placement. At a glance: working pressure 1.5 ATA; weight 37 lbs; length 90″ (7.5 ft); diameter 36″ (3 ft).
Choosing the right model
For a slimmer chamber at the same pressure, choose the Apex32.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- 1.5 ATA; 90″ L × 36″ diameter; 37 lbs

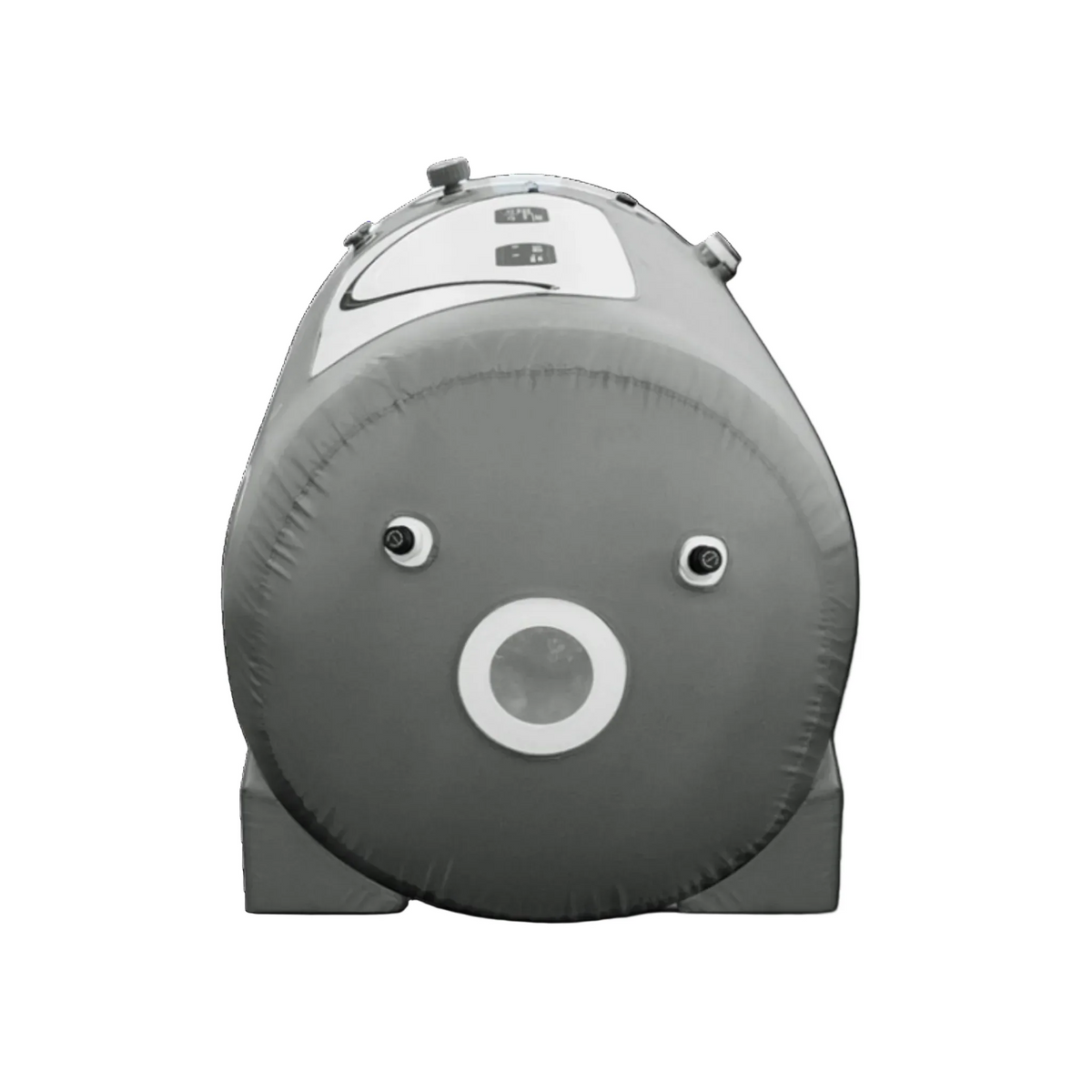

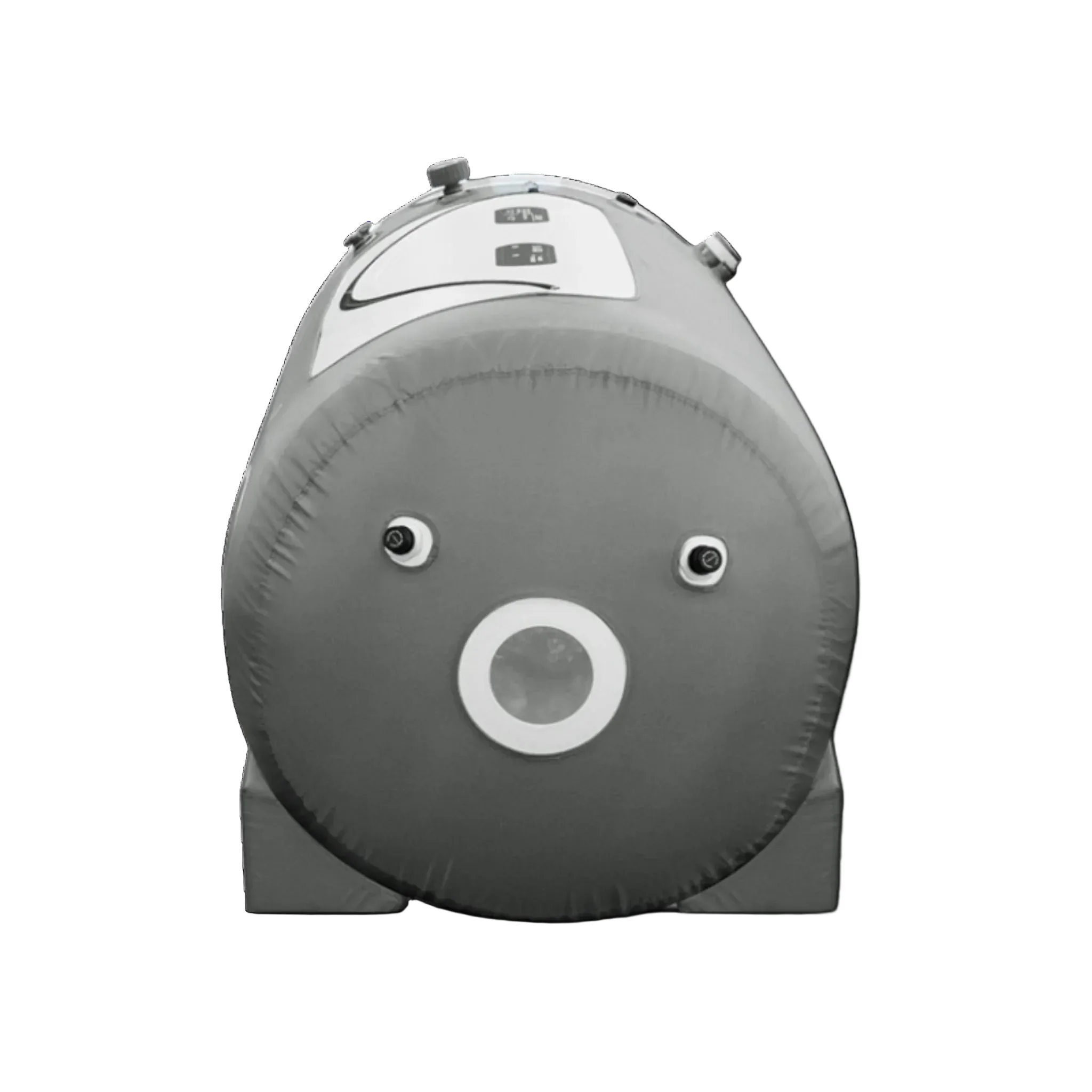

- Seven large double-layered windows; sound level 50 dB or less
- Curved leak-proof YKK zippers; dual air filters; custom valves
- Memory foam mattress; 10 L/min concentrator, 90–97% oxygen
- Dual pressure displays and easy controls
| Working Pressure | 1.5 ATA |
|---|---|
| Weight | 37 lbs |
| Length | 90″ (7.5 ft) |
| Diameter | 36″ (3 ft) |
| Windows | 7 large double-layered windows |
| Sound Level | ≤50 dB |
| Cover Color | Grey / OEM available |

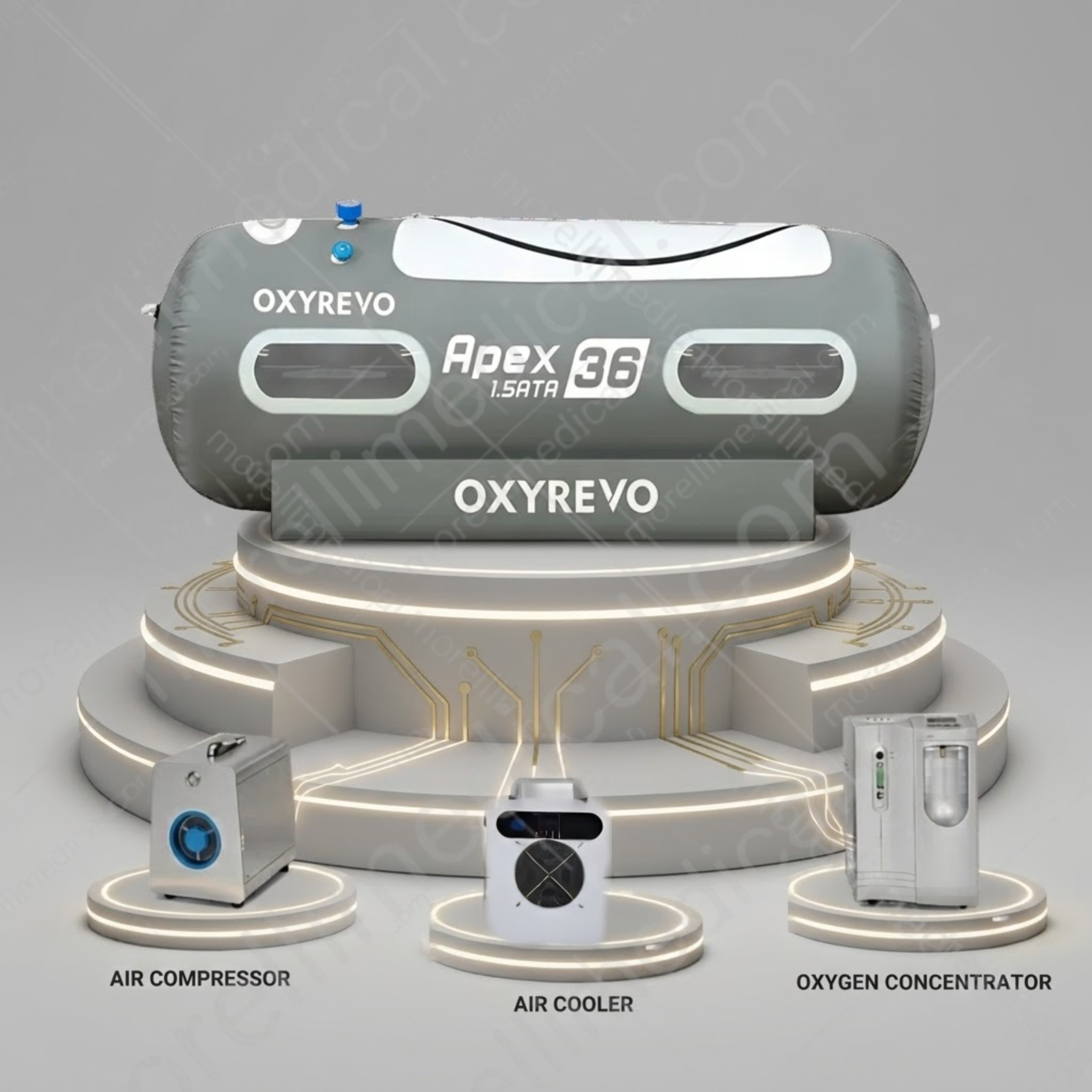

| Standard Version – Air Compressor | Model AE01, 110V/220V, 19.29″ L × 11.42″ W × 15.75″ H, 550W, 72 L/min, 35 lbs |
| Standard Version – Air Cooler | Model ZLA01, 110V/220V, 11.81″ L × 7.48″ W × 13.39″ H, 210W, 120 L/min, 13 lbs |
| Standard Version – Oxygen Concentrator | Model HG10, 110V/220V, 18.11″ L × 17.32″ W × 30.71″ H, 500W, 10 L/min, 66 lbs |
| Standard Version – Operation | Separate units require individual setup and control |
| Standard Version – Efficiency | Effective dehumidifying and cooling, continuous oxygen production, double input/output filters |
| Standard Version – Material | High-strength TPU |
| Standard Version – Safety | Emergency valves, double-layer viewing windows, internal and external pressure release valves Pressure Gauges: High-precision display inside and outside for constant monitoring Unique Curved Zipper Design: Ergonomically designed for easier access and reduced effort in operation |

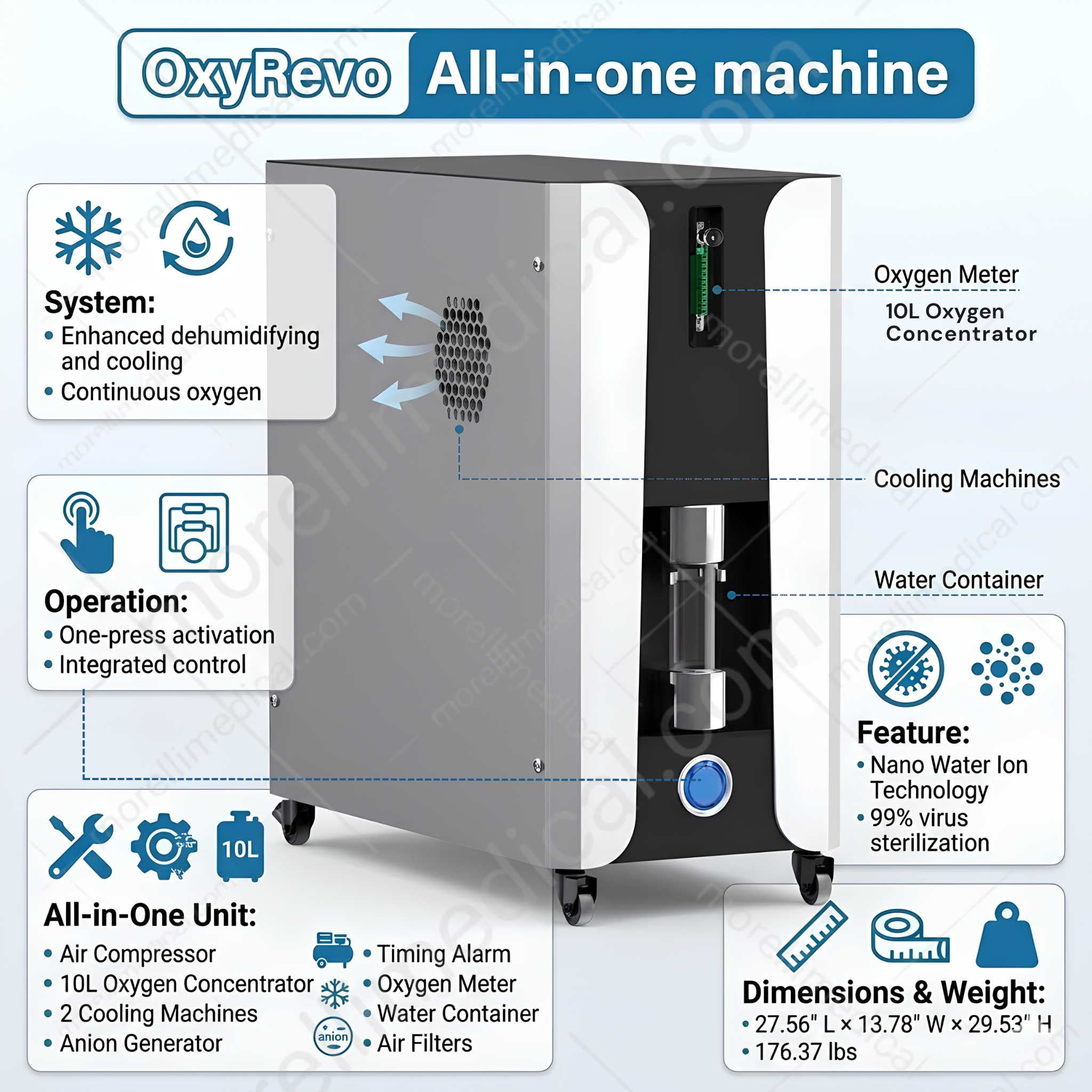

| Pro Version – Air Compressor | 1 unit |
| Pro Version – Oxygen Concentrator | 10L |
| Pro Version – Cooling Machines | 2 units, Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| Pro Version – Dimensions & Weight | 27.56″ L × 13.78″ W × 29.53″ H, 176.37 lbs |

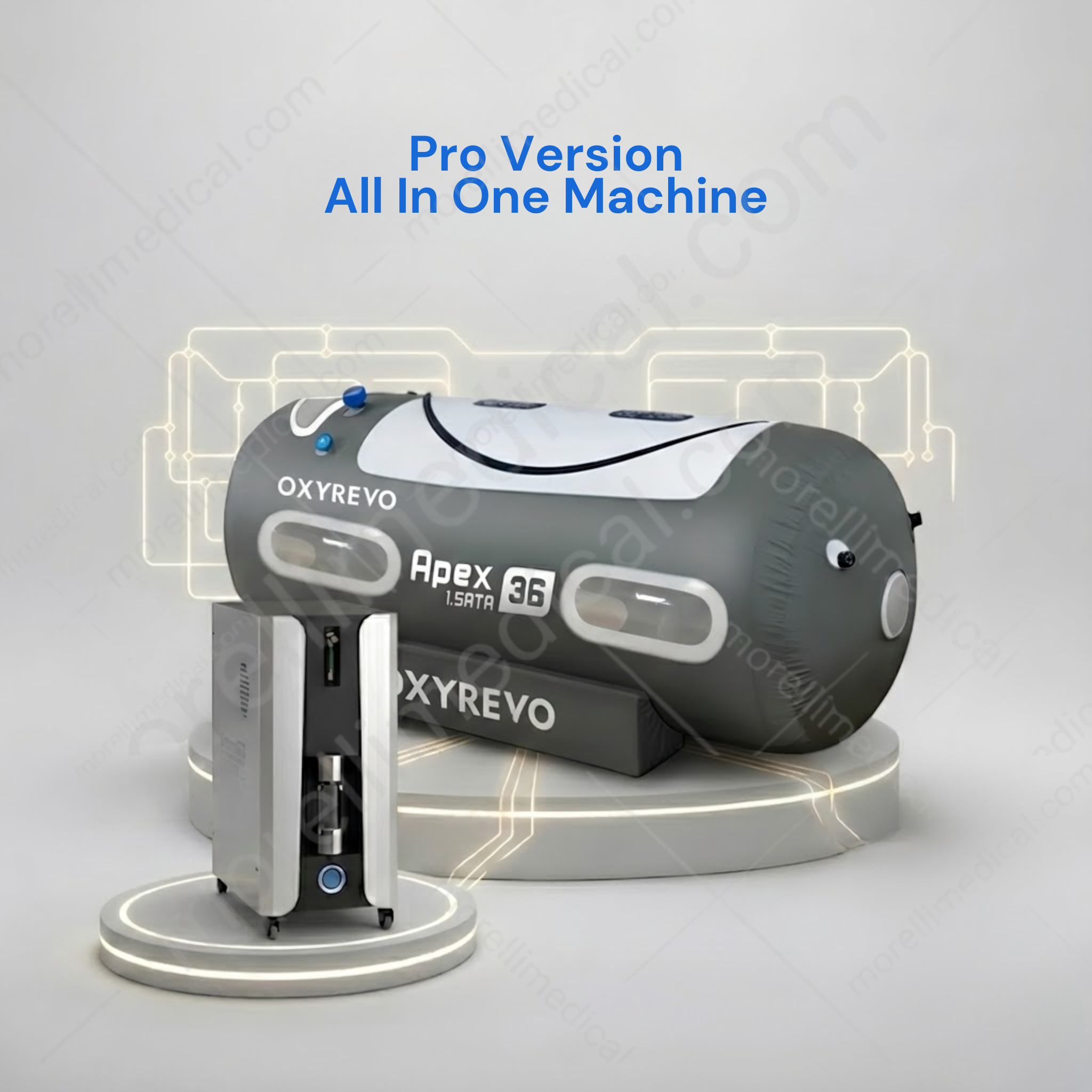

| Pro Version – Operation | All functions integrated into a single unit with one-press activation |
| Pro Version – Efficiency | Enhanced dehumidifying and cooling, continuous oxygen production, double activated carbon filters |
| Pro Version – Additional Features | Nano Water Ion Technology for clean air and disinfection, 99% virus sterilization rate |
| Pro Version – Material | High-strength TPU |
| Pro Version – Safety | Emergency valves, double-layer viewing windows, internal and external pressure release valves Pressure Gauges: High-precision display inside and outside for constant monitoring Unique Curved Zipper Design: Ergonomically designed for easier access and reduced effort in operation |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (varies by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gallons) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temperature Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gallons/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |
- Internal/external pressure gauges
- Pressure deflate valves
- Control panels
- Display screen
- Communication system
- Pressure relief valves
- Mattress
- Oil-free air compressor
- 10L oxygen concentrator
- Cooling machines
- Anion air purifier
- Air sterilizer
- Air filter
- Humidity water container
- All-in-One Machine (For Pro Version)
- Oxygen mask
- Spare Activated Carbon Cotton Filters
- Fuses
- Air/oxygen tubes
- Power cable
Shipping & Delivery: Most orders ship free within 1-2 business days via curbside delivery. Need it brought inside and set up? Choose White Glove Delivery at checkout and our team will follow up with pricing and scheduling.
Warranty: Warranty coverage varies by manufacturer and product. Contact our team before purchase for the specific warranty terms on this item, or reach out any time after your purchase with a manufacturer defect concern — we'll help you through the process.
Product manuals, installation guides, and spec sheets for this item are available on request. Contact our product specialists and we'll send you the documentation.
