OxyRevo Elite32 Portable Soft Hyperbaric Chamber – 1.4 ATA, 90" × 32"
by OxyRevo
Payment & Security
Payment methods
Shop with confidence - your transactions are SSL-encrypted and your payment details are securely transmitted.
We never store or have access to your credit card information.

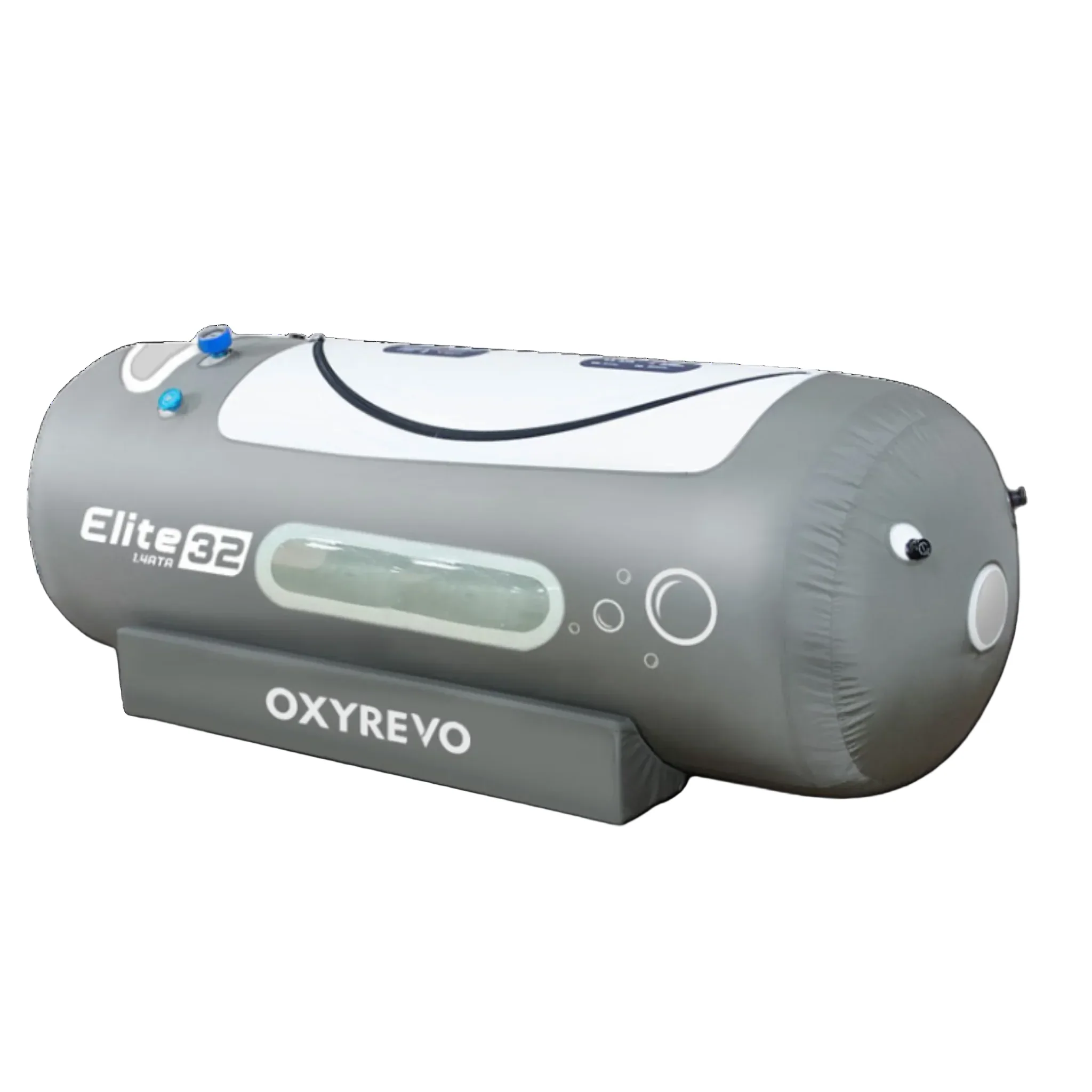

Portable 1.4 ATA with five large viewing windows

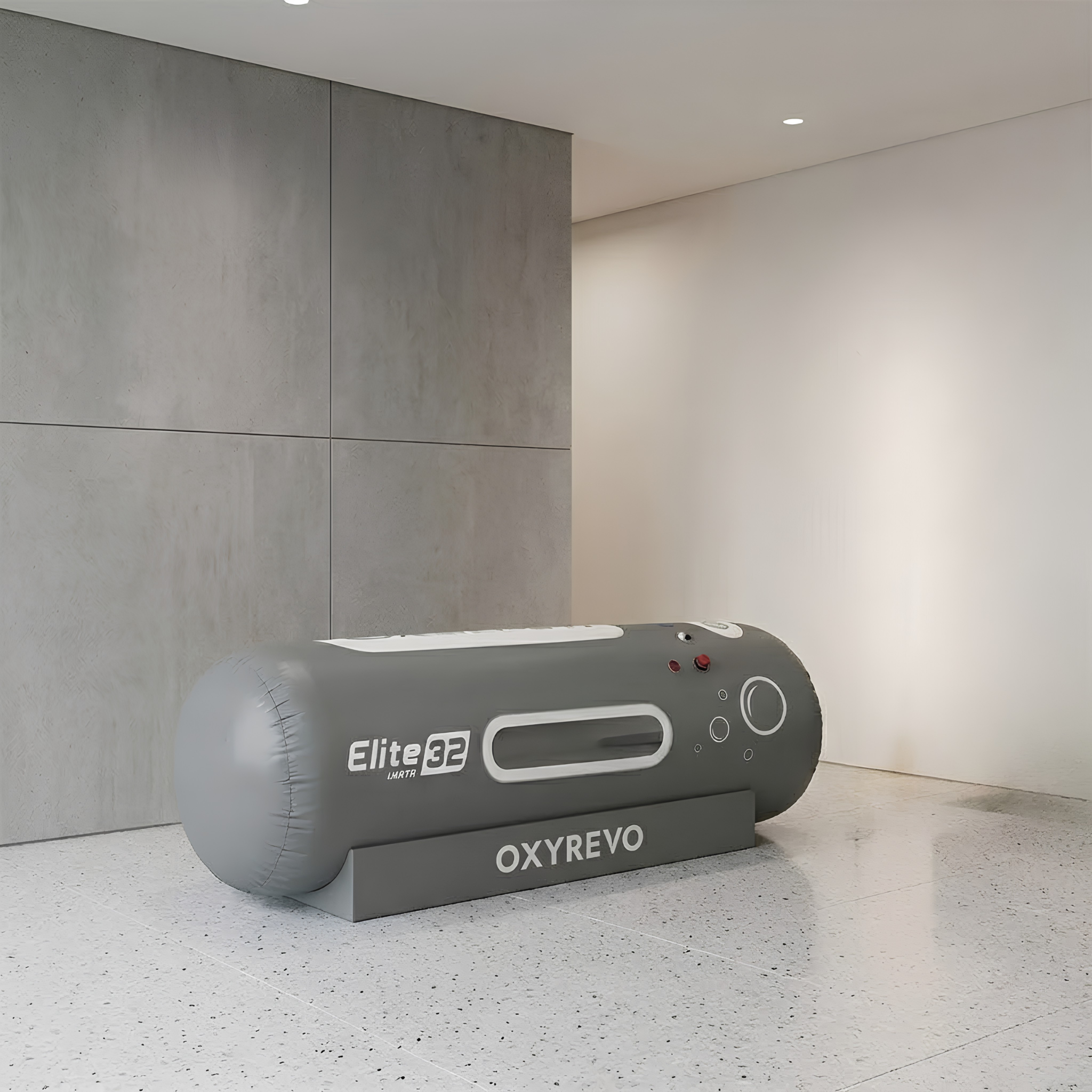

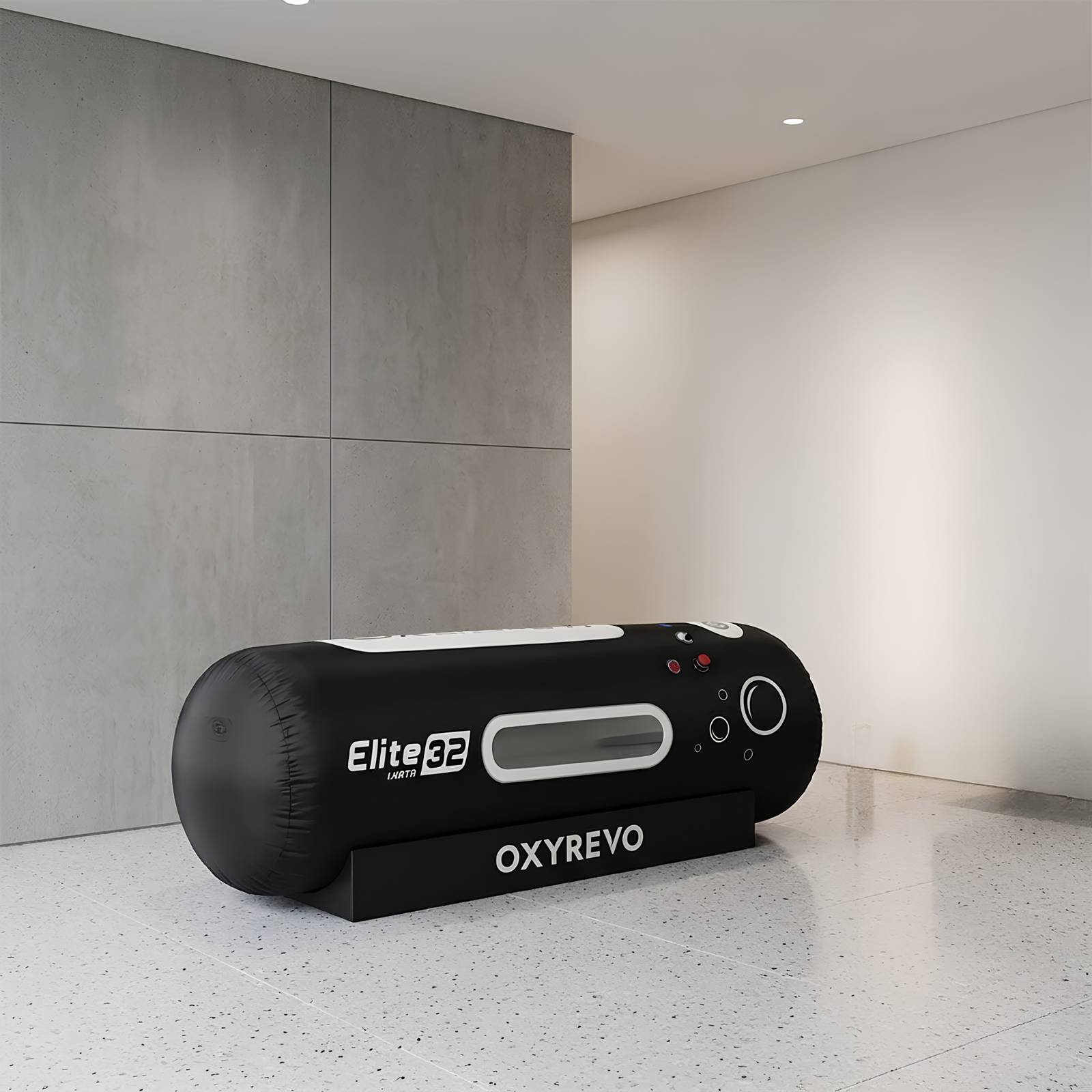

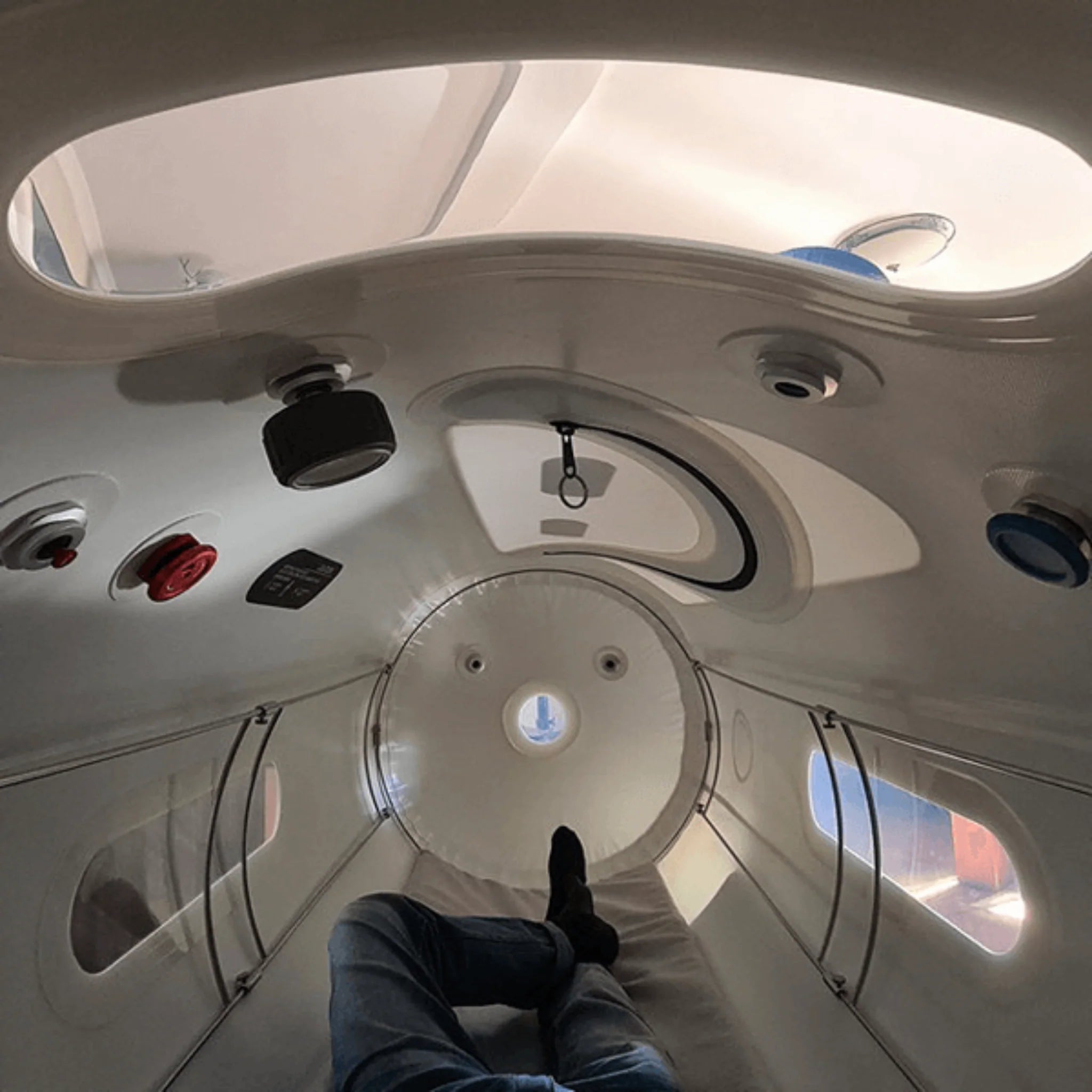

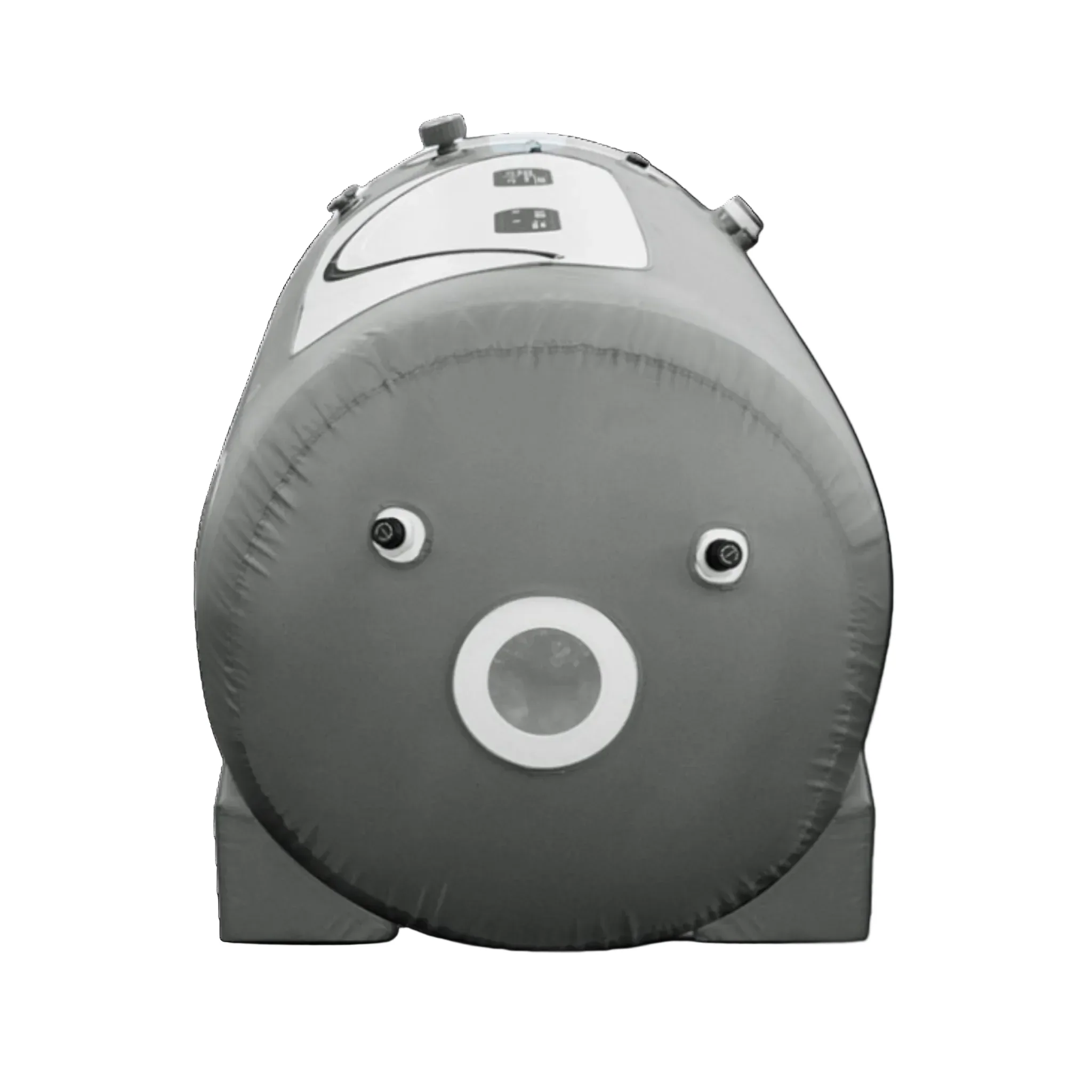

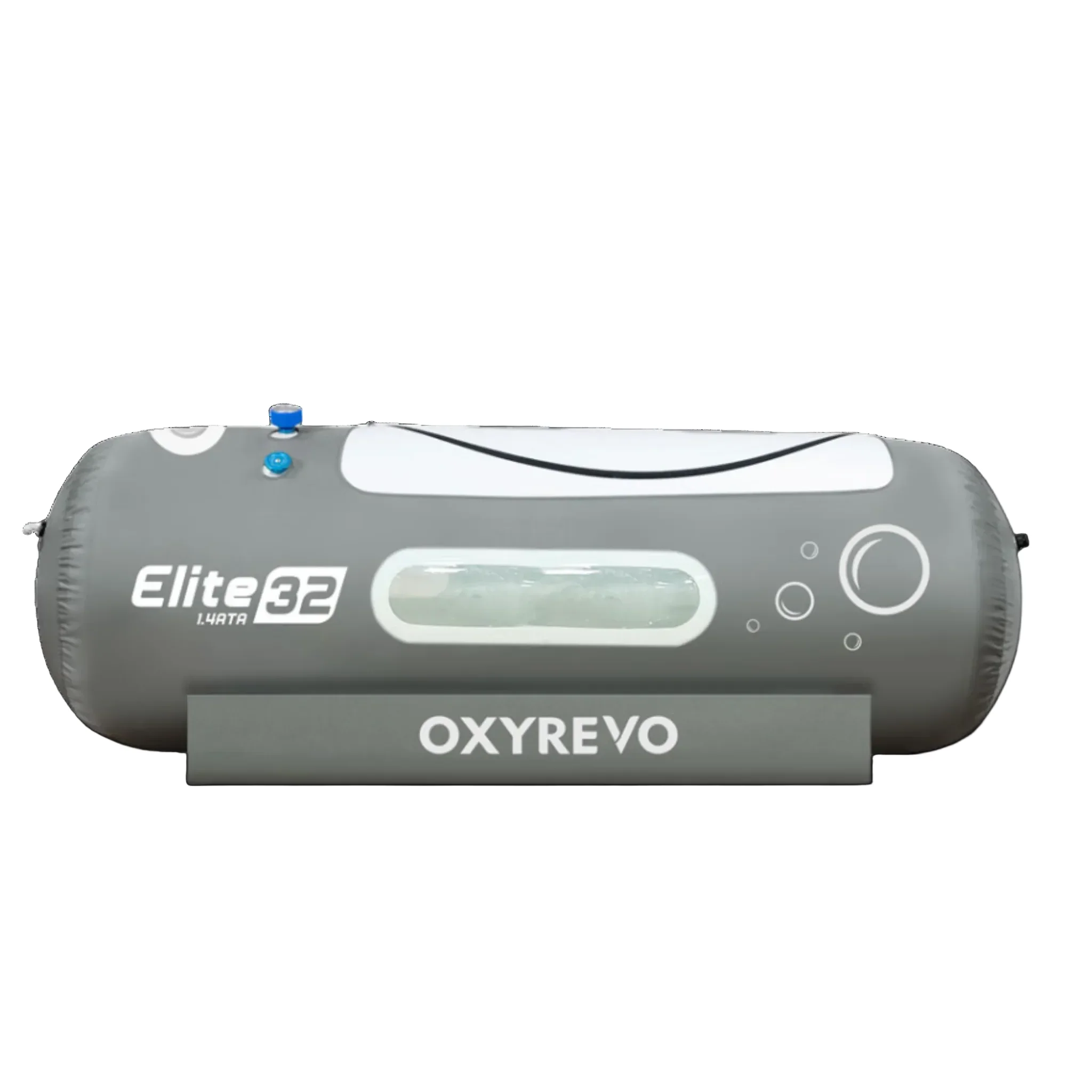

The Elite32 is a lightweight portable chamber for home use at 1.4 ATA. At just 28.6 lbs it is easy to assemble and move, and five large double-layered windows keep the interior bright. A memory foam mattress and a 10 L/min oxygen concentrator (90–97% oxygen) come with it, dual YKK leak-proof zippers and custom valves keep it airtight, and dual pressure displays and a 30-second emergency valve add safety. Choose the Standard version (three separate machines) or the Pro version (all-in-one), in grey, black, white or blue.
Best for: Home users who want a lightweight, easy-to-assemble chamber with an included concentrator and memory foam mattress.
What a session looks like
Lie down on the mattress, zip the chamber closed and start the air compressor. The chamber inflates to your working pressure while oxygen is delivered through a mask or cannula, so you can rest, read, listen to music or even nap. When the timer ends, pressure is released gradually and you unzip and step out. Many owners schedule sessions of roughly 60 to 90 minutes; follow the manufacturer's manual for your own protocol.
Space, power and setup
Soft chambers fold or pack down, so plan for a flat area of floor at least as long as the chamber, room beside it for the compressor, concentrator and any cooler, and a nearby grounded outlet. Keep the machines clear of flames, sparks and heat sources and follow the manufacturer's manual for placement. At a glance: working pressure 1.4 ATA; weight 28.6 lbs (13 kg); length 90″ (7.5 ft); diameter 32″ (2.6 ft).
Choosing the right model
Want 1.5 ATA? See the Apex32. Need room for two? The Elite36 is 36 inches wide.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- 1.4 ATA; 90″ L × 32″ diameter; 28.6 lbs
- Five large double-layered windows; sound level 50 dB or less
- Memory foam mattress; 10 L/min oxygen concentrator, 90–97% oxygen
- Dual YKK leak-proof zippers, custom valves, dual air filters, reinforced internal frame
- Dual internal and external pressure gauges; emergency valve releases pressure in 30 seconds

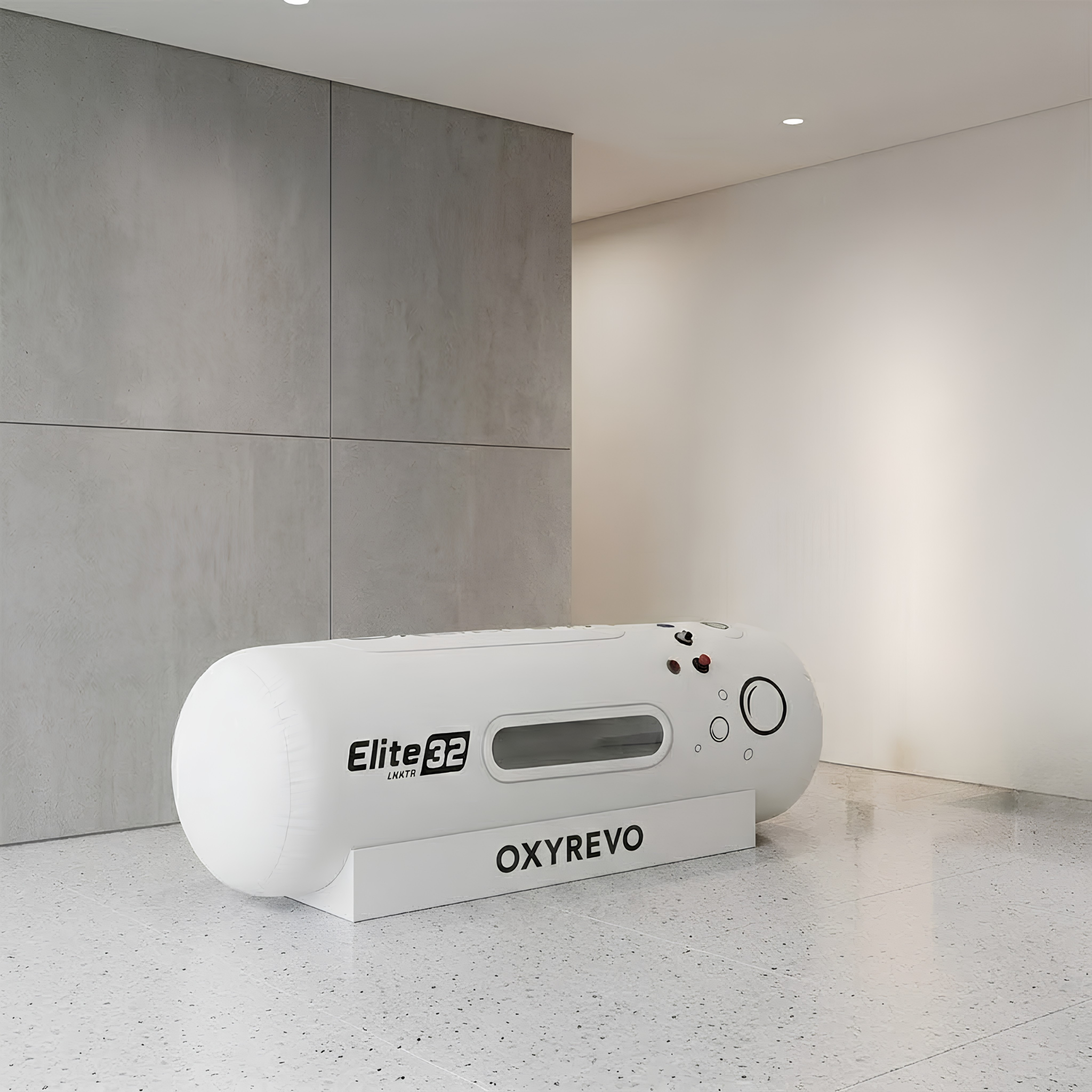

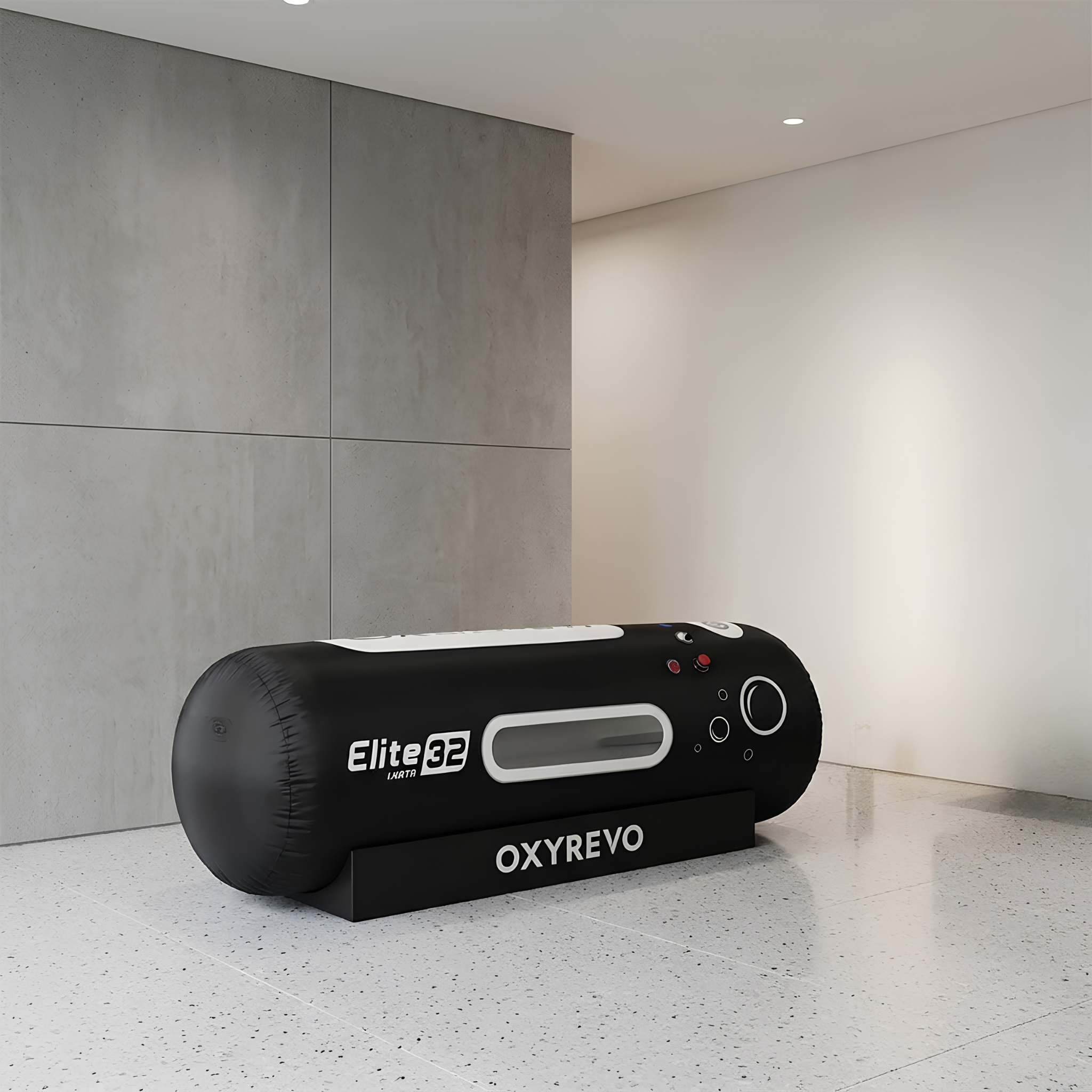

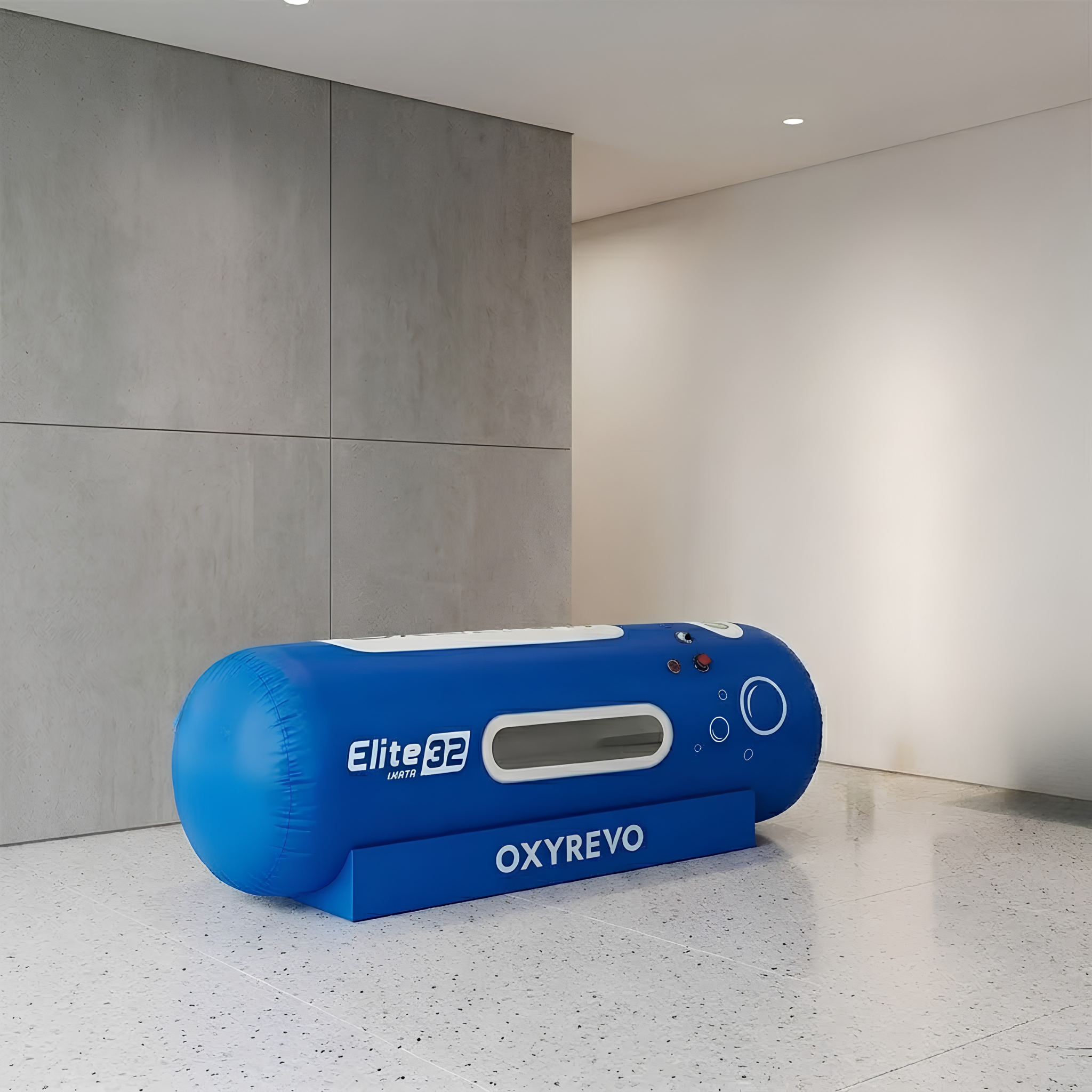

- Four colorways: grey, black, white, blue
| Working Pressure | 1.4 ATA |
|---|---|
| Weight | 28.6 lbs (13 kg) |
| Length | 90″ (7.5 ft) |
| Diameter | 32″ (2.6 ft) |
| Windows | 5 large double-layered windows |
| Sound Level | ≤50 dB |
| Cover Color | Grey, custom colors available |
| Standard Version – Air Compressor | Model AE01, 110V/220V, 19.29″ L × 11.42″ W × 15.75″ H, 550W, 72 L/min, 35 lbs |
| Standard Version – Air Cooler | Model ZLA01, 110V/220V, 11.81″ L × 7.48″ W × 13.39″ H, 210W, 120 L/min, 13 lbs |
| Standard Version – Oxygen Concentrator | Model HG10, 110V/220V, 18.11″ L × 17.32″ W × 30.71″ H, 500W, 10 L/min, 66 lbs |
| Standard Version – Operation | Separate units require individual setup and control |
| Standard Version – Efficiency | Effective dehumidifying and cooling, continuous oxygen production, double input/output filters |
| Standard Version – Material | High-strength TPU |
| Standard Version – Safety | Emergency valves, double-layer viewing windows, internal/external pressure release valves Pressure Gauges: High-precision display inside and outside for constant monitoring Curved Zipper Design: Ergonomic design for easier access and reduced effort |

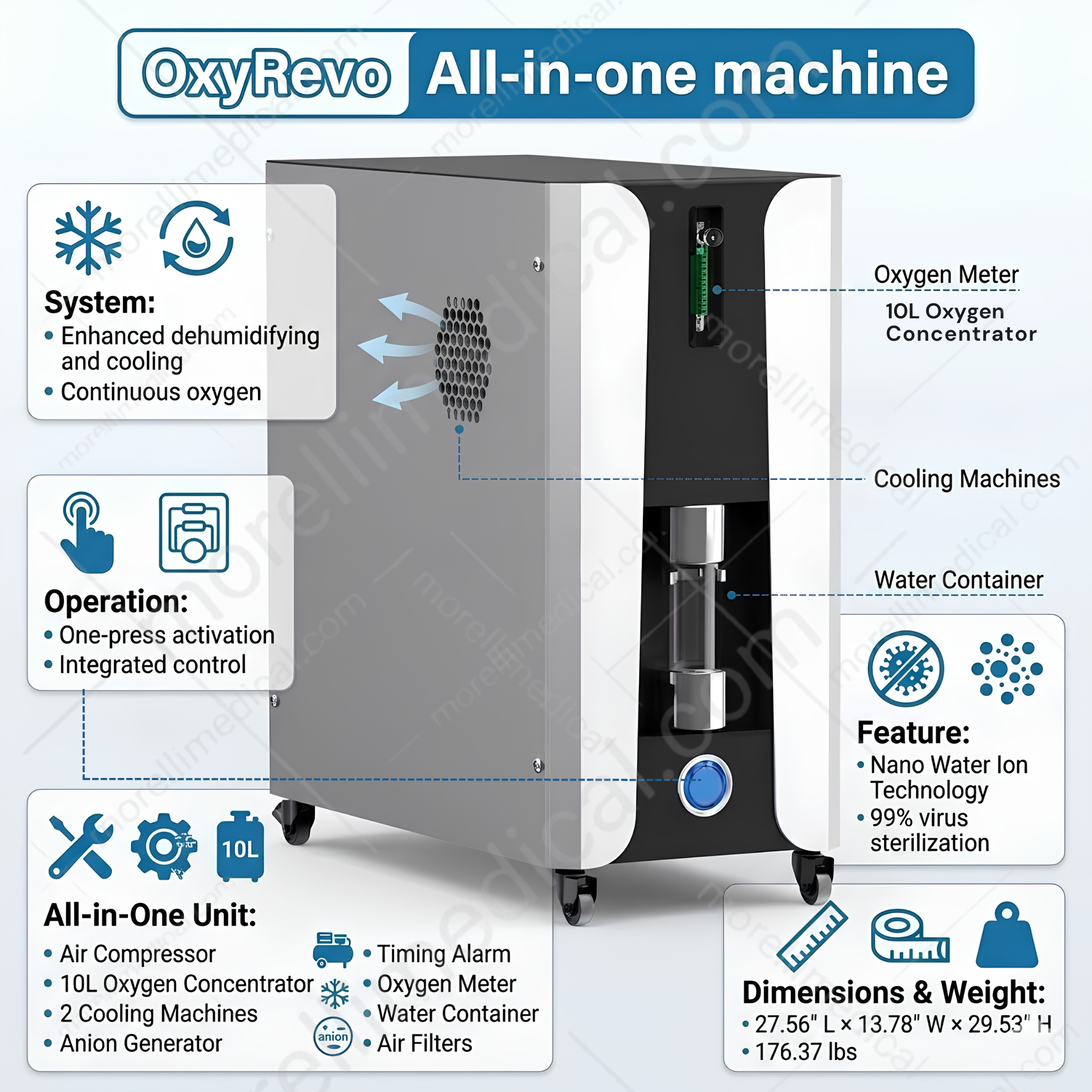

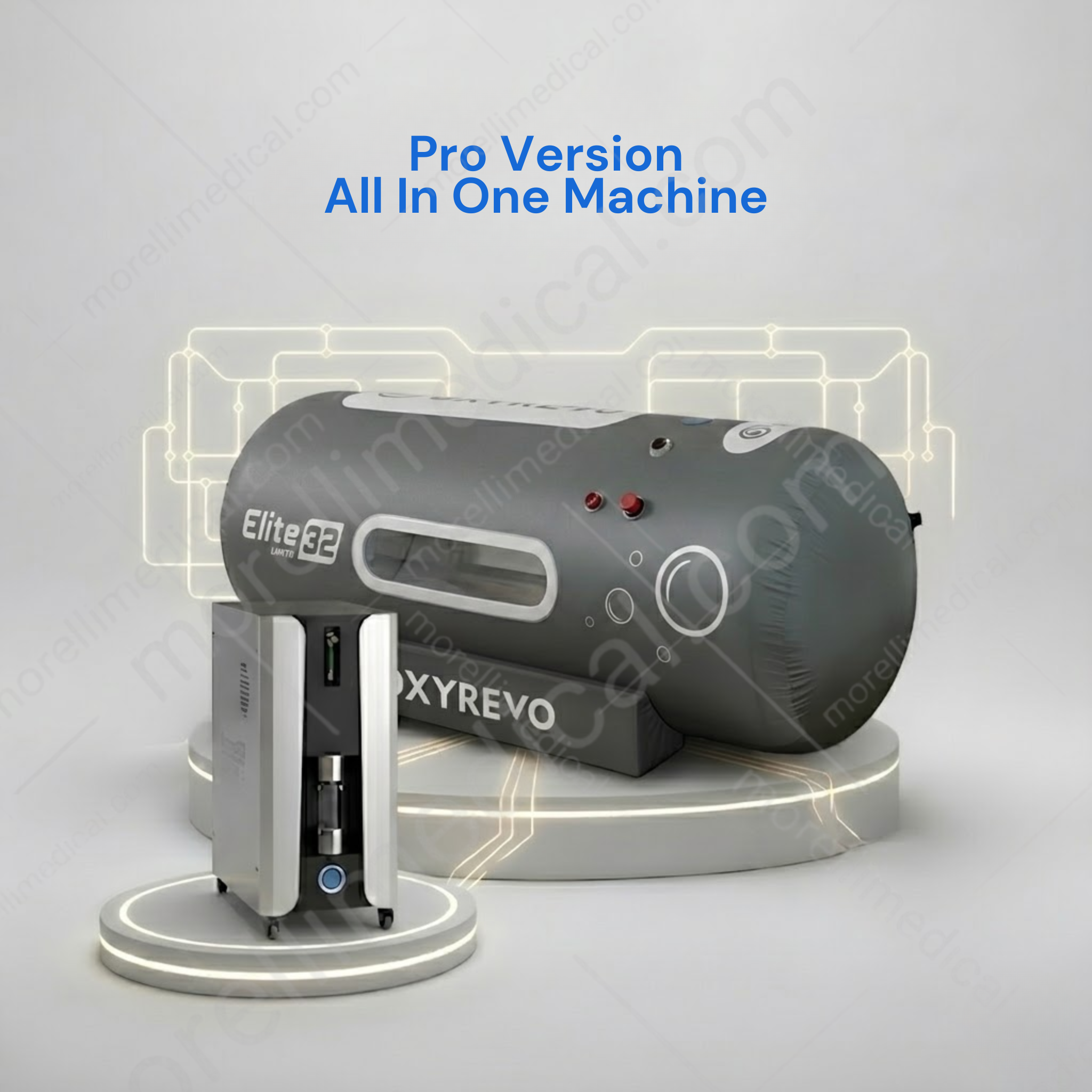

| Pro Version – Air Compressor | 1 unit |
| Pro Version – Oxygen Concentrator | 10L |
| Pro Version – Cooling Machines | 2 units, Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| Pro Version – Dimensions & Weight | 27.56″ L × 13.78″ W × 29.53″ H, 176.37 lbs |
| Pro Version – Operation | All functions integrated into one unit, one-press activation |
| Pro Version – Efficiency | Enhanced dehumidifying and cooling, continuous oxygen production, double activated carbon filters |
| Pro Version – Additional Features | Nano Water Ion Technology with 99% virus sterilization rate |
| Pro Version – Material | High-strength TPU |
| Pro Version – Safety | Emergency valves, double-layer viewing windows, internal/external pressure release valves Pressure Gauges: High-precision display inside and outside for constant monitoring Curved Zipper Design: Ergonomic design for easier access and reduced effort |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (varies by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gallons) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temperature Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gallons/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |
- Internal/external pressure gauges
- Pressure deflate valves
- Control panels
- Display screen
- Communication system
- Pressure relief valves
- Mattress
- Oil-free air compressor
- 10L oxygen concentrator
- Cooling machines
- Anion air purifier
- Air sterilizer
- Air filter
- Humidity water container
- All-in-One Machine (For Pro Version)
- Oxygen mask
- Spare Activated Carbon Cotton Filters
- Fuses
- Air/oxygen tubes
- Power cable
Shipping & Delivery: Most orders ship free within 1-2 business days via curbside delivery. Need it brought inside and set up? Choose White Glove Delivery at checkout and our team will follow up with pricing and scheduling.
Warranty: Warranty coverage varies by manufacturer and product. Contact our team before purchase for the specific warranty terms on this item, or reach out any time after your purchase with a manufacturer defect concern — we'll help you through the process.
Product manuals, installation guides, and spec sheets for this item are available on request. Contact our product specialists and we'll send you the documentation.
