Room for two in a portable 1.4 ATA chamber

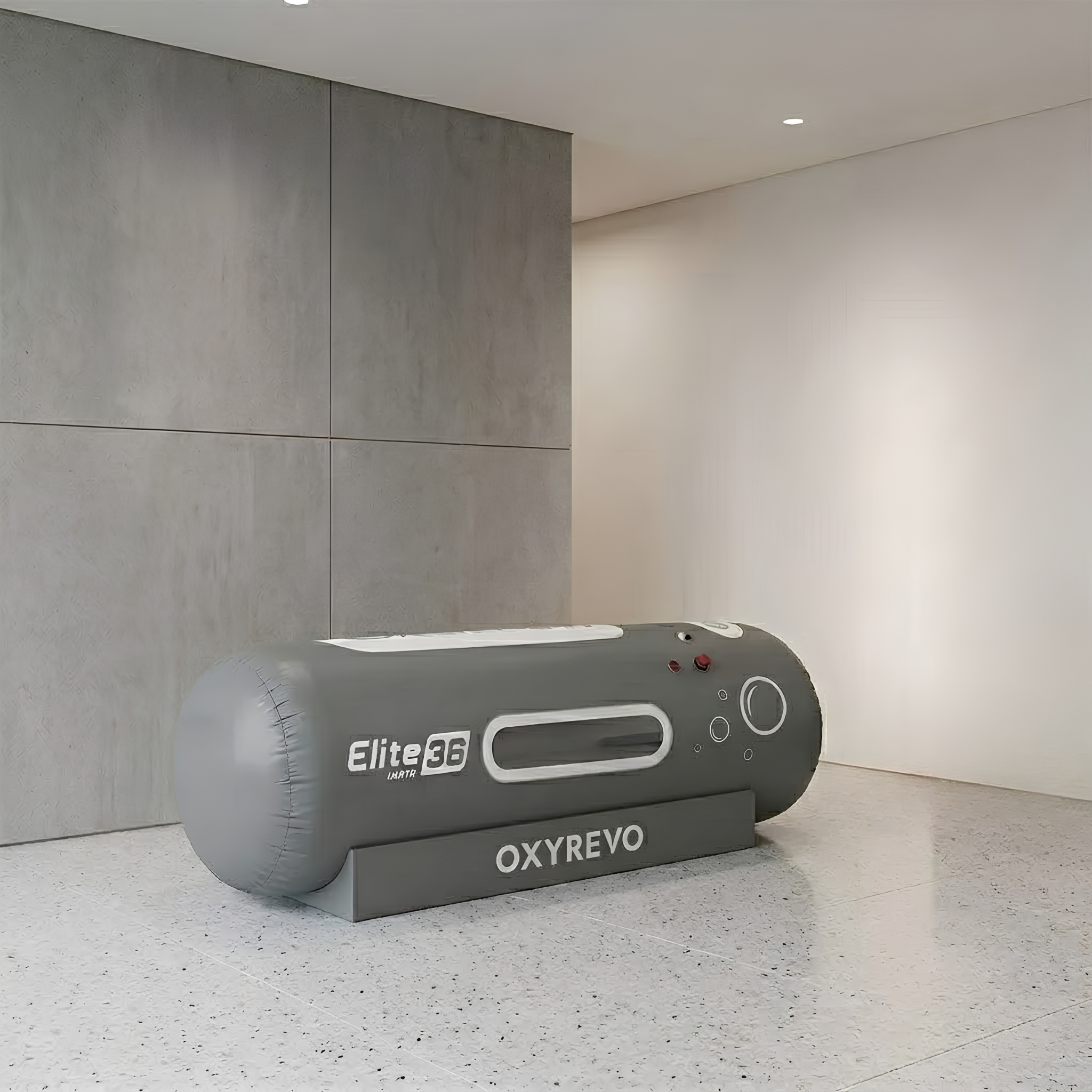

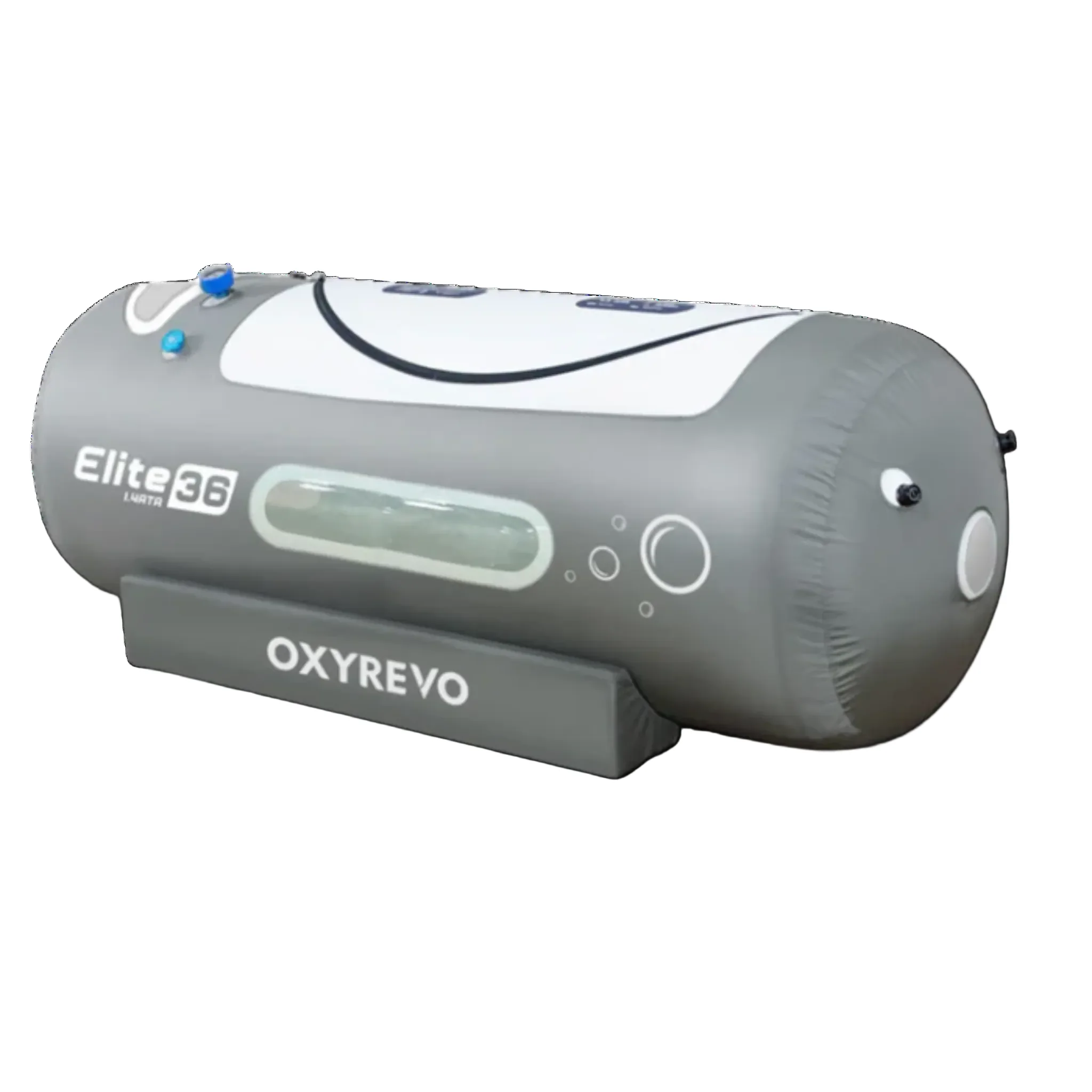

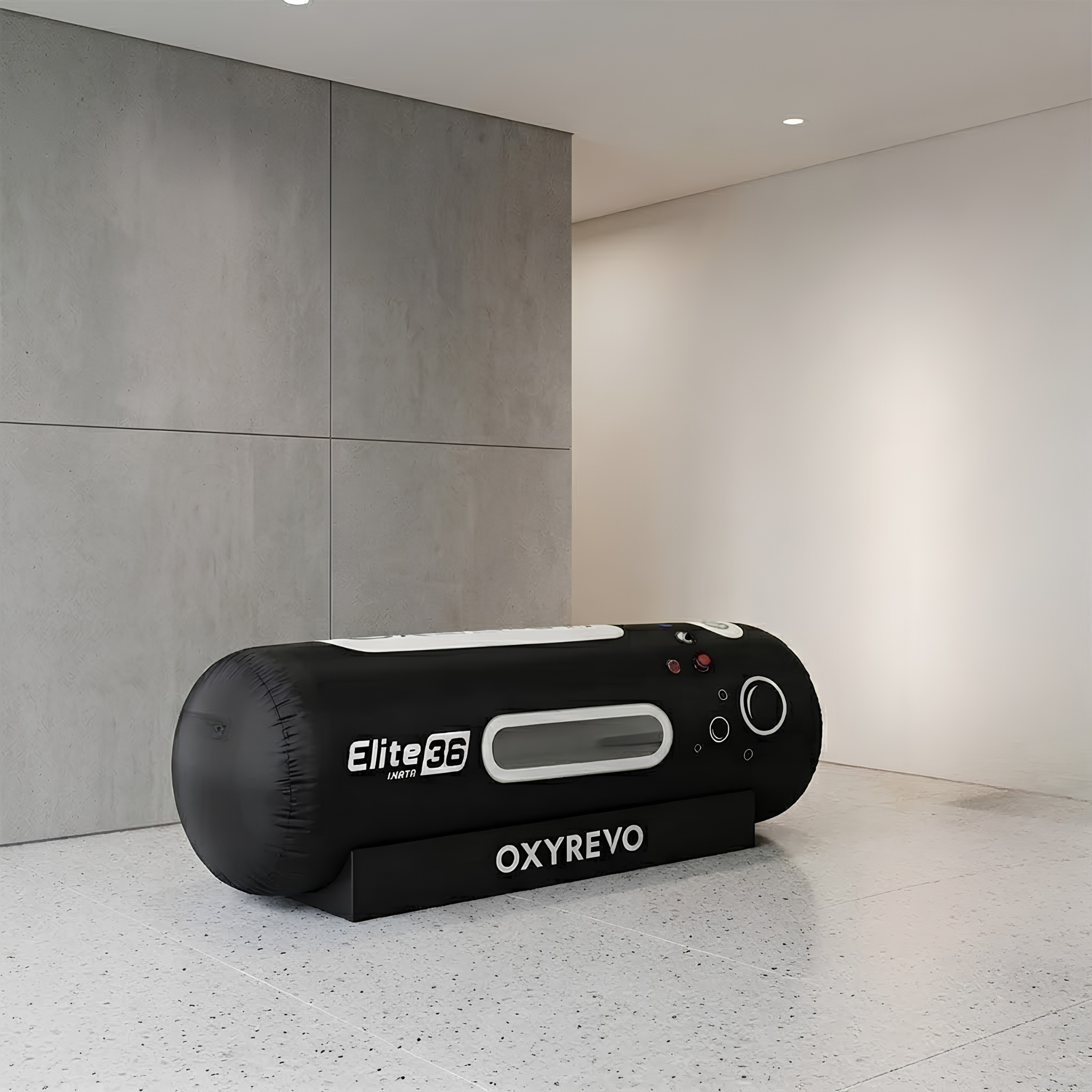

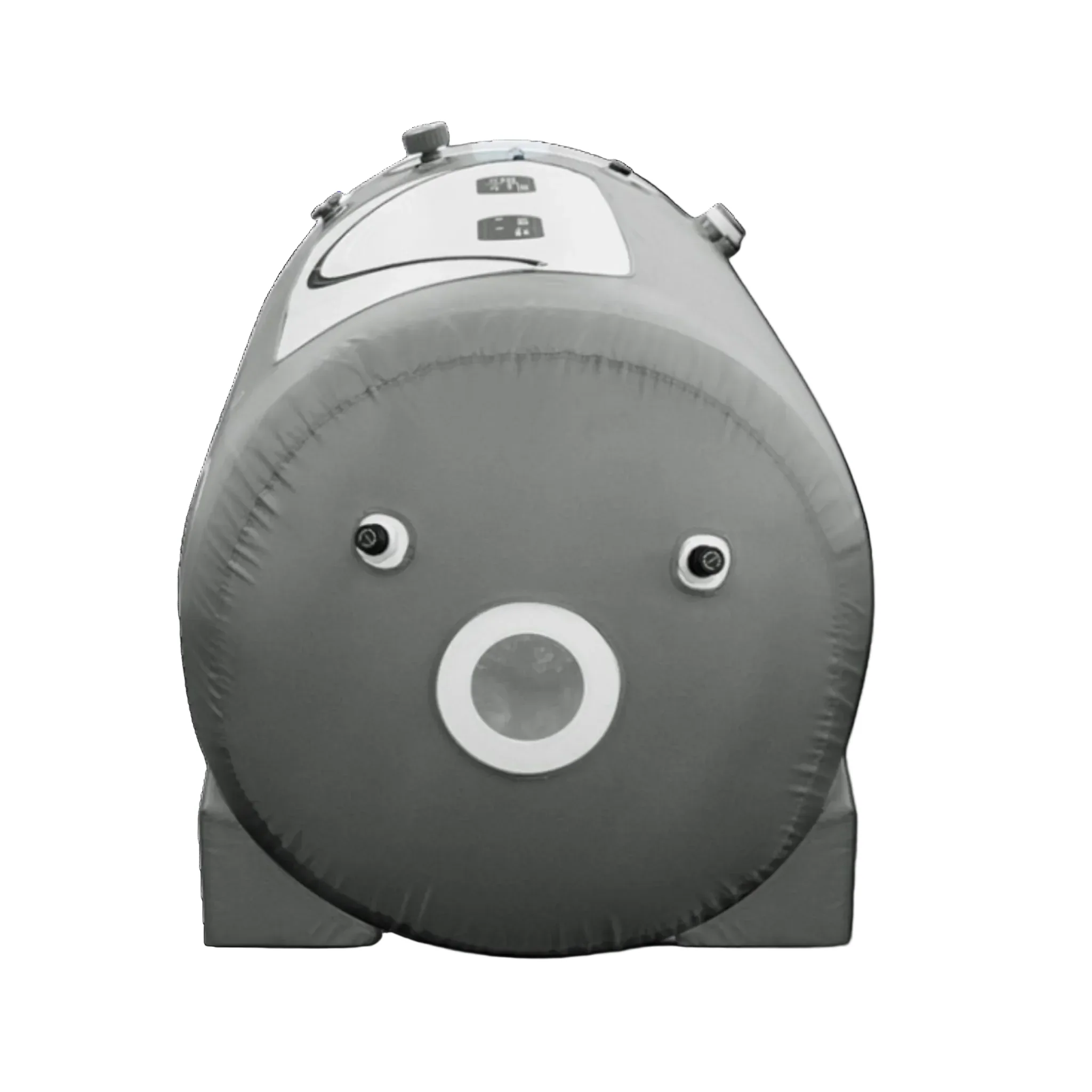

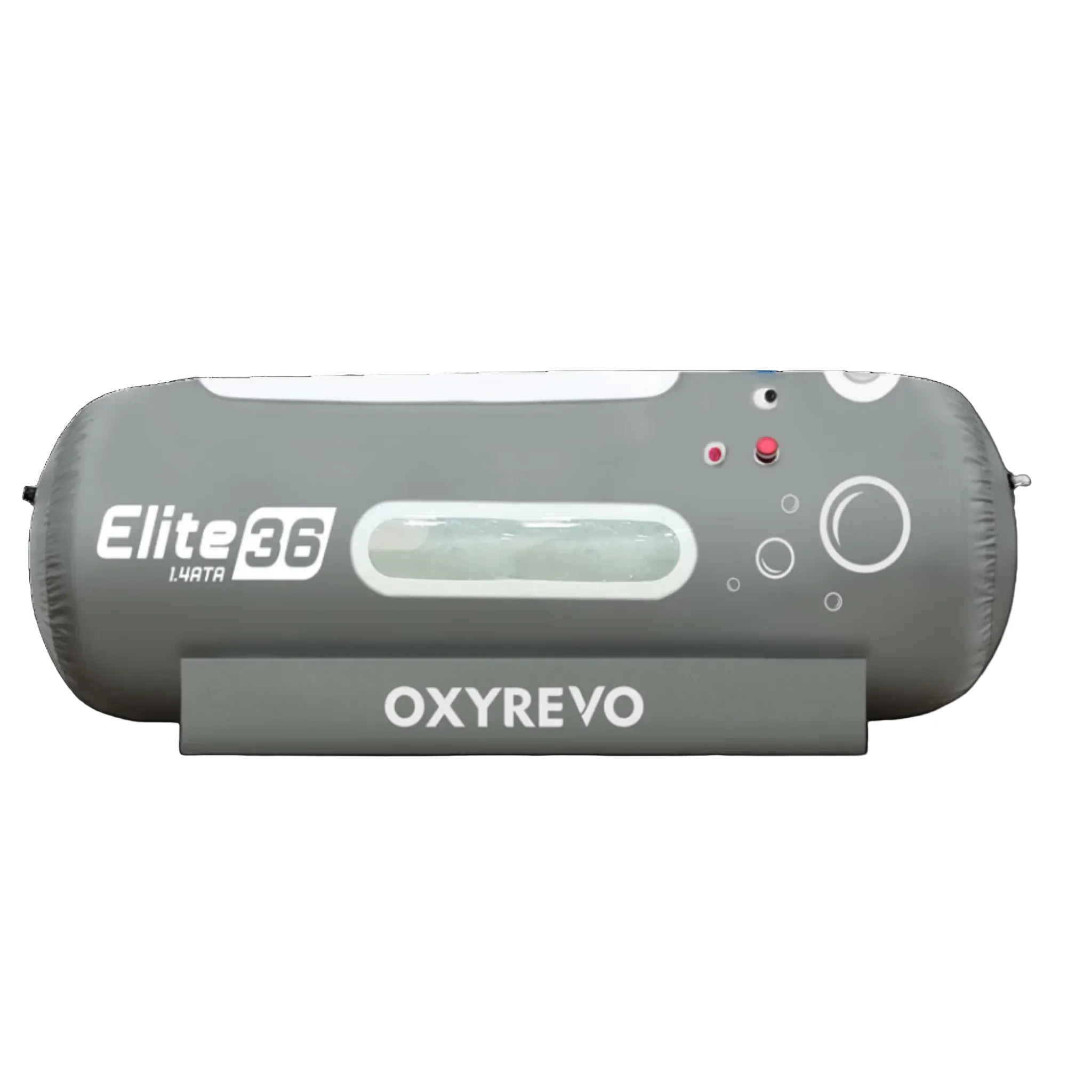

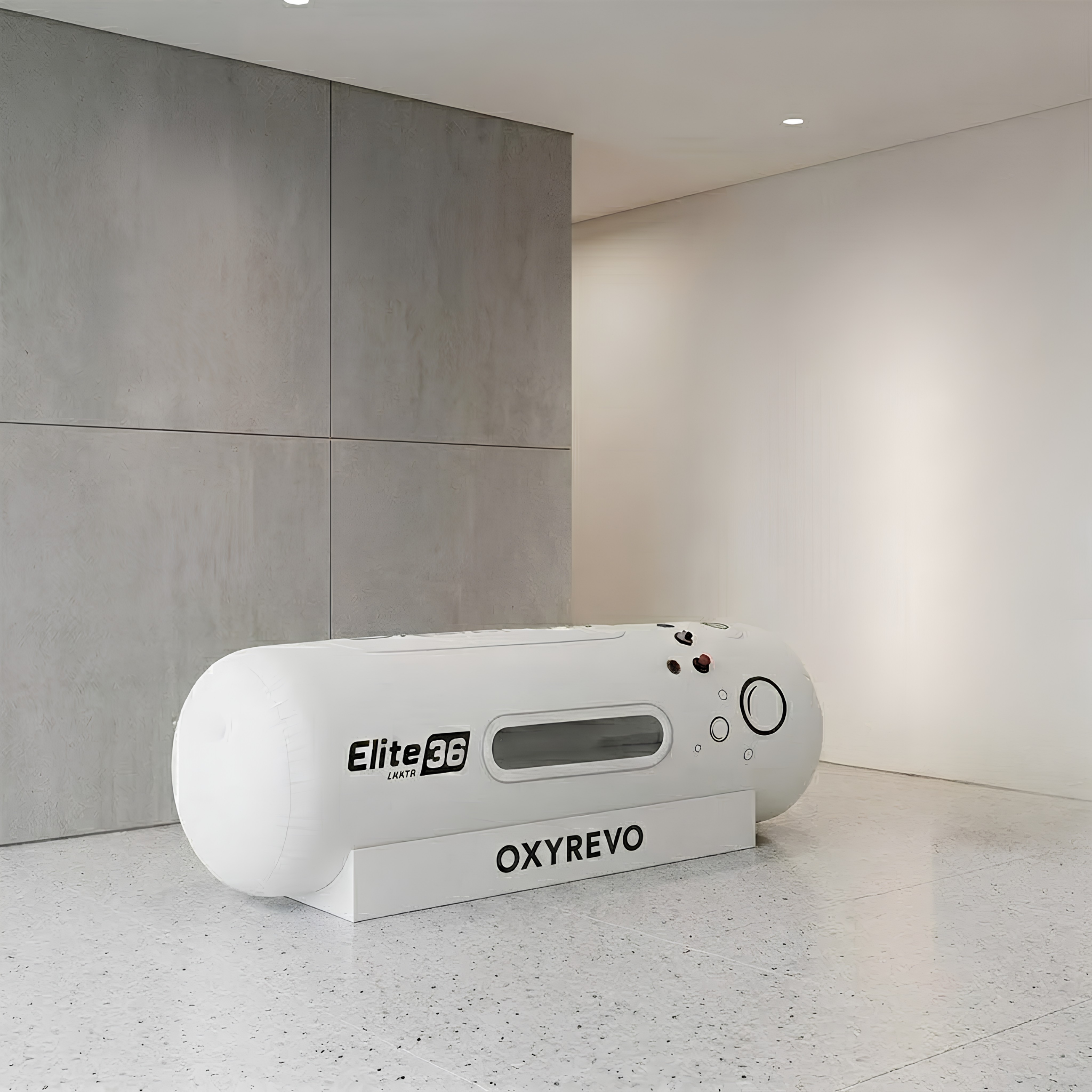

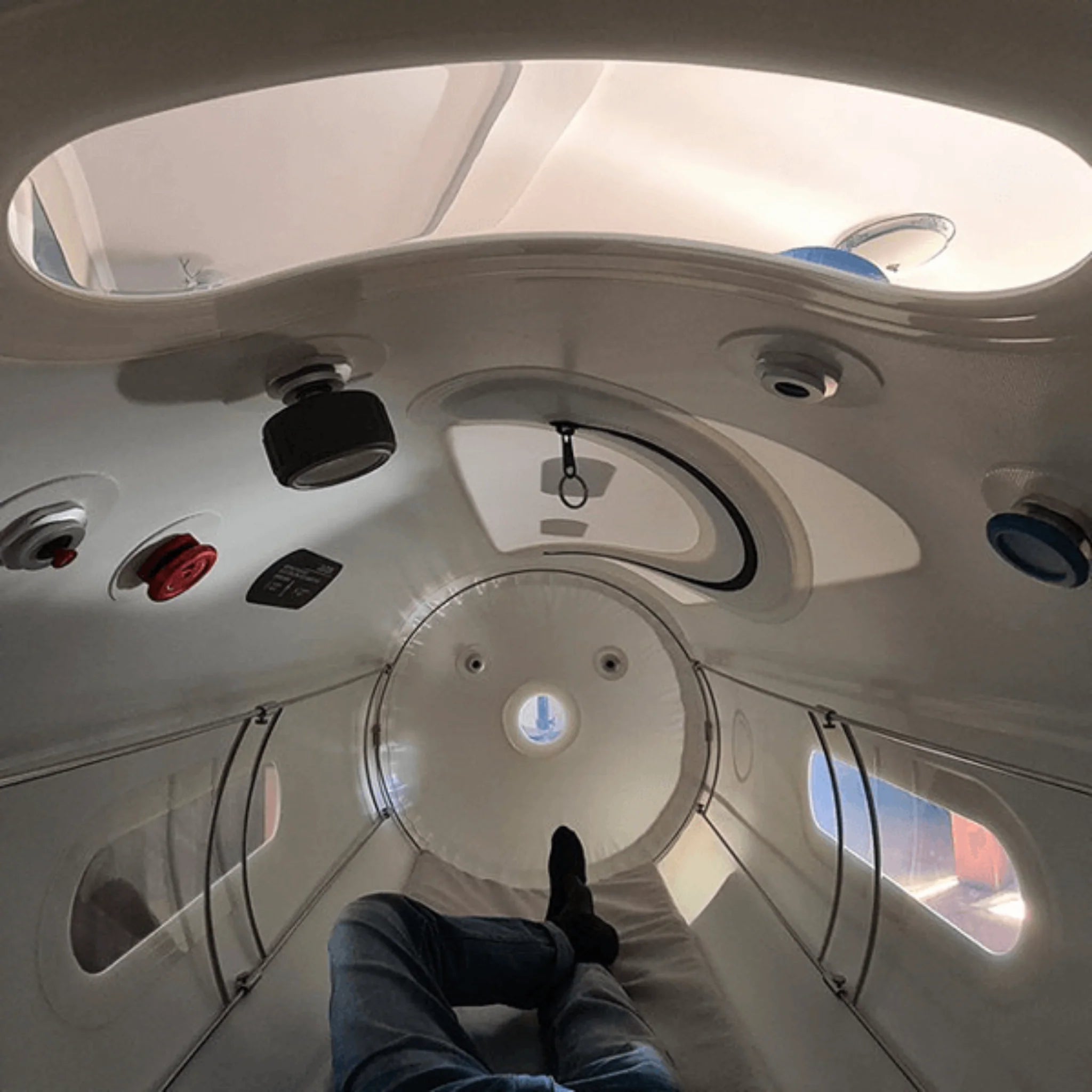

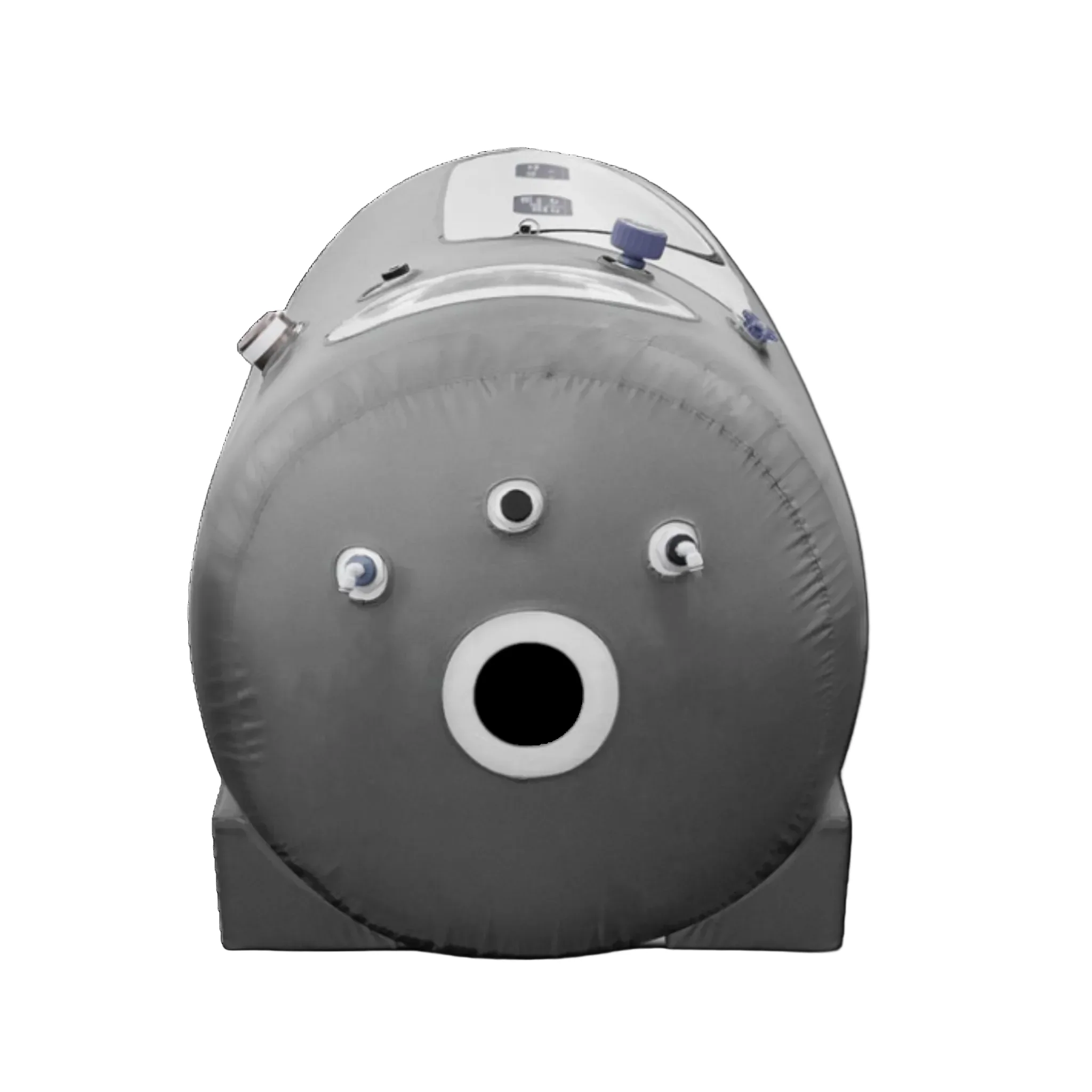

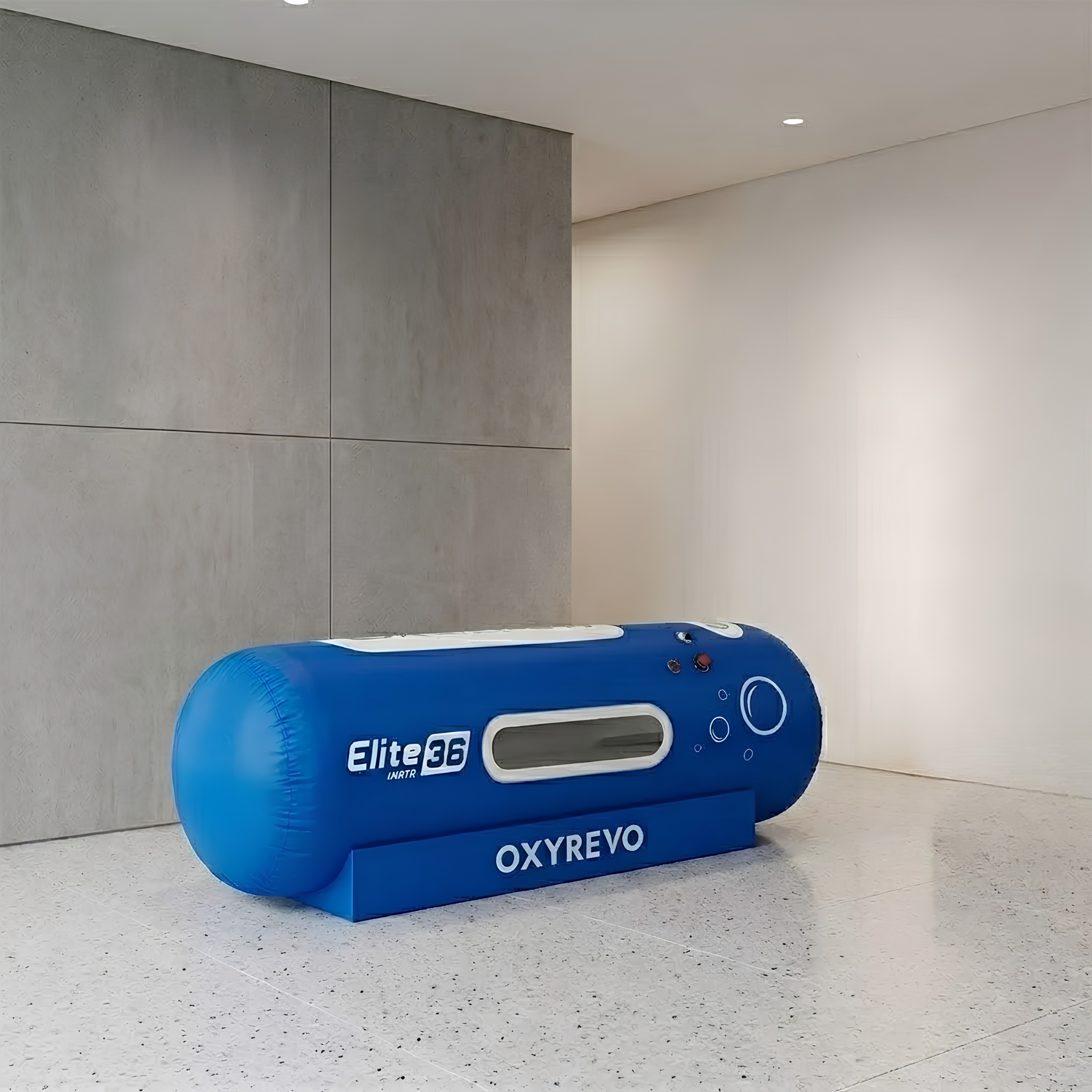

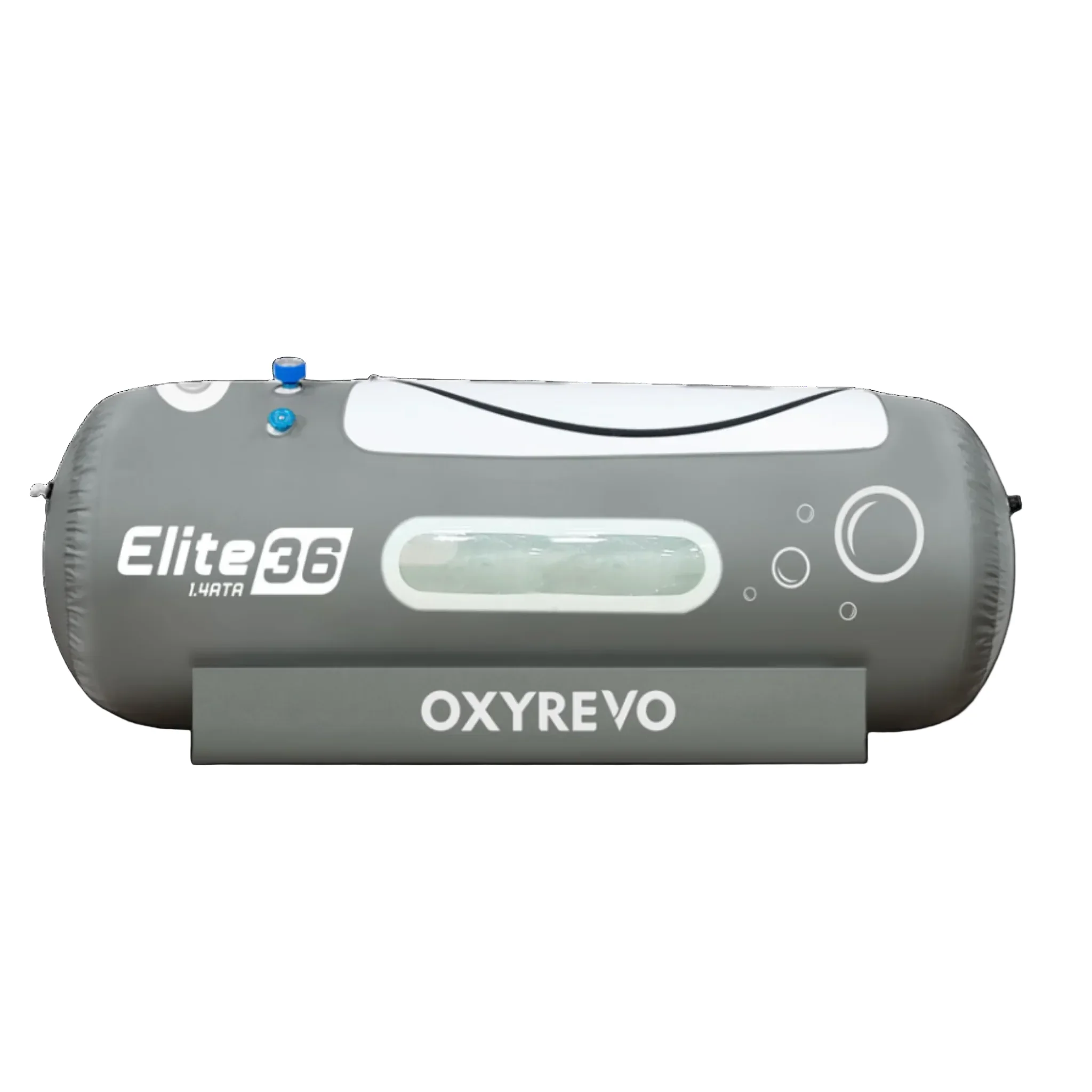

The Elite36 is OxyRevo's widest portable lying chamber: 90 by 36 inches at 1.4 ATA. There is room for two users, or a parent and child, while keeping the light weight and portability of a soft-shell design. A memory foam mattress and a 10 L/min concentrator (90–97% oxygen) are included, with dual YKK zippers, dual air filters, large viewing windows and a 30-second emergency valve. Choose the Standard or Pro operating version.
Best for: Parents and children, couples and shared households that want a portable soft chamber at 90 by 36 inches.
What a session looks like
Lie down on the mattress, zip the chamber closed and start the air compressor. The chamber inflates to your working pressure while oxygen is delivered through a mask or cannula, so you can rest, read, listen to music or even nap. When the timer ends, pressure is released gradually and you unzip and step out. Many owners schedule sessions of roughly 60 to 90 minutes; follow the manufacturer's manual for your own protocol.
Space, power and setup
Soft chambers fold or pack down, so plan for a flat area of floor at least as long as the chamber, room beside it for the compressor, concentrator and any cooler, and a nearby grounded outlet. Keep the machines clear of flames, sparks and heat sources and follow the manufacturer's manual for placement. At a glance: pressure 1.4 ATA; dimensions 90″ L × 36″ W (7.5 ft × 3 ft); weight 33 lbs (15 kg).
Choosing the right model
For a slimmer shell, the Elite32 is 32 inches; for 1.5 ATA, choose the Apex36.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- 1.4 ATA; 90″ L × 36″ W; 33 lbs
- Room for two users or a parent and child
- Memory foam mattress; 10 L/min concentrator, 90–97% oxygen
- Dual YKK leak-proof zippers, custom valves, dual air filters, reinforced frame, large viewing windows
- Dual pressure gauges; emergency valve releases pressure in 30 seconds
| Pressure | 1.4 ATA |
|---|---|
| Material | Environmentally friendly, non-toxic |
| Dimensions | 90″ L × 36″ W (7.5 ft × 3 ft) |
| Weight | 33 lbs (15 kg) |
| Dual Pressure Gauges | Internal and external |
| Emergency Valve | Quick release in 30 seconds |
| Mattress | Memory foam |

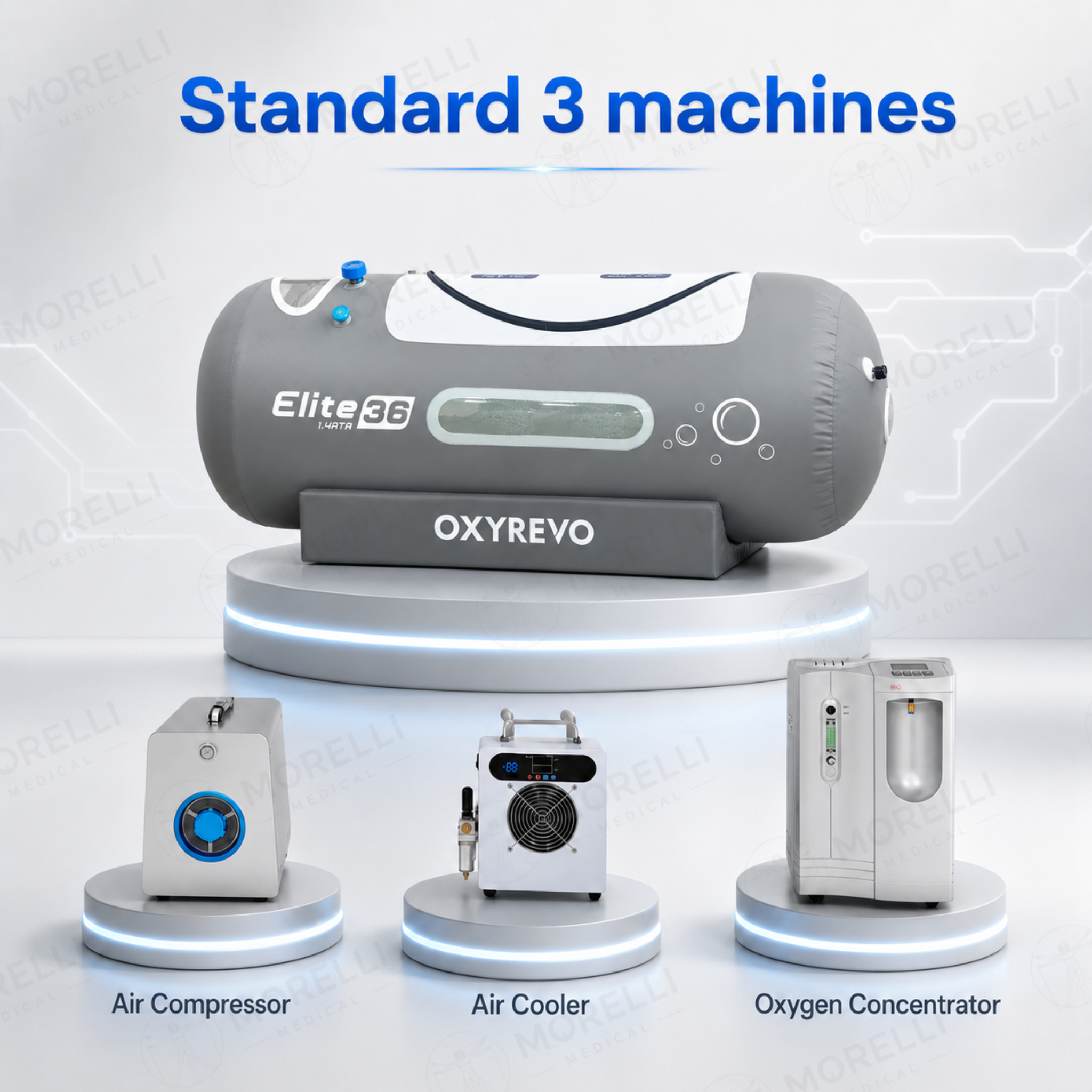

| Standard Version – Air Compressor | Model AE01, 110V/220V, 19.29″ L × 11.42″ W × 15.75″ H, 550W, 72 L/min, 35 lbs |
| Standard Version – Air Cooler | Model ZLA01, 110V/220V, 11.81″ L × 7.48″ W × 13.39″ H, 210W, 120 L/min, 13 lbs |
| Standard Version – Oxygen Concentrator | Model HG10, 110V/220V, 18.11″ L × 17.32″ W × 30.71″ H, 500W, 10 L/min, 66 lbs |
| Standard Version – Operation | Separate units, individual setup and control |
| Standard Version – Efficiency | Dehumidifying and cooling, continuous oxygen, double filters |
| Standard Version – Additional Features | Lower cost, portable, lightweight, economical transport |

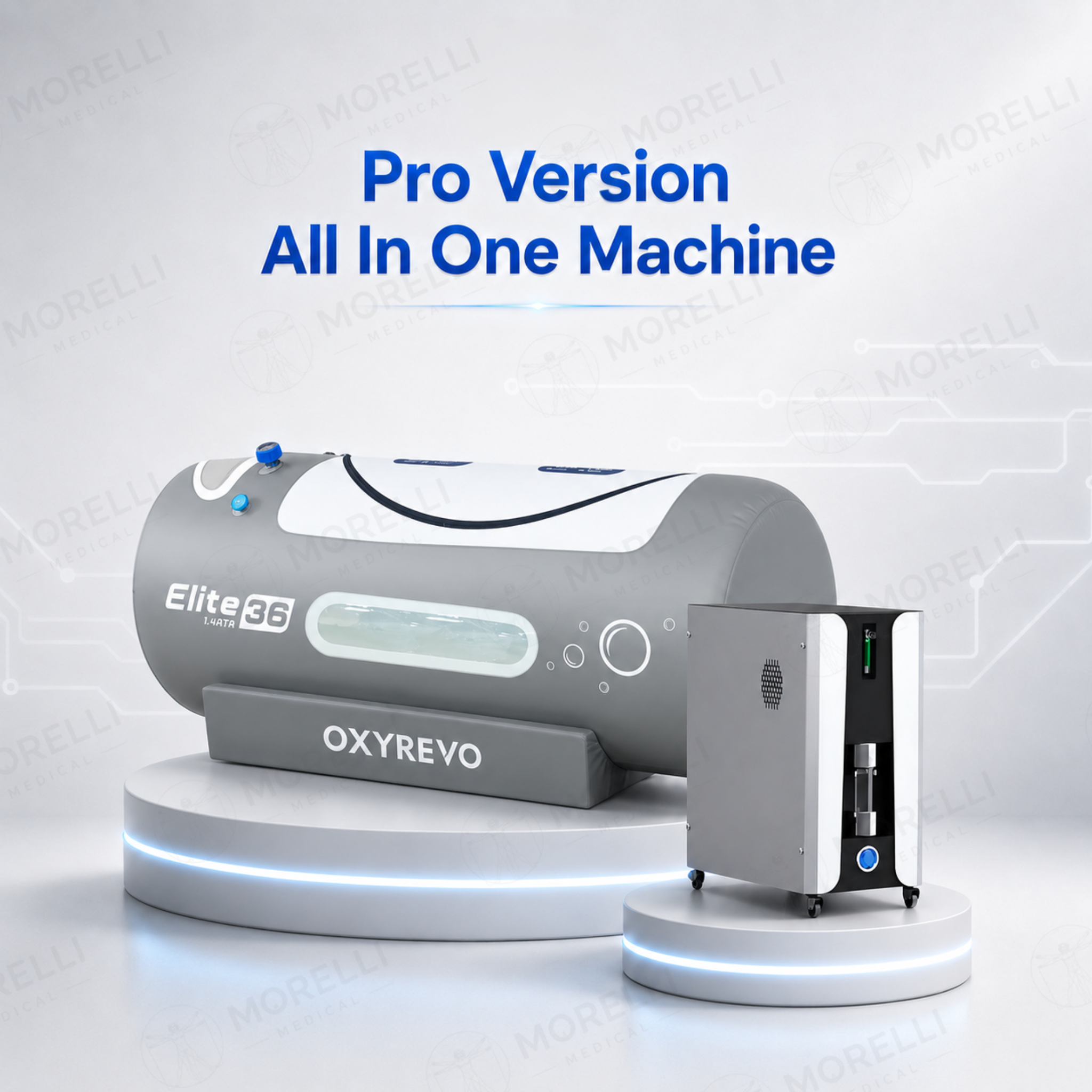

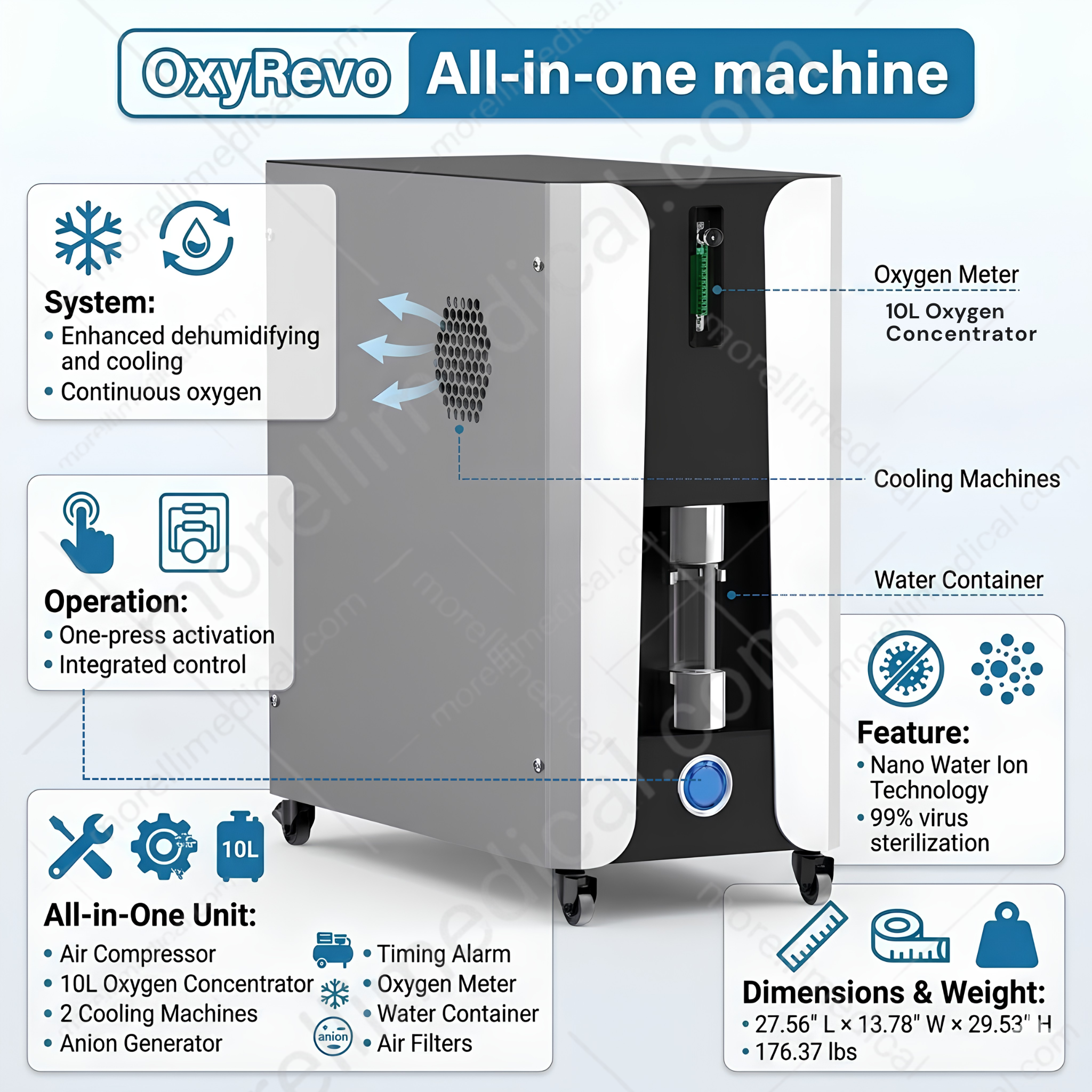

| Pro Version – All-in-One Unit | Air Compressor (1), Oxygen Concentrator 10L, Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| Pro Version – Dimensions & Weight | 27.56″ L × 13.78″ W × 29.53″ H, 176.37 lbs |
| Pro Version – Operation | Integrated functions, one-press activation |
| Pro Version – Efficiency | Enhanced dehumidifying and cooling, continuous oxygen, double activated carbon filters |
| Pro Version – Additional Features | Nano Water Ion Technology, 99% virus sterilization rate |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (varies by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gallons) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temperature Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gallons/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |
- Internal/external pressure gauges
- Pressure deflate valves
- Control panels
- Display screen
- Communication system
- Pressure relief valves
- Mattress
- Oil-free air compressor
- 10L oxygen concentrator
- Cooling machines
- Anion air purifier
- Air sterilizer
- Air filter
- Humidity water container
- All-in-One Machine (For Pro Version)
- Oxygen mask
- Spare Activated Carbon Cotton Filters
- Fuses
- Air/oxygen tubes
- Power cable
