Mild hyperbaric sessions made accessible for wheelchair users

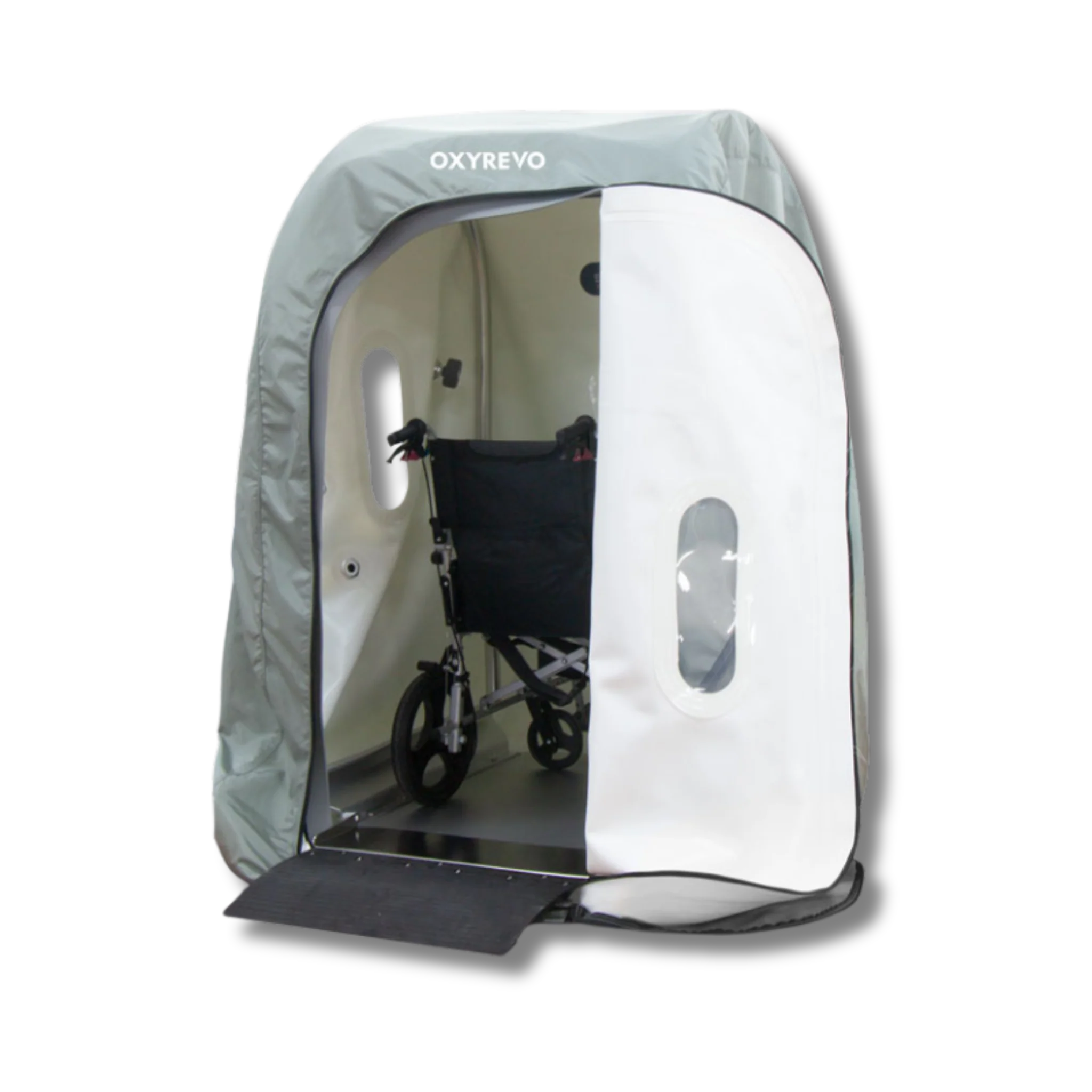

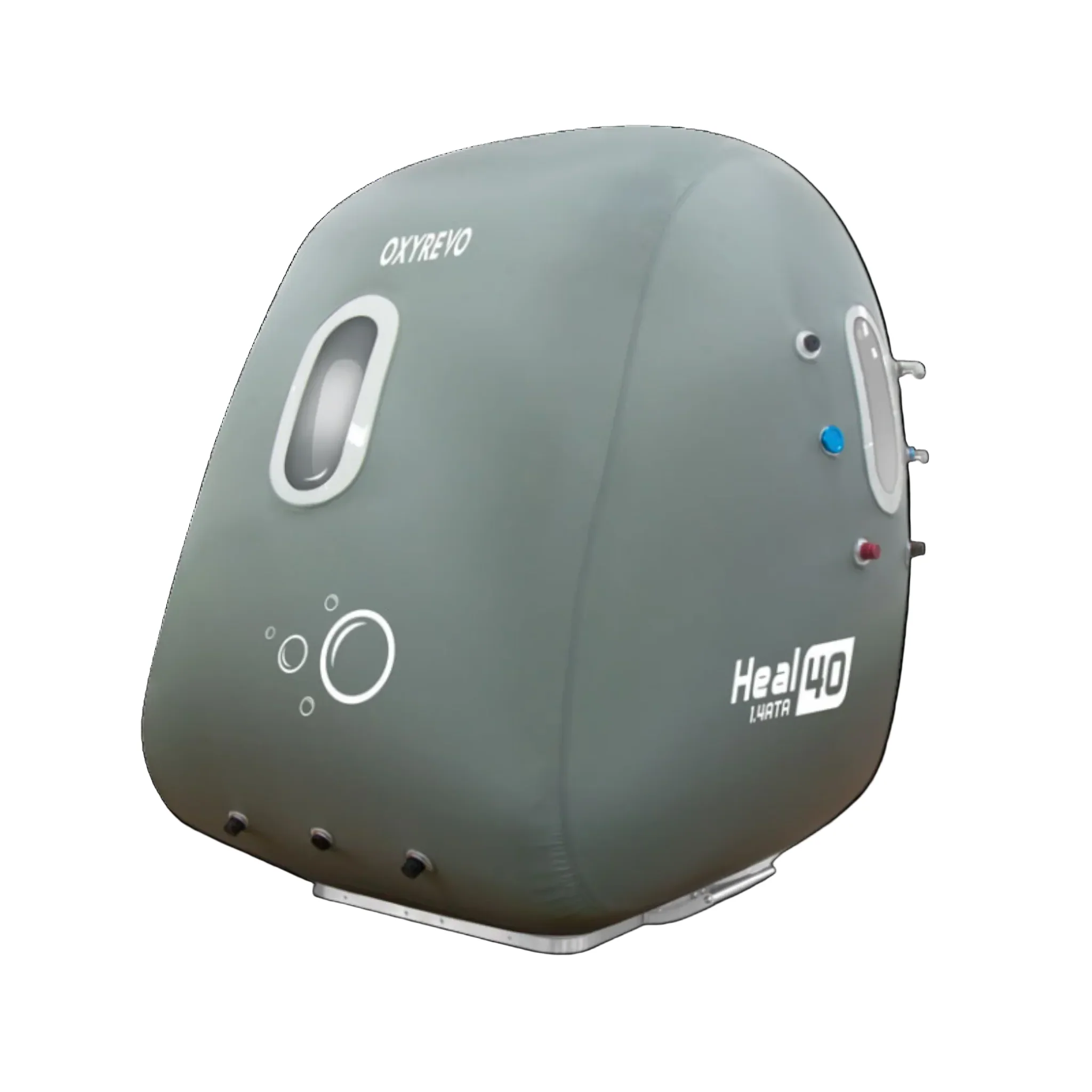

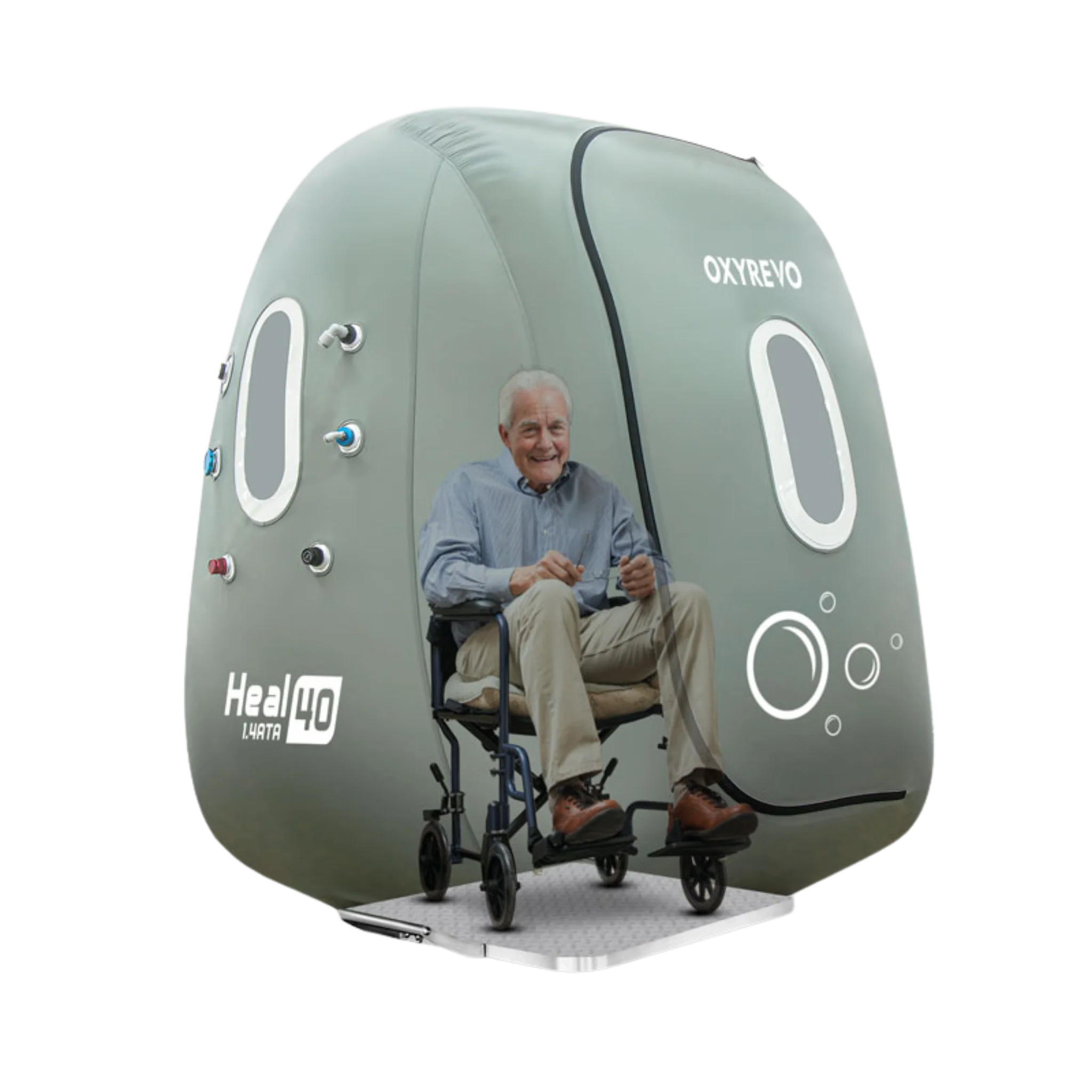

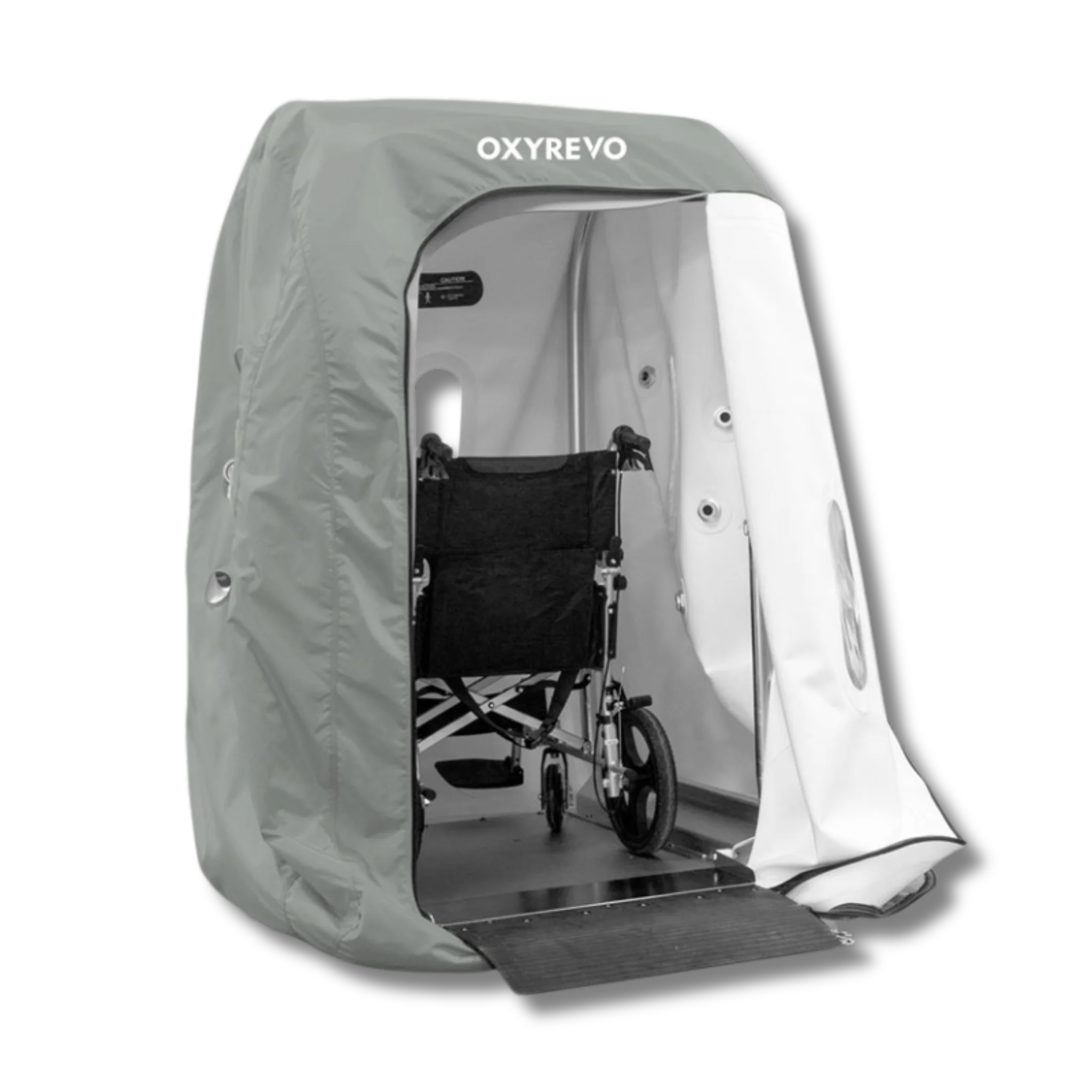

The Heal40 opens mild hyperbaric sessions to wheelchair users. Its 67 × 62 × 75-inch chamber has a 26-inch wheelchair ramp and a durable aluminum base, and it can also hold a regular chair for seated sessions. It operates at 1.4 ATA with a 10 L/min concentrator (90–97% oxygen), four large double-layered windows and dual YKK leak-proof zippers, and dual pressure displays and pressure-release controls are easy to reach.
Best for: Wheelchair users, caregivers and clinics that want a 1.4 ATA chamber with a built-in ramp and aluminum base.
What a session looks like
Roll or step in through the wide entry, get comfortable and have the chamber zipped closed. The compressor brings the chamber to your working pressure while oxygen is delivered through a mask or cannula, and a caregiver or operator can monitor the gauges from outside. When the timer ends, pressure is released gradually before you exit. Many owners schedule sessions of roughly 60 to 90 minutes; follow the manufacturer's manual for your own protocol.
Space, power and setup
Confirm a level, firm floor and enough door and hallway width for the wheelchair route, then plan room beside the chamber for the compressor, concentrator and any cooler, plus a nearby grounded outlet. Keep the machines clear of flames, sparks and heat sources and follow the manufacturer's manual for placement. At a glance: working pressure 1.4 ATA; weight 43 kg / 95 lbs; dimensions 67″ L × 62″ W × 75″ H (5.58 ft × 5.17 ft × 6.25 ft).
Choosing the right model
Want dial-adjustable pressure from 1.2 to 1.5 ATA? See the lighter Heal50.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- 1.4 ATA; 26″ wheelchair ramp; aluminum base
- Four large double-layered windows; sound level 50 dB or less
- Dual YKK leak-proof zippers, dual air filters, custom valves, reinforced frame
- Dual pressure displays and convenient pressure-release controls
| Working Pressure | 1.4 ATA |
|---|---|
| Weight | 43 kg / 95 lbs |
| Dimensions | 67″ L × 62″ W × 75″ H (5.58 ft × 5.17 ft × 6.25 ft) |
| Wheelchair Ramp Width | 26″ wide |
| Windows | 4 large double-layered windows |
| Sound Level | ≤50 dB |
| Cover Color | Grey / OEM available |

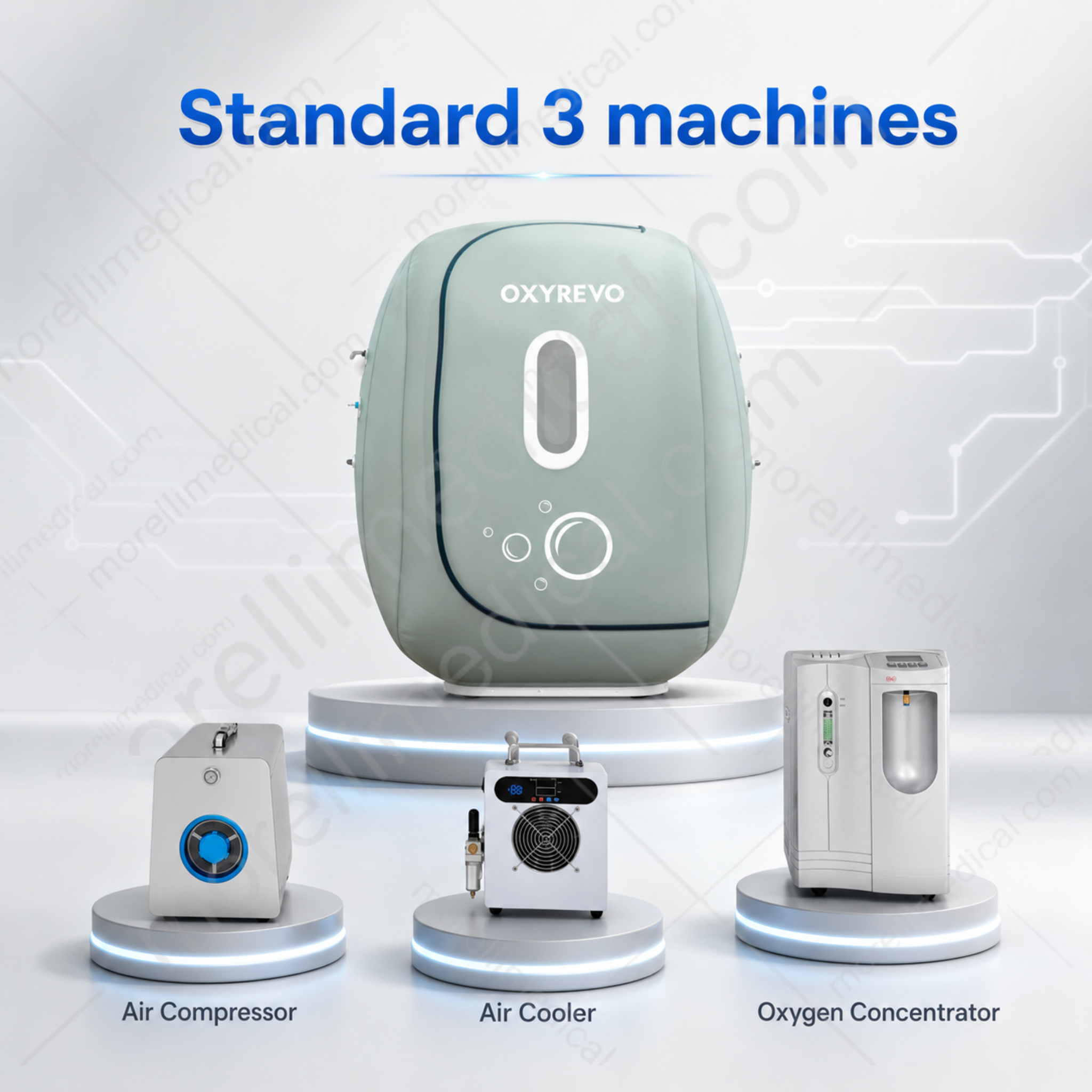

| Standard Version – Air Compressor | Model AE01, 110V/220V, 19.29″ L × 11.42″ W × 15.75″ H, 550W, 72 L/min, 35 lbs |
| Standard Version – Air Cooler | Model ZLA01, 110V/220V, 11.81″ L × 7.48″ W × 13.39″ H, 210W, 120 L/min, 13 lbs |
| Standard Version – Oxygen Concentrator | Model HG10, 110V/220V, 18.11″ L × 17.32″ W × 30.71″ H, 500W, 10 L/min, 66 lbs |
| Standard Version – Operation | Separate units, individual setup and control |
| Standard Version – Efficiency | Dehumidifying and cooling, continuous oxygen, double input/output filters |
| Standard Version – Additional Features | Lower cost, portable, lightweight, economical transport |

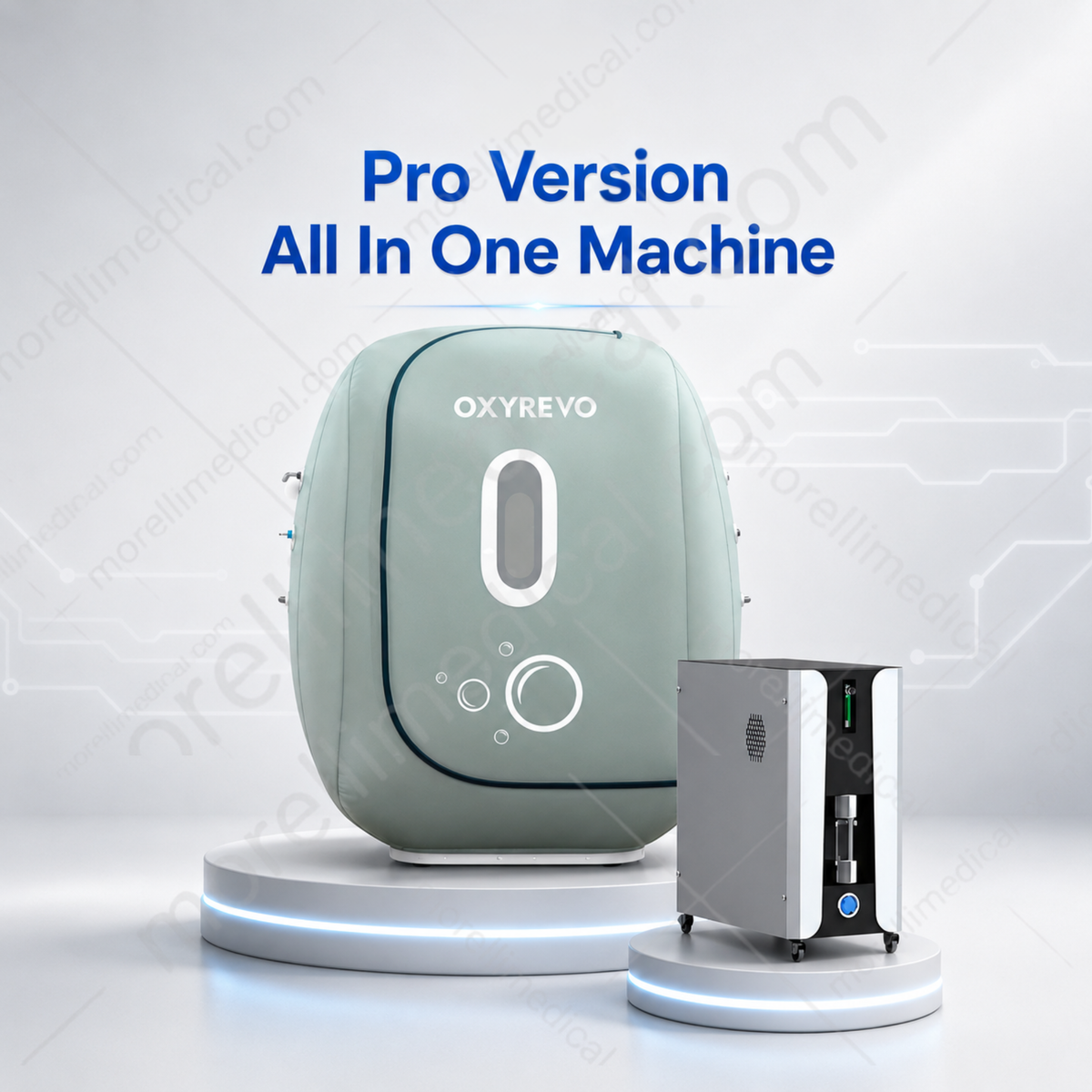

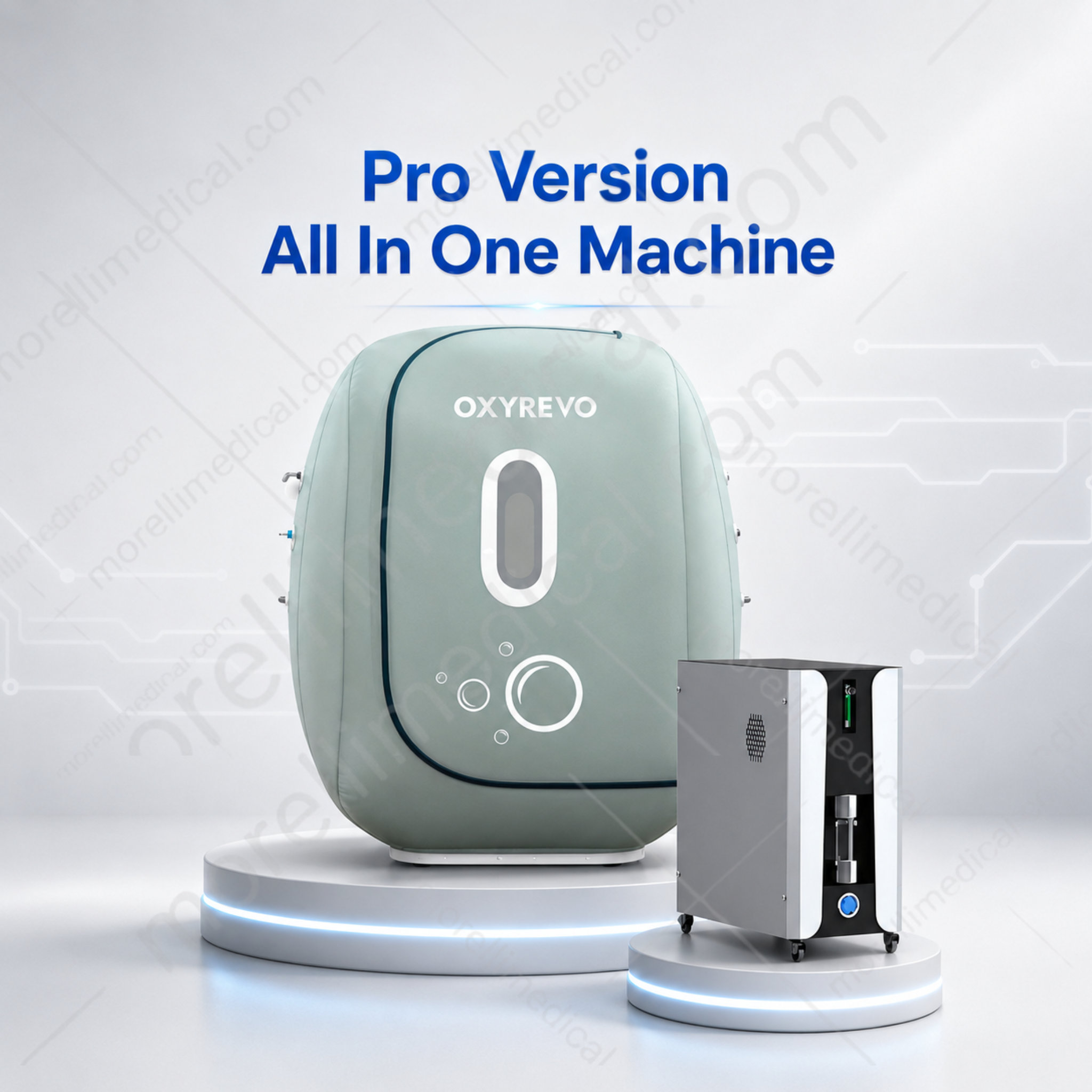

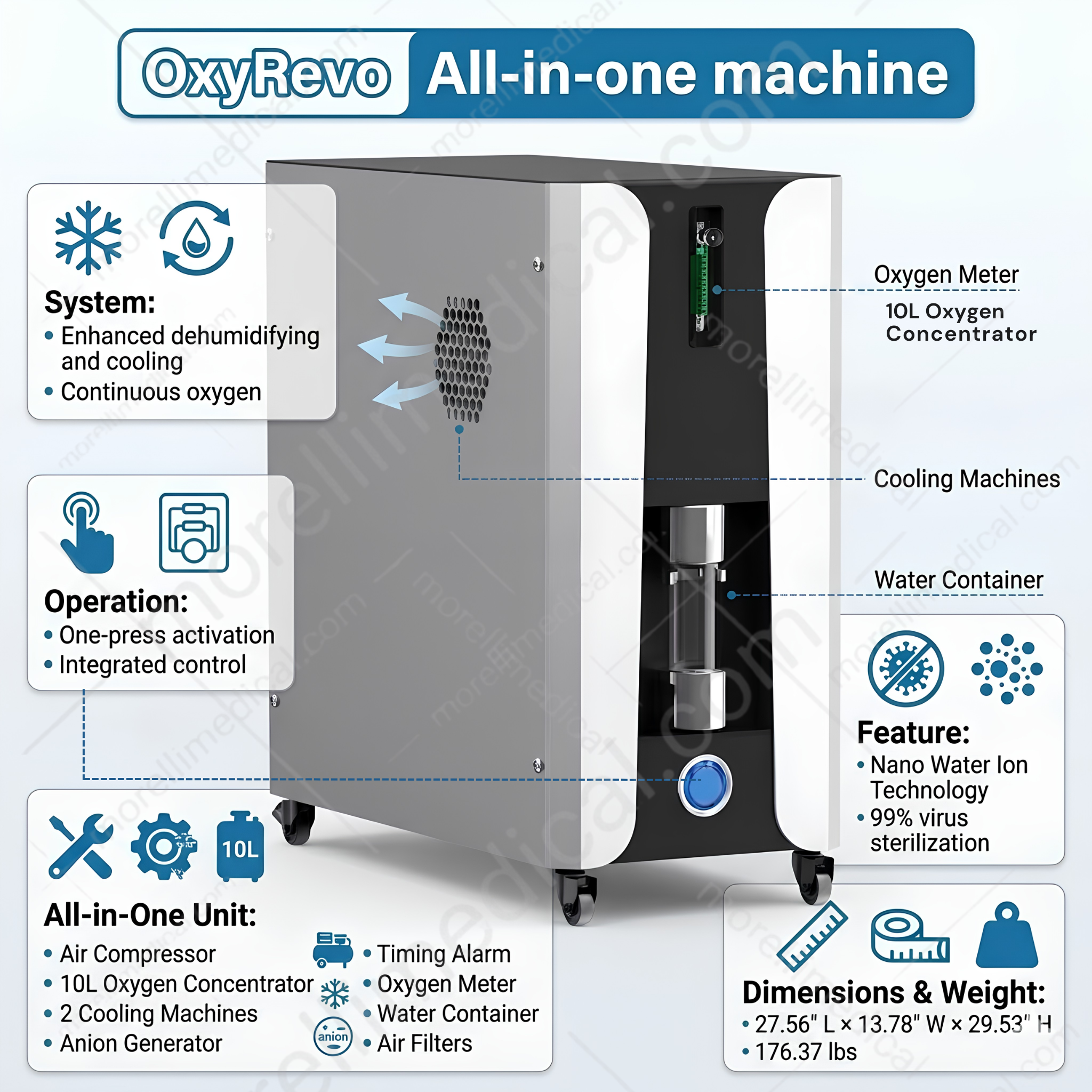

| Pro Version Specifications – All-in-One Machine Unit | Air Compressor (1), Oxygen Concentrator 10L, Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| Pro Version Specifications – Dimensions & Weight | 27.56″ L × 13.78″ W × 29.53″ H, 176.37 lbs |
| Pro Version Specifications – Operation | Integrated functions, one-press activation |
| Pro Version Specifications – Efficiency | Enhanced dehumidifying and cooling, continuous oxygen, double activated carbon filters |
| Pro Version Specifications – Additional Features | Nano Water Ion Technology, 99% virus sterilization rate |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (varies by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gallons) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temperature Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gallons/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |
- Internal/external pressure gauges
- Pressure deflate valves
- Control panels
- Display screen
- Communication system
- Pressure relief valves
- Oil-free air compressor
- 10L oxygen concentrator
- Cooling machines
- Anion air purifier
- Air sterilizer
- Air filter
- Humidity water container
- All-in-One Machine (For Pro Version)
- Oxygen mask
- Spare Activated Carbon Cotton Filters
- Fuses
- Air/oxygen tubes
- Power cable
