A soft wheelchair chamber light enough to move between rooms

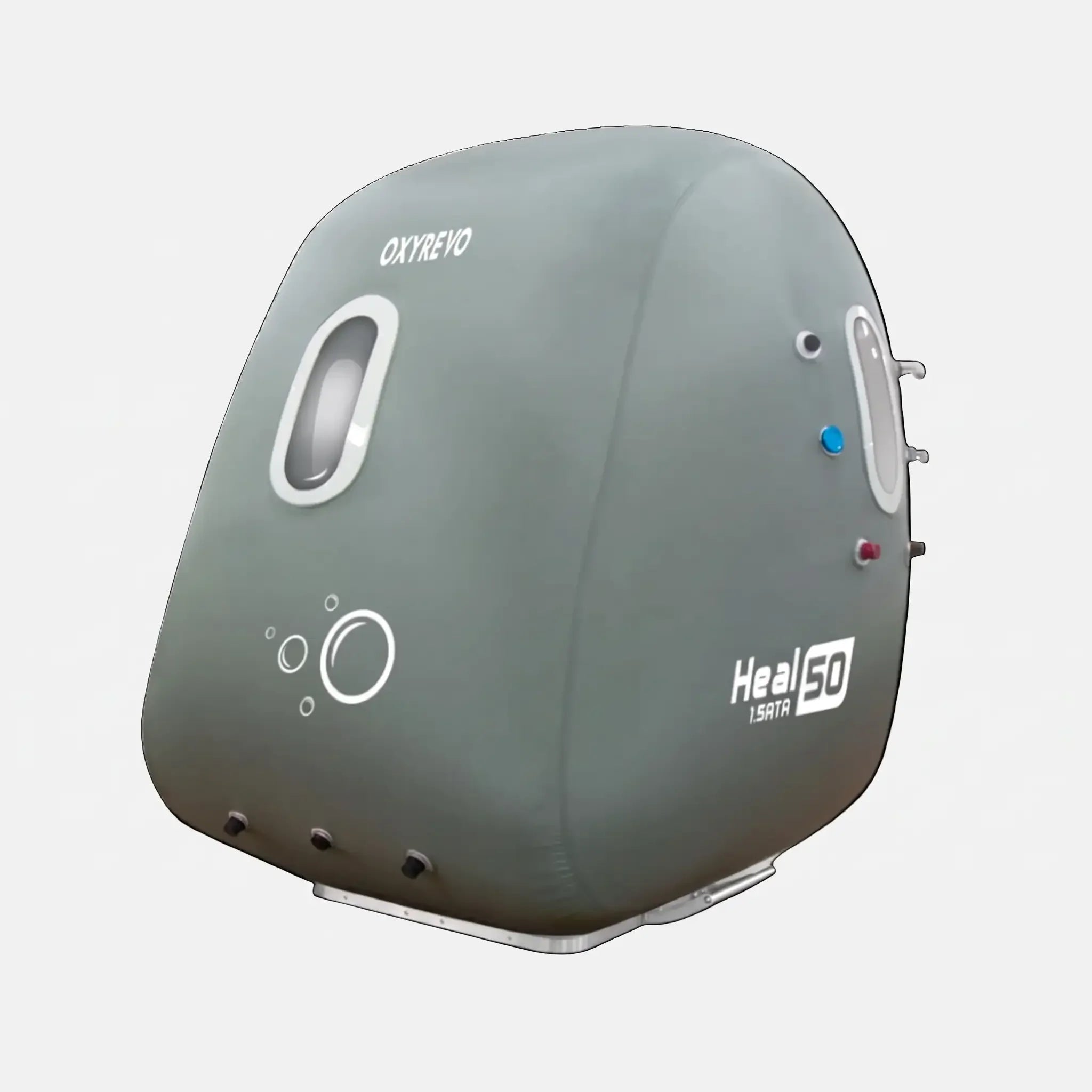

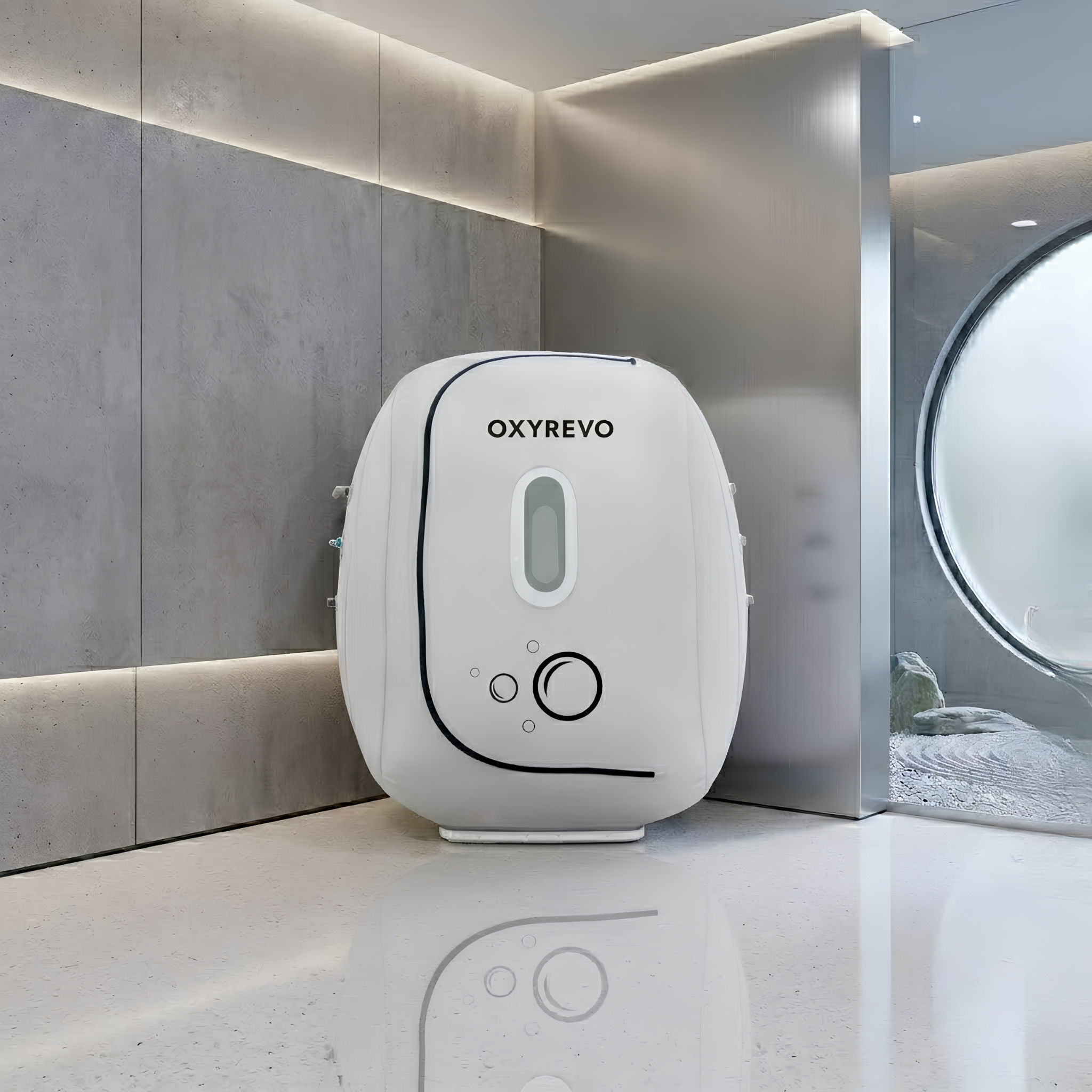

The Heal50 is OxyRevo's soft-type sitting wheelchair chamber, described by the manufacturer as the first of its kind. Ramp access and a seated layout let a wheelchair or regular chair roll straight in, pressure adjusts by dial across 1.2, 1.3, 1.4 and 1.5 ATA, and the chamber and frame together weigh only 25 kg (55 lbs), light enough to move between rooms. Construction is 5-ply PU with heat-welded food-grade silicone seams, and a 10 L/min concentrator (95–97% oxygen) is expandable to 15 or 20 L/min.
Best for: Wheelchair users and facilities that want a dial-adjustable 1.2–1.5 ATA chamber that stays portable.
What a session looks like
Roll or step in through the wide entry, get comfortable and have the chamber zipped closed. The compressor brings the chamber to your working pressure while oxygen is delivered through a mask or cannula, and a caregiver or operator can monitor the gauges from outside. When the timer ends, pressure is released gradually before you exit. Many owners schedule sessions of roughly 60 to 90 minutes; follow the manufacturer's manual for your own protocol.
Space, power and setup
Confirm a level, firm floor and enough door and hallway width for the wheelchair route, then plan room beside the chamber for the compressor, concentrator and any cooler, plus a nearby grounded outlet. Keep the machines clear of flames, sparks and heat sources and follow the manufacturer's manual for placement. At a glance: working pressure 1.2 / 1.3 / 1.4 / 1.5 ATA (adjustable dial).
Choosing the right model
For a fixed 1.4 ATA wheelchair chamber with an aluminum base, choose the Heal40.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- Adjustable 1.2 / 1.3 / 1.4 / 1.5 ATA

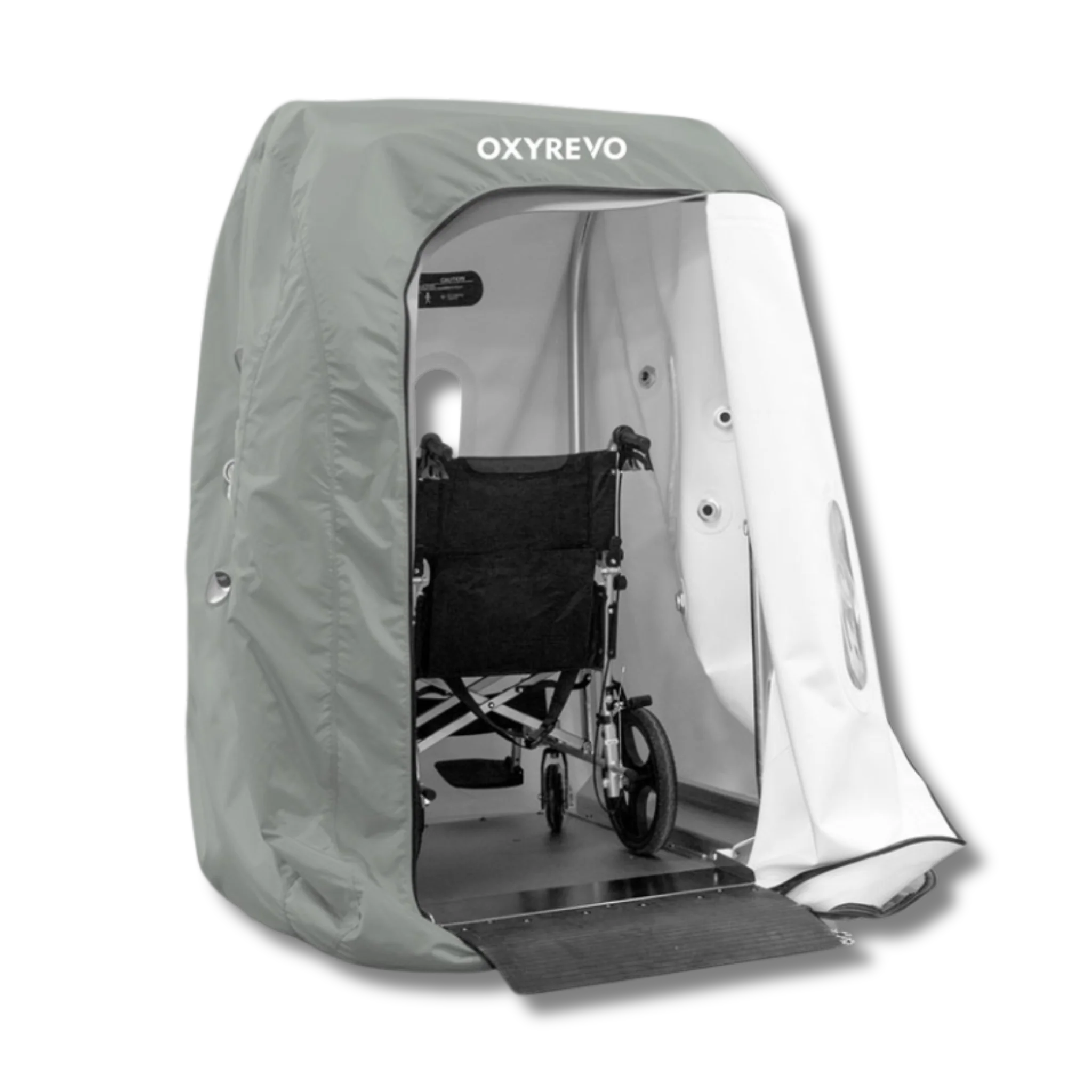

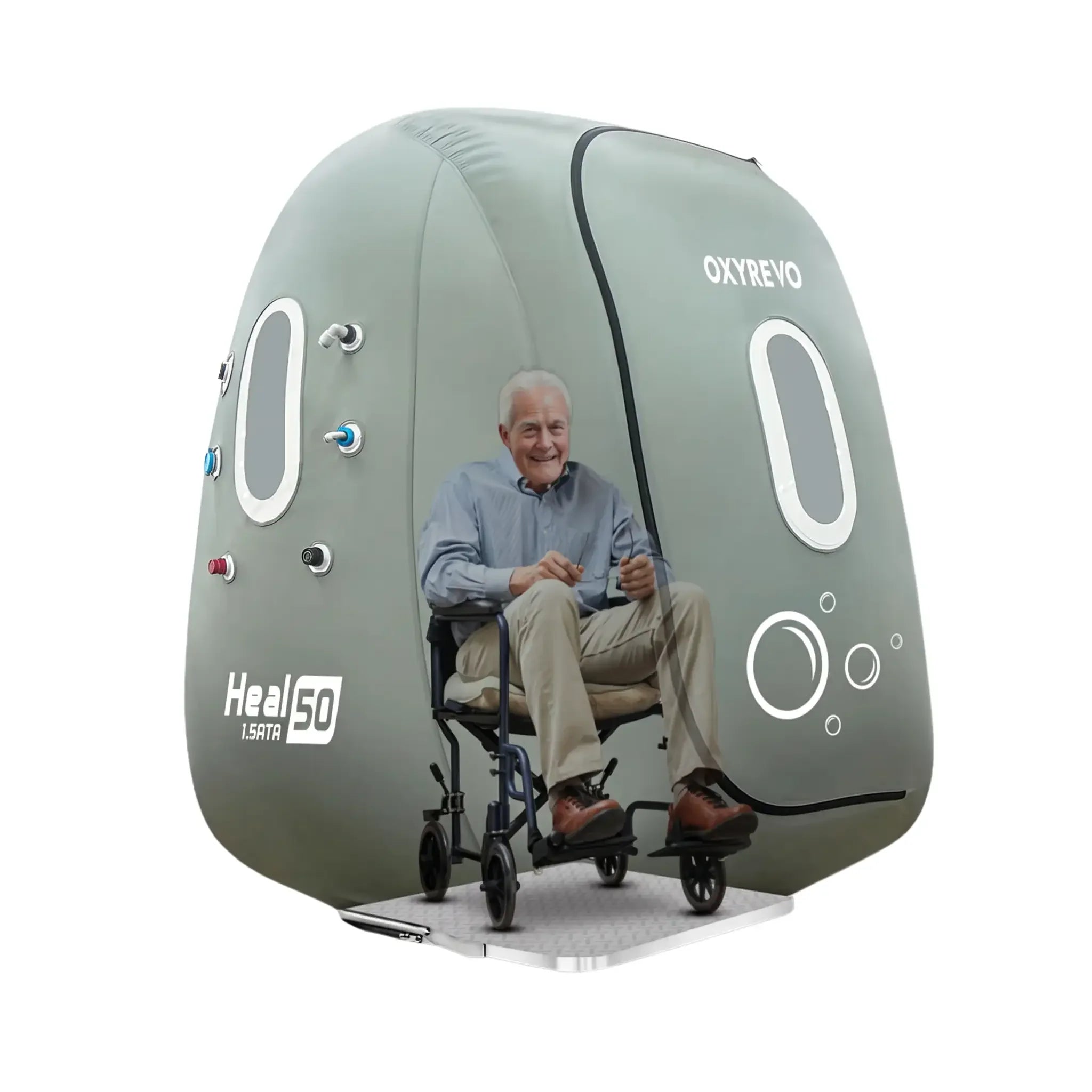

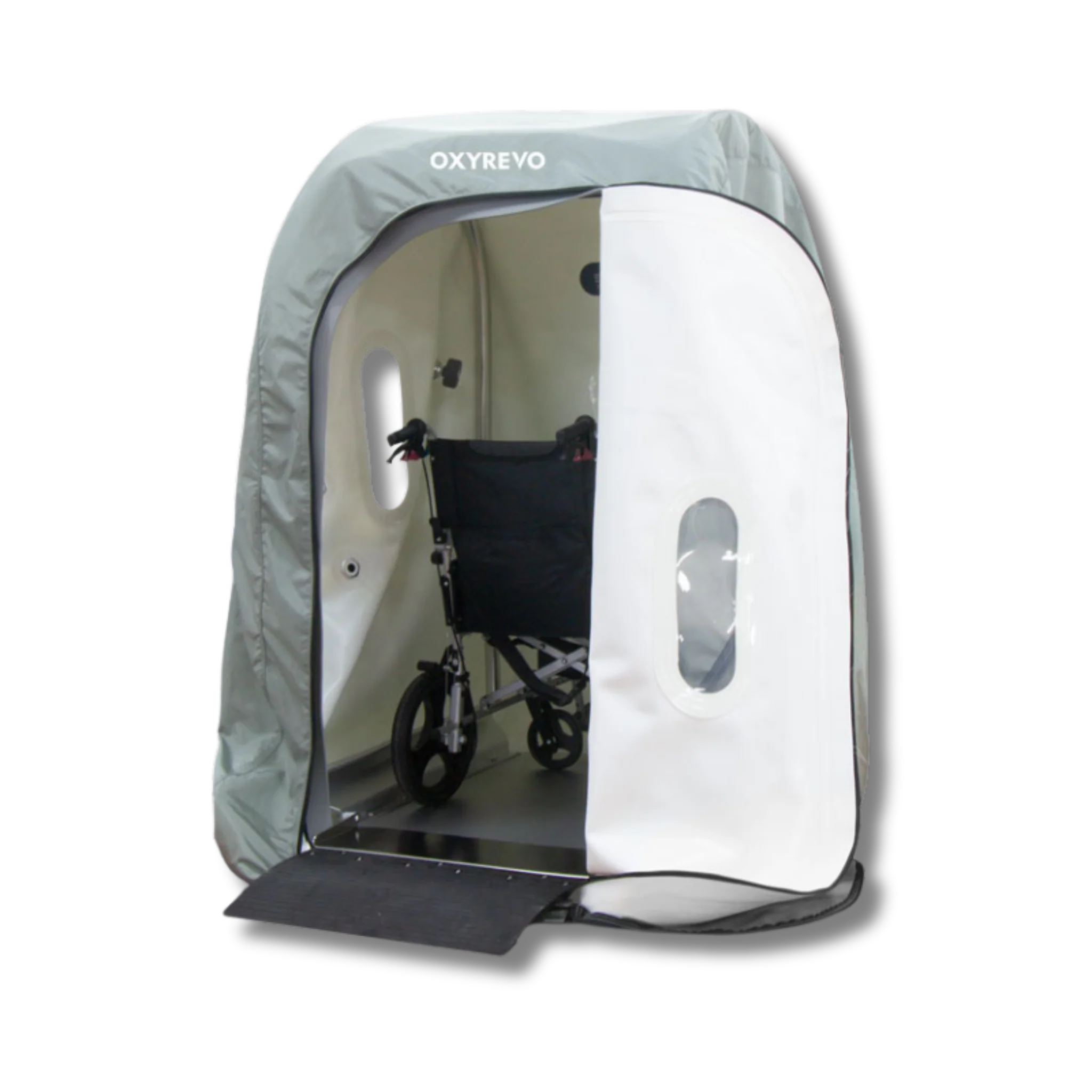

- Ramp access and wide entrance; seated layout
- Custom 5-ply PU with heat-welded food-grade silicone seams; curved dual YKK zippers
- 10 L/min concentrator at 95–97% oxygen, expandable to 15 or 20 L/min
- Dual aviation-grade pressure gauges, emergency deflate valve, extra-quiet relief valves
| Working Pressure | 1.2 / 1.3 / 1.4 / 1.5 ATA (adjustable dial) |
|---|---|
| Chamber + Frame Weight | 25 kg / 55 lbs |
| Dimensions (inflated) | 44.1″ L × 53.5″ W × 65.7″ H (112 × 136 × 167 cm) |
| Entry | Wheelchair ramp access, seated layout |
| Material | Custom 5-ply PU, heat-welded food-grade silicone seams |
| Windows | 4 large double-layered windows |
| Sound Level | ≤50 dB |
| Safety | Emergency deflate valve, dual aviation-grade pressure gauges |

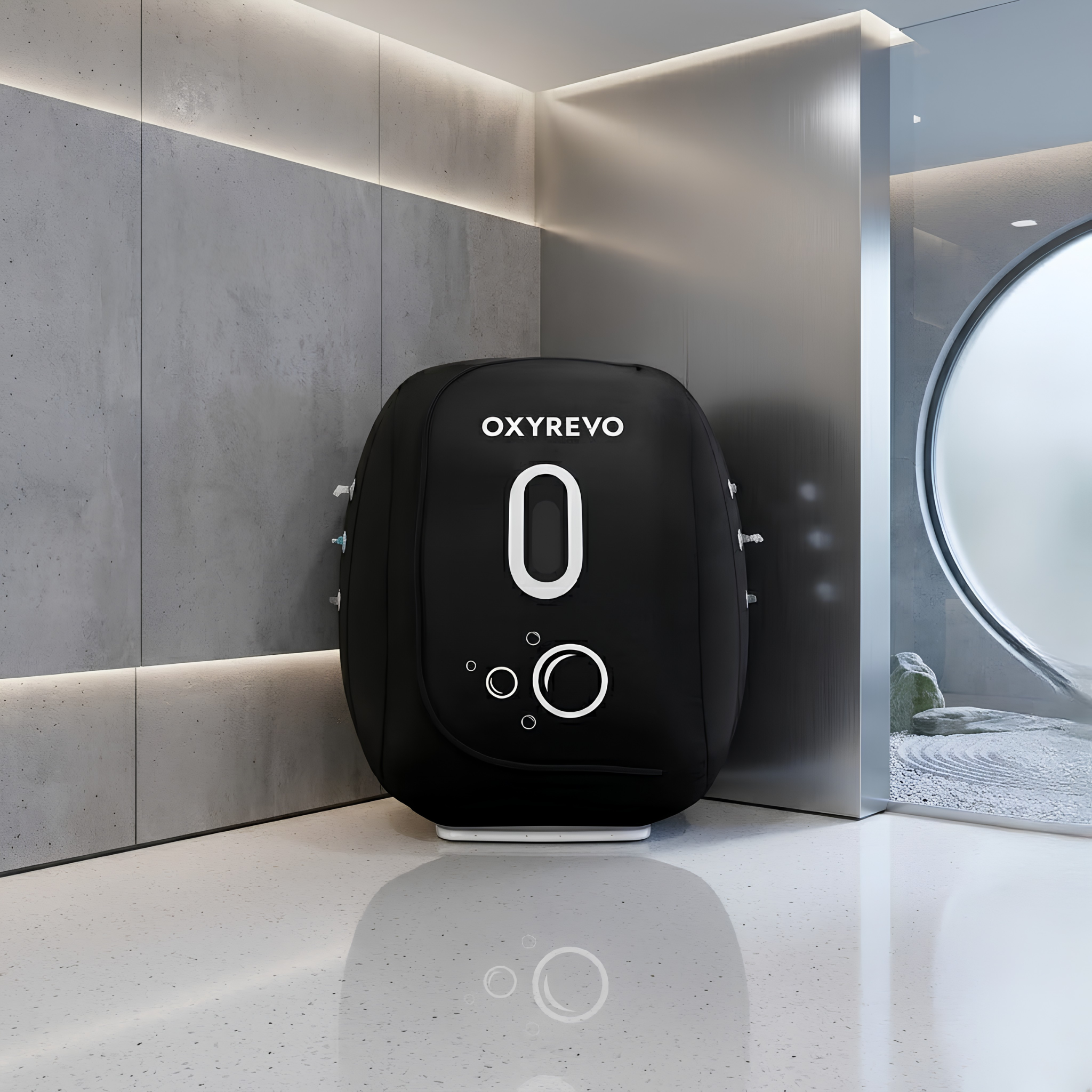

| Cover Color | Grey, Black, Dark Blue, Red, Light Blue, Pink, Green, Purple, Gold / custom on request |

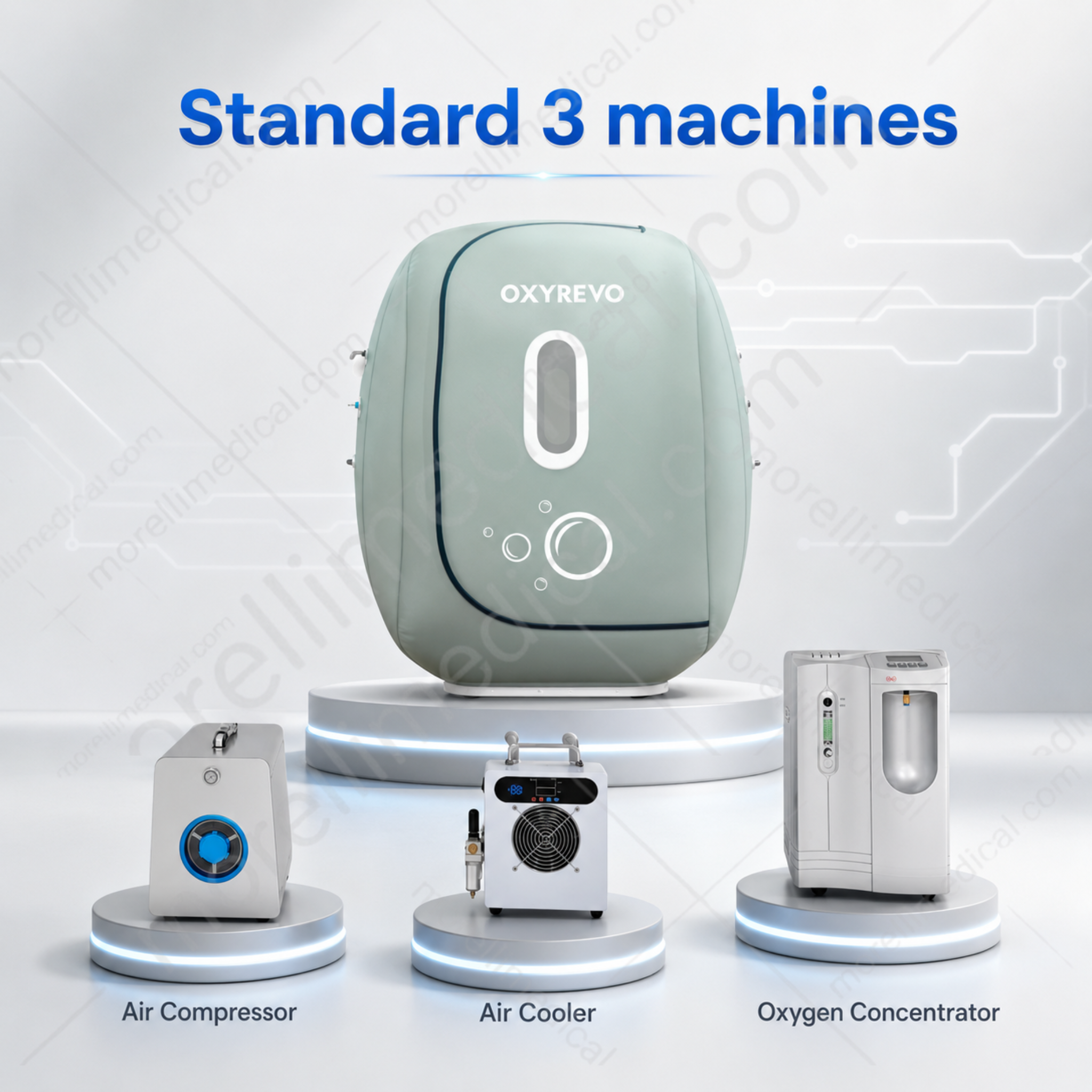

| Standard Version – Air Compressor | 85 L/min, oil-free and maintenance-free |
| Standard Version – Air Cooler / Dehumidifier | 120 L/min dehumidifying, no freon or ice required |
| Standard Version – Oxygen Concentrator | 10 L/min at 95–97% purity, expandable to 15 or 20 L/min |
| Standard Version – Operation | Separate units, individual setup and control |
| Standard Version – Efficiency | Dehumidifying and cooling, continuous oxygen, double input/output filters |
| Standard Version – Additional Features | Lower cost, portable, lightweight, economical transport |

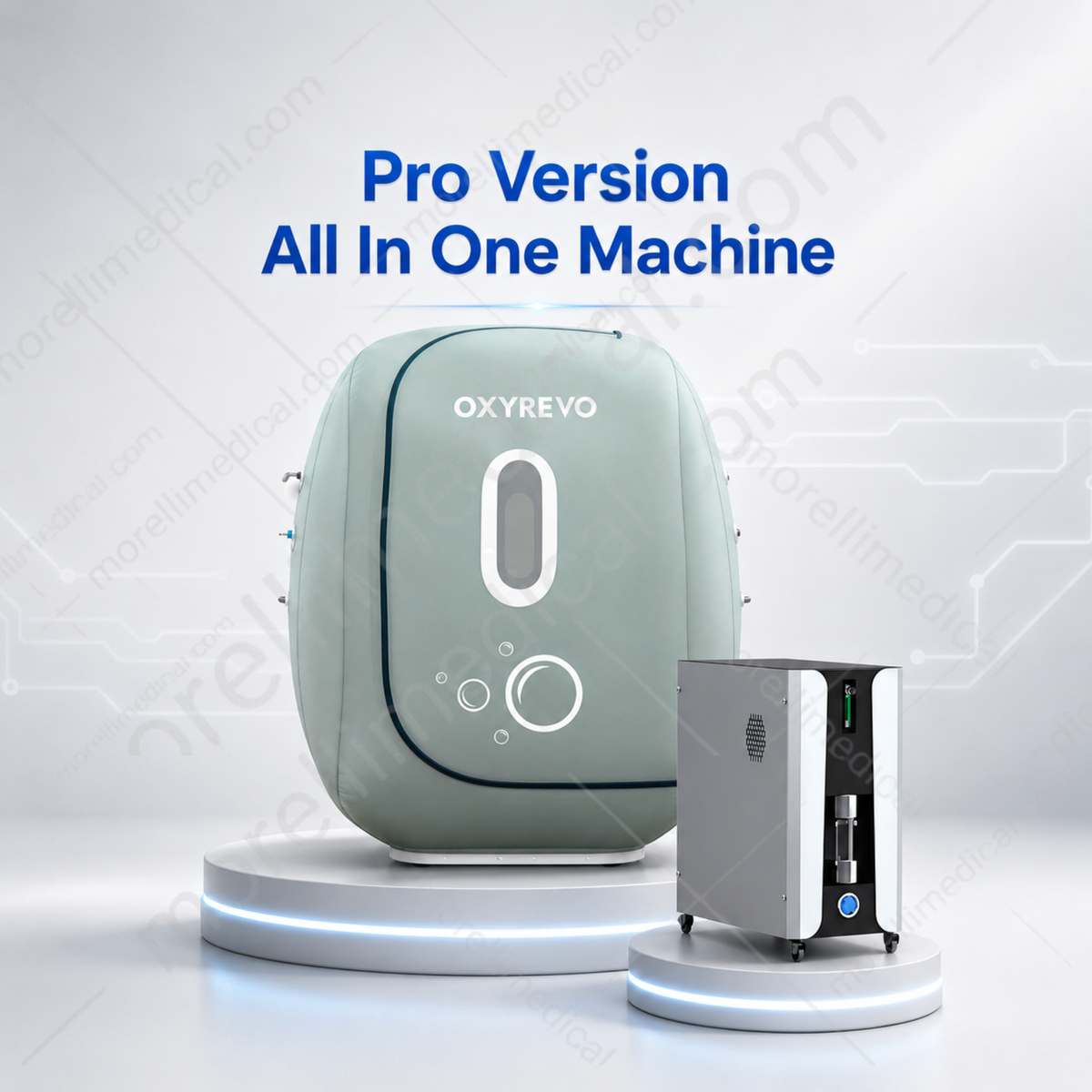

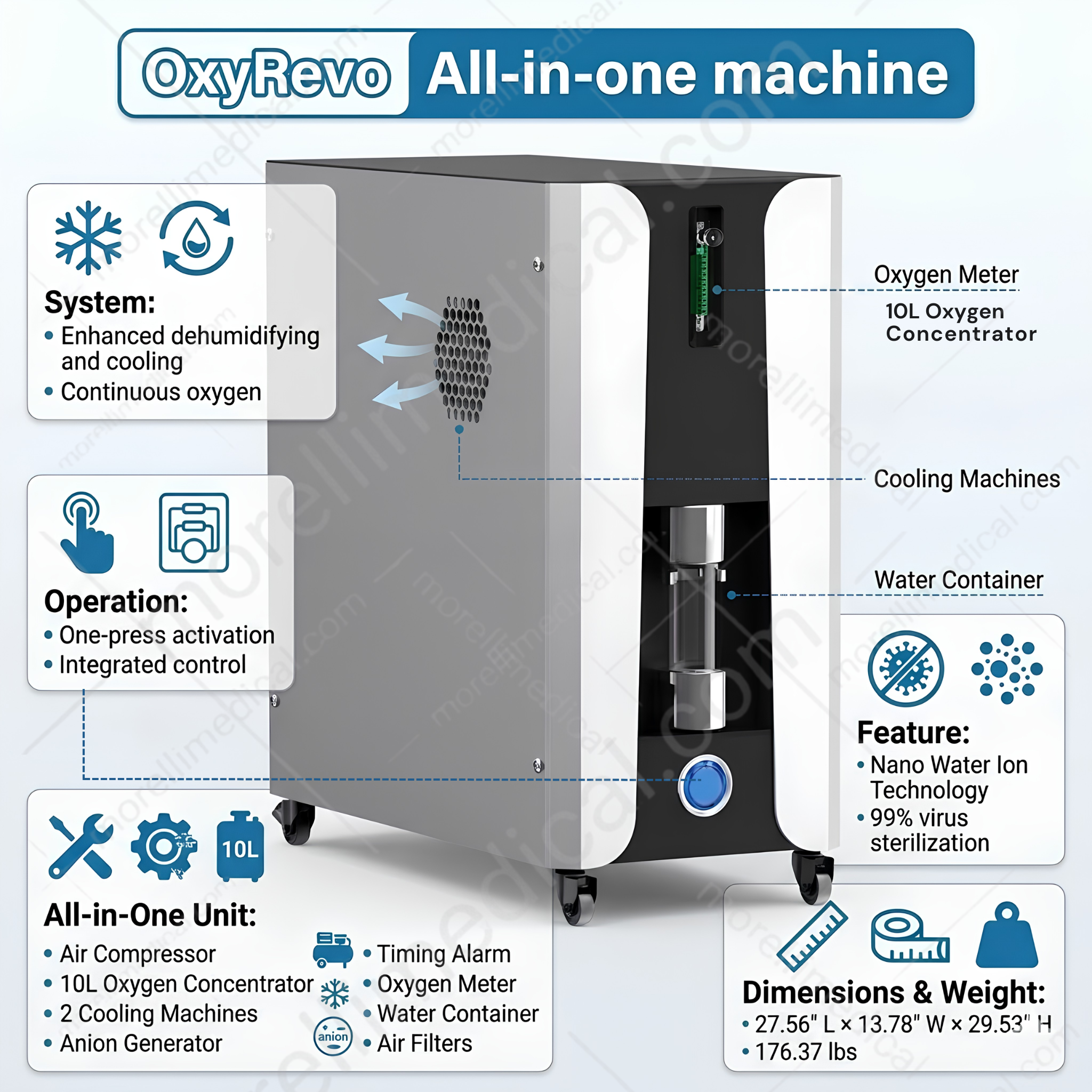

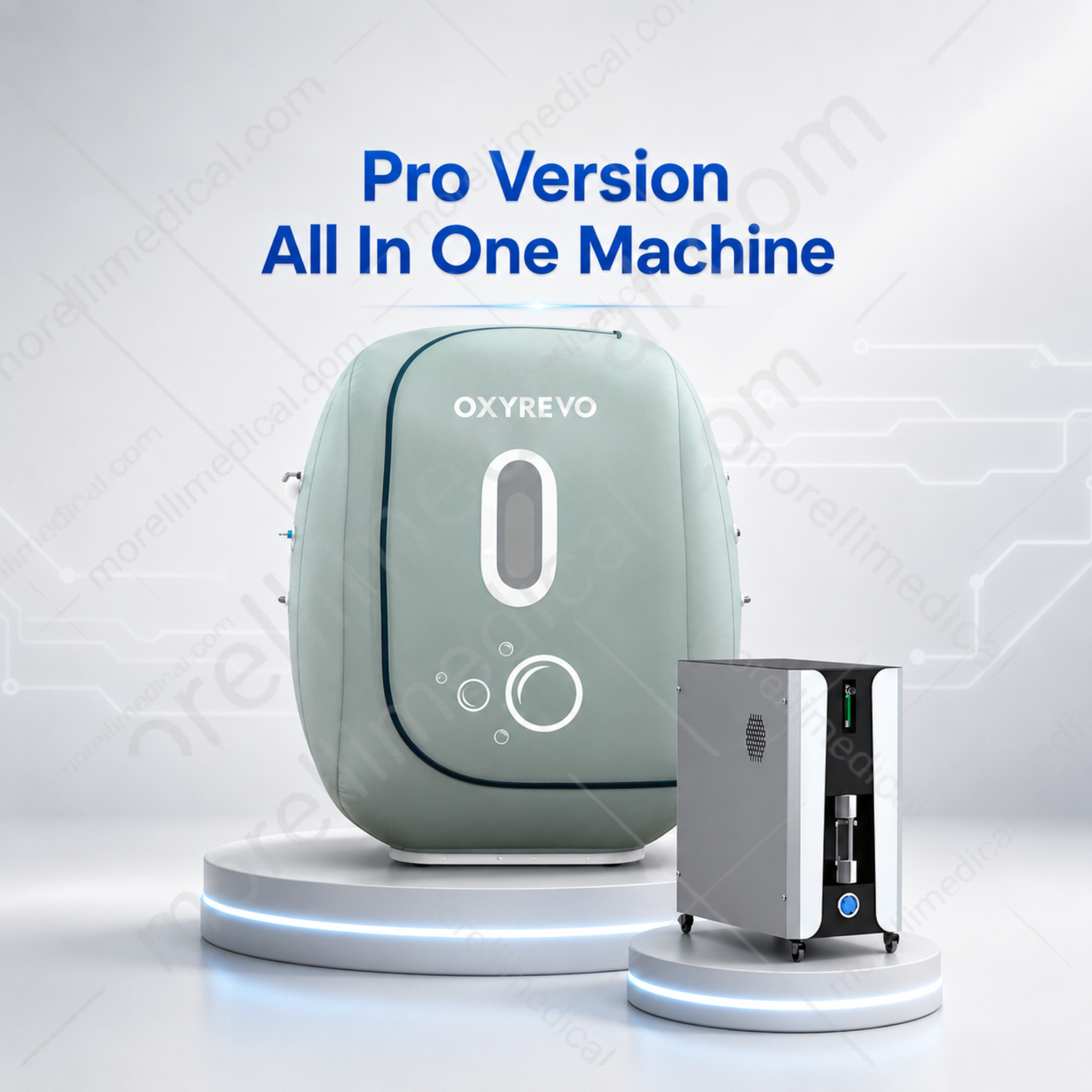

| Pro Version Specifications – All-in-One Machine Unit | Air Compressor (1), Oxygen Concentrator 10L, Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| Pro Version Specifications – Operation | Integrated functions, one-press activation |
| Pro Version Specifications – Efficiency | Enhanced dehumidifying and cooling, continuous oxygen, double activated carbon filters |
| Pro Version Specifications – Additional Features | Nano Water Ion Technology, 99% virus sterilization rate |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (varies by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gallons) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temperature Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gallons/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |
- Internal/external pressure gauges
- Pressure deflate valves
- Control panels
- Display screen
- Communication system
- Pressure relief valves
- Oil-free air compressor
- 10L oxygen concentrator
- Cooling machines
- Anion air purifier
- Air sterilizer
- Air filter
- Humidity water container
- All-in-One Machine (For Pro Version)
- Oxygen mask
- Spare Activated Carbon Cotton Filters
- Fuses
- Air/oxygen tubes
- Power cable
