OxyRevo Quest34 Hard-Shell Hyperbaric Chamber – 1.5 to 2.0 ATA, 89" × 34"
by OxyRevo
Payment & Security
Payment methods
Shop with confidence - your transactions are SSL-encrypted and your payment details are securely transmitted.
We never store or have access to your credit card information.

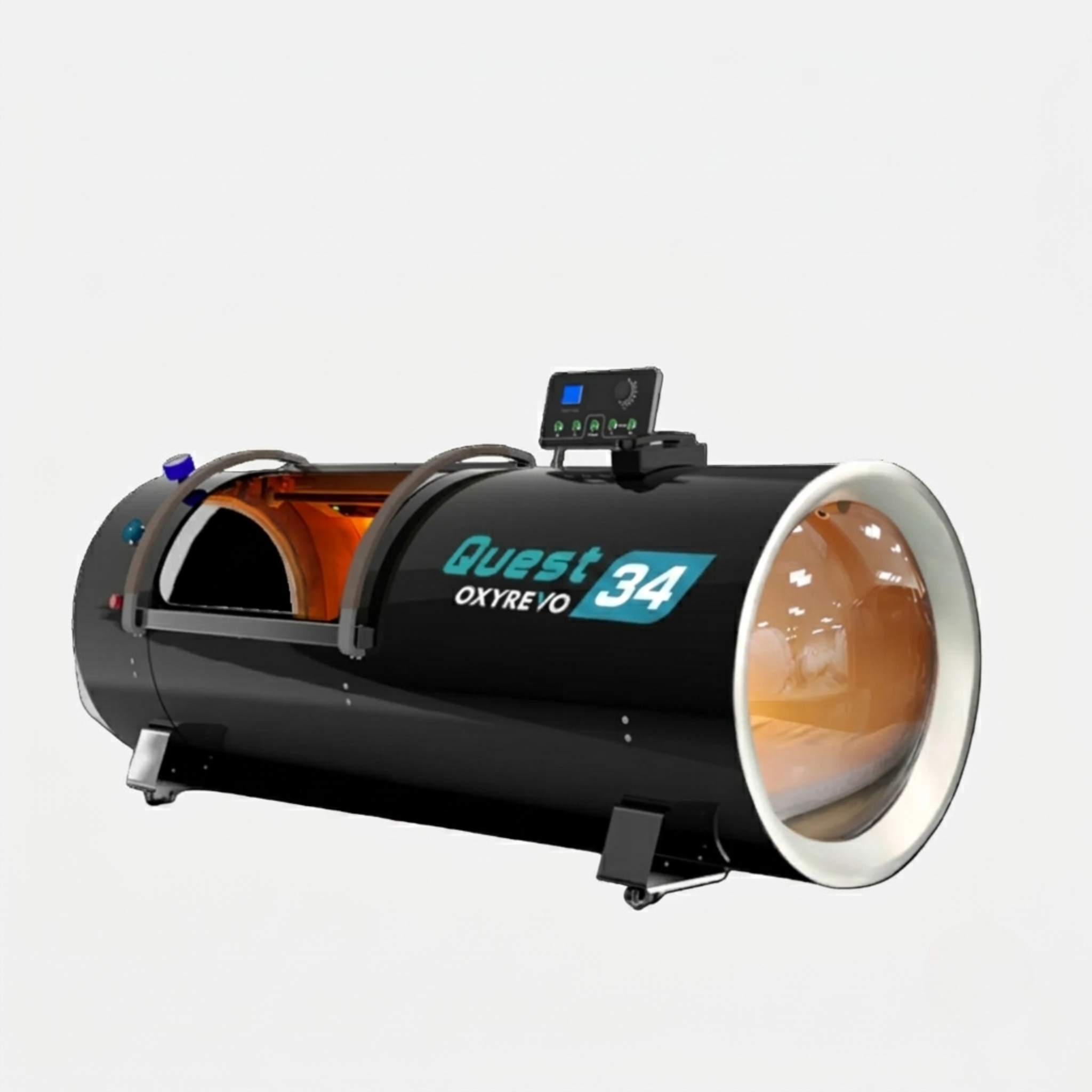

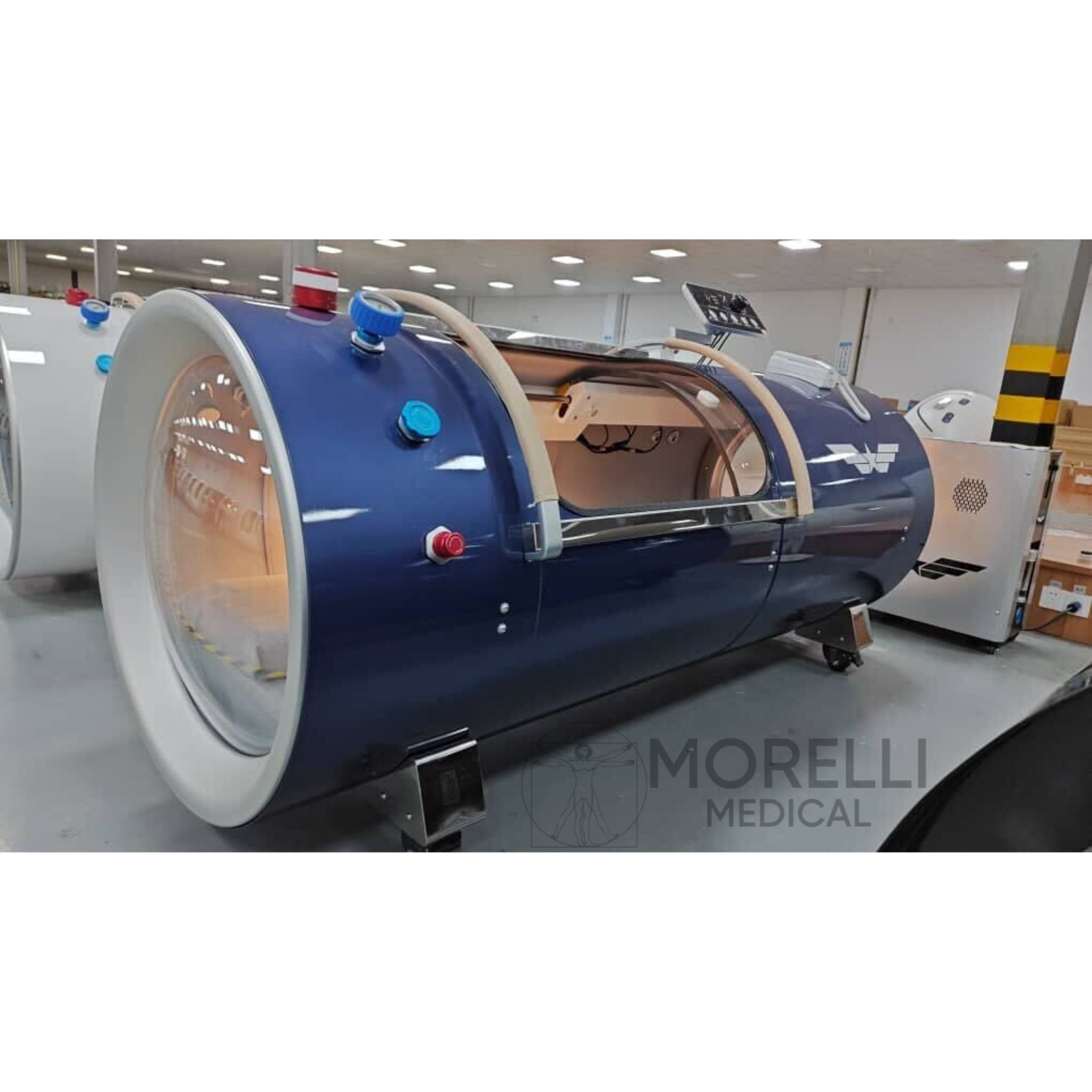

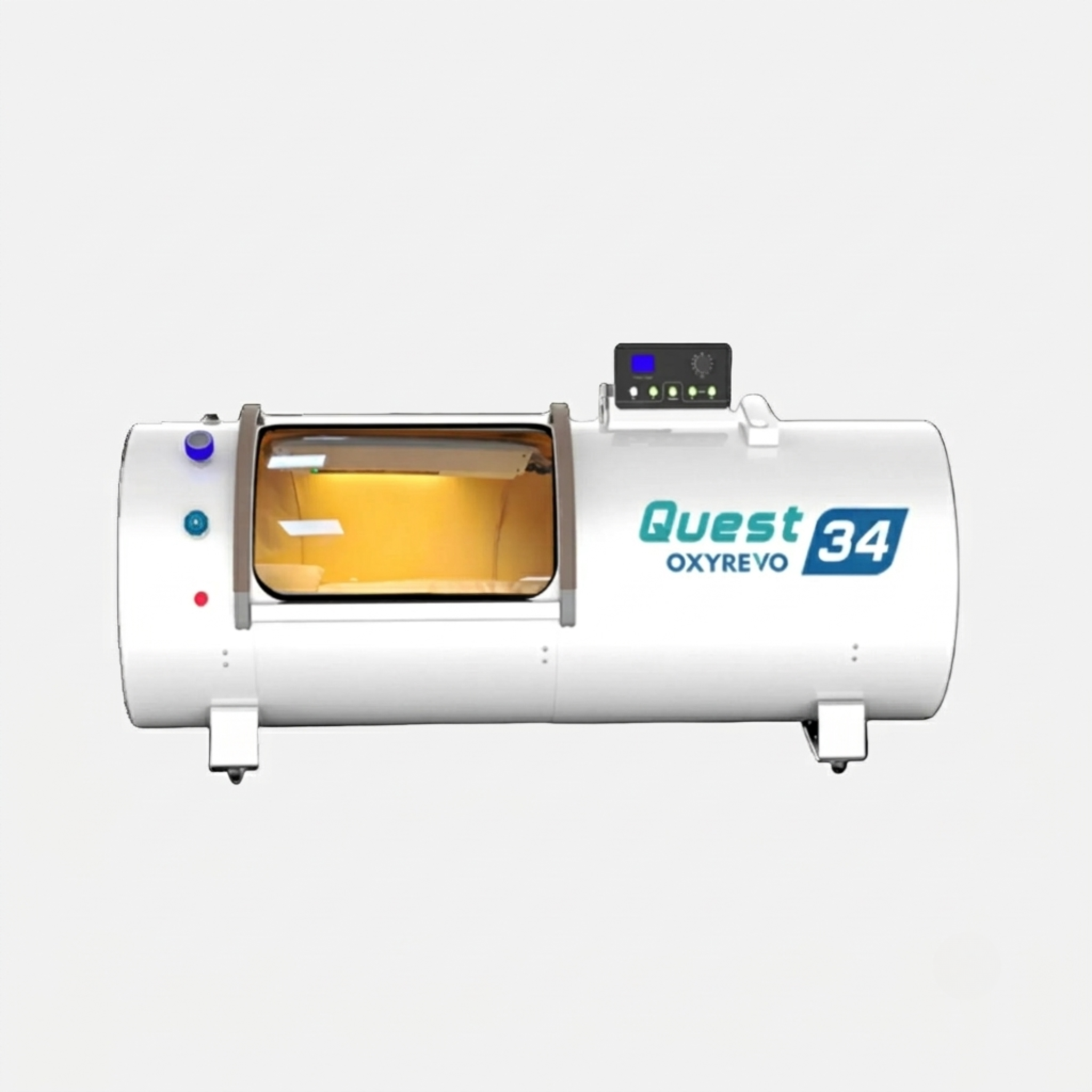

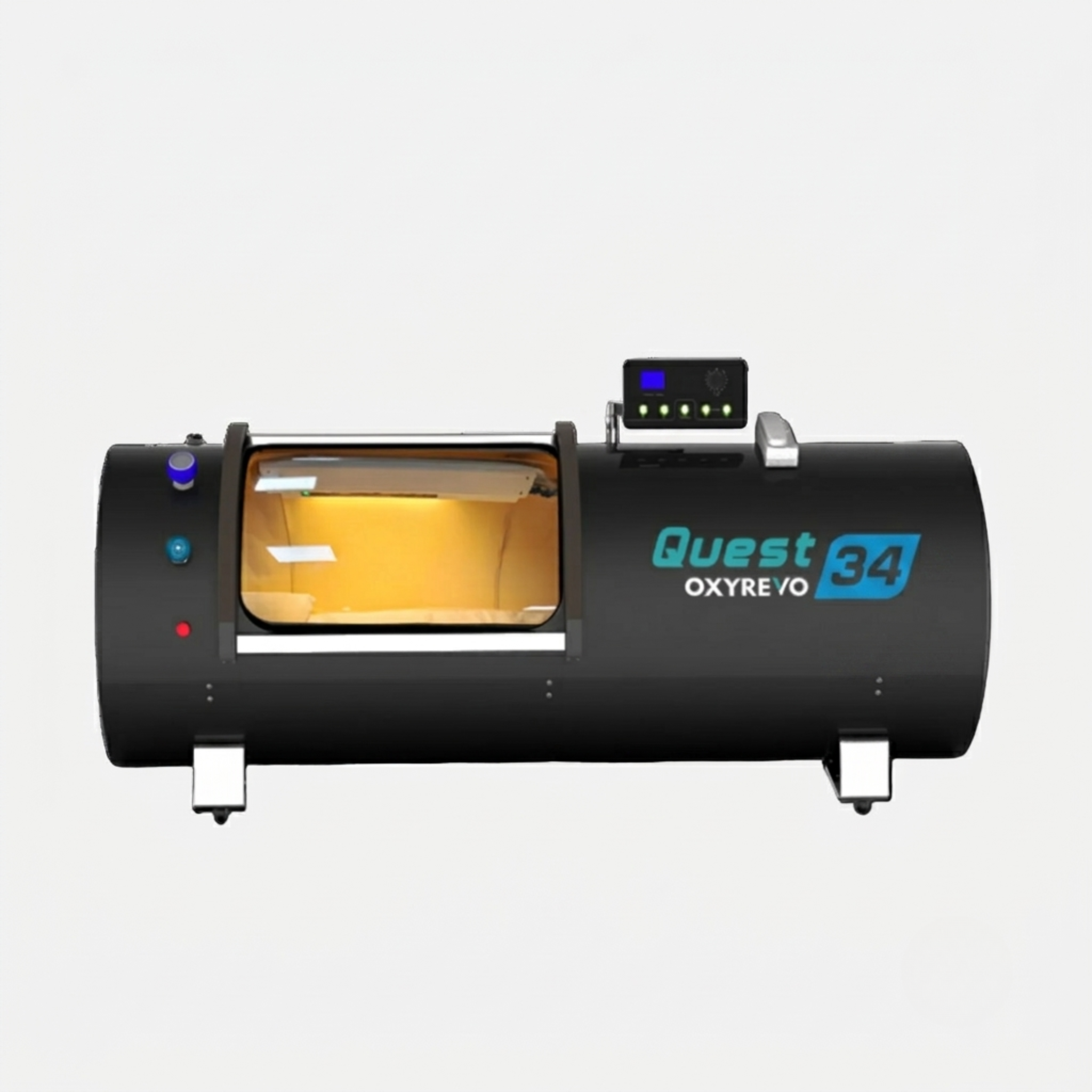

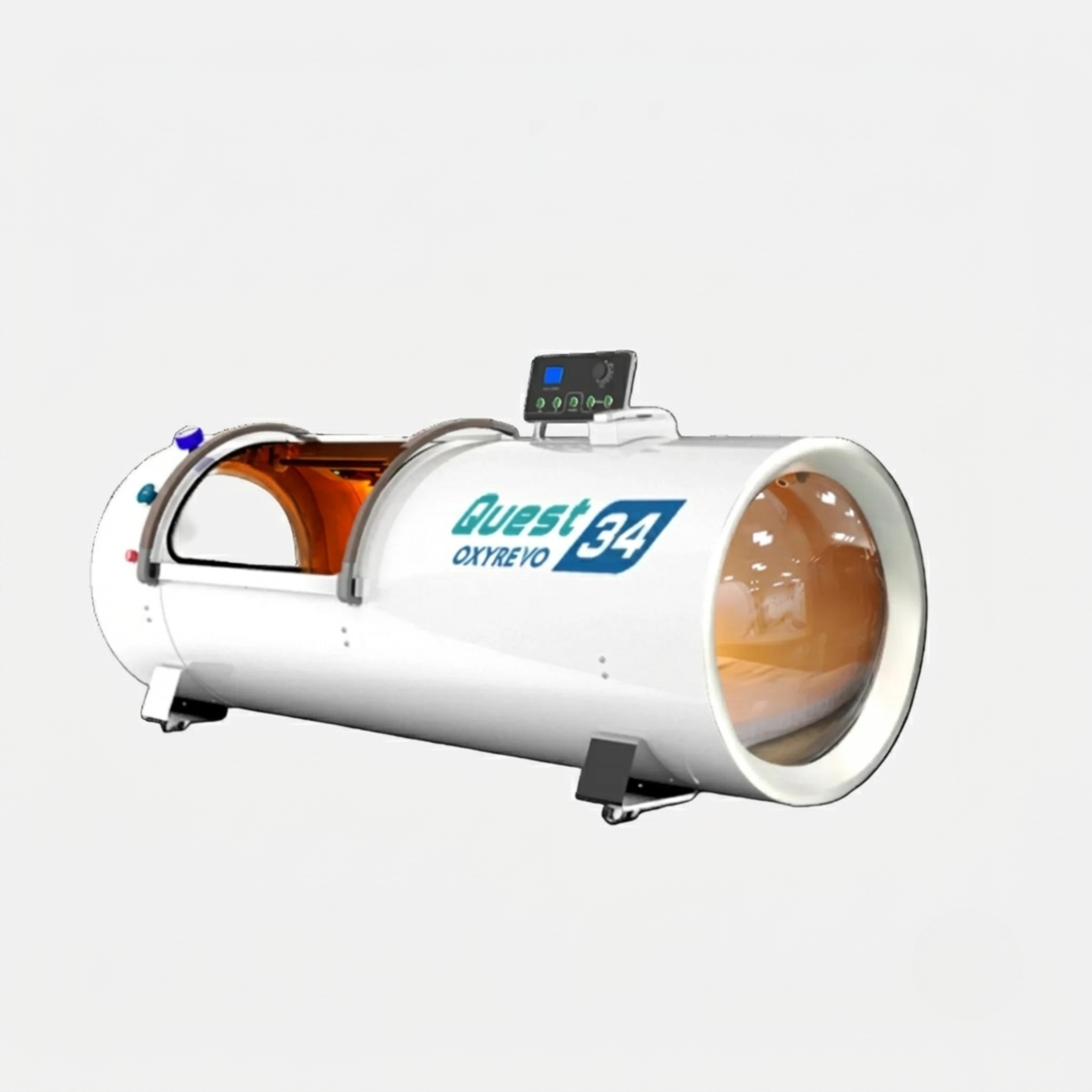

Stainless-steel hard-shell, 1.5–2.0 ATA, easy to place at home or in clinic

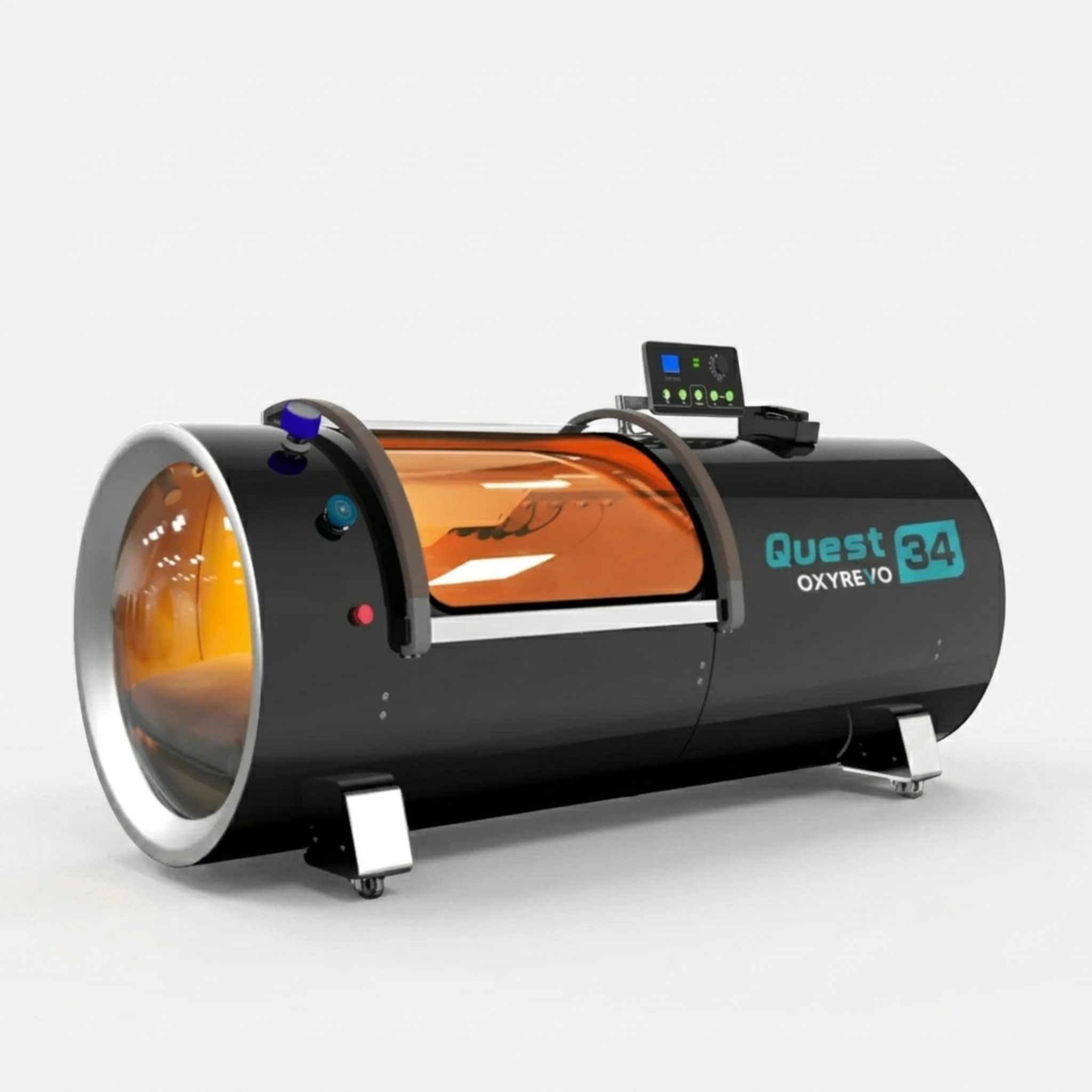

The Quest34 gives you more room than the Quest30 without losing the compact hard-shell footprint. It is 89 inches long and 34 inches wide, with a spacious lay-down interior, dual interior and exterior controls, an integrated phone system, LED lighting and a programmable 120-minute timer. A built-in 10 L/min concentrator delivers 90–97% oxygen, and a 30-second emergency release adds safety.
Best for: Buyers who want a lay-down hard-shell chamber with a programmable 120-minute timer and a built-in concentrator.
What a session looks like
Step or lie in through the door, which seals behind you. From the control panel you set the working pressure, oxygen is delivered through a mask or headset, and the chamber pressurizes, holds steady for the session and is gradually decompressed at the end. Communication, pressure gauges and emergency valves are available throughout, so both the user and an assistant can keep an eye on the session.
Space, power and setup
Hard-shell chambers are heavy and typically arrive crated or on a pallet. Before you order, measure the delivery route and doorways, confirm the floor can carry the weight, and plan a dedicated electrical circuit for the compressor and concentrator. Professional installation is recommended, and our team can help you plan it. At a glance: working pressure 1.5 ATA / 1.6 ATA / 2.0 ATA; dimensions 89″ L × 34″ W × 34″ H (7.42 ft × 3 ft × 3 ft); weight 573 lbs.
Choosing the right model
For the tightest footprint choose the Quest30; for the widest, the Quest36.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- 89″ × 34″ × 34″; 573 lbs; stainless steel
- 1.5 / 1.6 / 2.0 ATA; two transparent windows

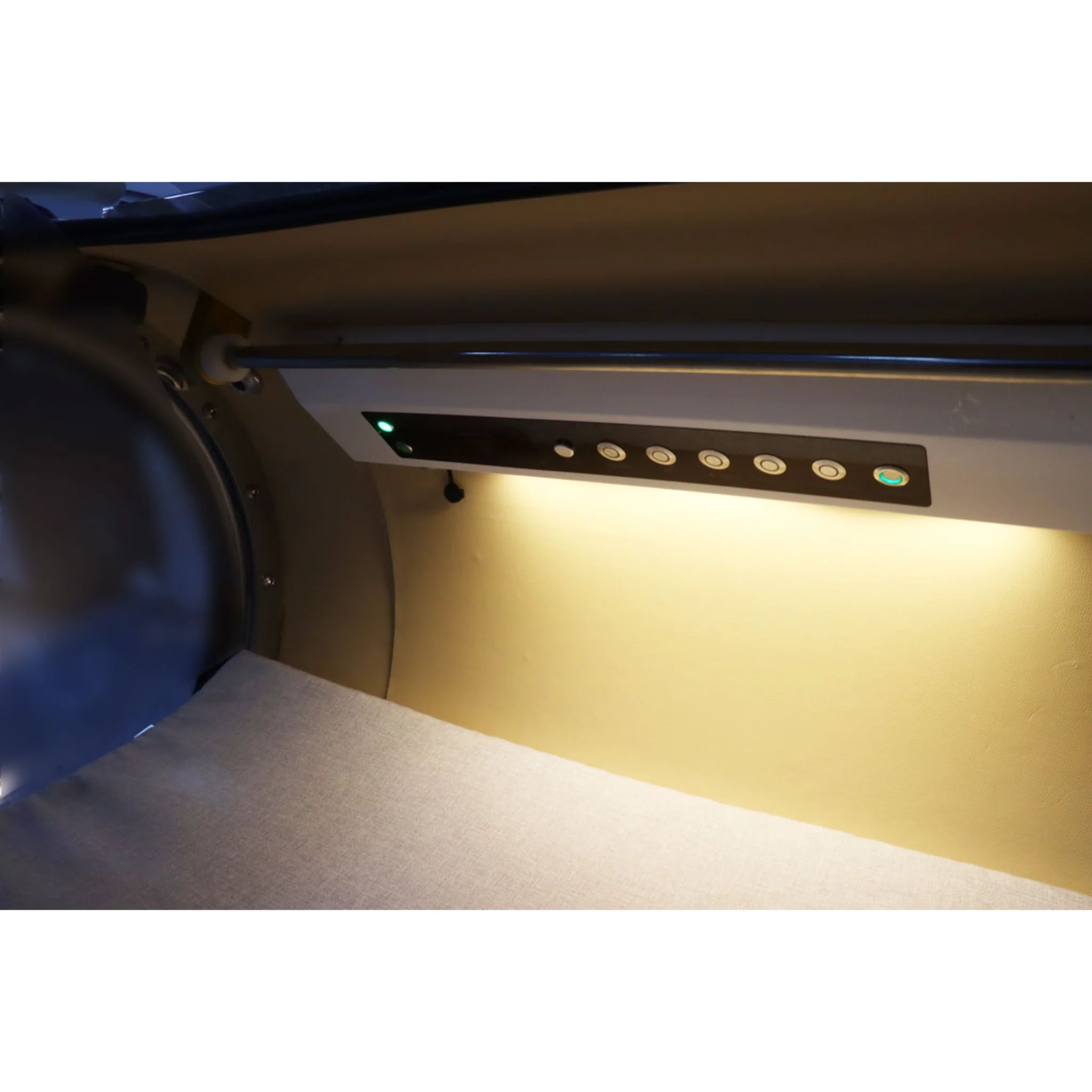

- Programmable 120-minute timer; LED lighting; integrated phone system
- 30-second emergency pressure-release valve; dual pressure displays
| Working Pressure | 1.5 ATA / 1.6 ATA / 2.0 ATA |
|---|---|
| Dimensions | 89″ L × 34″ W × 34″ H (7.42 ft × 3 ft × 3 ft) |
| Weight | 573 lbs |
| Material | Stainless Steel |
| Windows | 2 transparent windows |
| Oxygen Purity | 90–97% |

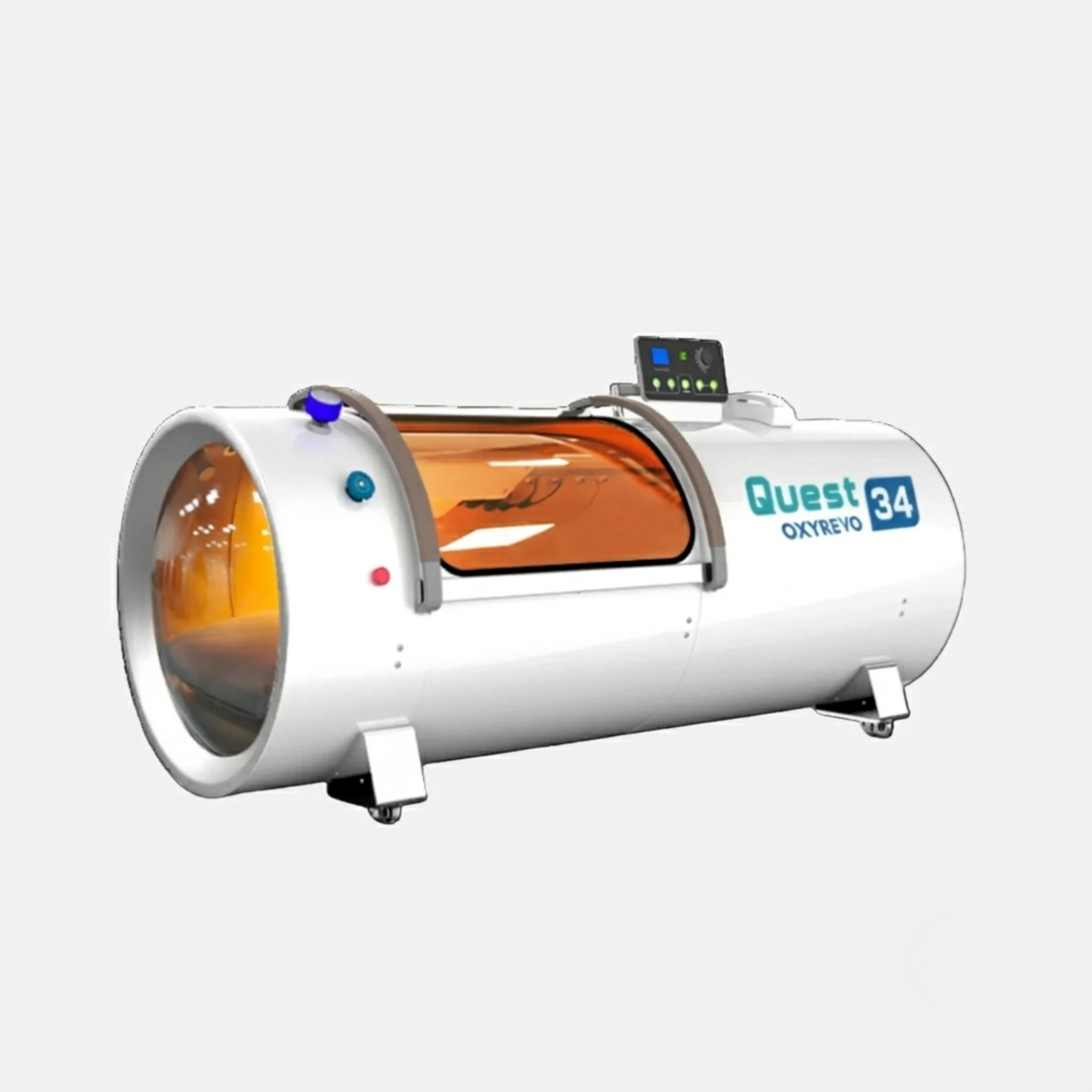

| Chamber Color | White, OEM available |

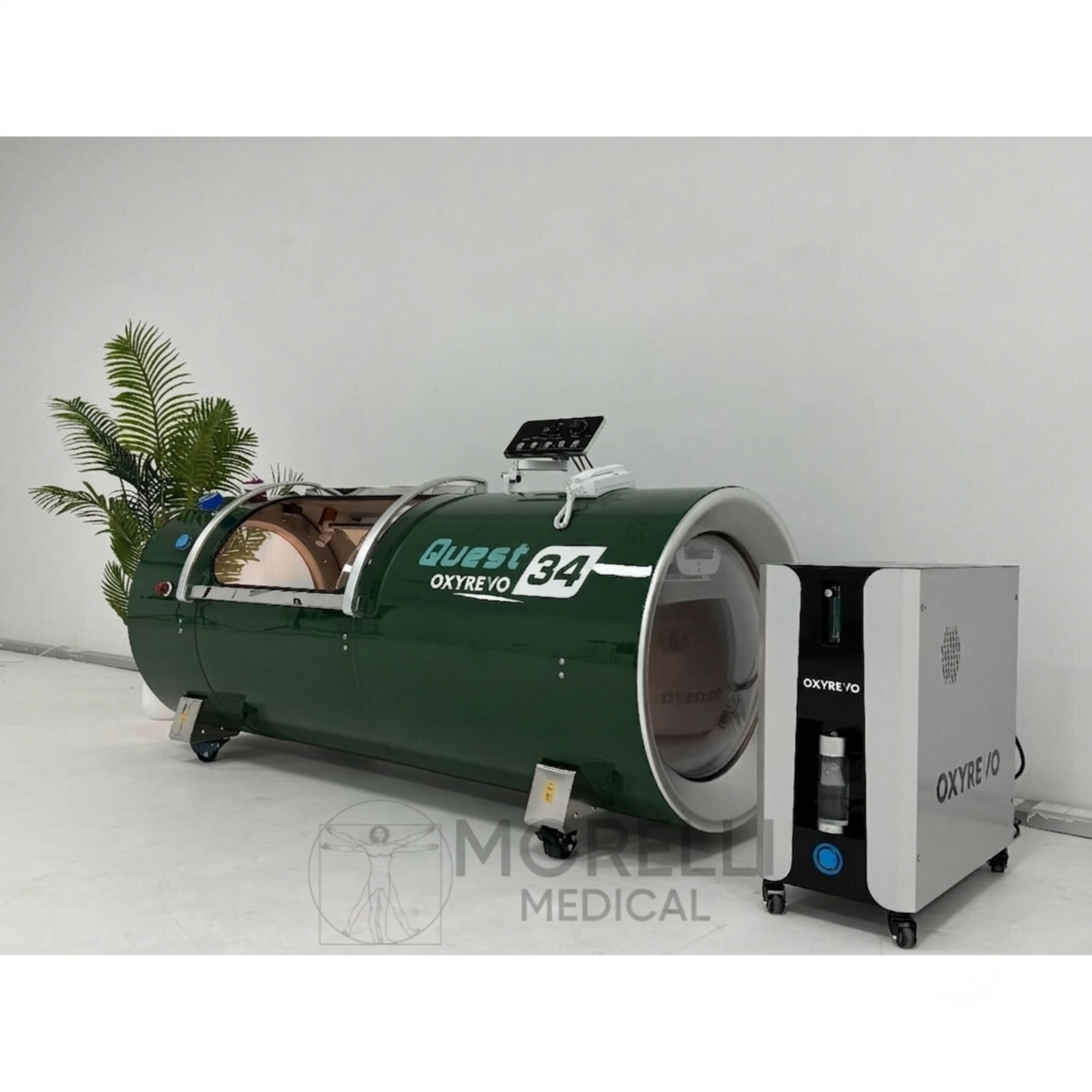

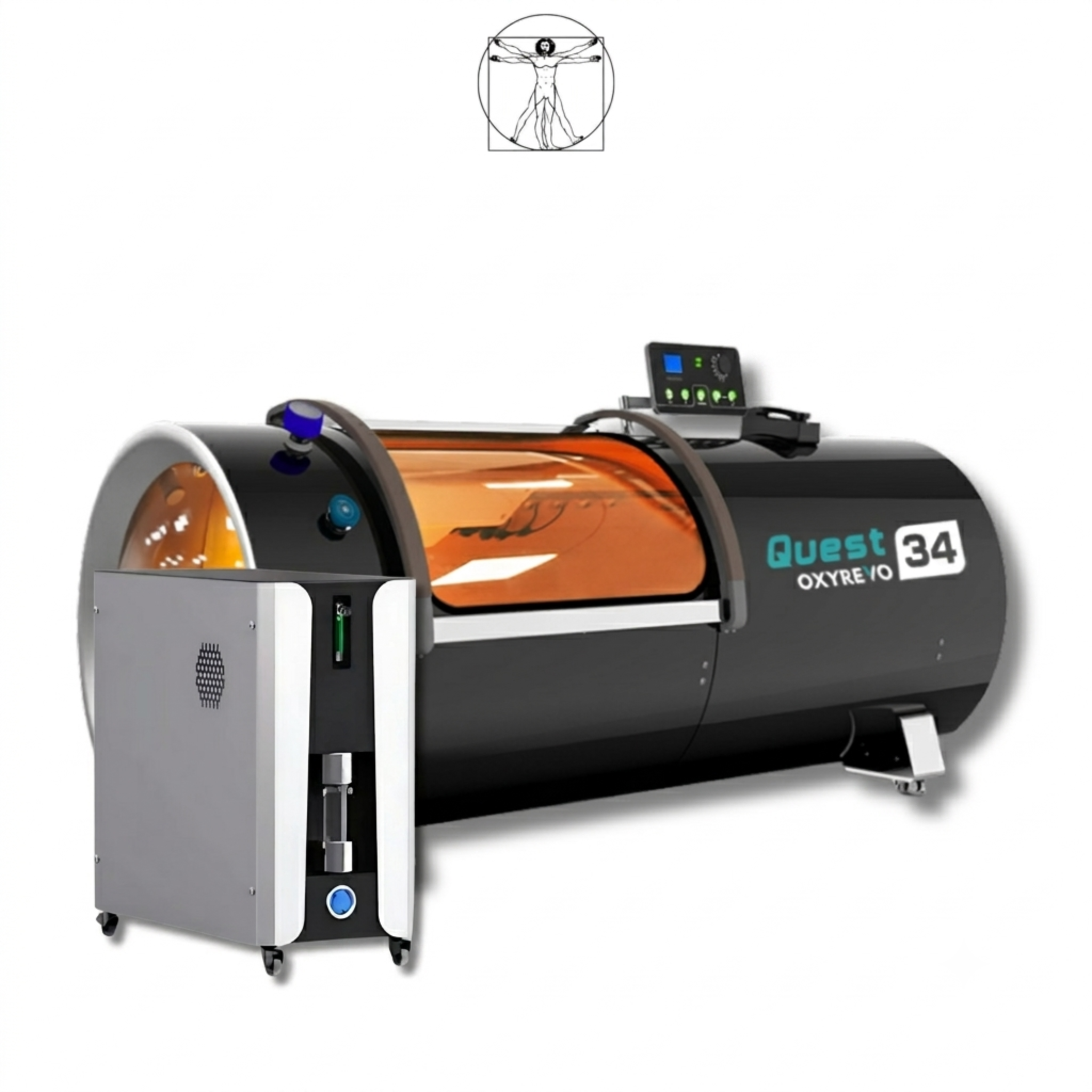

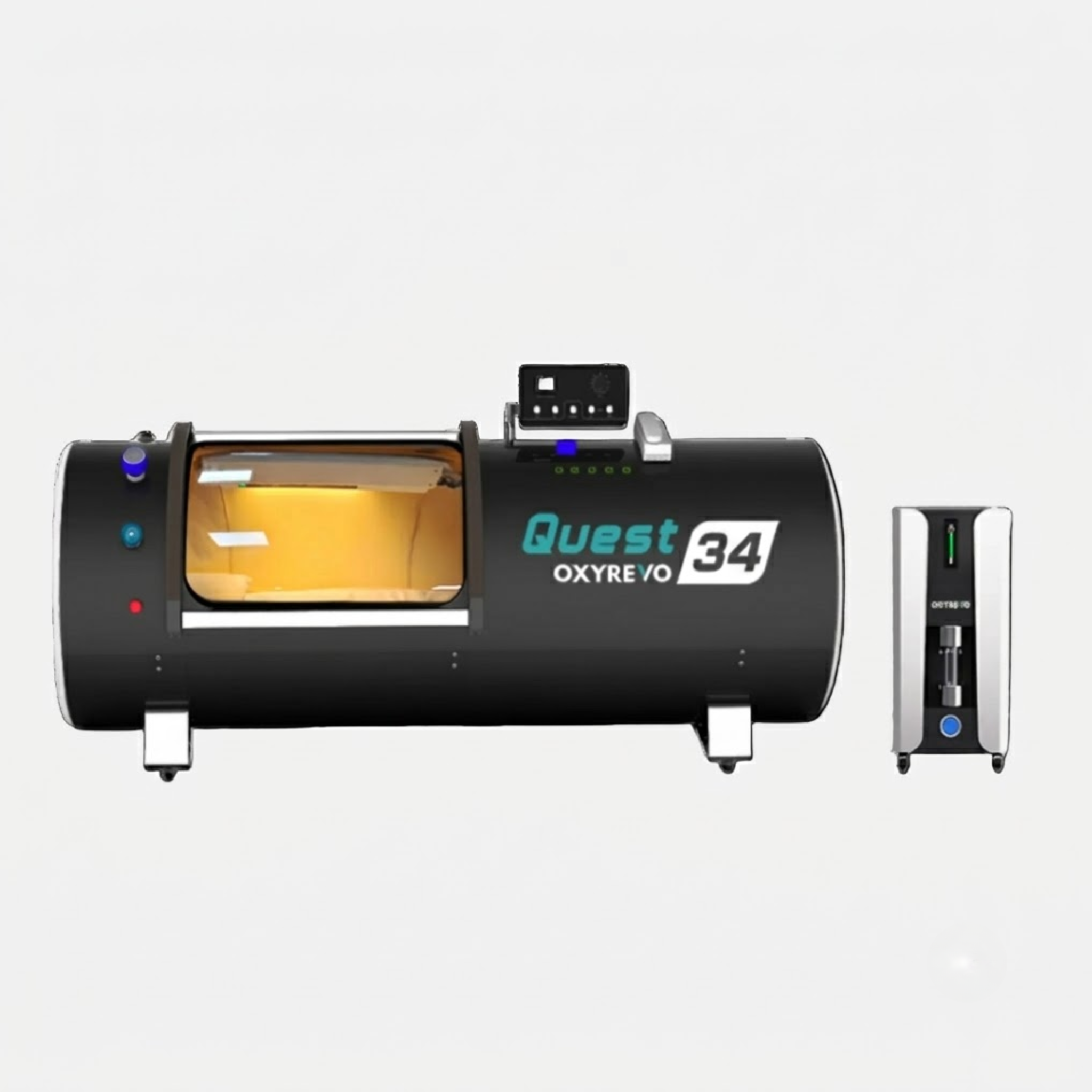

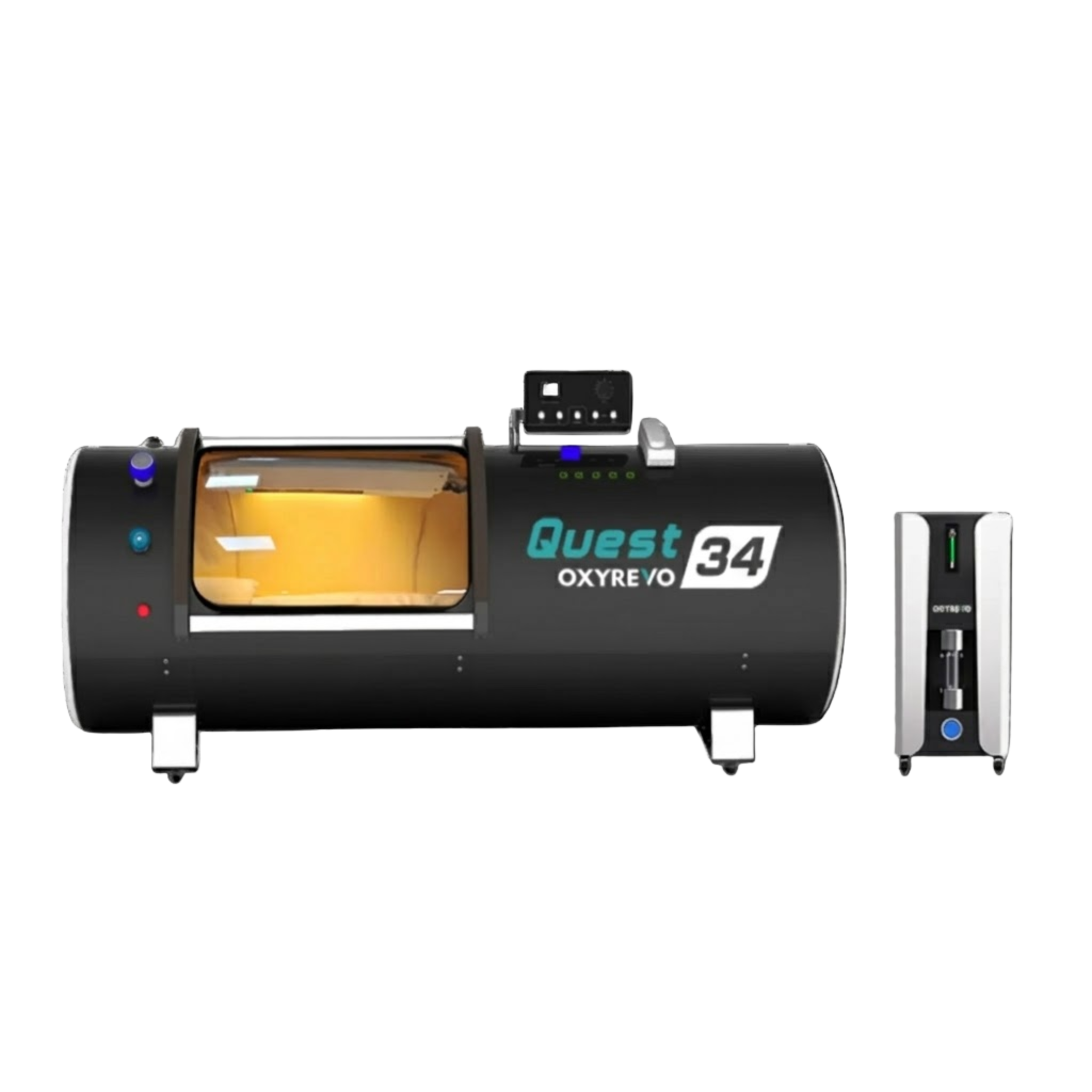

| All-In-One Machine Unit – Components | Air Compressor (1), Oxygen Concentrator (10L), Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| All-In-One Machine Unit – Dimensions | 27.56″ L × 13.78″ W × 29.53″ H |
| All-In-One Machine Unit – Weight | 176.37 lbs |
| All-In-One Machine Unit – Technology | Nano Water Ion Technology for pure, clean air with anti-virus disinfection |
| All-In-One Machine Unit – Virus Sterilization Rate | 99% |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (varies by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gallons) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temperature Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gallons/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |

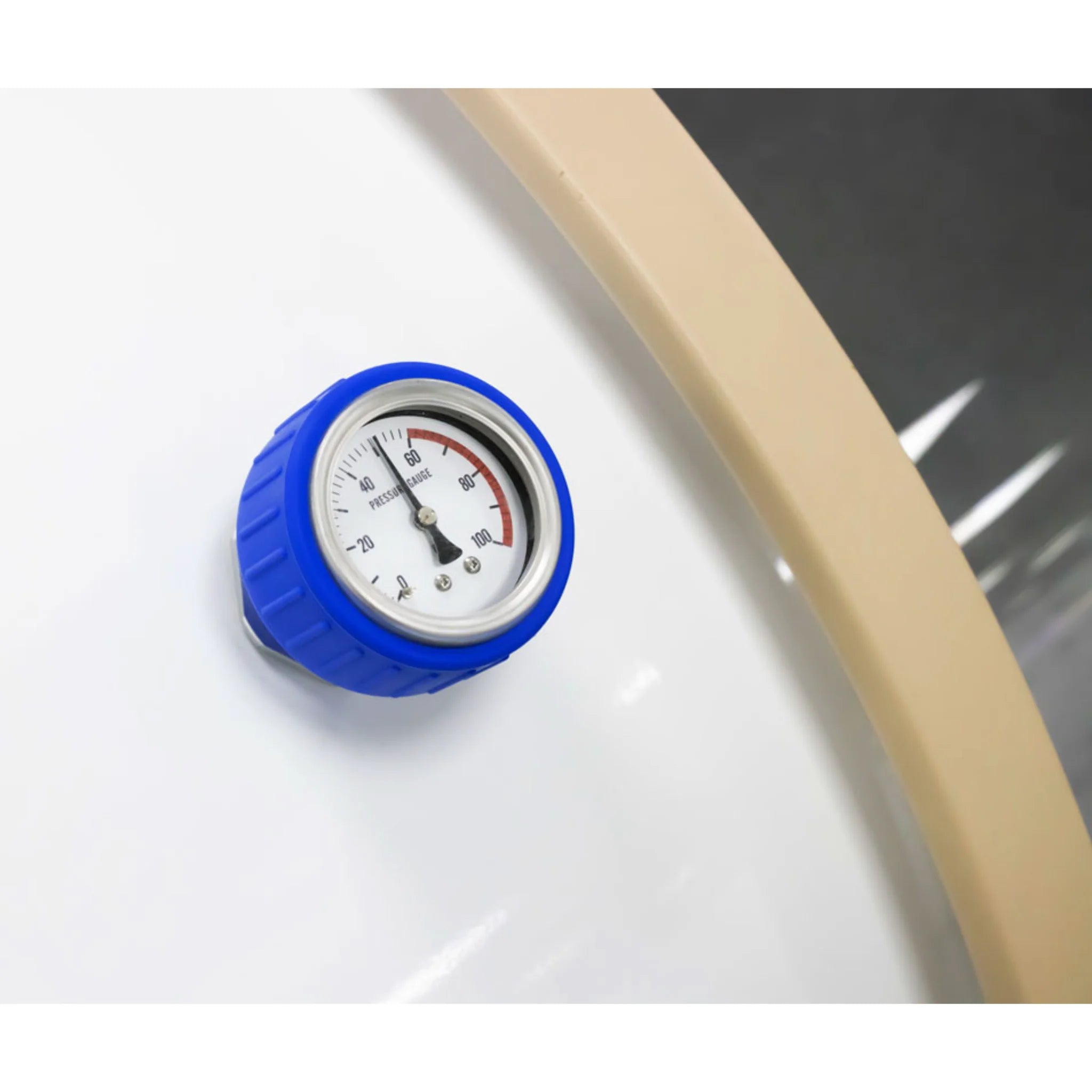

- Internal/external pressure gauges
- Pressure deflate valves

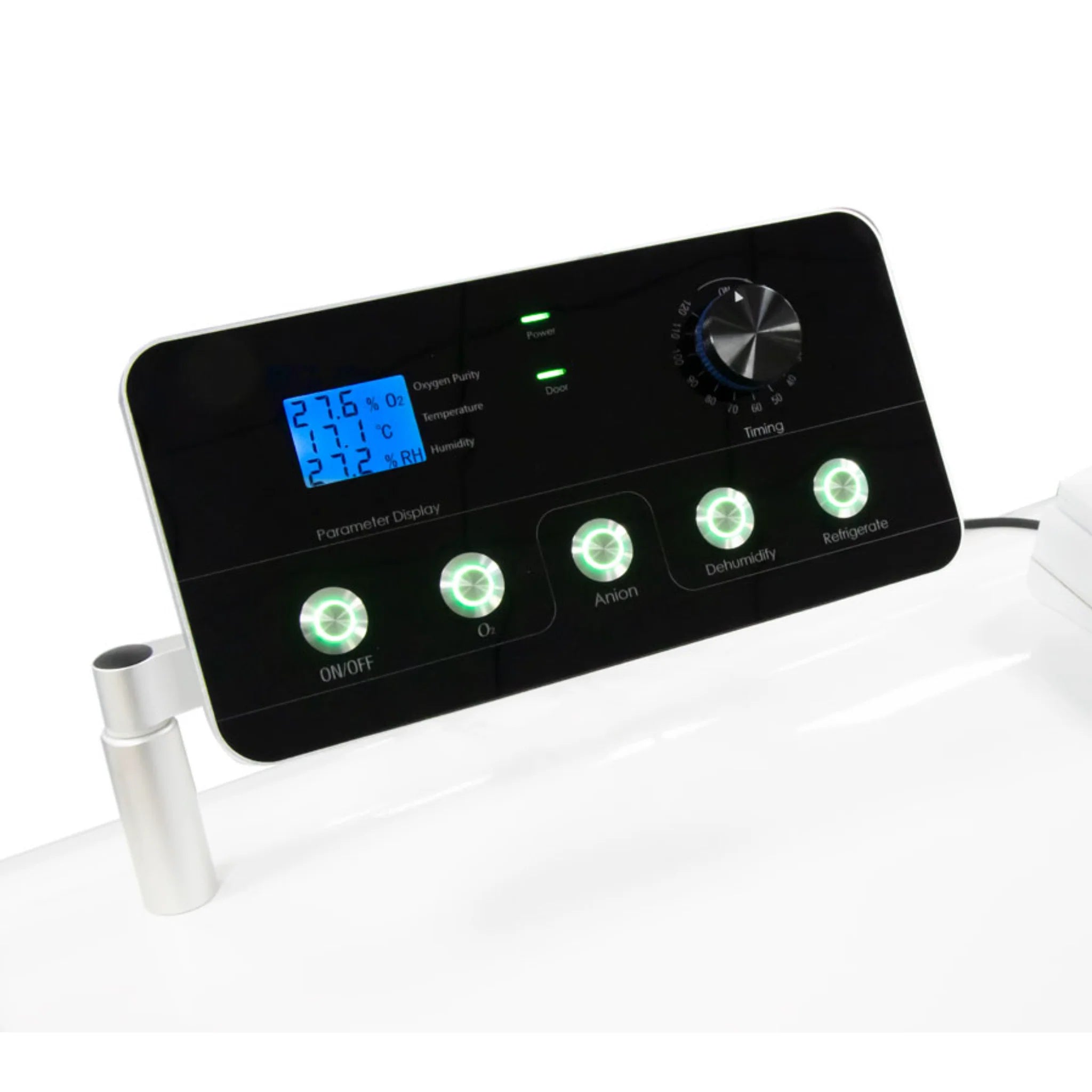

- Control panels
- Display screen
- Communication system
- Pressure relief valves

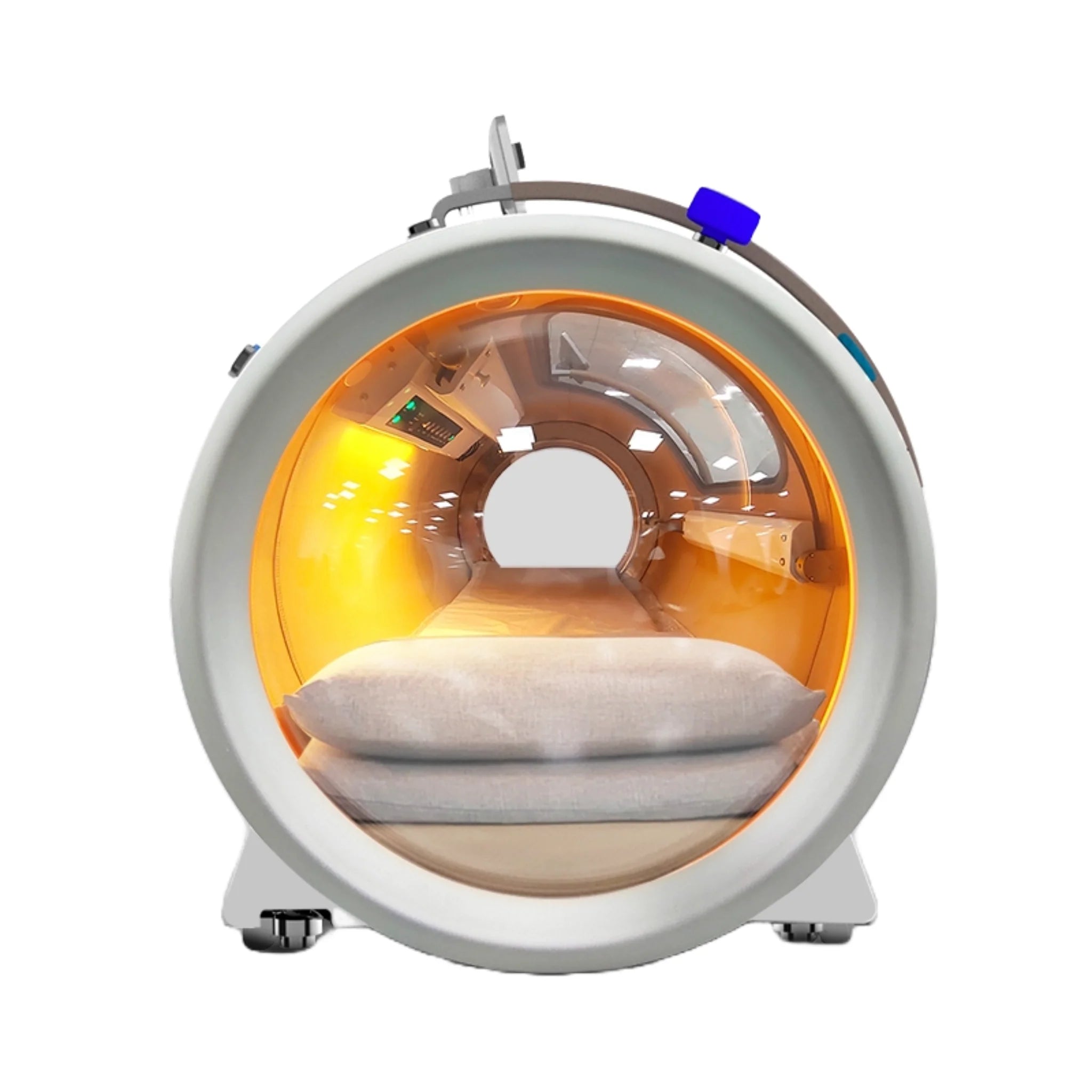

- Mattress
- Oil-free air compressor
- 10L oxygen concentrator
- Cooling machines
- Anion air purifier
- Air sterilizer
- Air filter
- Humidity water container
- Oxygen mask
- Spare filters
- Fuses
- Air/oxygen tubes
- Power cable
Shipping & Delivery: Most orders ship free within 1-2 business days via curbside delivery. Need it brought inside and set up? Choose White Glove Delivery at checkout and our team will follow up with pricing and scheduling.
Warranty: Warranty coverage varies by manufacturer and product. Contact our team before purchase for the specific warranty terms on this item, or reach out any time after your purchase with a manufacturer defect concern — we'll help you through the process.
Product manuals, installation guides, and spec sheets for this item are available on request. Contact our product specialists and we'll send you the documentation.
