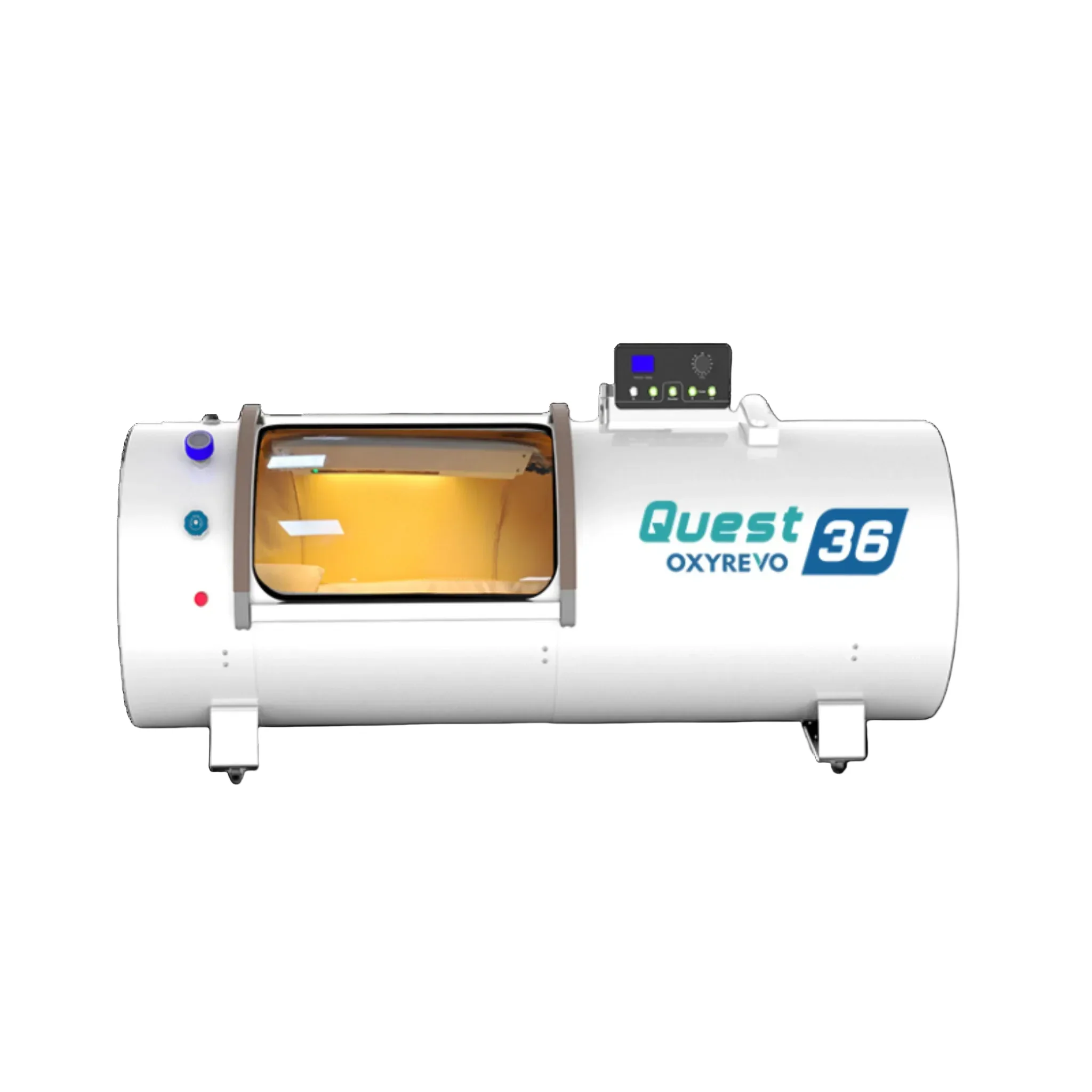

The widest Quest: a wheeled 1.5–2.0 ATA hard-shell with oversized windows

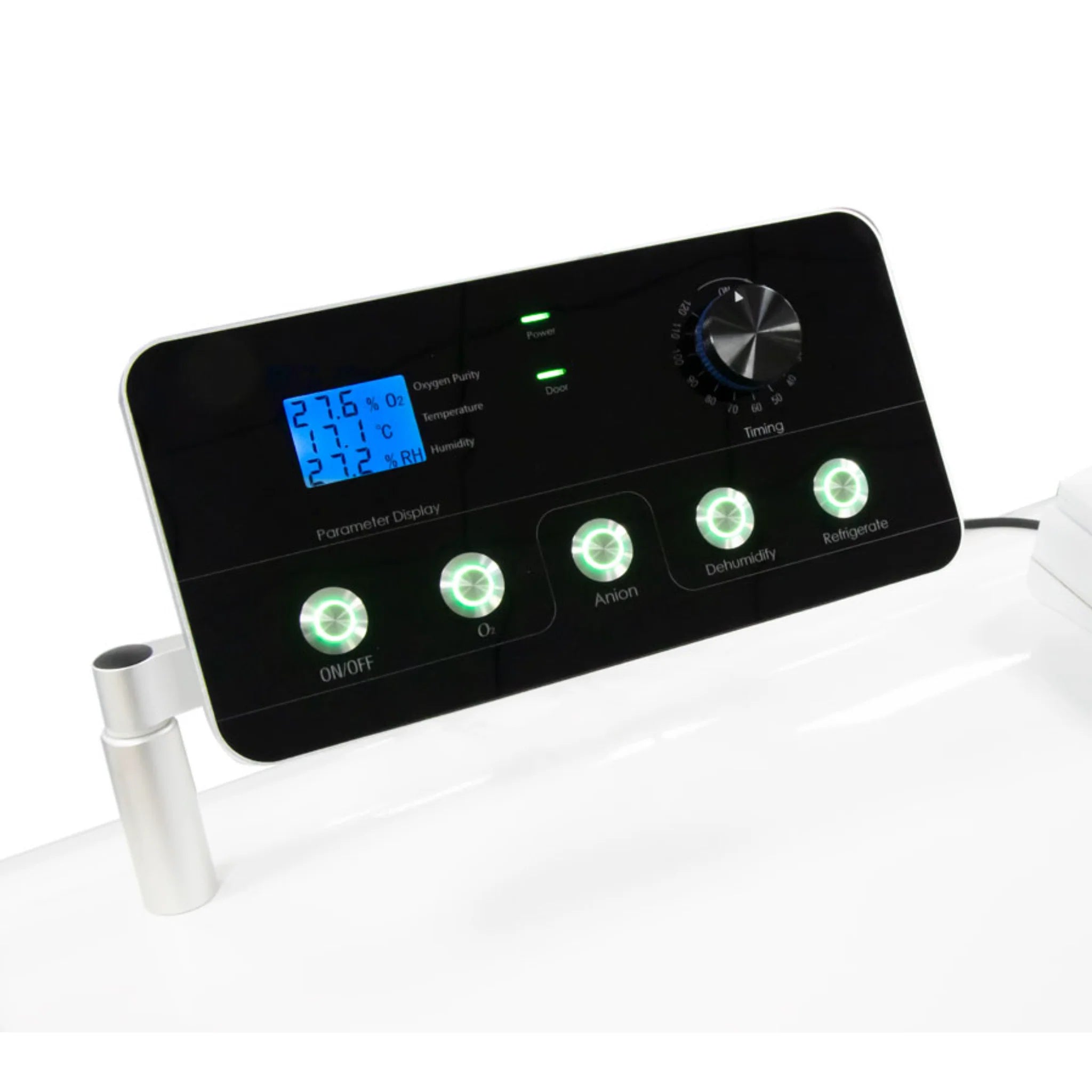

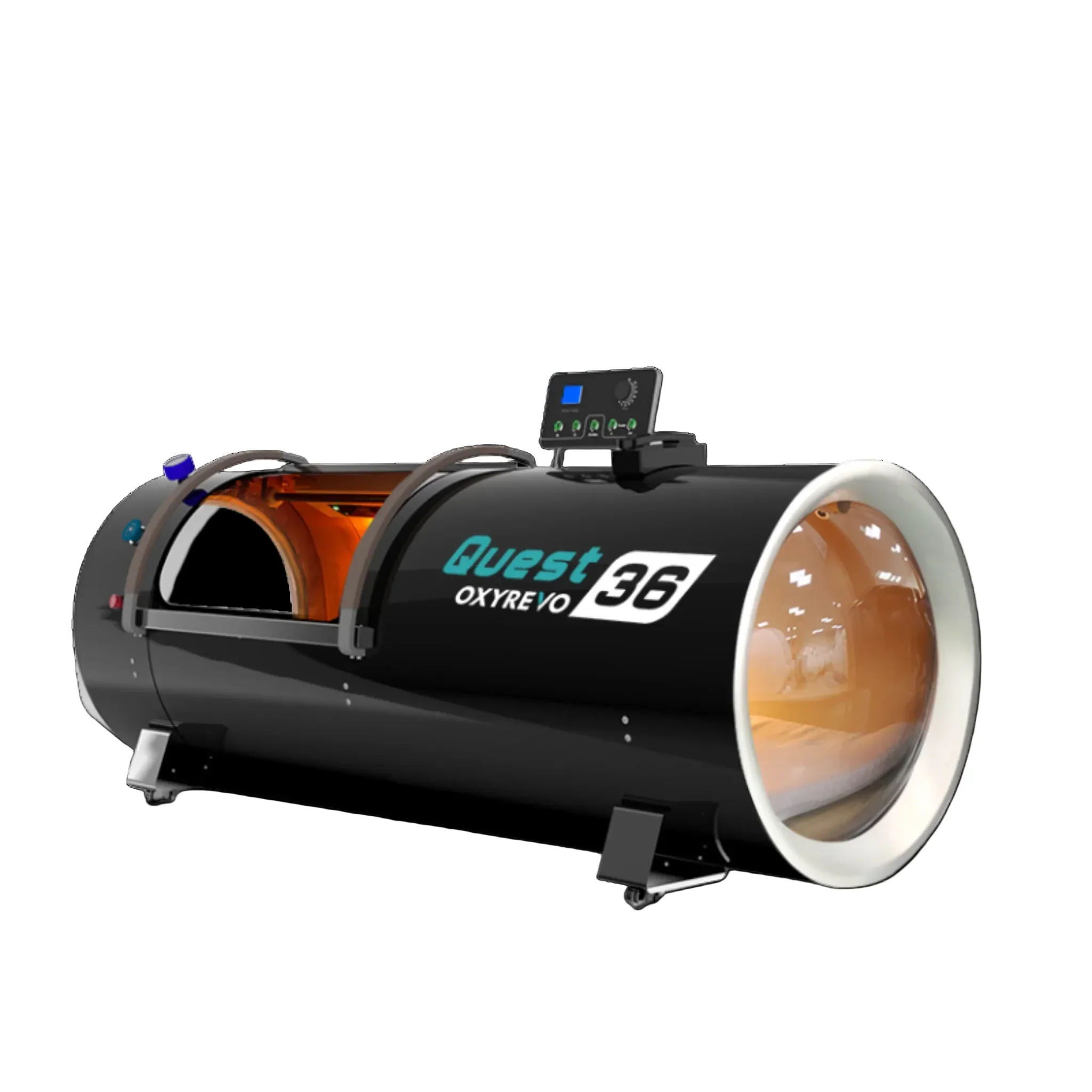

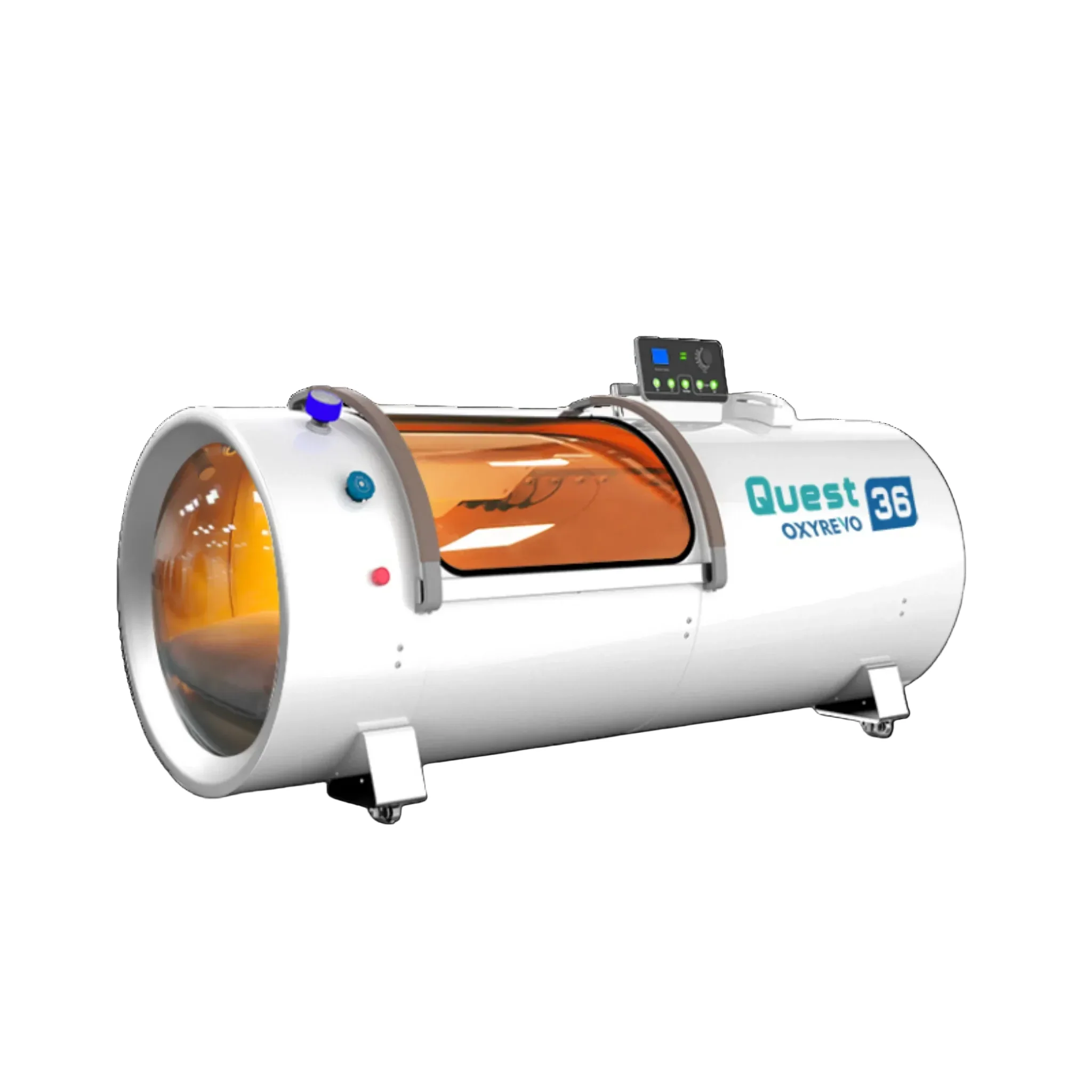

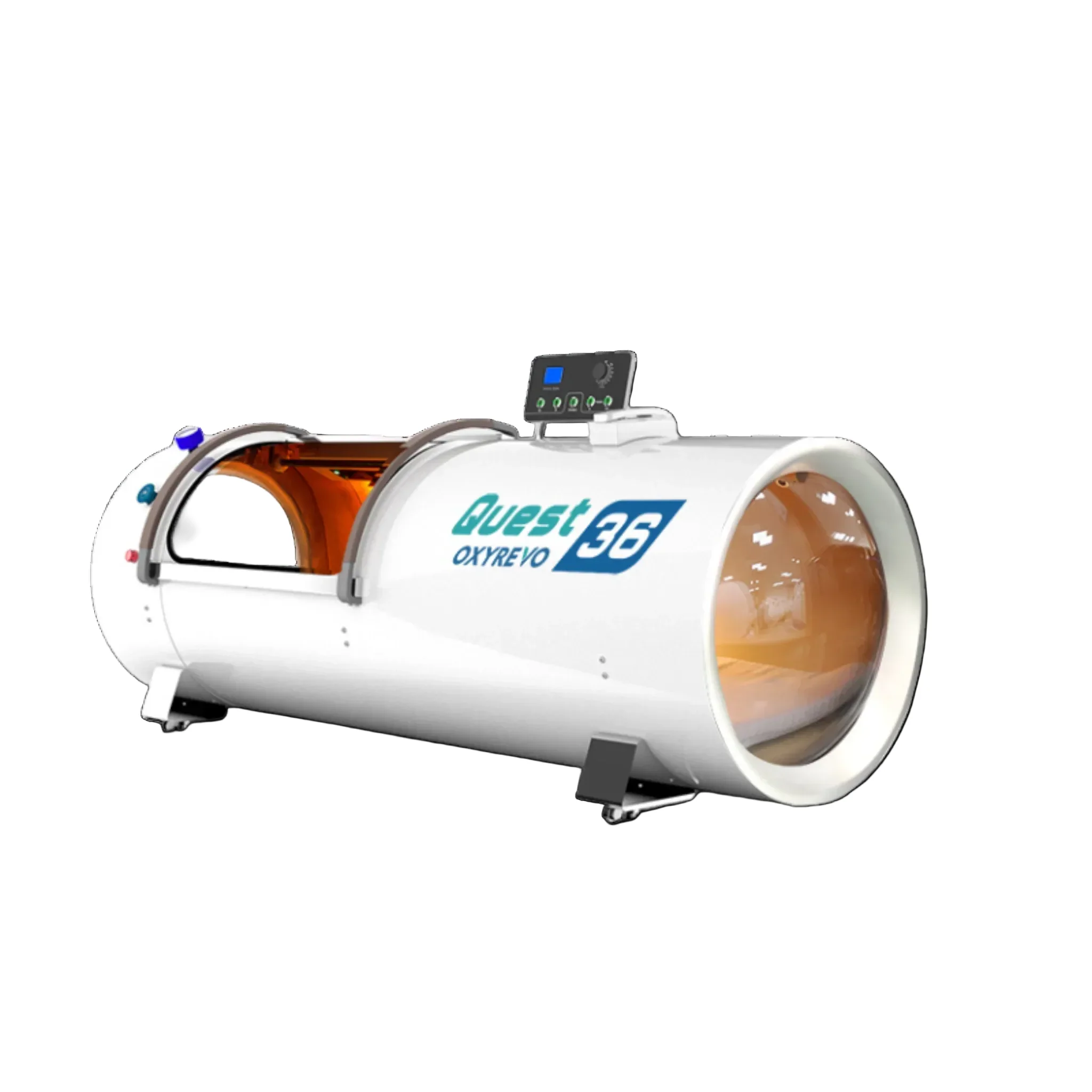

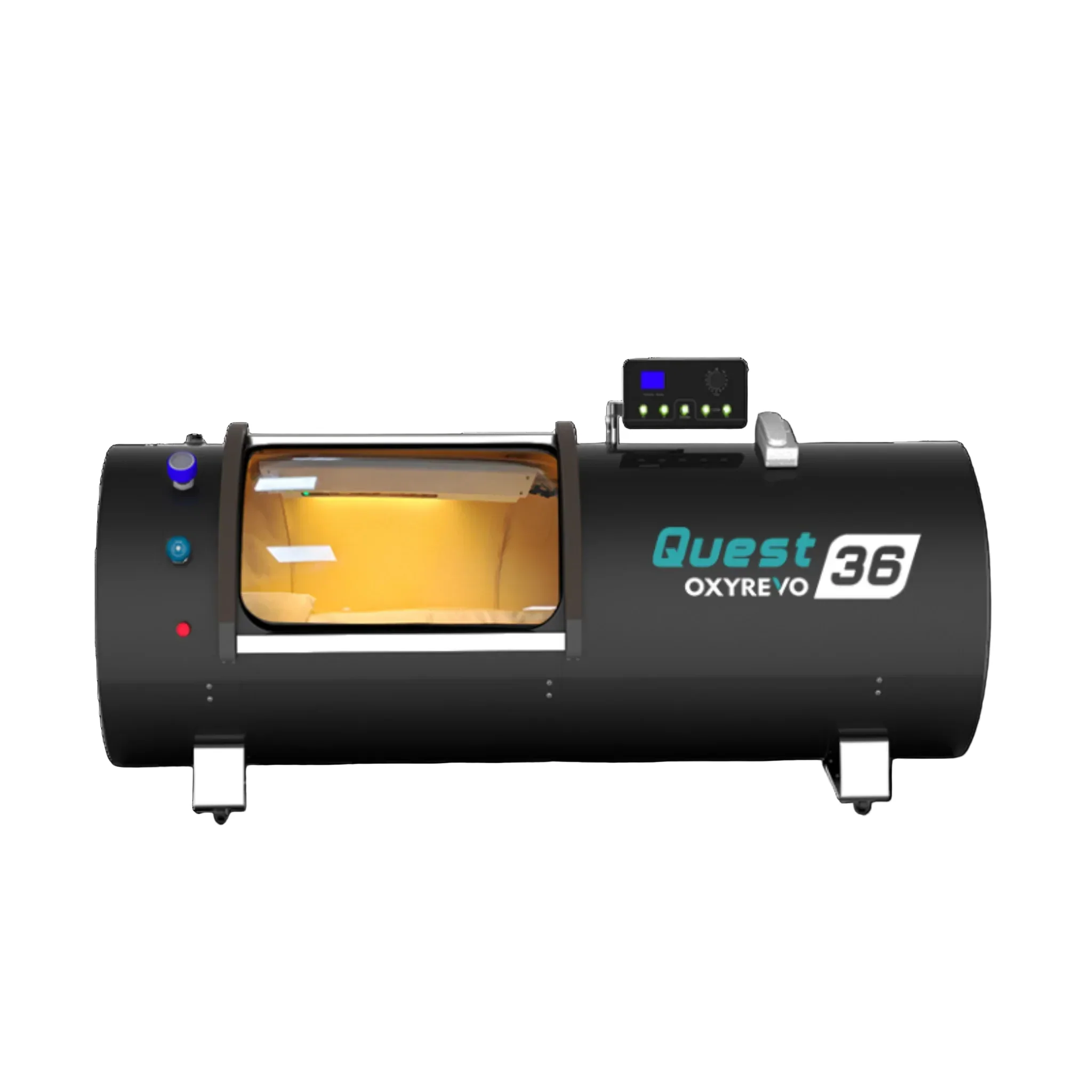

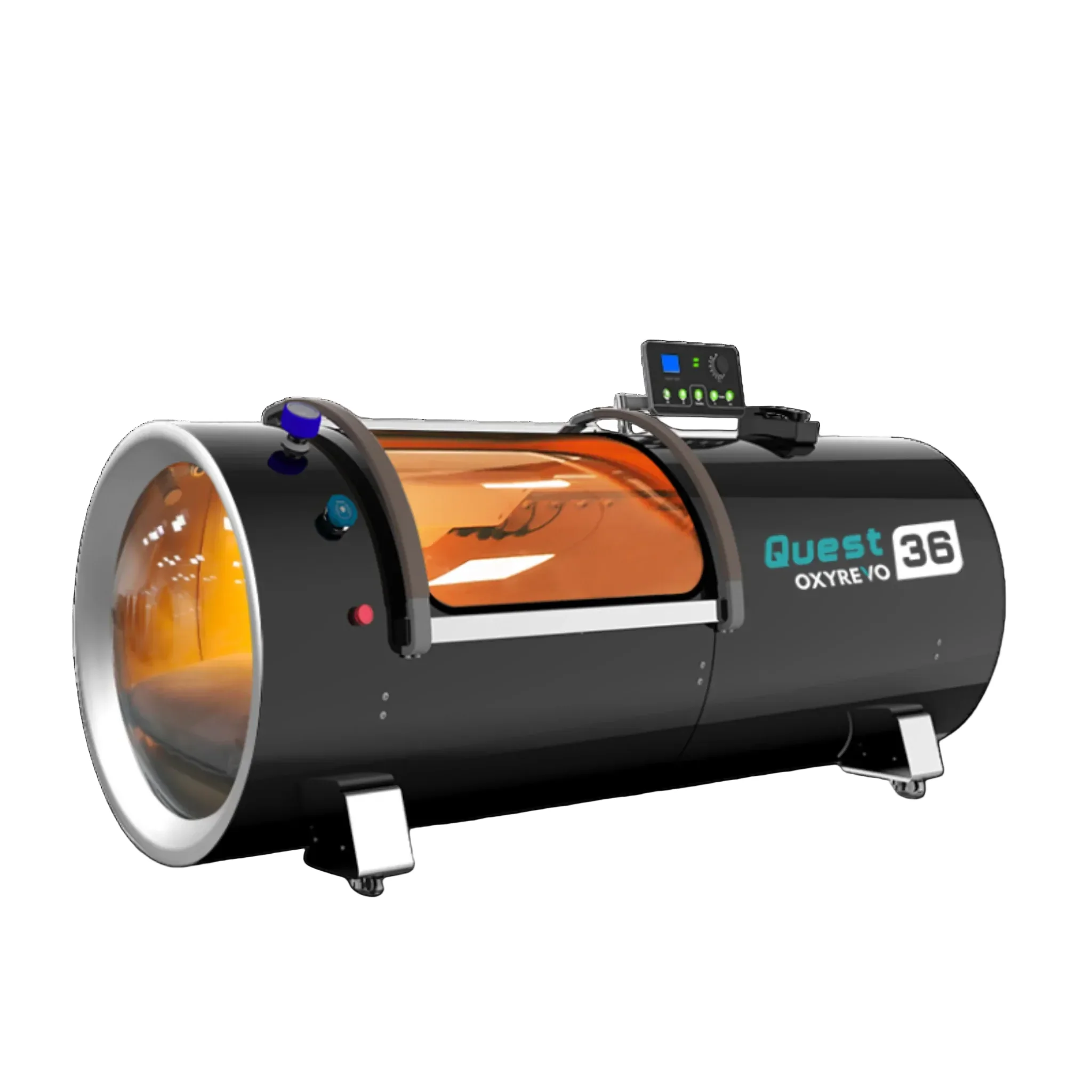

The Quest36 is the widest Quest and the most spacious lay-down chamber in the line: 89 inches long and 36 inches wide, with oversized viewing windows that keep the interior bright. It weighs 573 lbs and sits on wheels so it can be repositioned, and dual control panels, digital pressure displays, an integrated phone system, LED lighting and a programmable 120-minute timer make sessions simple. It offers 1.5 ATA (adjustable 1.2–1.5) or 2.0 ATA (adjustable 1.4–2.0) builds.
Best for: Clinics and home users who want extra shoulder room and the ability to reposition the chamber.
What a session looks like
Step or lie in through the door, which seals behind you. From the control panel you set the working pressure, oxygen is delivered through a mask or headset, and the chamber pressurizes, holds steady for the session and is gradually decompressed at the end. Communication, pressure gauges and emergency valves are available throughout, so both the user and an assistant can keep an eye on the session.
Space, power and setup
Hard-shell chambers are heavy and typically arrive crated or on a pallet. Before you order, measure the delivery route and doorways, confirm the floor can carry the weight, and plan a dedicated electrical circuit for the compressor and concentrator. Professional installation is recommended, and our team can help you plan it. At a glance: working pressure 1.5 ATA / 1.6 ATA / 2.0 ATA; dimensions 89″ L × 36″ W × 36″ H (7.42 ft × 3 ft × 3 ft); weight 573 lbs.
Choosing the right model
If you need a seated position, look at the Space60.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- 89″ × 36″ × 36″; 573 lbs; on wheels
- Two builds: 1.5 ATA (adjustable 1.2–1.5) or 2.0 ATA (adjustable 1.4–2.0)

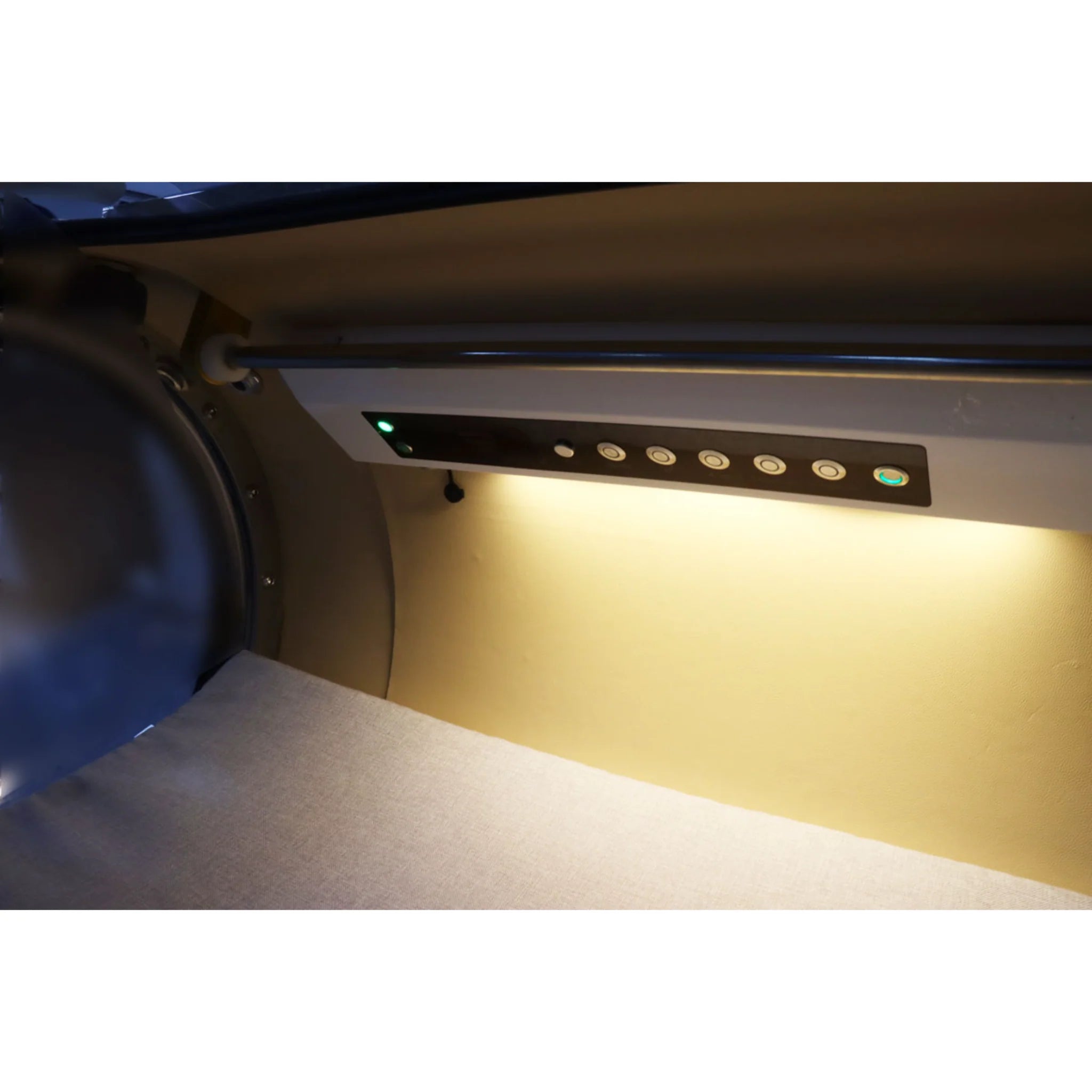

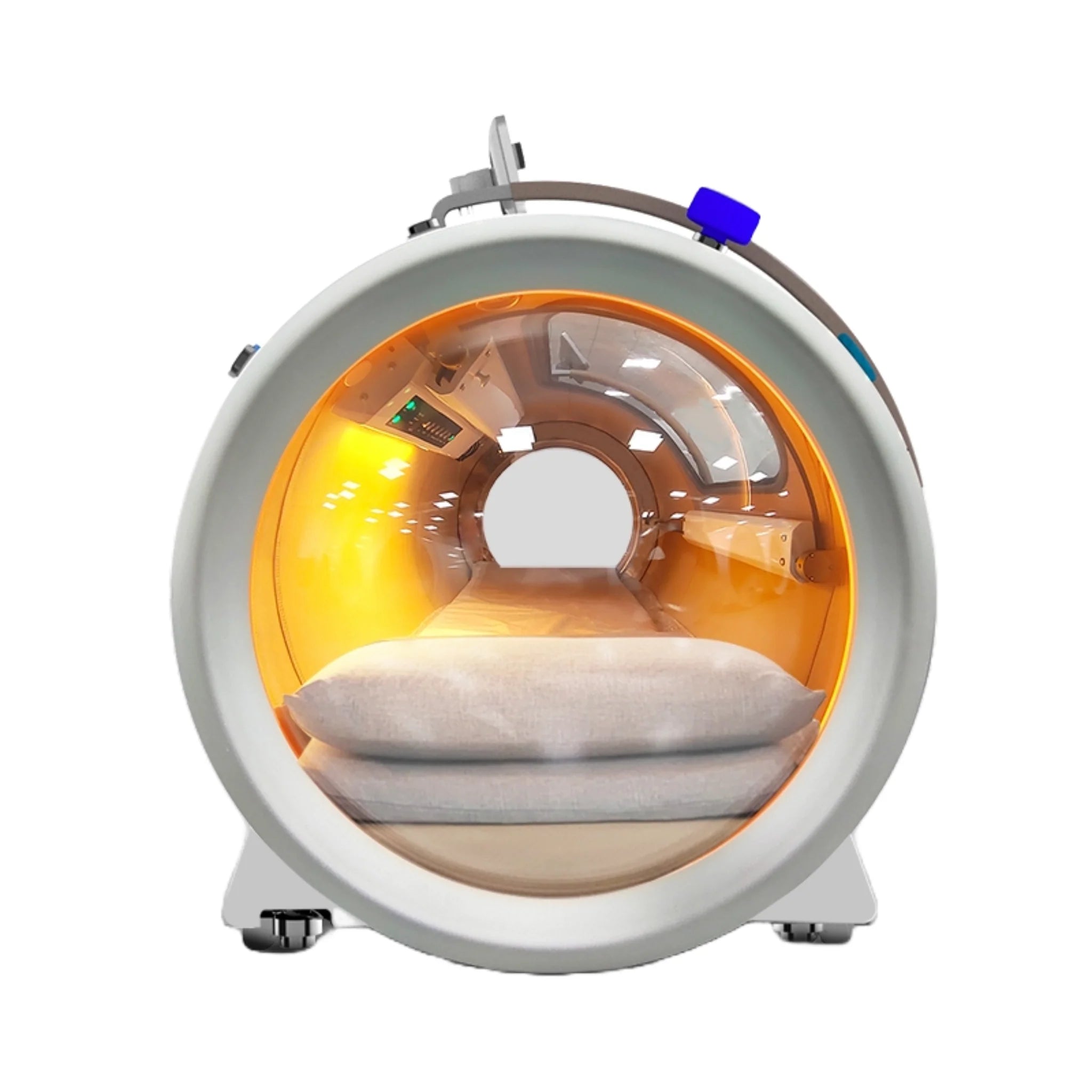

- Full-length mattress; LED lighting; 120-minute timer
- Emergency pressure-release valve depressurizes in about 30 seconds
| Working Pressure | 1.5 ATA / 1.6 ATA / 2.0 ATA |
|---|---|
| Dimensions | 89″ L × 36″ W × 36″ H (7.42 ft × 3 ft × 3 ft) |
| Weight | 573 lbs |
| Material | Stainless Steel |
| Windows | 2 transparent windows |
| Oxygen Purity | 90–97% |
| Chamber Color | White, OEM available |

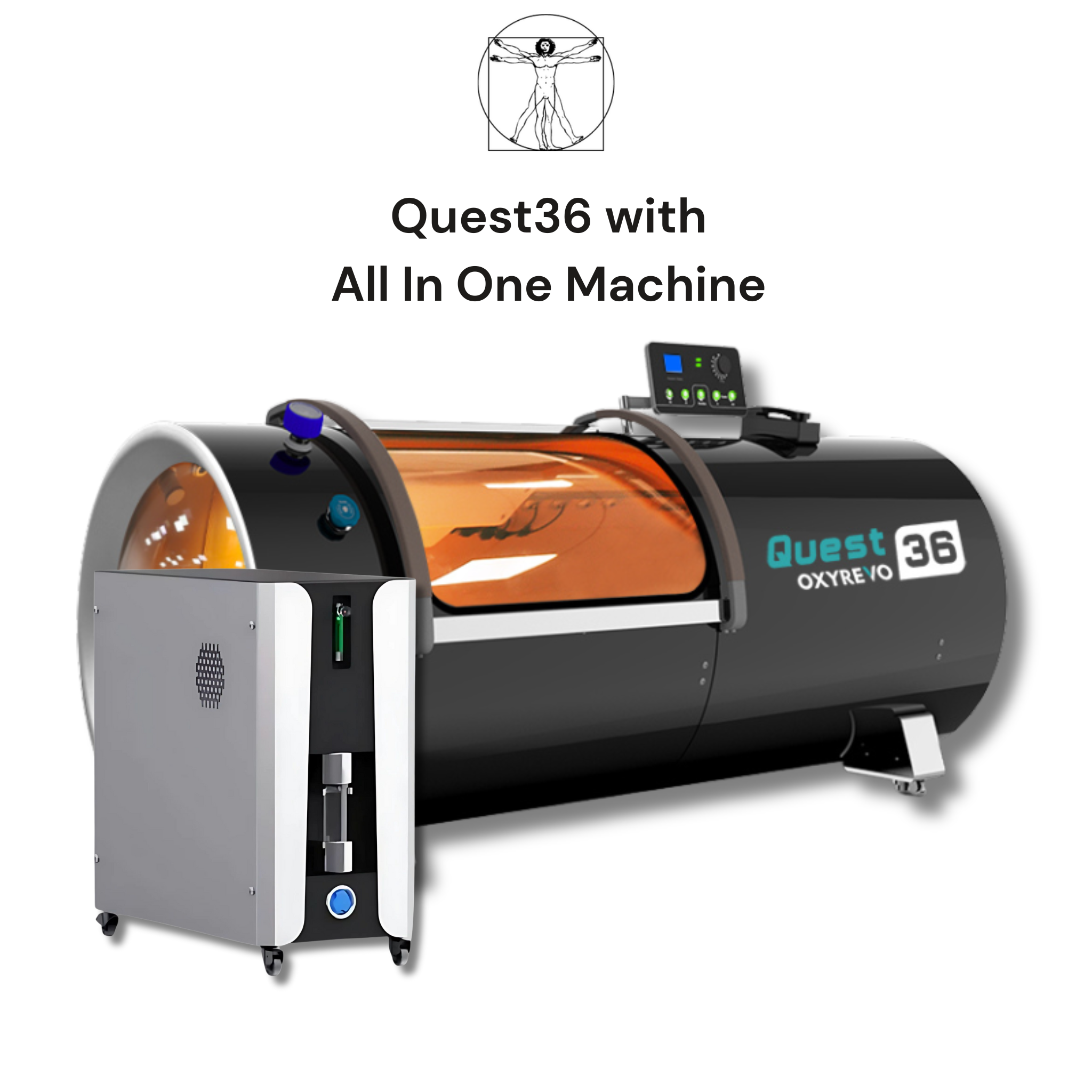

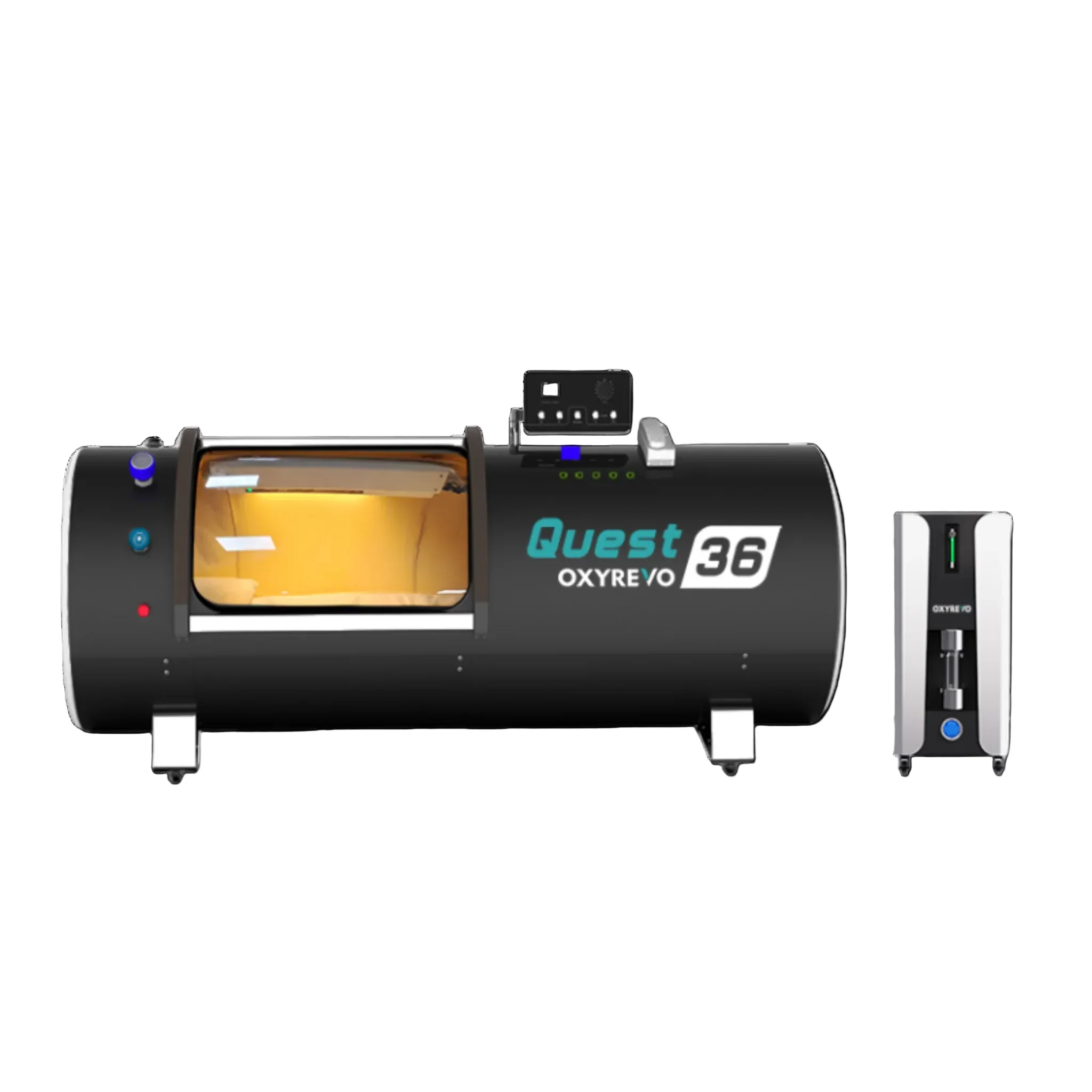

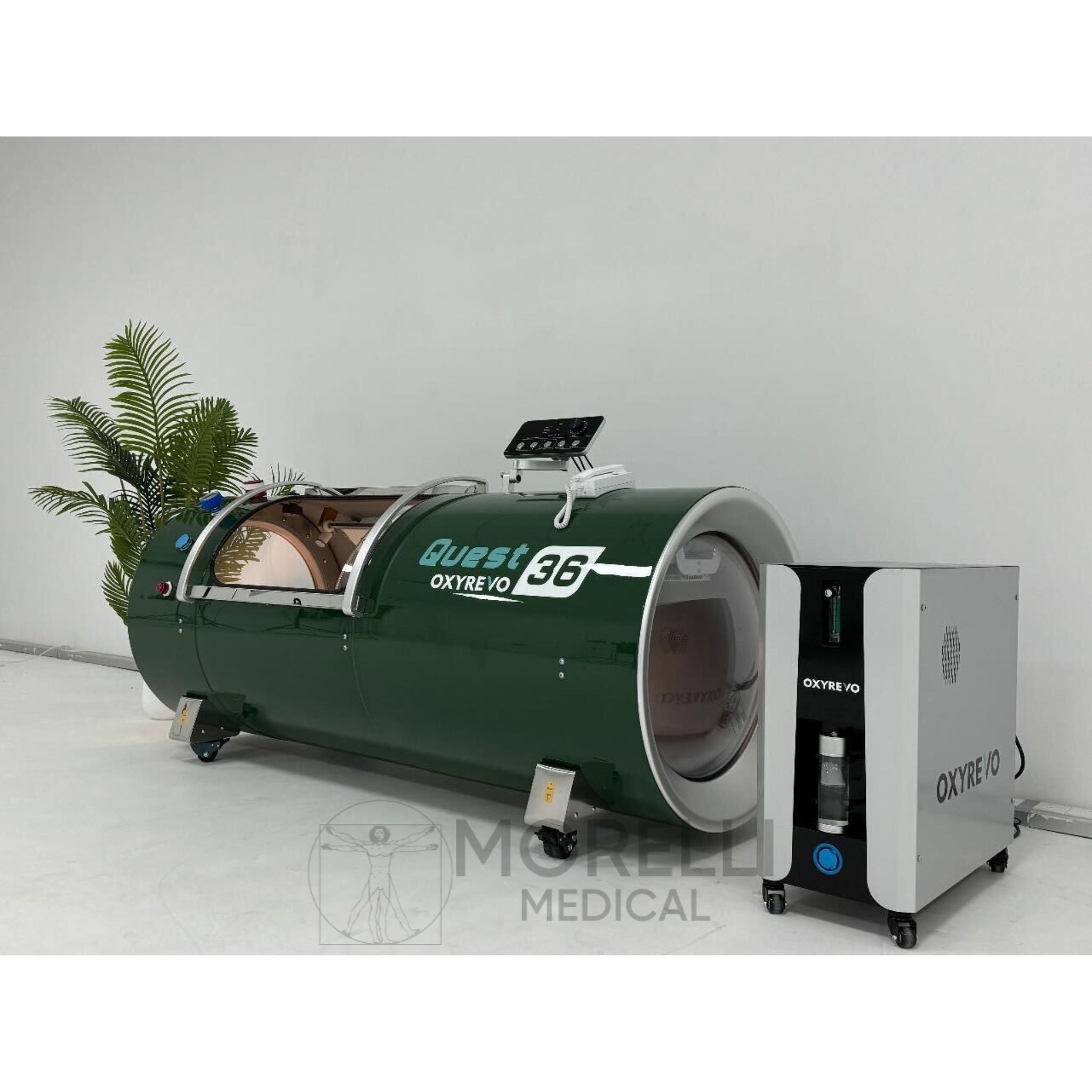

| All-In-One Machine Unit – Components | Air Compressor (1), Oxygen Concentrator (10L), Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| All-In-One Machine Unit – Dimensions | 27.56″ L × 13.78″ W × 29.53″ H |
| All-In-One Machine Unit – Weight | 176.37 lbs |
| All-In-One Machine Unit – Technology | Nano Water Ion Technology for pure, clean air with anti-virus disinfection |
| All-In-One Machine Unit – Virus Sterilization Rate | 99% |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (varies by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gallons) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temperature Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gallons/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |

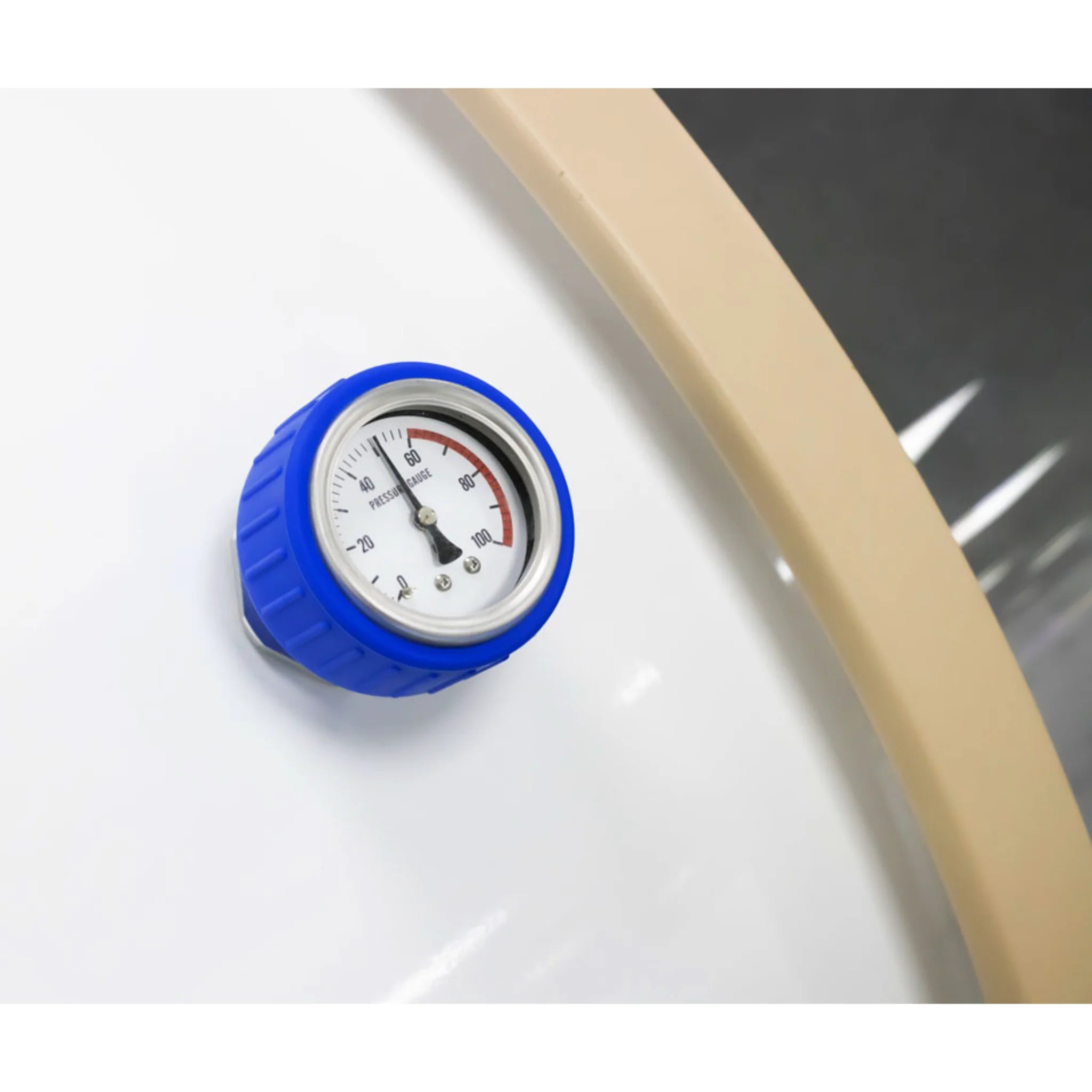

- Internal/external pressure gauges
- Pressure deflate valves
- Control panels
- Display screen
- Communication system
- Pressure relief valves
- Mattress
- Oil-free air compressor
- 10L oxygen concentrator
- Cooling machines
- Anion air purifier
- Air sterilizer
- Air filter
- Humidity water container
- Oxygen mask
- Spare filters
- Fuses
- Air/oxygen tubes
- Power cable
