A hard-shell sitting chamber in two pressure builds and two widths

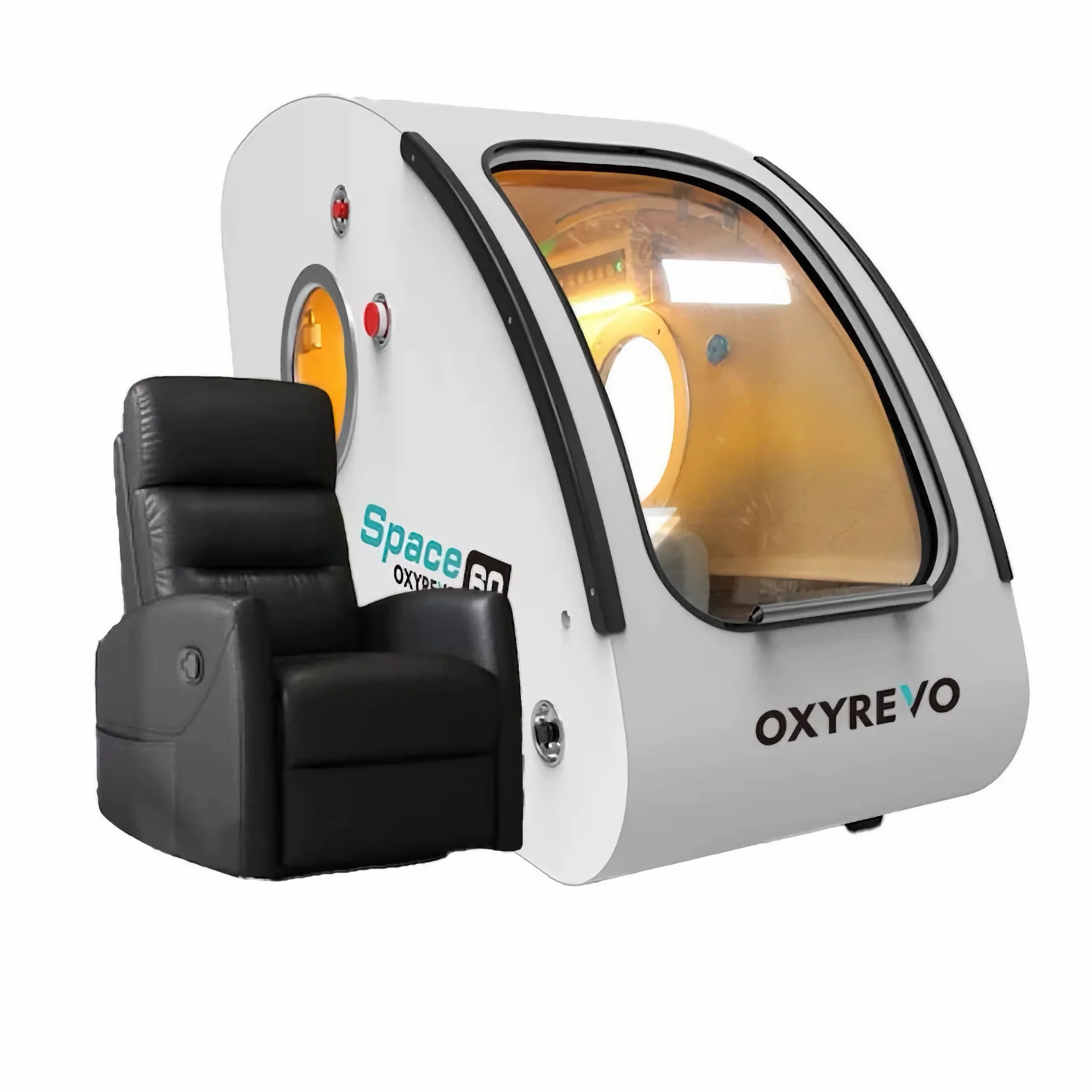

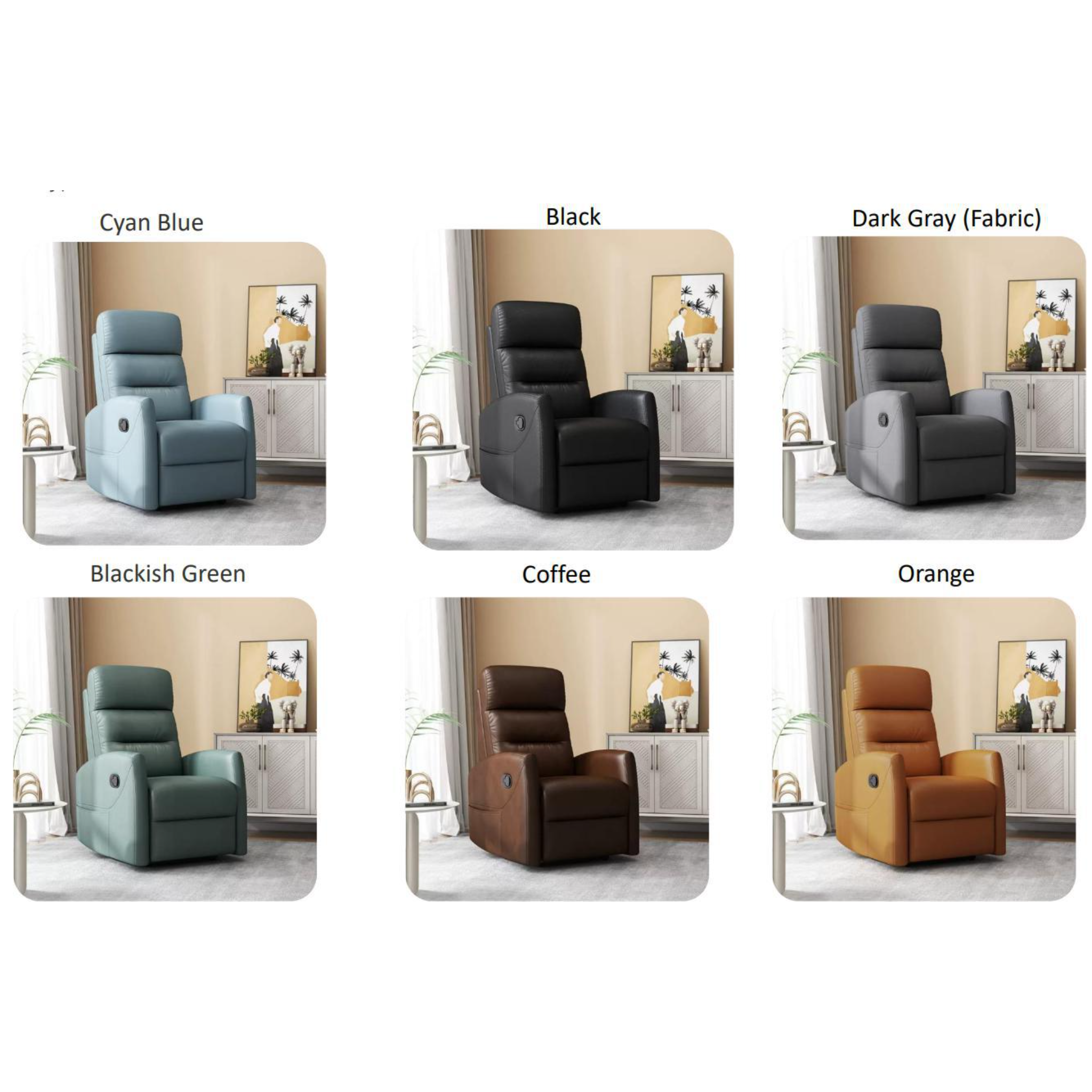

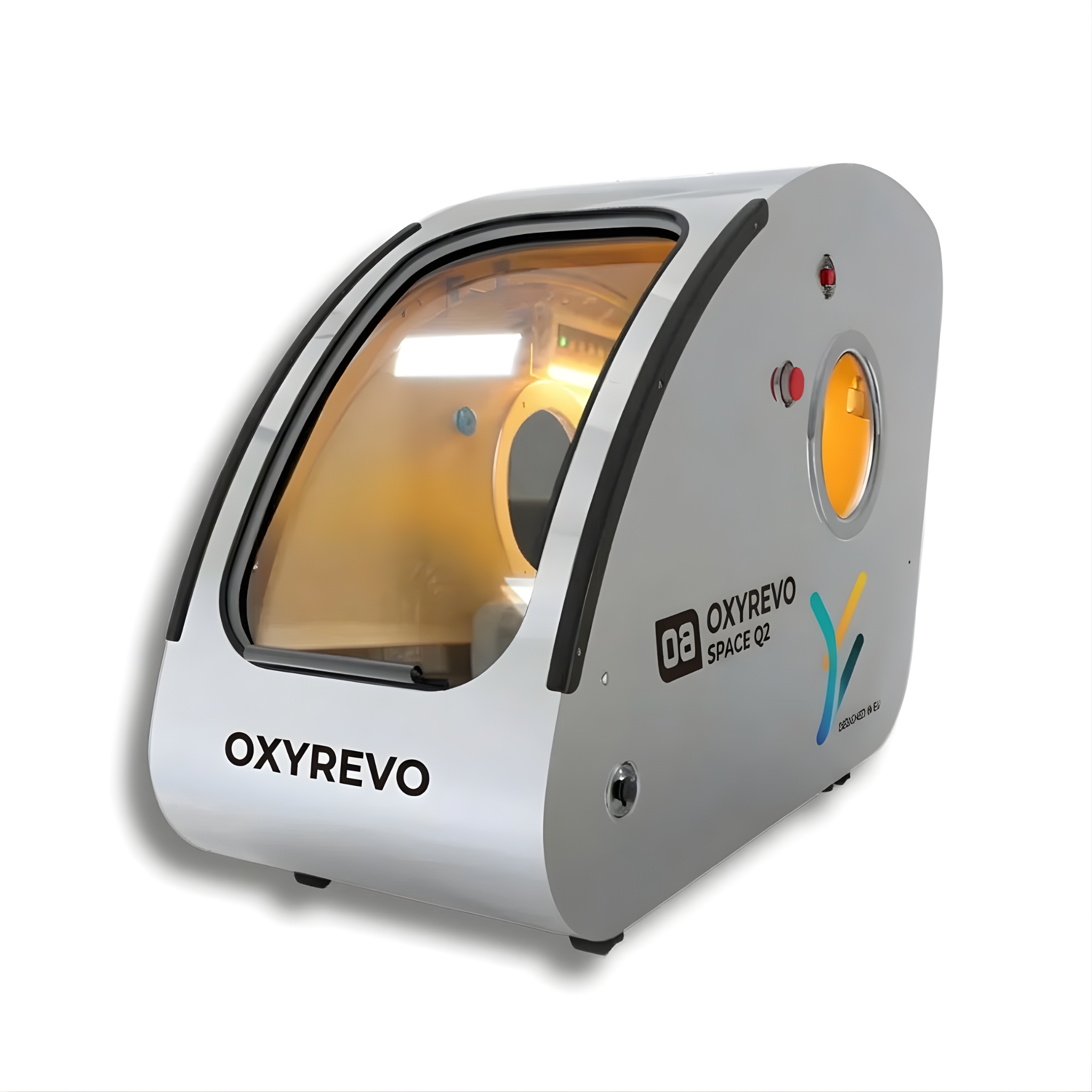

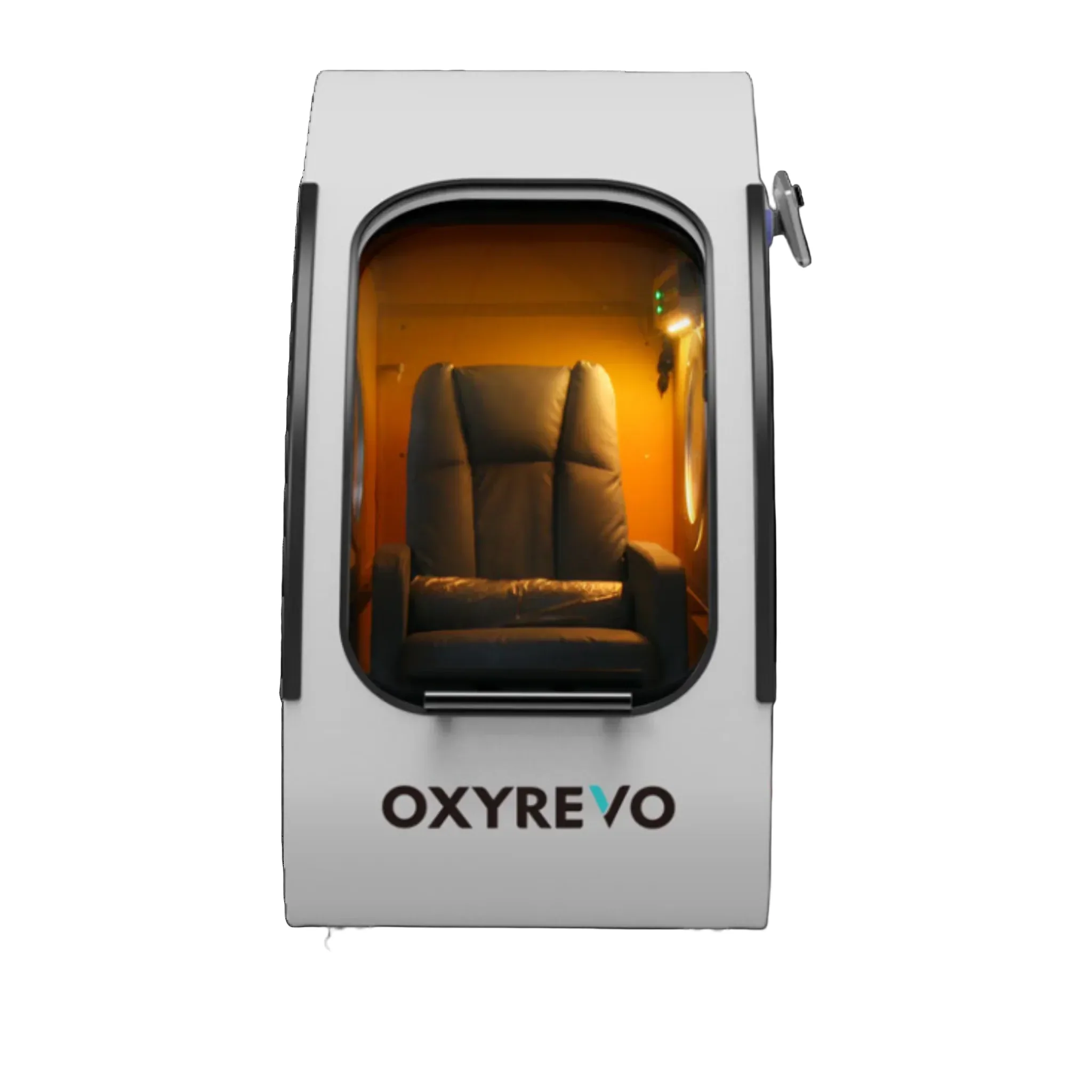

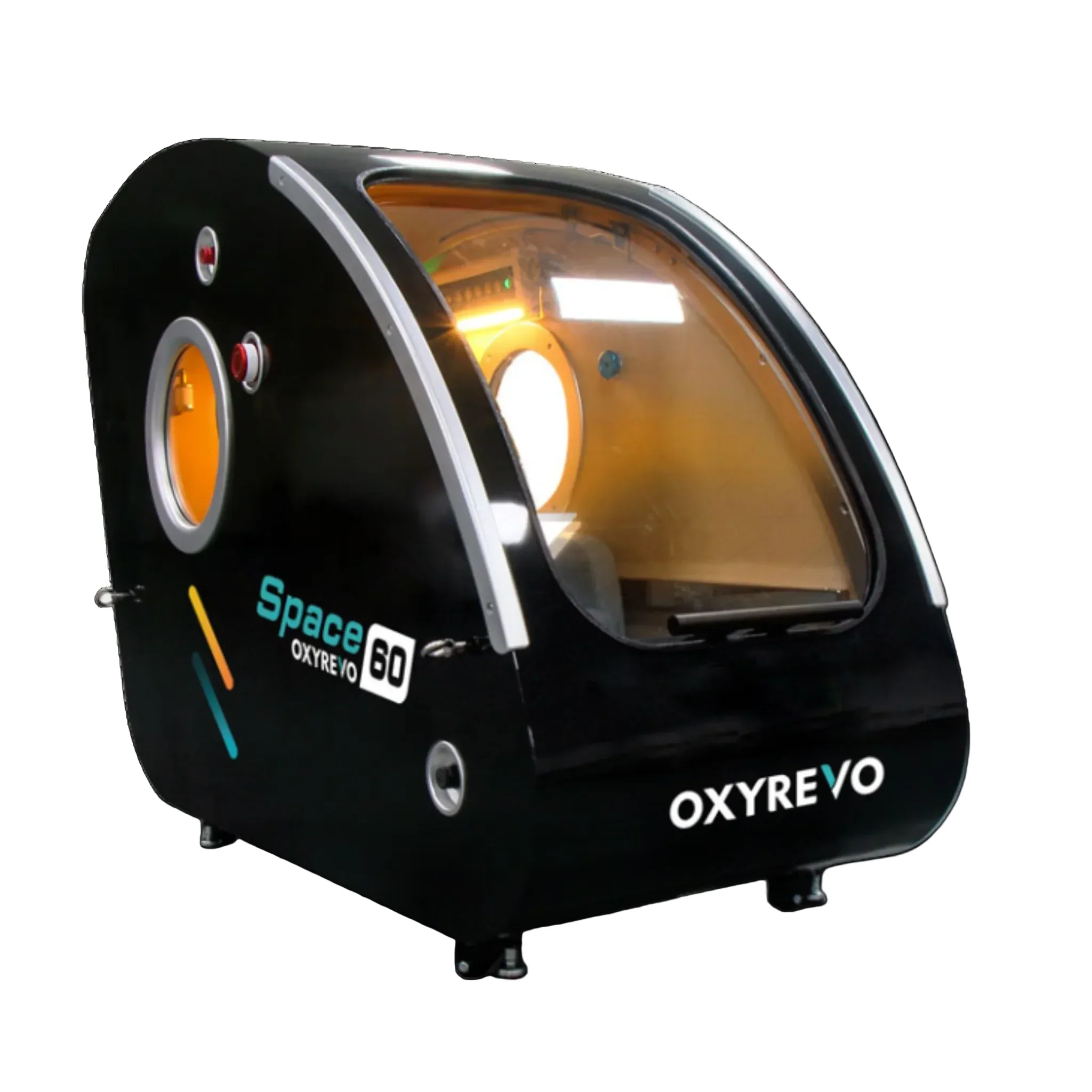

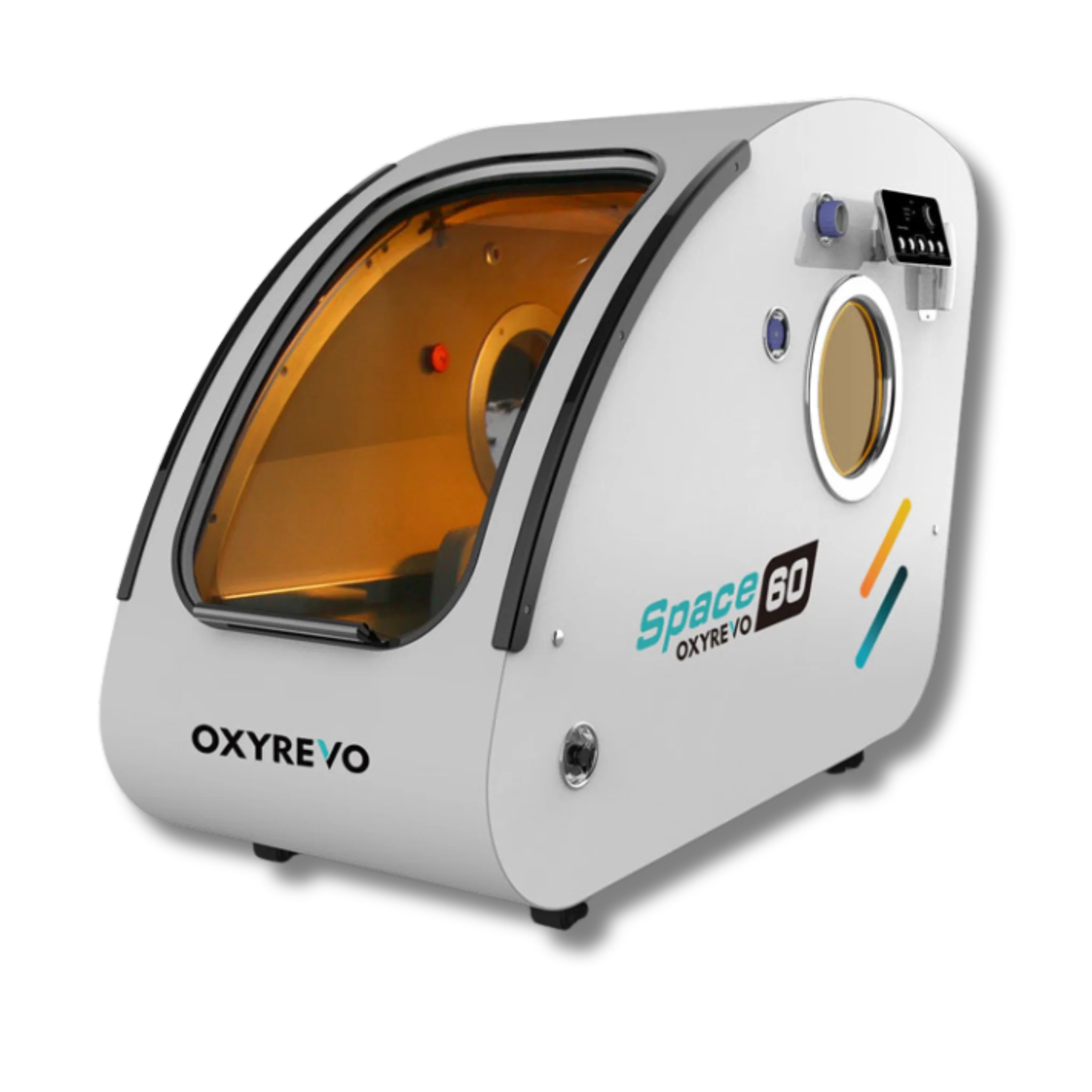

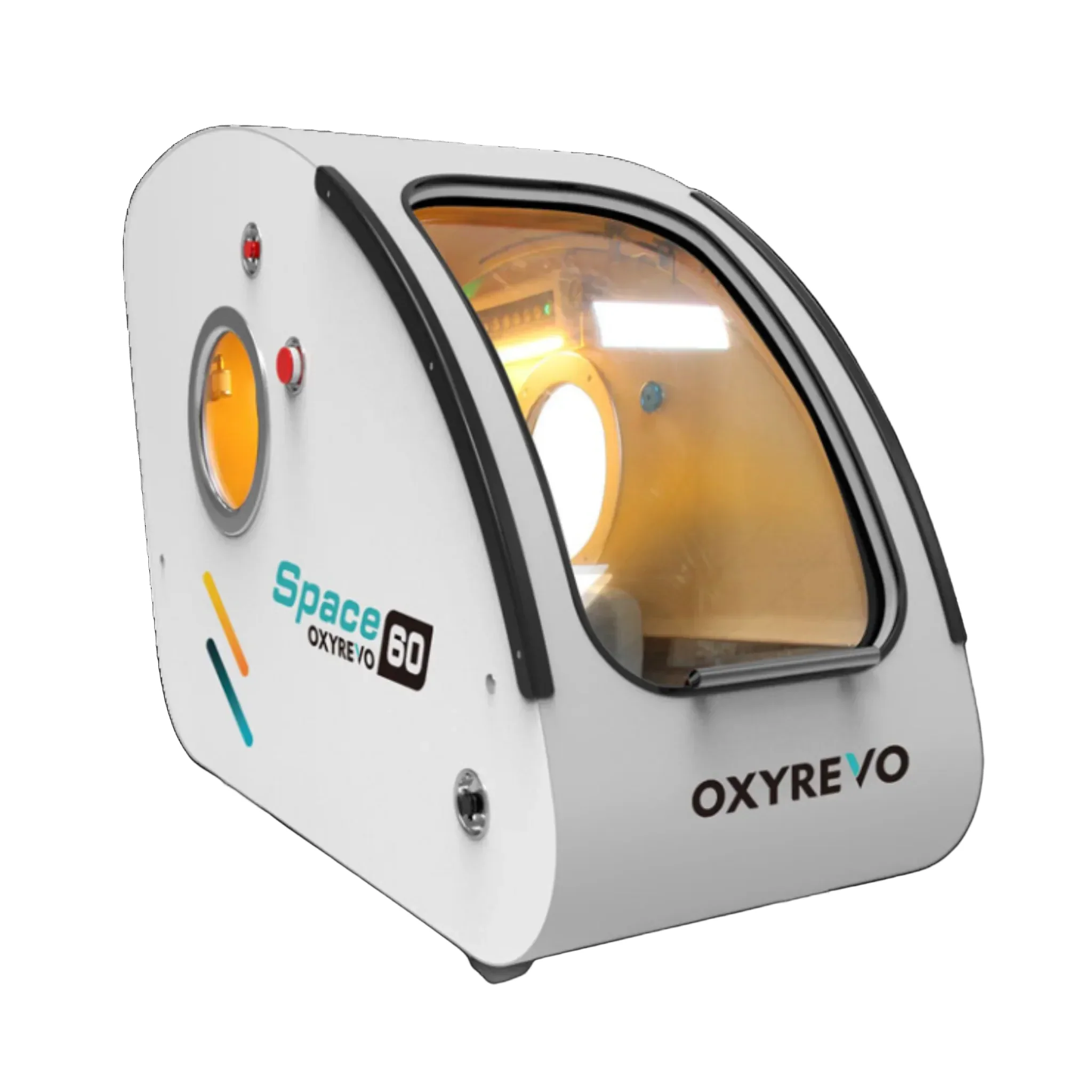

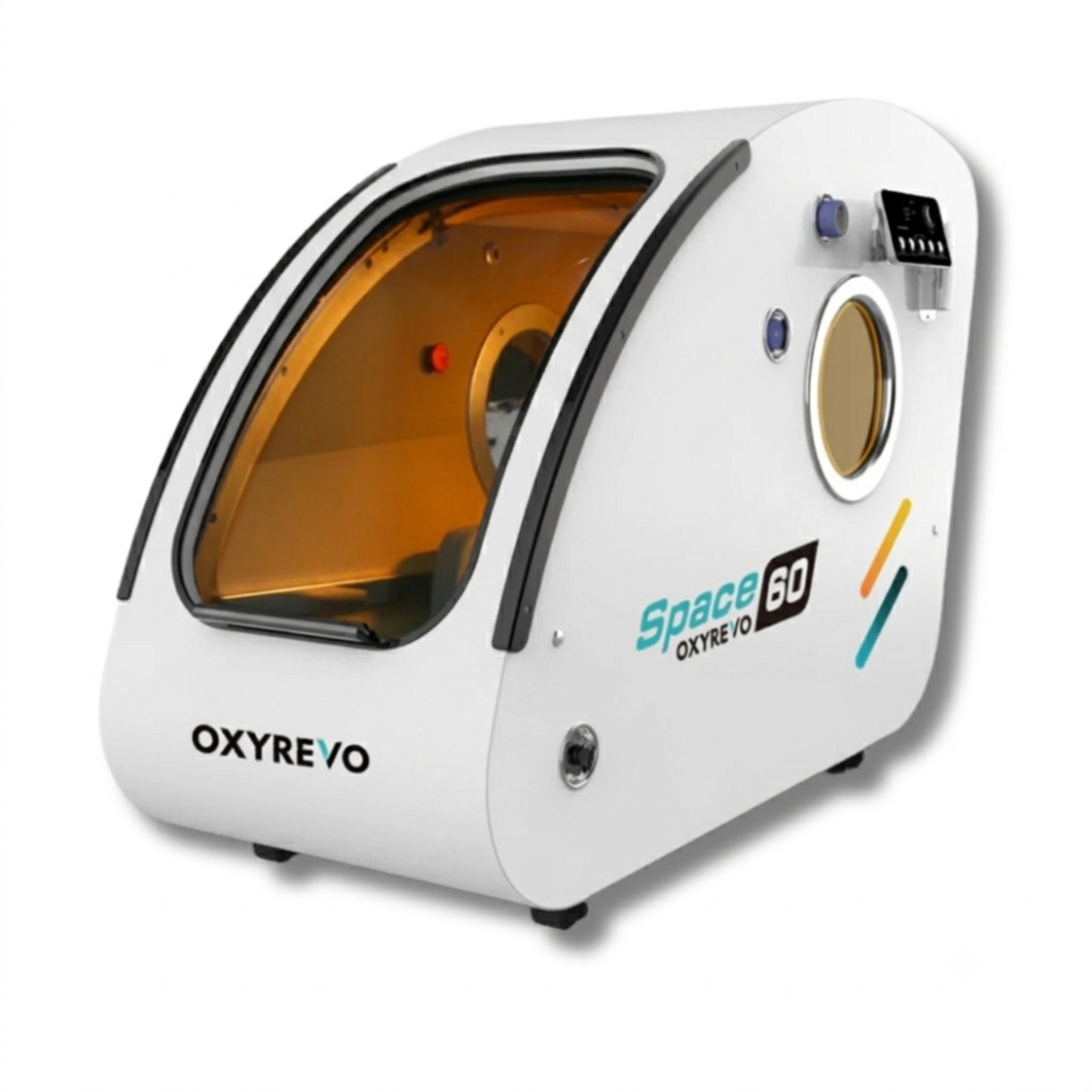

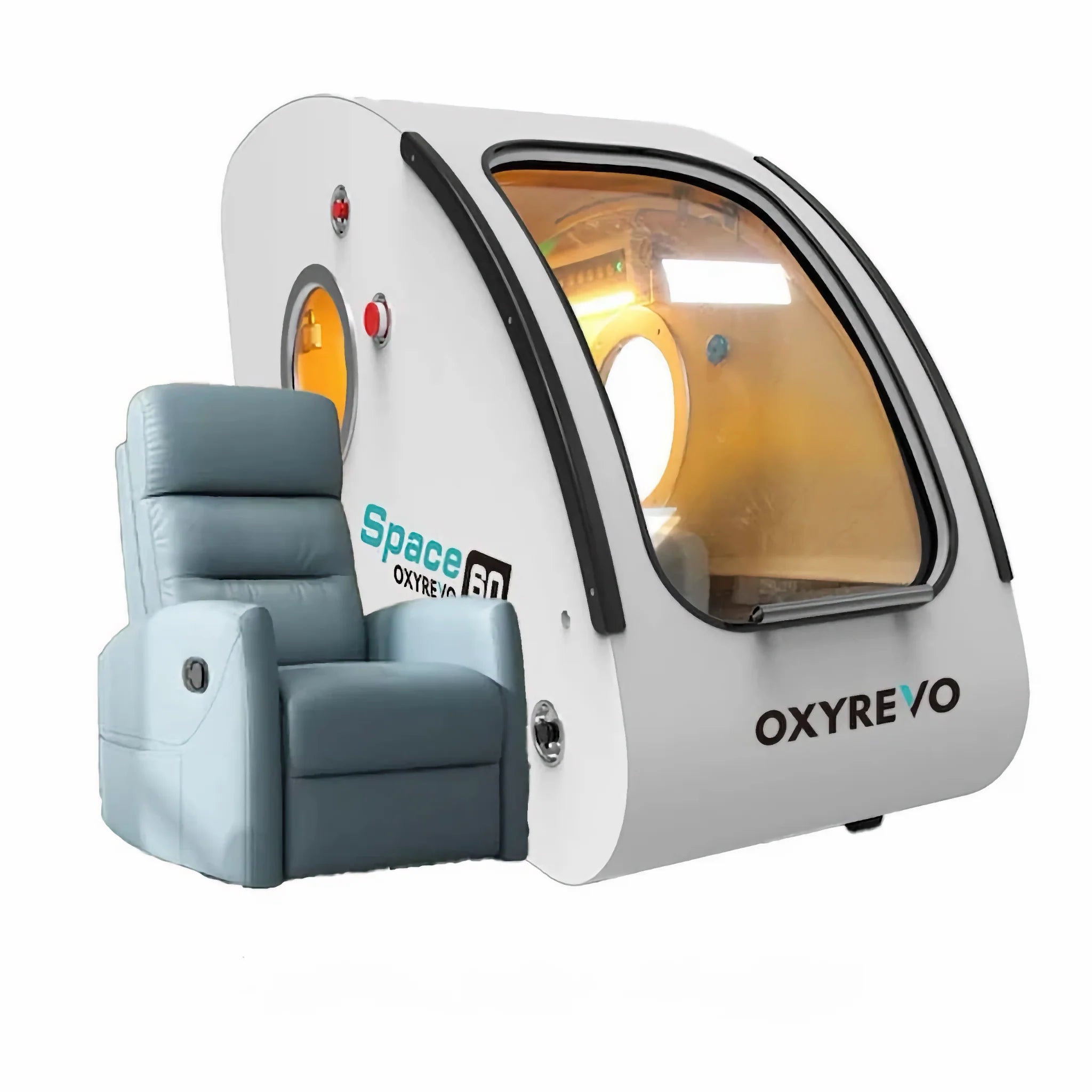

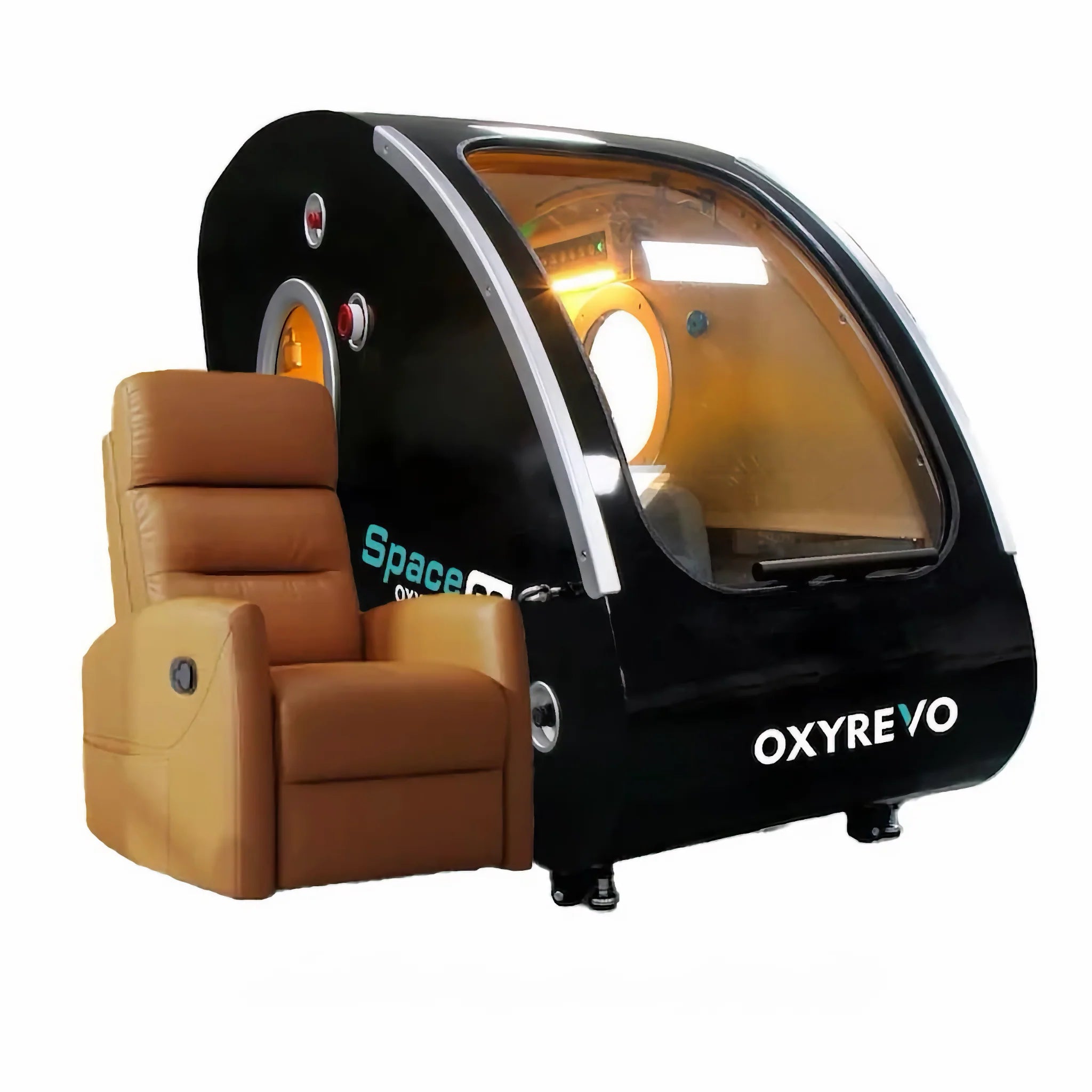

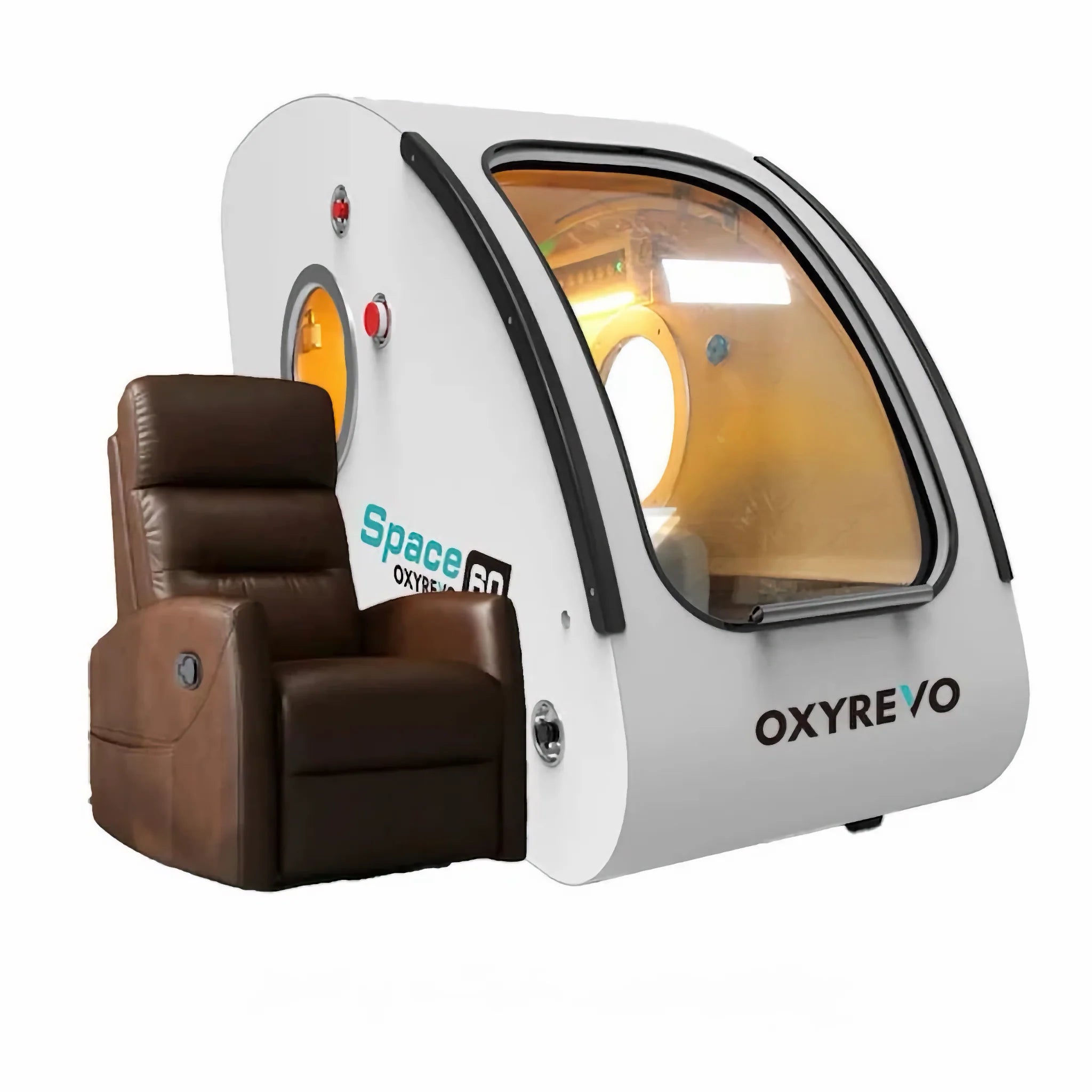

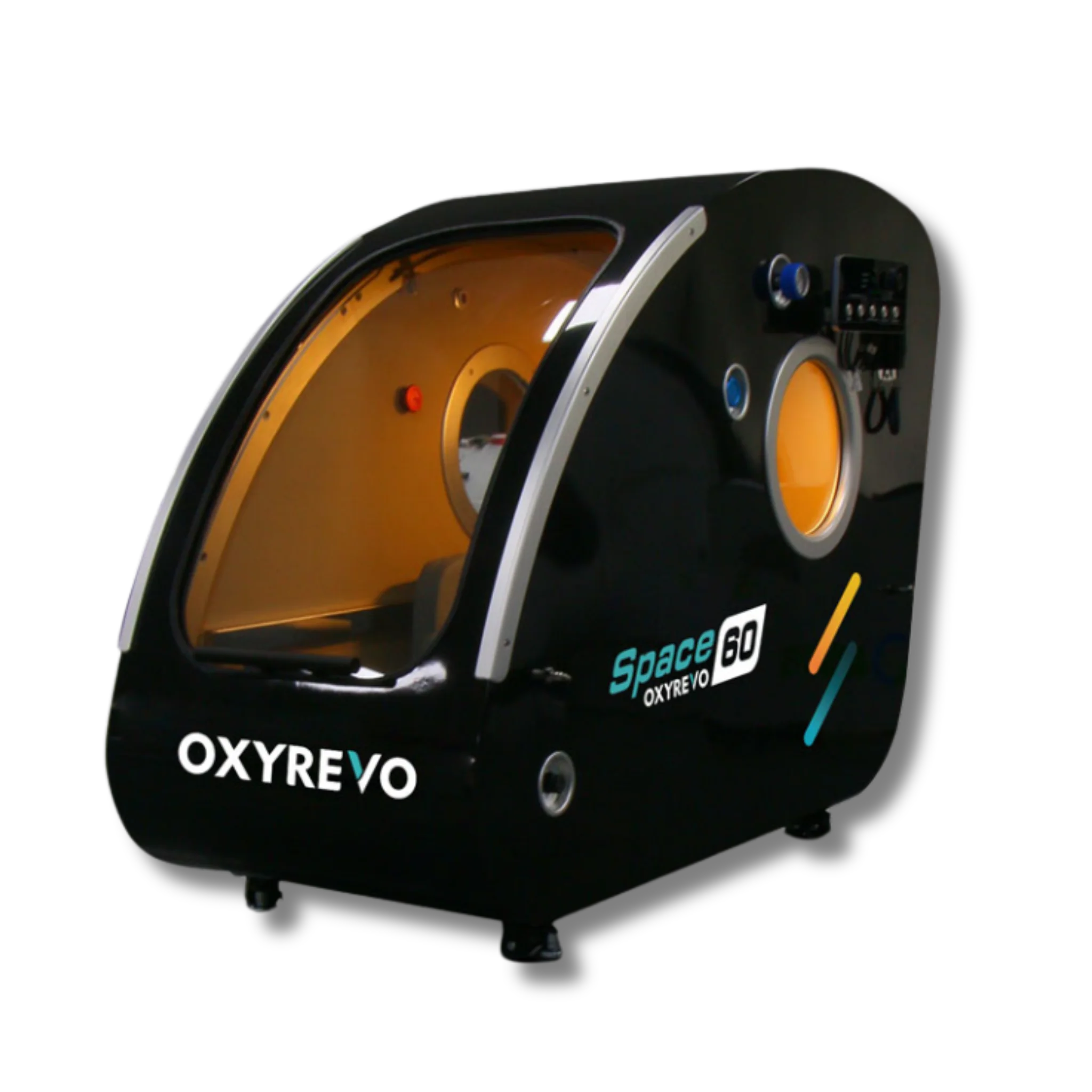

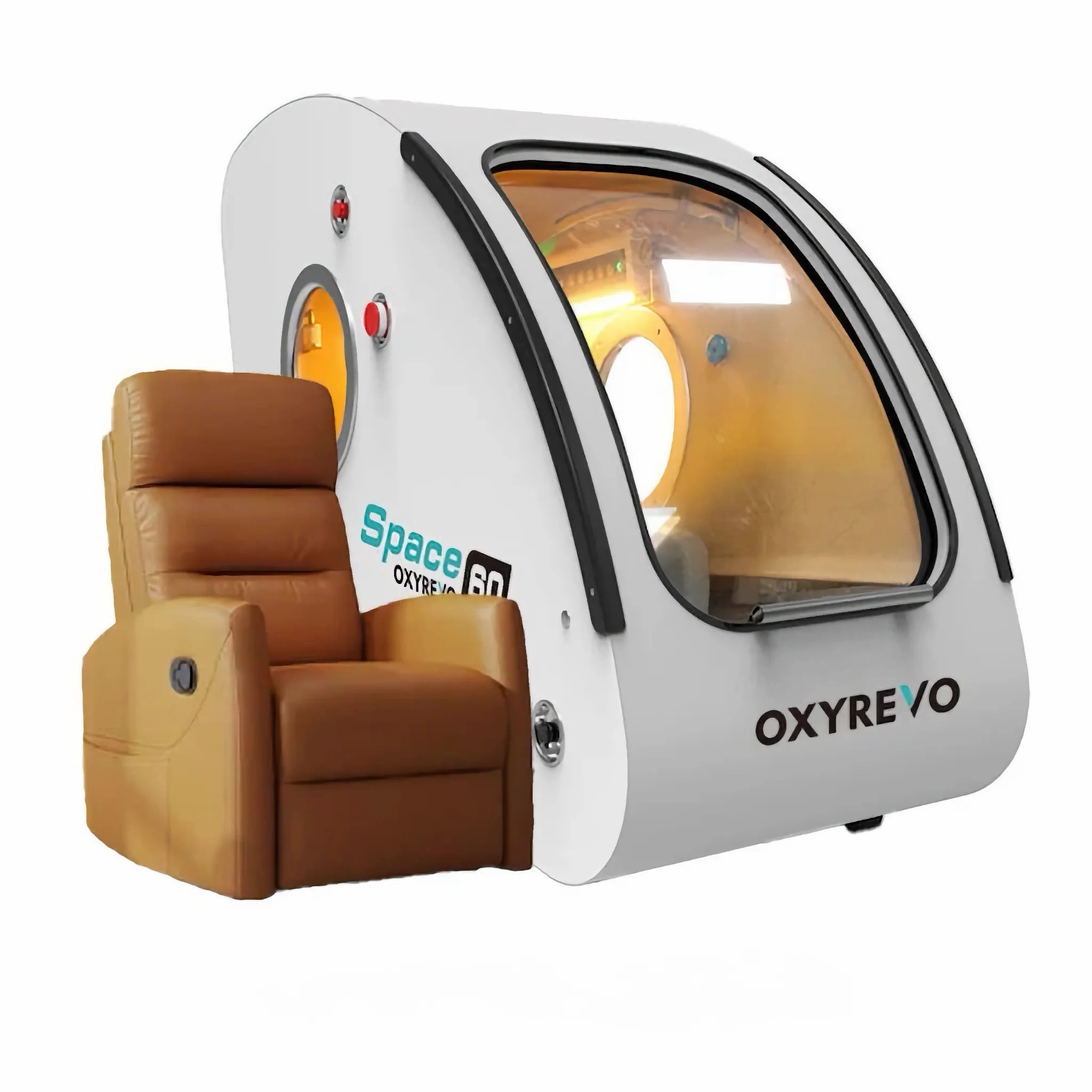

The Space60 is a hard-shell sitting chamber built in two pressure specifications: a 1.5 ATA build adjustable from 1.2, and a 2.0 ATA build adjustable from 1.4 in thicker materials throughout. Both come in two widths. The Standard (34.25 in.) has the most shoulder room, and the Mini (29.5 in.) passes a standard residential doorway as built. A premium folding recliner comes in six finishes (with an electric power chair or massage chair available in its place), and the stainless steel body has brushed aluminium trim and Bayer Germany windows.
Best for: Clinics and premium home users who want a seated 1.5 or 2.0 ATA chamber with a premium recliner included.
What a session looks like

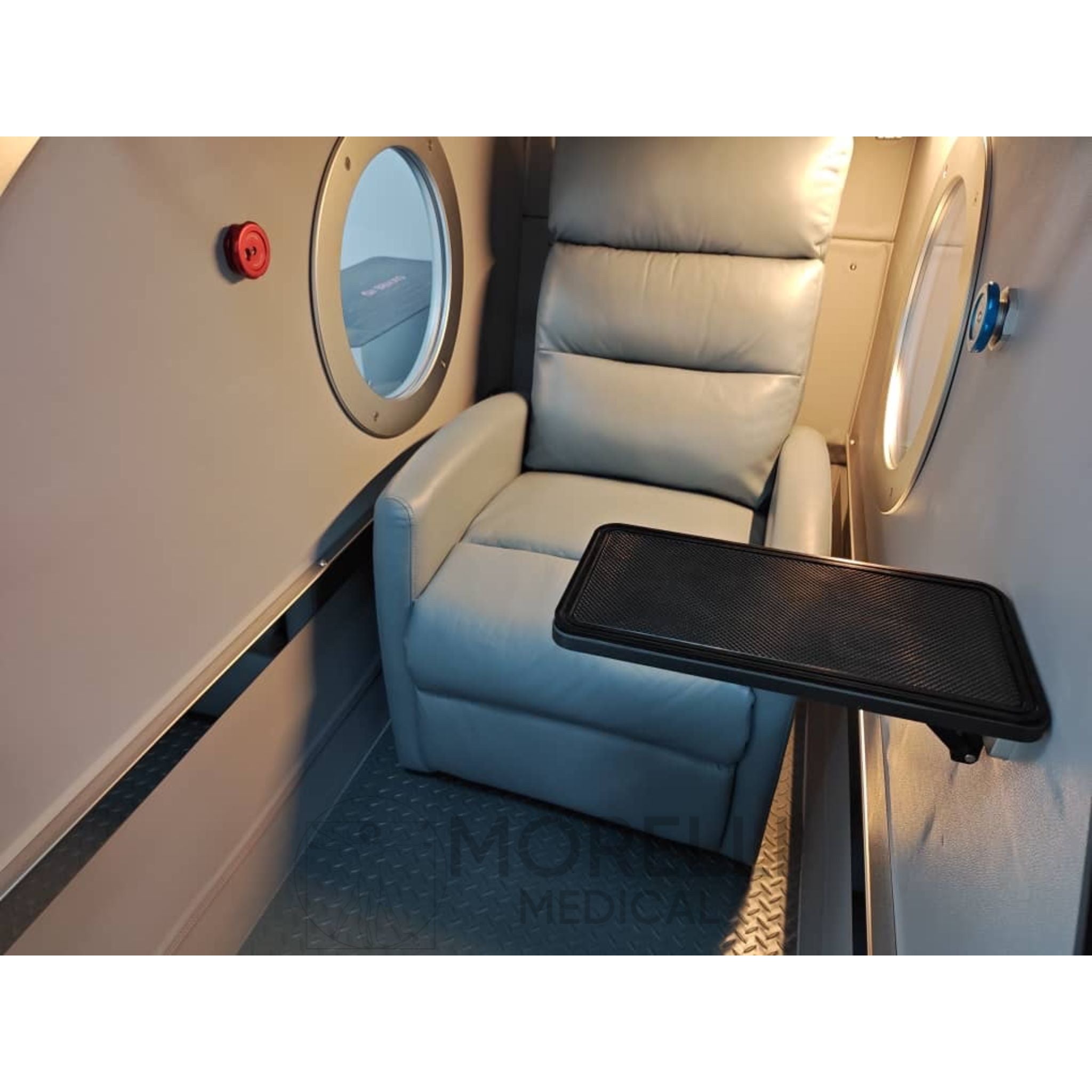

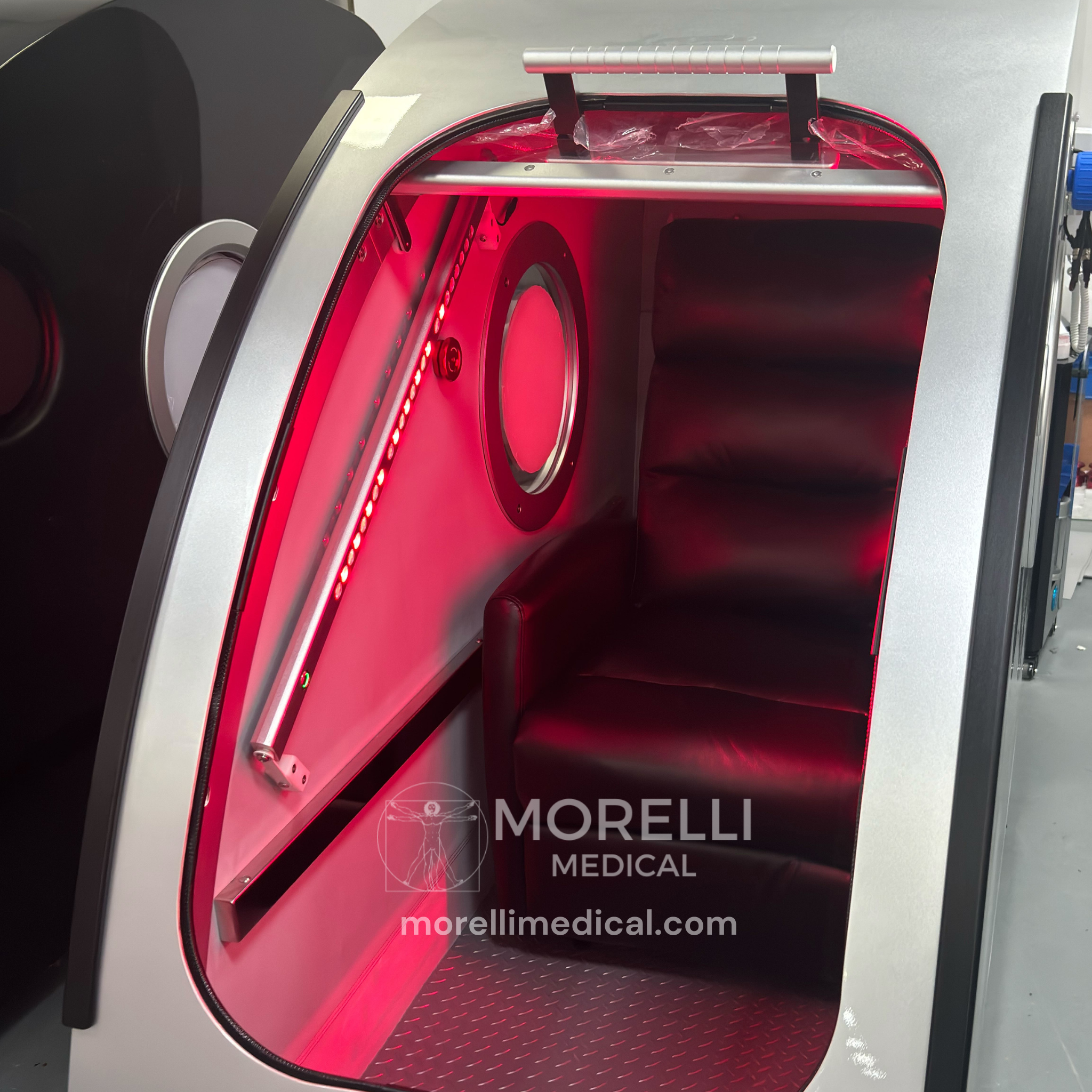

Step in through the door and settle into the recliner; the door seals behind you. From the control panel you set the working pressure, oxygen is delivered through a mask or headset, and the chamber pressurizes, holds steady for the session and is gradually decompressed at the end. Communication, pressure gauges and emergency valves are available throughout, so both the user and an assistant can keep an eye on the session.
Space, power and setup
Hard-shell chambers are heavy and typically arrive crated or on a pallet. Before you order, measure the delivery route and doorways, confirm the floor can carry the weight, and plan a dedicated electrical circuit for the compressor and concentrator. Professional installation is recommended, and our team can help you plan it. At a glance: working pressure 1.5 ATA build (adjustable 1.2–1.5 ATA) or 2.0 ATA build; length 79″ (200 cm); width 34.25″ (87 cm) standard or 29.5″ (75 cm) Mini; height 60″ (153 cm). The Mini passes a standard 30″ doorway as built; confirm the standard model against your route.
Choosing the right model
If you would rather lie flat, the Quest series offers 1.5–2.0 ATA in 30-, 34- and 36-inch widths.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- 1.5 ATA (1.2–1.5) or 2.0 ATA (1.4–2.0) builds; pressure set on a switch valve
- 79″ long × 60″ tall; Standard 34.25″ wide or Mini 29.5″ wide

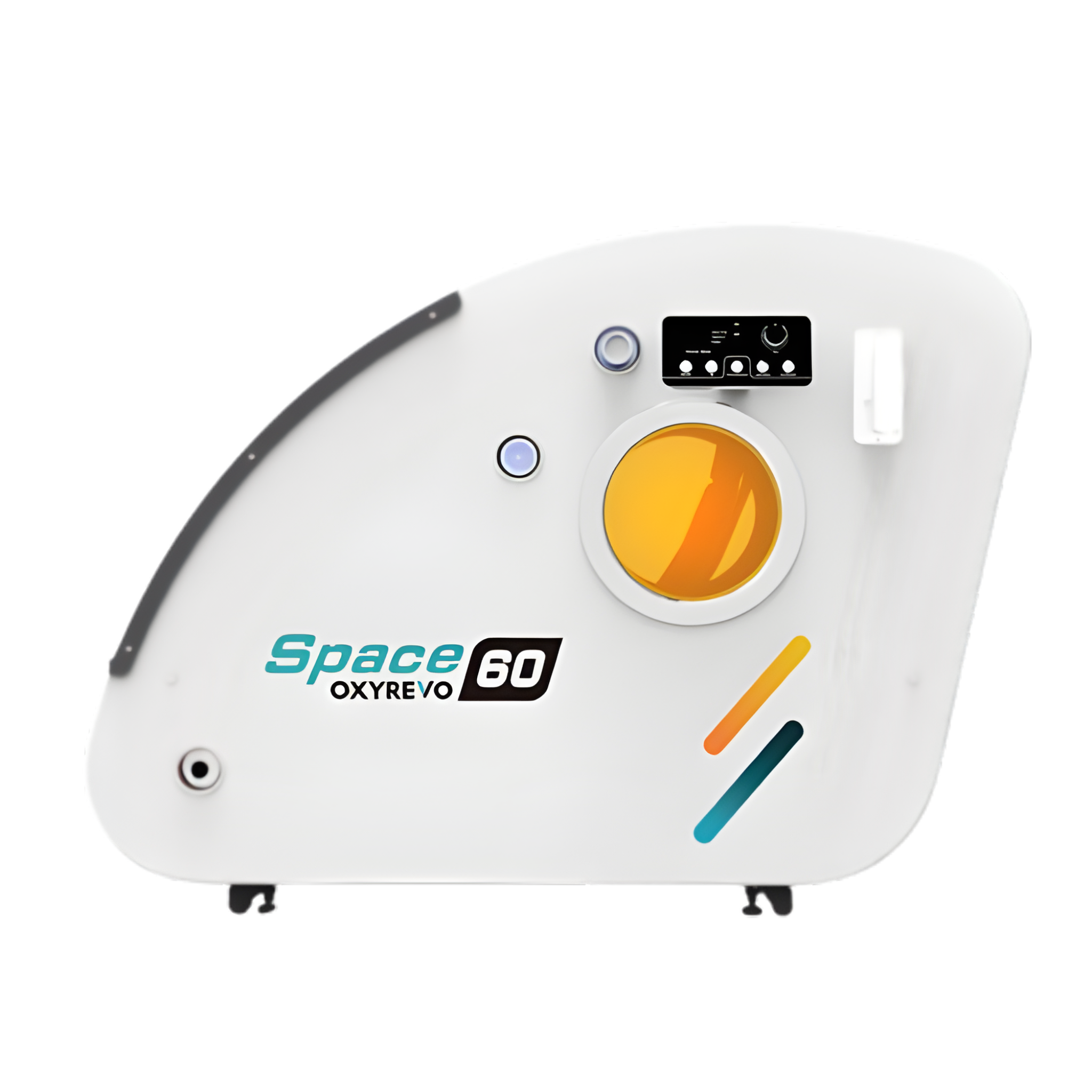

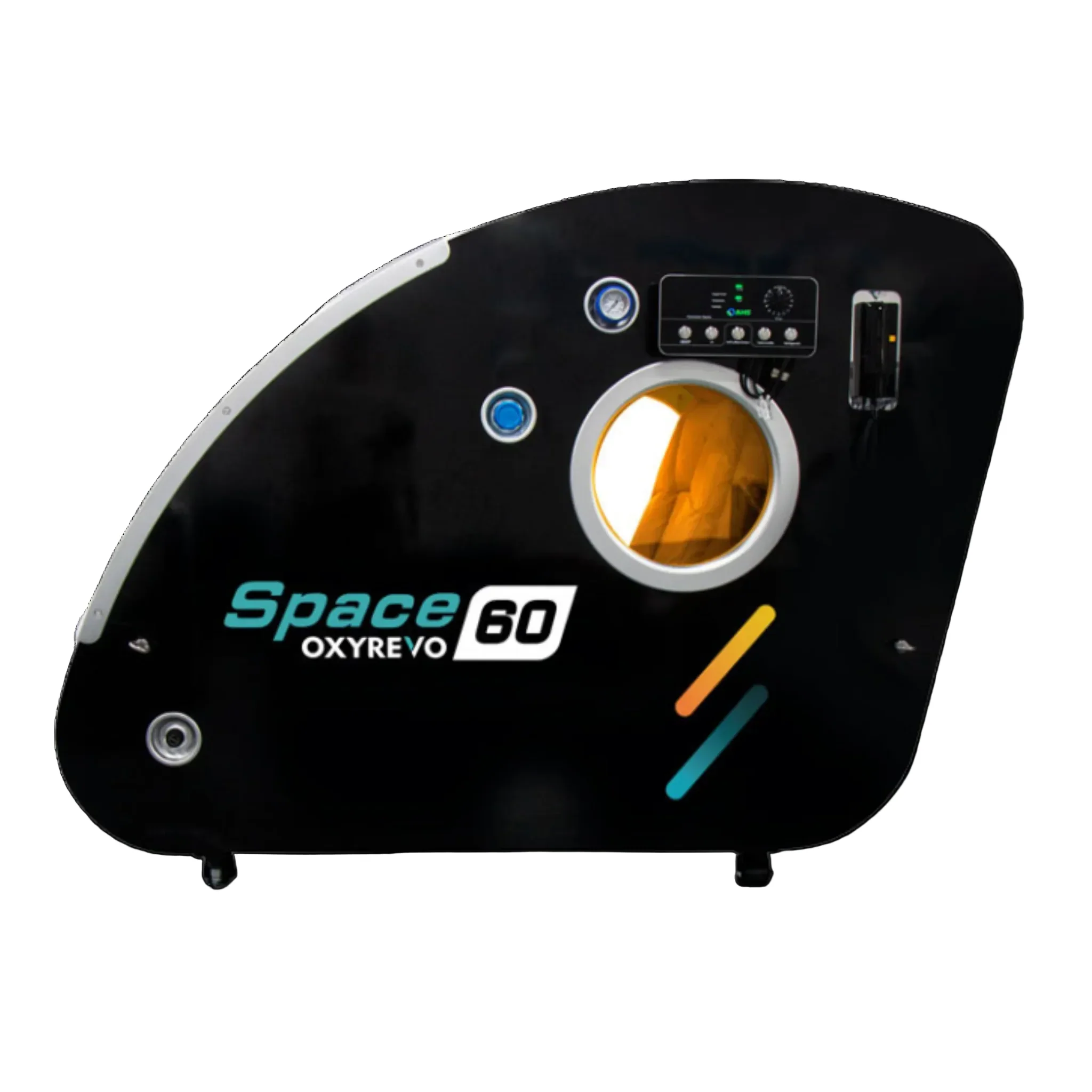

- Dual interior and exterior control panels and a built-in phone system
- Four lockable wheels; 1,984 lbs
| Working Pressure | 1.5 ATA build, adjustable 1.2–1.5 ATA | 2.0 ATA build, adjustable 1.4–2.0 ATA |
|---|---|
| Chamber Weight | 1,984 lbs (900 kg) |
| Length | 79″ (200 cm) |
| Width | Standard 34.25″ (87 cm) | Mini 29.5″ (75 cm) |
| Height | 60″ (153 cm) |
| Doorway Fit | Mini passes a standard 30″ doorway as built. Standard passes a 34.25″ doorway with the outside panels removed. |
| Occupant Fit | Comfortable for most users up to 6′5″ and 300 lbs |
| Chamber Material | Stainless steel, three thicknesses, aluminium reinforcing ring |
| Windows Material | Polycarbonate (Bayer Germany), double-layered |
| Windows | 2 transparent windows plus transparent front door |
| Oxygen Purity | 90–97% |

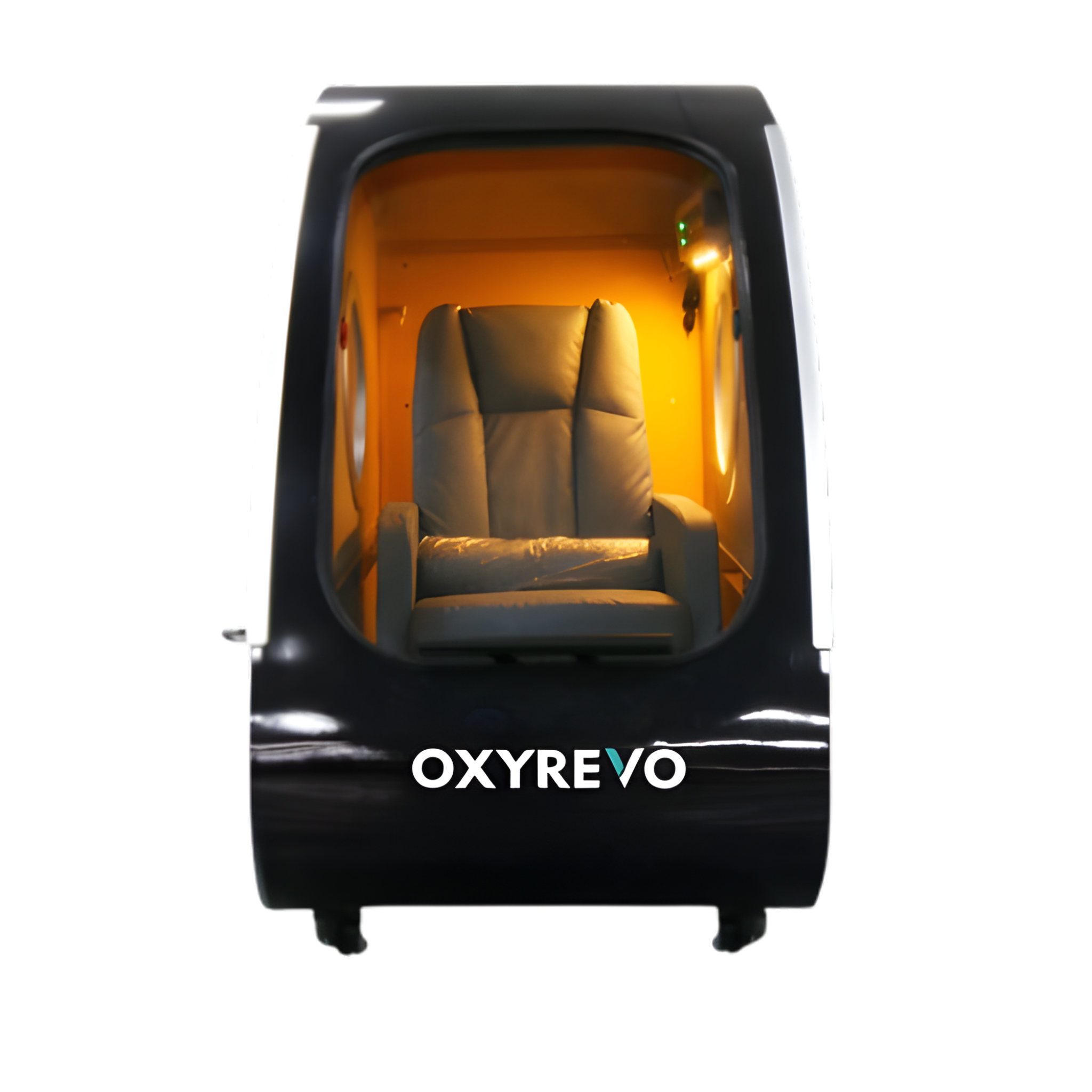

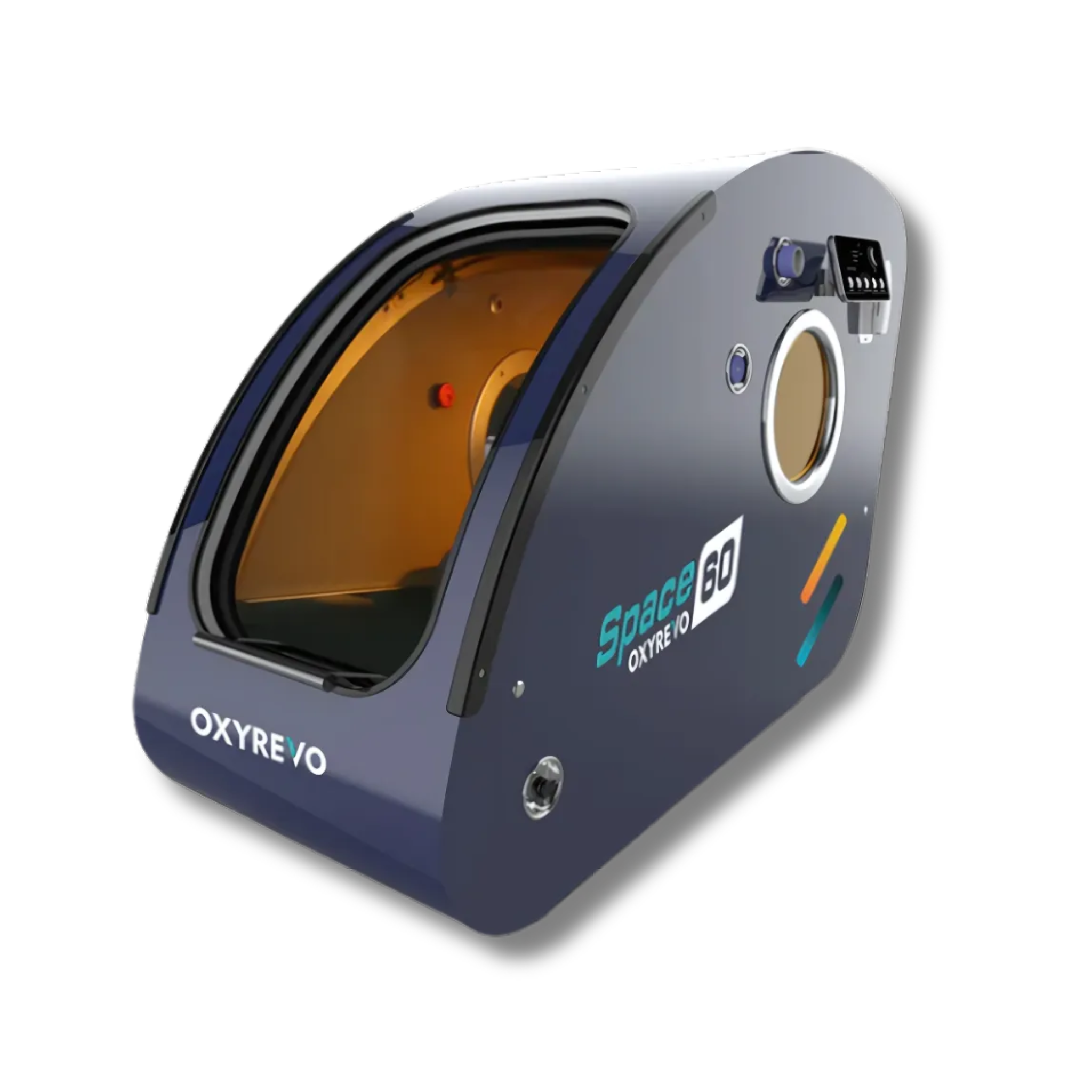

| Chamber Color | White, Black, Blue, Silver — OEM available |
| Mobility | 4 lockable solid wheels |
| Certification | CE (machinery, non-medical), ISO 13485 |

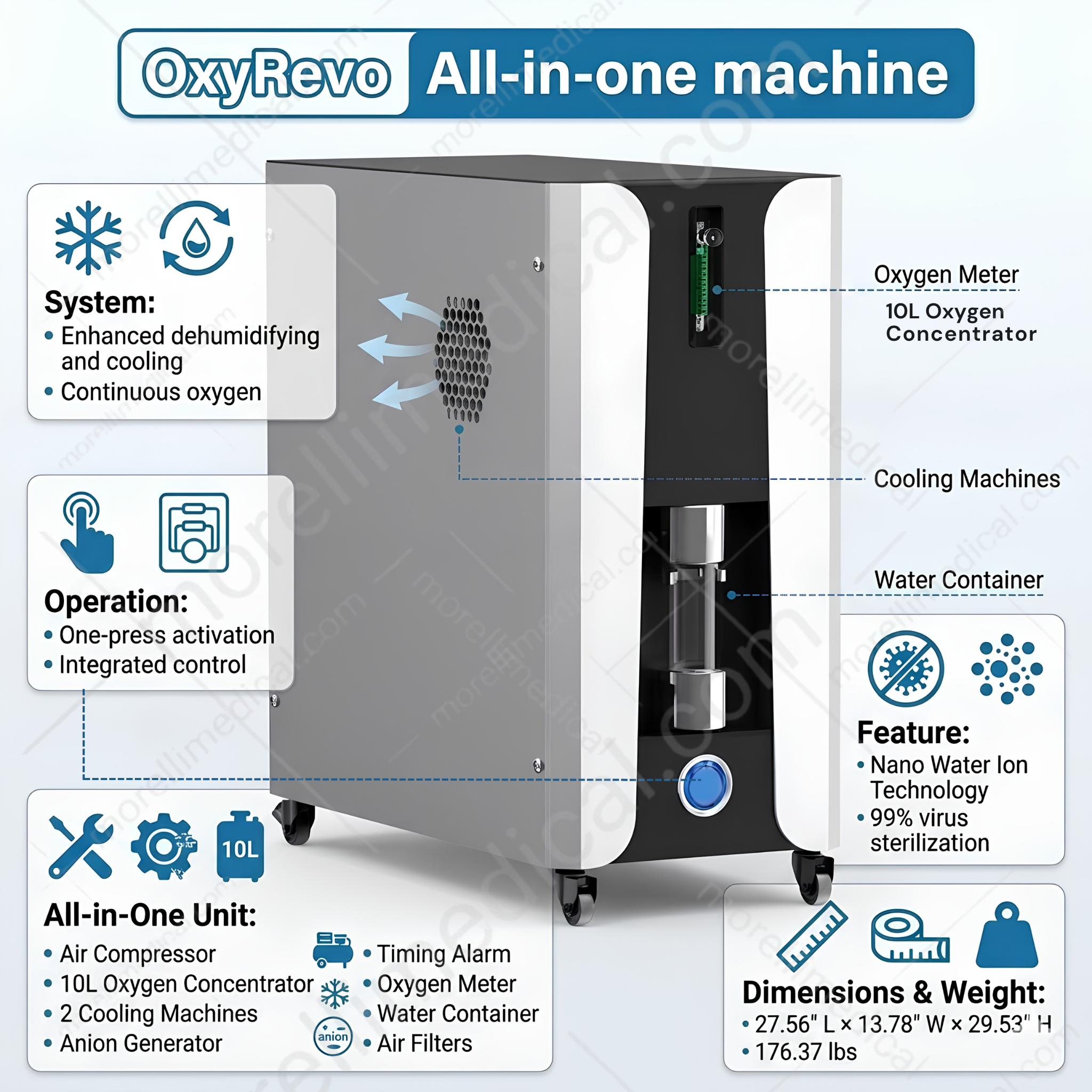

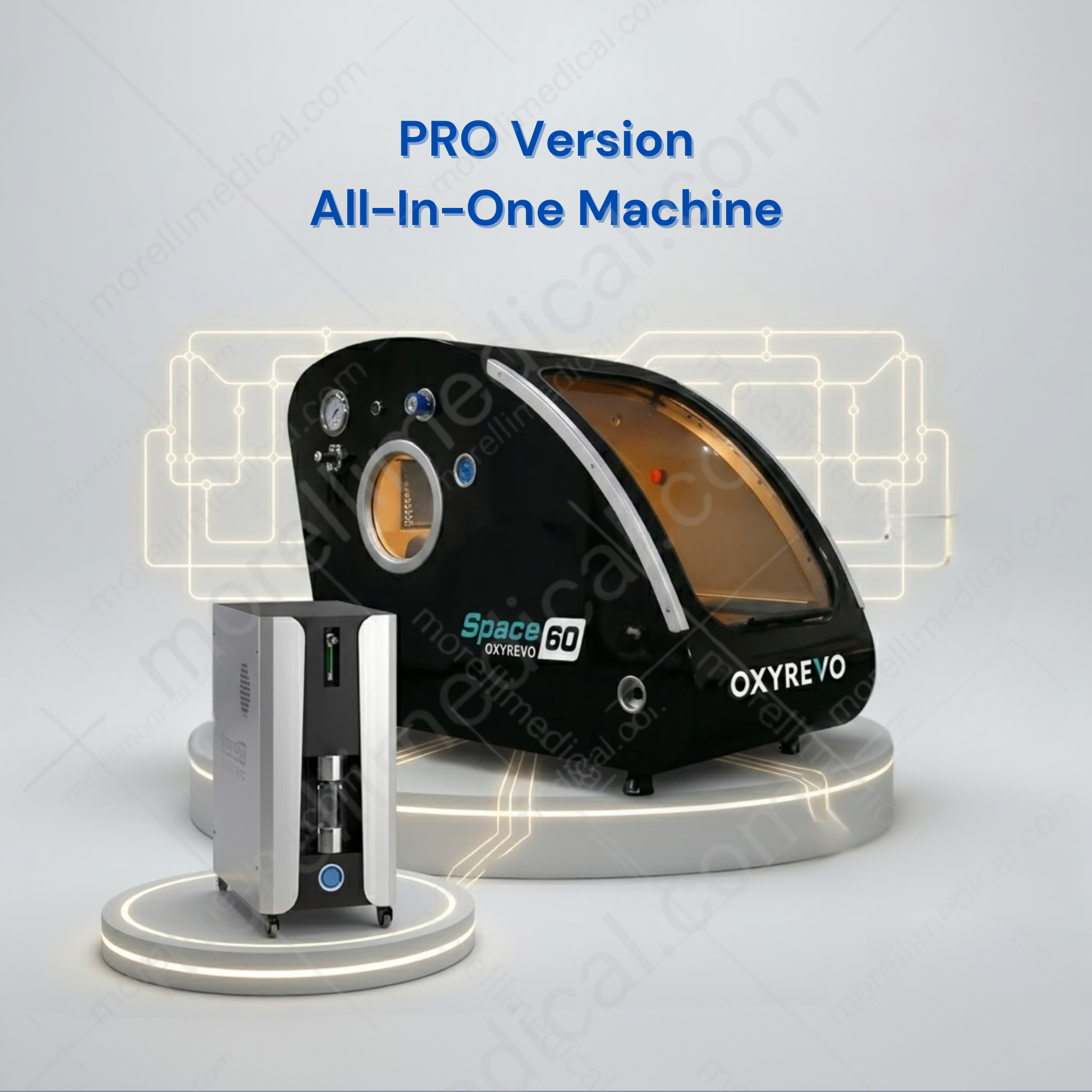

| All-in-One Machine Unit – Components | Air Compressor (1), Oxygen Concentrator 10L, Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| All-in-One Machine Unit – Dimensions | 27.56″ L × 13.78″ W × 29.53″ H |
| All-in-One Machine Unit – Weight | 176.5 lbs (80 kg) |
| All-in-One Machine Unit – Nano Water Ion Technology | Pure air with anti-virus disinfection |
| All-in-One Machine Unit – Virus Sterilization Rate | 99% |
| All-in-One Machine Unit – Filter Servicing | compressor filters replaced every 6–12 months depending on use |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (varies by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gallons) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temperature Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gallons/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | approx. 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |
| Rated Service Life – Chamber capsule | 10,000 hours |
| Rated Service Life – Air compressor | 10,000 hours |
| Rated Service Life – Cooling unit | 10,000 hours |
| Rated Service Life – Oxygen concentrator | 5,000 hours |
- Chamber
- Internal/external pressure gauges
- Pressure deflate valves
- Pressure relief valves
- Adjustable pressure switch

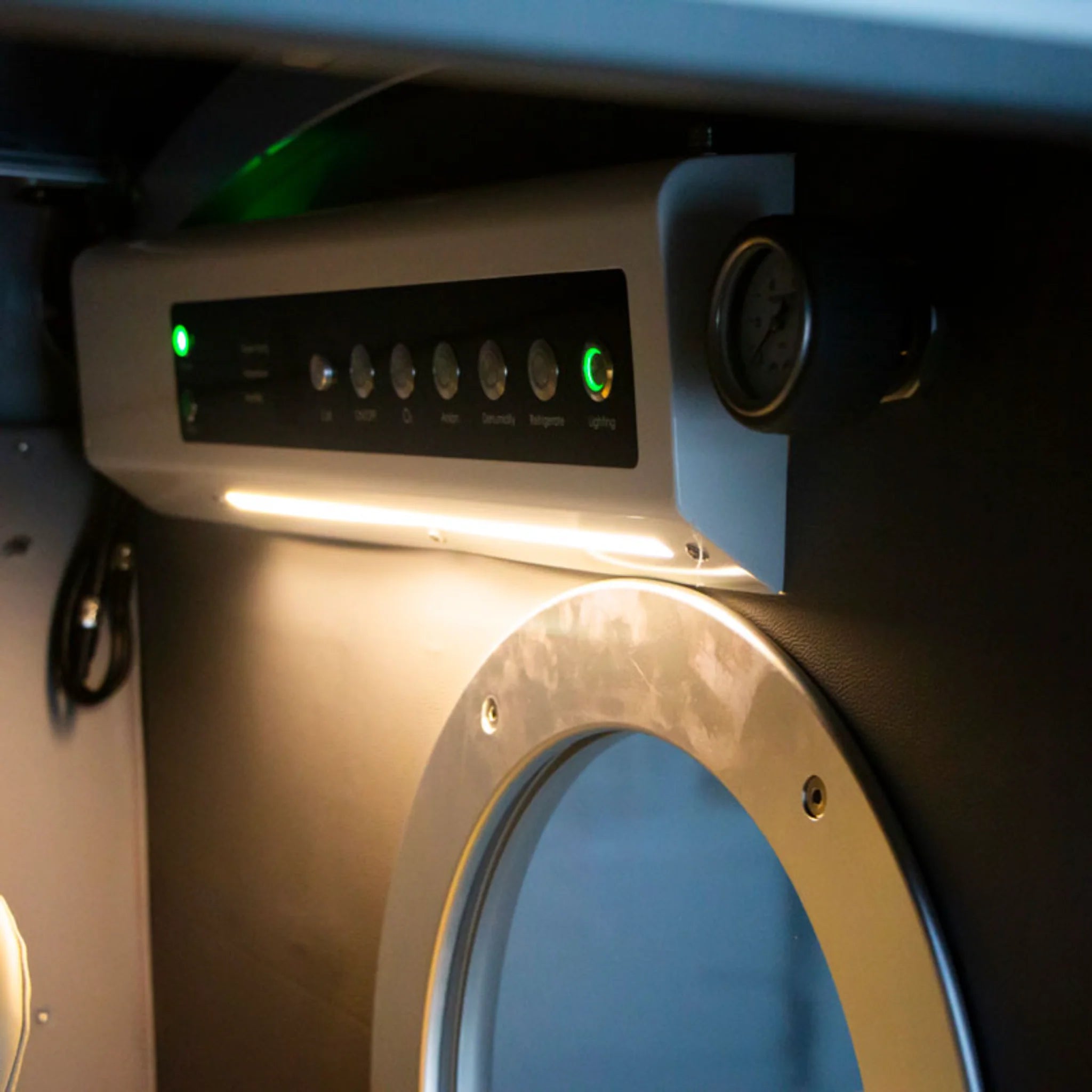

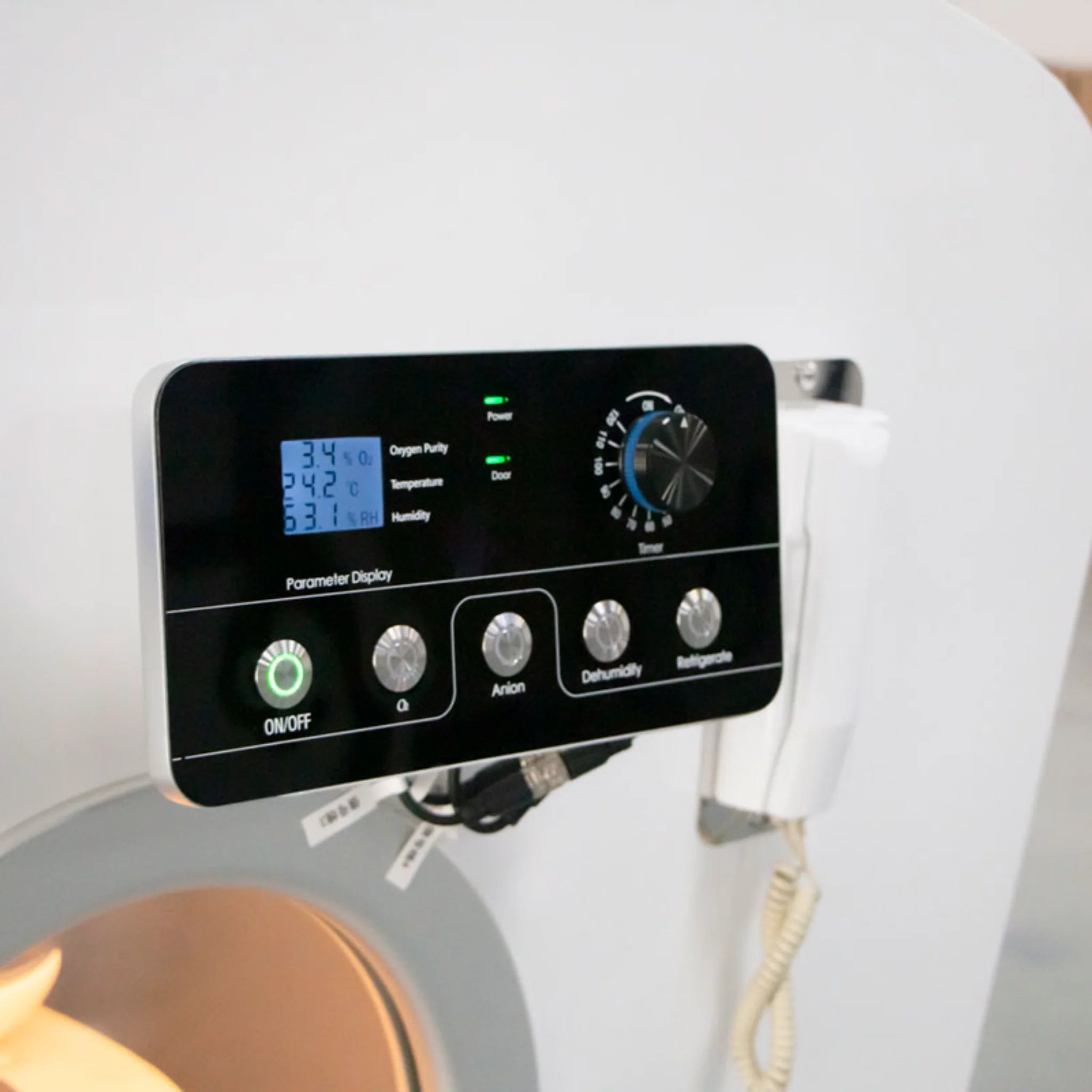

- Internal and external control panels
- Internal and external display screens
- Phone communication system
- LED reading light
- Four lockable wheels
- Operating Unit Machine
- Oil-free air compressor
- 10L oxygen concentrator
- Two cooling machines
- Anion air purifier
- Air sterilizer/anti-virus system
- Air filter
- Humidity water container
- Premium folding recliner chair — or your chosen chair upgrade in its place
- Oxygen mask
- Spare filters
- Fuses
- Air/oxygen tubes
- Power cable
