Delta Commercial Steam Generator Boiler Package with Control & Steamhead

9 kW commercial steam generator package with control and steam head

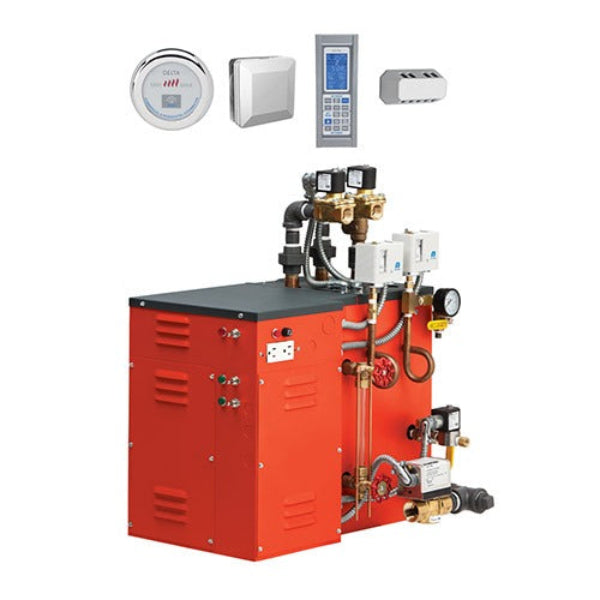

The Delta Commercial Steam Generator Boiler Package (HC Series, 9 kW, 208 V single phase) is built for gyms, spas, hotels and other high-traffic steam rooms, and is listed for continuous 24/7 operation. The package includes the generator, a digital command center for programming, a user bypass control, a room sensor and a chrome transitional steam head with 360-degree steam dispersion.

Best for: Commercial and multi-user facilities that need a full steam package with programmable controls.

Specifications at a glance

• Power: 9 kW (9,000 W), 208 V, single phase, 60 Hz
• Breaker capacity: 60 A
• Max shower volume (Delta rating): 400 cu ft
• Generator size: 26 in high × 19 in deep
• Overall height (generator, control and head): 39-7/8 in
• Control unit: 10-11/16 in high × 3-1/8 in deep
• Steam head: 3-3/16 in × 3-3/16 in × 1-1/4 in (3/4 in NPT, silicone cover)
• Cables: 50 ft cables ship standard; programming up to 100 ft away
• Certification and warranty: UL listed; ASME code compliant; 1-year commercial warranty

Space, power and setup

Delta rates this package for a maximum shower volume of 400 cu ft, so measure the steam room (length × width × height) and confirm sizing with us. It needs a 208 V single-phase supply with a 60 A breaker; commercial installations should be specified by your licensed electrician and plumber and follow local codes and Delta's installation sheet. The generator stands 26 in high and 19 in deep, so plan a service-accessible equipment location. One generator can run two steam rooms when a second room package is installed.

Questions buyers ask

What is included in the package?

The generator with pre-assembled steam solenoid, a microprocessor boiler control with two relays prewired for an aromatherapy pump, a digital command center, a user bypass control, a room sensor and a chrome transitional steam head with silicone cover.

What electrical supply does it need?

208 V, single phase, 60 Hz, with a 60 A breaker capacity as listed by Delta.

How are settings programmed?

The digital command center sets temperature ranges, including an idle setback that can be programmed for each day of the week. The user bypass control lets users adjust within the programmed range.

What warranty applies?

Delta covers its commercial products with a one-year warranty.
