66 x 47 x 47 inches

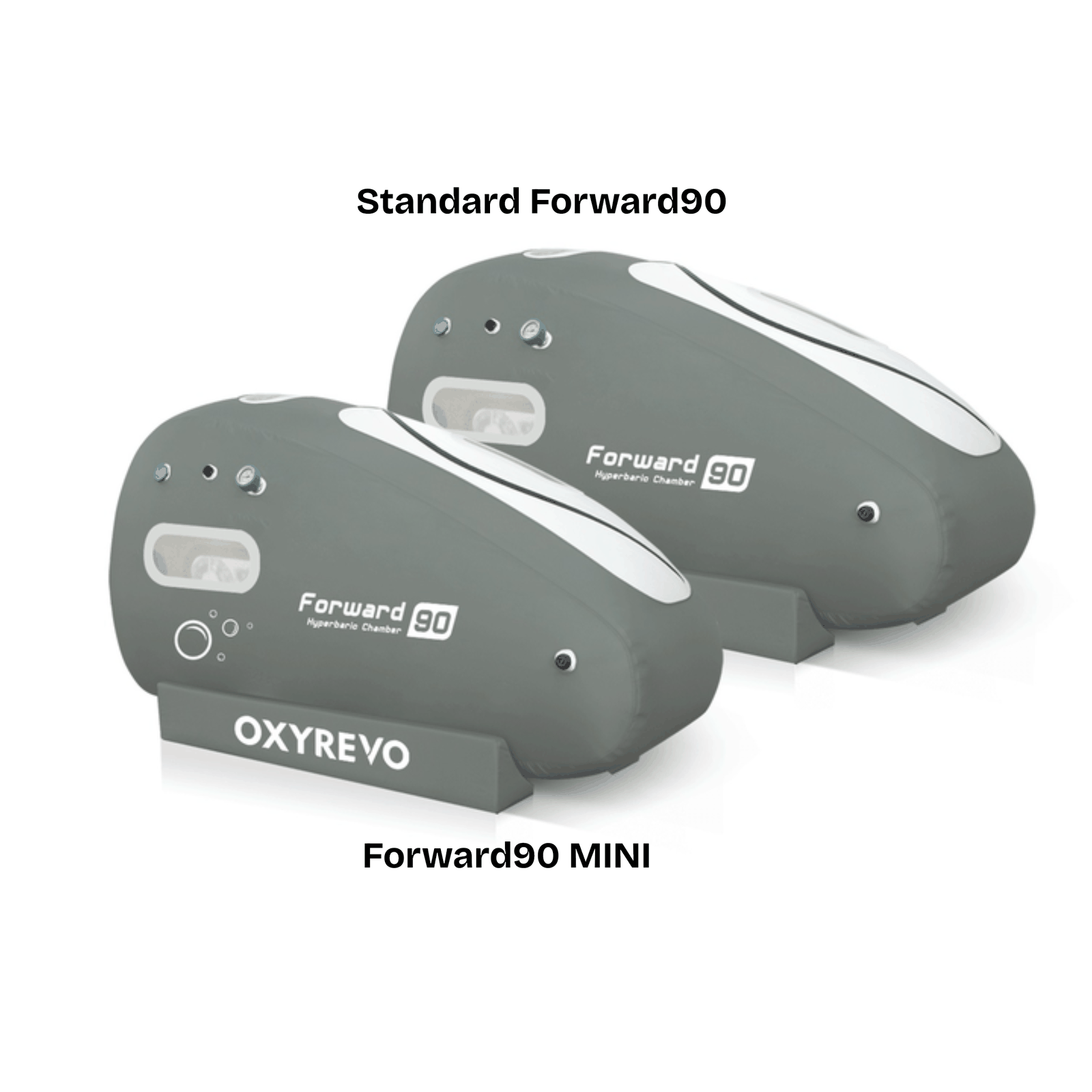

The cabin is shorter than the standard Forward90, so it suits spaces where a traditional lying chamber will not fit but a seated session will.
Compare products
Need help choosing? Call 1-762-214-2594 and our product specialists will walk you through it.
OxyRevo Forward90 MINI Portable Sitting Hyperbaric Chamber – 1.4 to 1.5 ATA
by OxyRevo
$9,499.00 - $10,499.00
Custom Logo (FREE)
PNG, JPG, SVG, PDF, AI or EPS, up to 10 MB. Our team reviews your artwork and confirms placement and availability before production.
Authorized OxyRevo dealer
Manufacturer warranty: 3 years residential, 2 years commercial
Authorized OxyRevo dealer
Manufacturer warranty: 3 years residential, 2 years commercial
- U.S.-based product specialists, available 9am to 9pm EST, 7 days a week
- 30-day returns on new, unused items (return policy)
- Price match guarantee on identical items from authorized retailers
- Free shipping within the continental U.S.
- Payment plans may be offered at checkout (financing)
- Free planning call: we check your space, power and delivery route before you order
Delivery time depends on the model and stock. Call us for your date.
Payment & Security
Payment methods
Shop with confidence - your transactions are SSL-encrypted and your payment details are securely transmitted.
We never store or have access to your credit card information.
Portable sitting soft hyperbaric chamber
OxyRevo Forward90 MINI: a seated 1.4 to 1.5 ATA chamber for smaller rooms
The Forward90 MINI packs the Forward90 into a smaller footprint, 66 x 47 x 47 inches, for homes, clinics and studios where a lying chamber will not fit. You sit in an adjustable folding chair with a memory-foam seat cushion. It runs at 1.4 ATA or 1.5 ATA, depending on the version you choose.
- 1.4 or 1.5 ATAWorking pressure
- 66 x 47 x 47 inCabin size
- 30 lbsChamber weight
- 50 dB or lessSound level
The build
How the Forward90 MINI is built
An adjustable folding chair
The folding chair adjusts and includes a memory-foam seat cushion. The internal frame is lightweight, and four large multi-layered windows keep the cabin bright.
Pressure you can ease into
Choose 1.4 ATA (adjustable from 1.1) or 1.5 ATA (adjustable from 1.2). A one-press converter steps through the settings so you can start lower.
Dual zippers, double filtration
Dual YKK leak-proof zippers close the chamber, and double air filtration and non-toxic materials are listed by the manufacturer.
Key features
- Exit in about 30 secondsAn emergency valve lets you open the chamber and step out quickly.
- Gauges inside and outPressure gauges inside and outside, with automatic relief valves.
- Extra-quiet runningA sound level of 50 dB or less.
- Light enough to moveAbout 30 lbs (15 kg), with a lightweight internal frame.
- Cleaner cabin airDouble input and output filters on the Standard version.
- Continuous oxygenA 10 L/min concentrator makes oxygen continuously, 90 to 97% oxygen.
How it compares
OxyRevo soft chambers
You’re hereOxyRevo Forward90 MINI Portable Sitting Hyperbaric Chamber – 1.4 to 1.5 ATAA sitting chamber with a compact 66 in cabin for tighter rooms.- Seated
- 1.4 or 1.5 ATA
- 66 x 47 x 47 in
- 30 lbs
CompareOxyRevo Forward90 Portable Sitting Hyperbaric Chamber – 1.4 to 1.5 ATAA longer sitting chamber with a chair that reclines, in a 90 in cabin.- Sit or recline
- 1.4 or 1.5 ATA
- 90 x 47 x 47 in
- 30 lbs
CompareOxyRevo Heal40 Wheelchair-Accessible Hyperbaric Chamber – 1.4 ATAA wheelchair-accessible chamber with a ramp and an aluminum base.- Wheelchair accessible
- 1.4 ATA
- 67 x 62 x 75 in
- 95 lbs
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual and consult a physician before use. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Specifications are from the manufacturer's listing; confirm your exact configuration when you order.
A seated 1.4–1.5 ATA chamber for smaller rooms
The Forward90 MINI packs the Forward90's performance into a smaller footprint: 66 × 47 × 47 inches. It suits a seated position and homes, clinics and studios where a traditional lying chamber will not fit. It operates at 1.4 or 1.5 ATA with a 10 L/min concentrator (90–97% oxygen) and includes an adjustable folding chair with a memory-foam seat cushion.
Best for: Homes, clinics and studios where a traditional chamber will not fit but a seated session will.
What a session looks like
Sit down in the chair or recliner, zip the chamber closed and start the air compressor. The chamber inflates to your working pressure while oxygen is delivered through a mask or cannula, and the upright position makes it easy to read, catch up on email or watch something. When the timer ends, pressure is released gradually and you unzip and step out. Many owners schedule sessions of roughly 60 to 90 minutes; follow the manufacturer's manual for your own protocol.
Space, power and setup
Seated chambers need less floor space than lying models, but plan for ceiling clearance, room beside the chamber for the compressor, concentrator and any cooler, and a nearby grounded outlet. Keep the machines clear of flames, sparks and heat sources and follow the manufacturer's manual for placement. At a glance: working pressure 1.4 ATA / 1.5 ATA; weight 15 kg / 30 lbs; dimensions 66″ L × 47″ W × 47″ H.
Choosing the right model
For more room to recline or lie down, choose the standard Forward90.
Not sure which size, pressure or configuration fits your space? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST) or request a quote, and our product specialists will help you compare options and plan delivery and installation.
Questions buyers ask
Do I need to buy oxygen cylinders?
No. The included 10 L/min oxygen concentrator makes oxygen from room air continuously, so there is nothing to refill.
What upkeep does it need?
The manufacturer names the air compressor filters as the main wear item, to be changed every 6 to 12 months depending on how often you use the system. Spare filters are supplied.
Can I add extra cooling?
OxyRevo lists an optional water-chiller air conditioner (110V/220V, temperature setting range -10 to 20 °C) that it says works with all of its soft and hard chambers. Ask our team about availability.
A hyperbaric chamber is a pressurized, oxygen-enriched environment. Use only as directed in the manufacturer's manual, keep flames, sparks and heat sources away, and consult a physician before use, especially if you have a medical condition or are pregnant. Not intended to diagnose, treat, cure, or prevent any disease or medical condition. Results vary. Refer to the manufacturer's labeling for regulatory status and intended use.
- Seated chamber, 66 × 47 × 47 in, 30 lbs (15 kg), for smaller rooms
- Pressure 1.4 ATA (adjustable 1.1–1.4) or 1.5 ATA (adjustable 1.2–1.5)
- Four large multi-layered windows
- Adjustable folding chair with memory-foam seat cushion
- 10 L/min oxygen concentrator (90–97% oxygen)
- Dual YKK leak-proof zippers, double air filtration, non-toxic materials and a lightweight internal frame
- Sound level 50 dB or less
- Standard (3 separate machines) or Pro (all-in-one unit) versions in four colors
| Pressure | 1.4 ATA / 1.5 ATA |
|---|---|
| Weight | 15 kg / 30 lbs |
| Dimensions | 66″ L × 47″ W × 47″ H |
| Windows | 4 large, multi-layered windows |
| Sound level | ≤50 dB |
| Folding Chair | Adjustable |
| Cover color | Grey, OEM available |
| Pressure options | 1.4 ATA (adjustable 1.1–1.4) or 1.5 ATA (adjustable 1.2–1.5) |
| Oxygen concentrator | 10 L/min, 90–97% oxygen (included) |
| Seat | Adjustable folding chair with memory-foam seat cushion |
| Operating versions | Standard (3 separate machines) or Pro (all-in-one machine unit) |
| Available colors | Gray, Black, White, Blue |
| Standard Version – Air Compressor | Model AE01, 110V/220V, 19.29″ L × 11.42″ W × 15.75″ H, 550W, 72 L/min, 35 lbs |
| Standard Version – Air Cooler | Model ZLA01, 110V/220V, 11.81″ L × 7.48″ W × 13.39″ H, 210W, 120 L/min, 13 lbs |
| Standard Version – Oxygen Concentrator | Model HG10, 110V/220V, 18.11″ L × 17.32″ W × 30.71″ H, 500W, 10 L/min, 66 lbs |
| Standard Version – Operation | Separate units, individual setup, manual control |
| Standard Version – Efficiency | Dehumidifying and cooling, continuous oxygen, double input/output filters |
| Standard Version – Notes | Lower cost, lightweight, portable, economical transport |
| Pro Version – All-in-One Unit | Air Compressor, 10L Oxygen Concentrator, 2 Cooling Machines, Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
| Pro Version – Dimensions & Weight | 27.56″ L × 13.78″ W × 29.53″ H, 176.37 lbs |
| Pro Version – Operation | One-press activation, integrated control |
| Pro Version – System | Enhanced dehumidifying and cooling, continuous oxygen |
| Pro Version – Feature | Nano Water Ion Technology |
| Air cooler / dehumidifier – Input Power | AC220V / 50Hz |
| Air cooler / dehumidifier – Total Power | 230W – 900W (by model) |
| Air cooler / dehumidifier – Tank Capacity | 4L – 5L (≈ 1.0 – 1.3 gal) |
| Air cooler / dehumidifier – Cooling Capacity | 1,875 BTU – 6,480 BTU |
| Air cooler / dehumidifier – Temp Control Range | 14°F to 68°F (–10°C to 20°C) |
| Air cooler / dehumidifier – Accuracy | ±1.8°F (±1°C) |
| Air cooler / dehumidifier – Display Resolution | 0.1°F (0.1°C) |
| Air cooler / dehumidifier – Sensor Type | PT100 |
| Air cooler / dehumidifier – Flow Rate | 2.6 – 4.0 gal/min (10 – 15 L/min) |
| Air cooler / dehumidifier – Lift Height | 10 – 23 ft (3 – 7 m) |
| Air cooler / dehumidifier – Cooling Tank Size | ~7″ × 6″ (Φ18×16 cm) up to 8.7″ × 7″ (Φ22×18 cm) |
| Air cooler / dehumidifier – Net Weight | 66 – 121 lbs (30 – 55 kg) |
| Air cooler / dehumidifier – Dimensions | 17.72″ L × 11.81″ W × 21.65″ H (45 × 30 × 55 cm) |
| Power | Not published by manufacturer; ask us |
| Compressor | Included; separate unit (Standard) or inside the all-in-one unit (Pro) |
- ## The chamber
- Soft portable sitting hyperbaric chamber x 1, 66 in × 47 in × 47 in (compact size), TPU shell
- Chamber build matches the pressure option you select (1.4 ATA or 1.5 ATA)
- Chamber cover in the color you select (Gray, Black, White or Blue)
- Adjustable folding chair with memory-foam seat cushion
- Lightweight internal frame
- 4 multi-layered viewing windows
- Dual YKK zippers and double air filtration
- One-press pressure converter (1.1-1.4 ATA on the 1.4 build, 1.2-1.5 ATA on the 1.5 build)
- ## Machines & power
- Standard version: Oil-free air compressor x 1 (separate unit)
- Standard version: 10 L/min oxygen concentrator x 1 (separate unit, 90-97% oxygen)
- Standard version: Air dehumidifier / cooling machine x 1 (separate unit). 3 separate machines in total
- Pro version: All-in-one machine unit x 1 that replaces the 3 separate machines
- Pro version: Inside the unit: oil-free air compressor x 1, 10 L/min oxygen concentrator x 1 (90-97% oxygen), air dehumidifier / cooling machines x 2
- Pro version: Also inside the unit: timer and alarm, anion generator and air purifier system
- ## Comfort & accessories
- Oxygen mask
- Air and oxygen tubes
- Power cable and spare fuses
- Spare activated carbon cotton filters
- ## Safety & controls
- Internal and external pressure gauges
- Pressure deflate valves and pressure relief valves (automatic, extra-quiet)
- Emergency valve (exit in about 30 seconds)
- Optional: Water-chiller air conditioner unit (110V/220V) for cooling (sold separately)
Shipping & Delivery: Free shipping in the continental U.S. (not Alaska, Hawaii, Puerto Rico or territories). Large equipment ships by freight, and delivery method and timing vary by product and location, so we confirm lead time and delivery details at quote. Questions about delivery or setup? Call 1-762-214-2594 (Mon–Sun 9am–9pm EST).
Manufacturer warranty: 3 years residential, 2 years commercial
Product manuals, installation guides, and spec sheets for this item are available on request. Contact our product specialists and we'll send you the documentation.
21 items included
Here is what ships with this model. Everything in the checklist is included in the price; anything marked Optional is not included unless you add it.
The chamber
- Soft portable sitting hyperbaric chamber x 1, 66 in × 47 in × 47 in (compact size), TPU shell
- Chamber build matches the pressure option you select (1.4 ATA or 1.5 ATA)
- Chamber cover in the color you select (Gray, Black, White or Blue)
- Adjustable folding chair with memory-foam seat cushion
- Lightweight internal frame
- 4 multi-layered viewing windows
- Dual YKK zippers and double air filtration
- One-press pressure converter (1.1-1.4 ATA on the 1.4 build, 1.2-1.5 ATA on the 1.5 build)
Machines & power
- Standard versionOil-free air compressor x 1 (separate unit)
- Standard version10 L/min oxygen concentrator x 1 (separate unit, 90-97% oxygen)
- Standard versionAir dehumidifier / cooling machine x 1 (separate unit). 3 separate machines in total
- Pro versionAll-in-one machine unit x 1 that replaces the 3 separate machines
- Pro versionInside the unit: oil-free air compressor x 1, 10 L/min oxygen concentrator x 1 (90-97% oxygen), air dehumidifier / cooling machines x 2
- Pro versionAlso inside the unit: timer and alarm, anion generator and air purifier system
Comfort & accessories
- Oxygen mask
- Air and oxygen tubes
- Power cable and spare fuses
- Spare activated carbon cotton filters
Safety & controls
- Internal and external pressure gauges
- Pressure deflate valves and pressure relief valves (automatic, extra-quiet)
- Emergency valve (exit in about 30 seconds)
Optional add-ons (not included)
Not includedAvailable for this model at extra cost. Ask our team to add them to your order.
- Water-chiller air conditioner unit (110V/220V) for cooling (sold separately)
Not sure which configuration you need? Call 1-762-214-2594 and our team will confirm exactly what arrives with your order.
Frequently Asked Questions
What pressure does the OxyRevo Forward90 MINI operate at?
Working Pressure: 1.4 ATA / 1.5 ATA. Working pressure is set and limited by the chamber’s valves and controls; follow the manufacturer’s manual for use.
Who is the OxyRevo Forward90 MINI best suited to?
Homes, clinics and studios where a traditional chamber will not fit but a seated session will.
What size is it, and how much space do I need?
Weight: 15 kg / 30 lbs. Dimensions: 66″ L × 47″ W × 47″ H. Plan a flat, level area for the chamber, room beside it for the compressor, oxygen equipment and any cooler, and a clear route through doorways. Measure the delivery route before you order.
How does the OxyRevo Forward90 MINI deliver oxygen?
Standard Version – Oxygen Concentrator: Model HG10, 110V/220V, 18.11″ L × 17.32″ W × 30.71″ H, 500W, 10 L/min, 66 lbs. This listing includes: 10L oxygen concentrator, Oxygen mask, Air/oxygen tubes.
Do I need to buy oxygen cylinders?
No. The included 10 L/min oxygen concentrator makes oxygen from room air continuously, so there is nothing to refill.
What upkeep does it need?
The manufacturer names the air compressor filters as the main wear item, to be changed every 6 to 12 months depending on how often you use the system. Spare filters are supplied.
Can I pay over time or use HSA or FSA funds?
Payment plans may be offered at checkout depending on your order total, location and lender approval, and the options are shown before you confirm. HSA and FSA eligibility depends on your plan, how the item is used and your plan administrator’s rules, and many plans ask for a Letter of Medical Necessity. We cannot guarantee eligibility. Check with your administrator; we can provide an itemized invoice on request.
Can you help me choose the right model?
Yes. Call 1-762-214-2594 (Mon–Sun 9am–9pm ET), email sales@wellnessterritory.com or request a quote, and our product specialists will help you compare options, plan your space and power, and plan delivery and installation.
